Exploded View

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

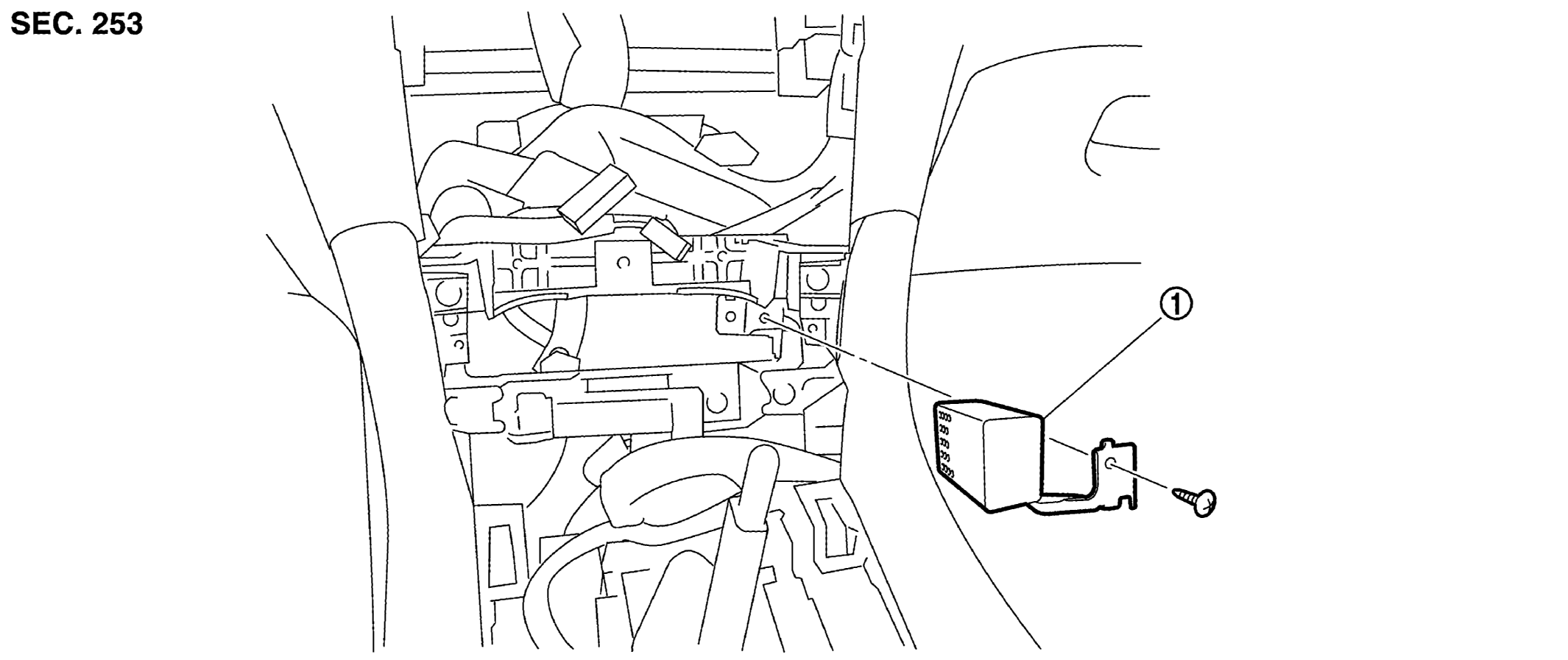

GNSJPOIA0125ZZ-125Courtesy of NISSAN NORTH AMERICA, INC.
1. Lane departure warning buzzer
