Exploded View

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

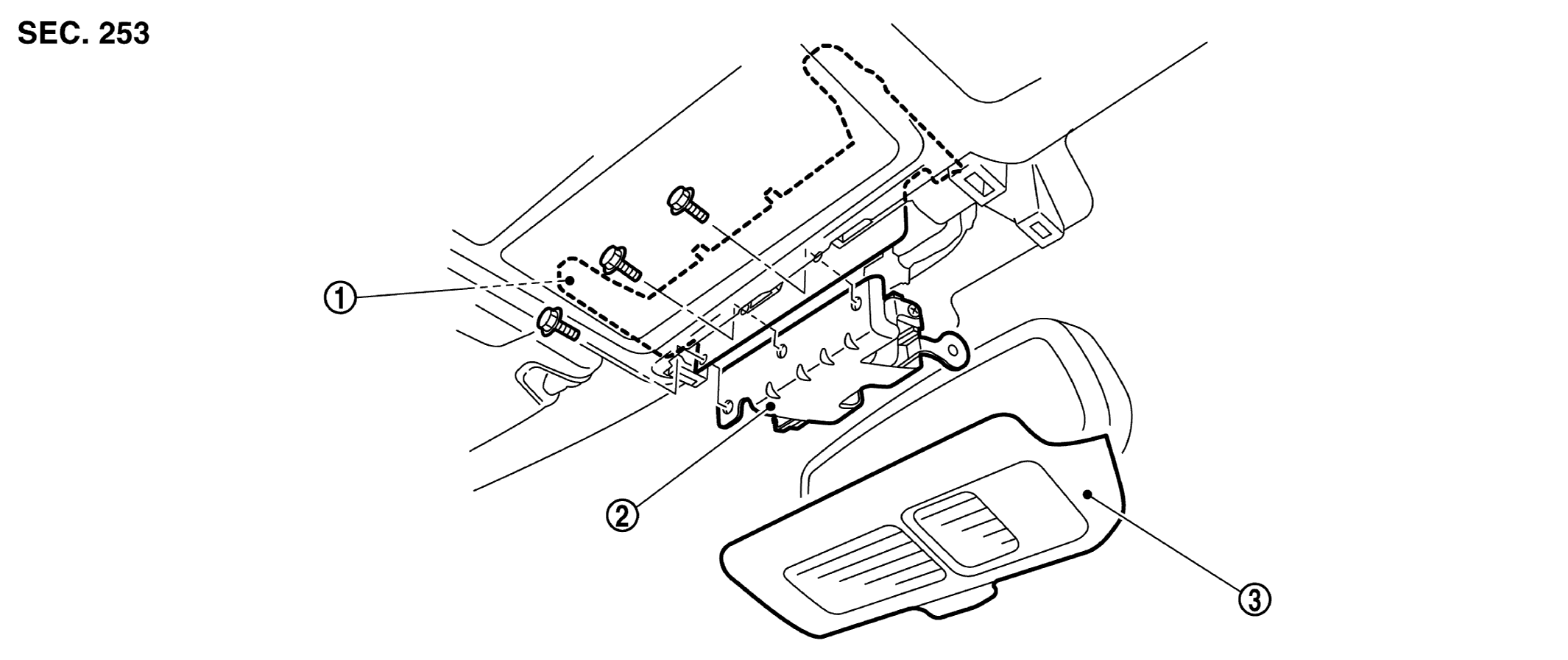

GNSJSOIA0774GB-774Courtesy of NISSAN NORTH AMERICA, INC.
1. Lane camera bracket 2. Lane camera unit 3. Front camera finisher
