Wiring Diagram - LDW & LDP -
WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

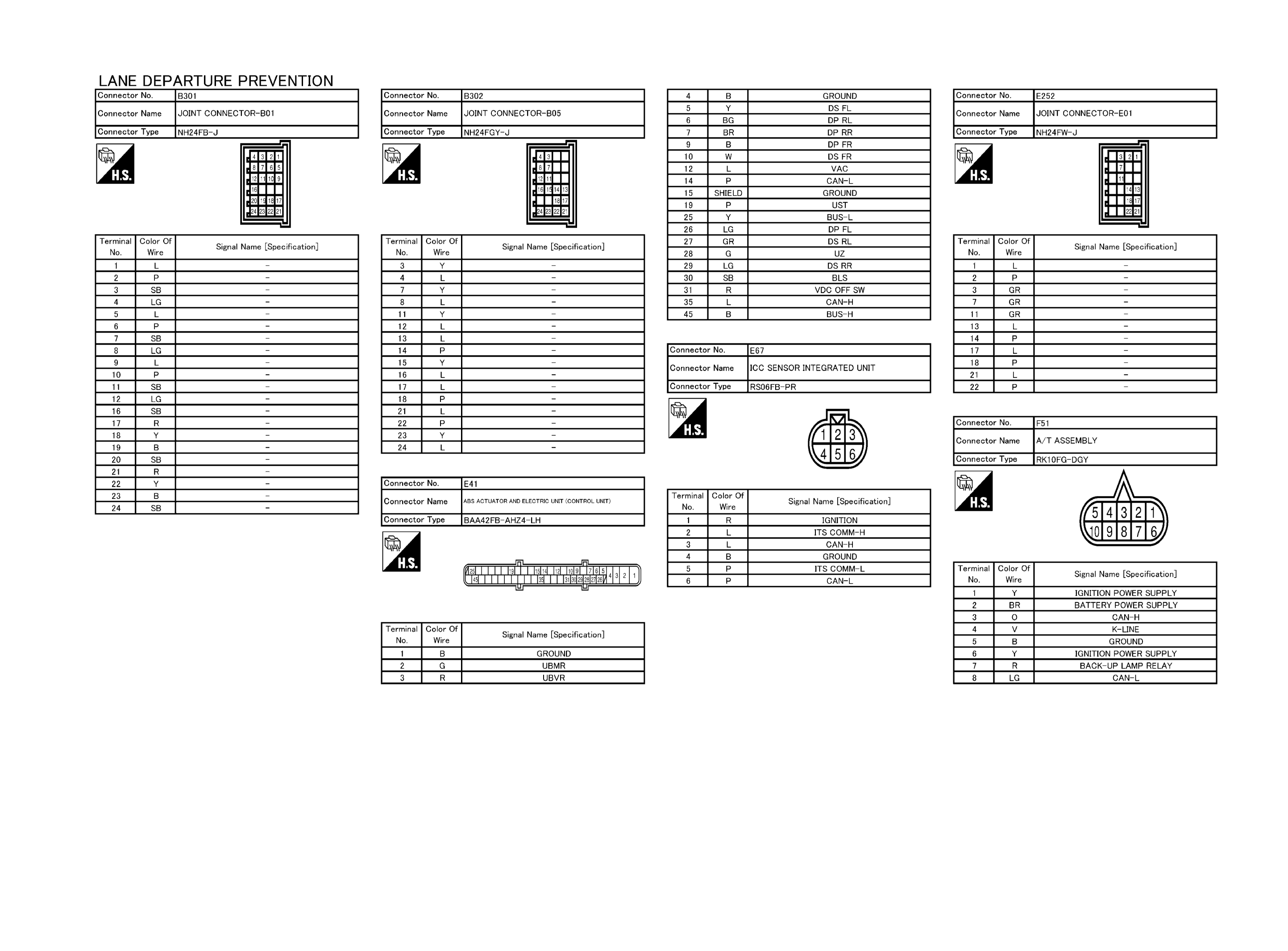

 Courtesy of NISSAN NORTH AMERICA, INC.
|

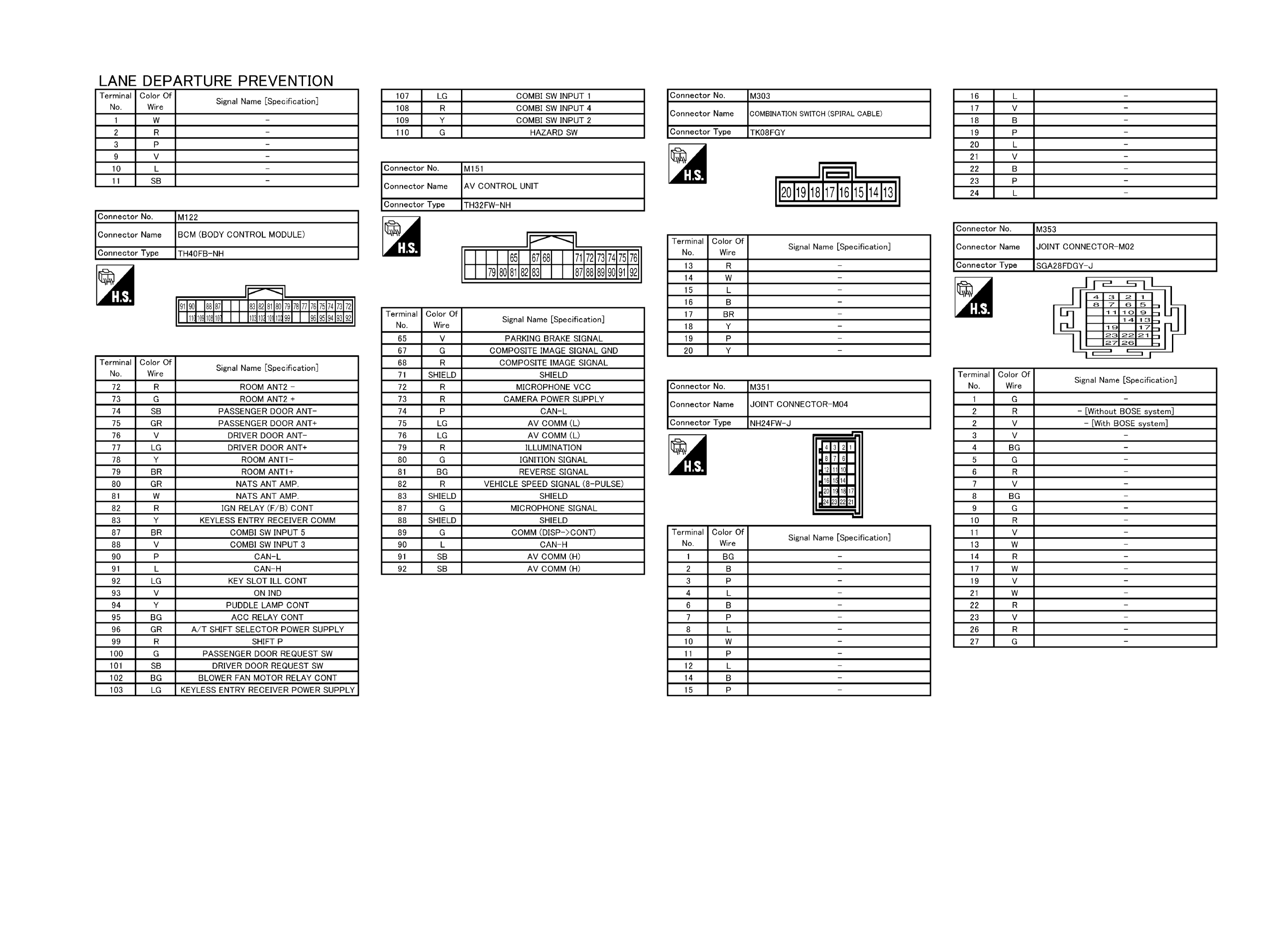

 Courtesy of NISSAN NORTH AMERICA, INC.
|

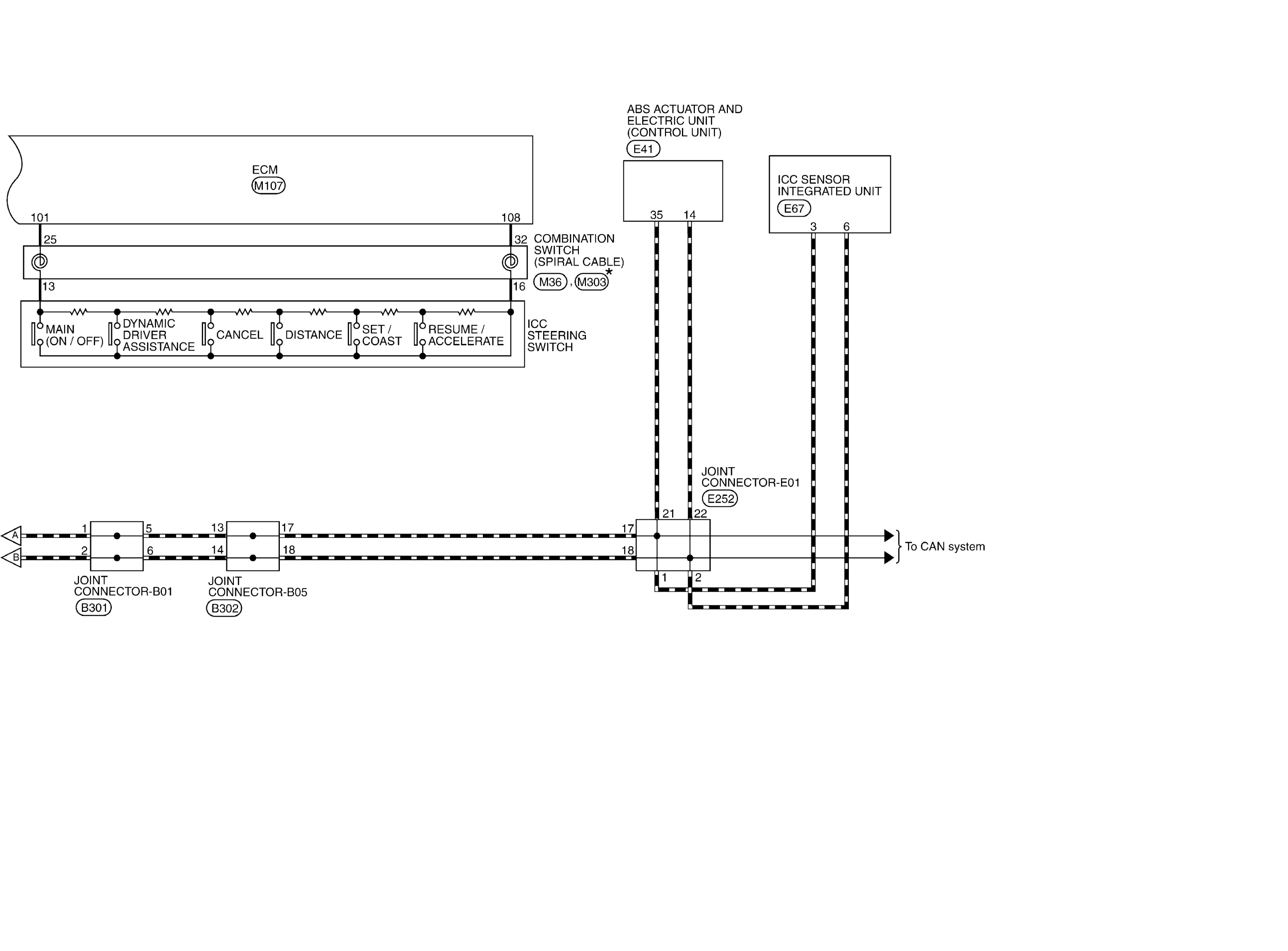

 Courtesy of NISSAN NORTH AMERICA, INC.
|

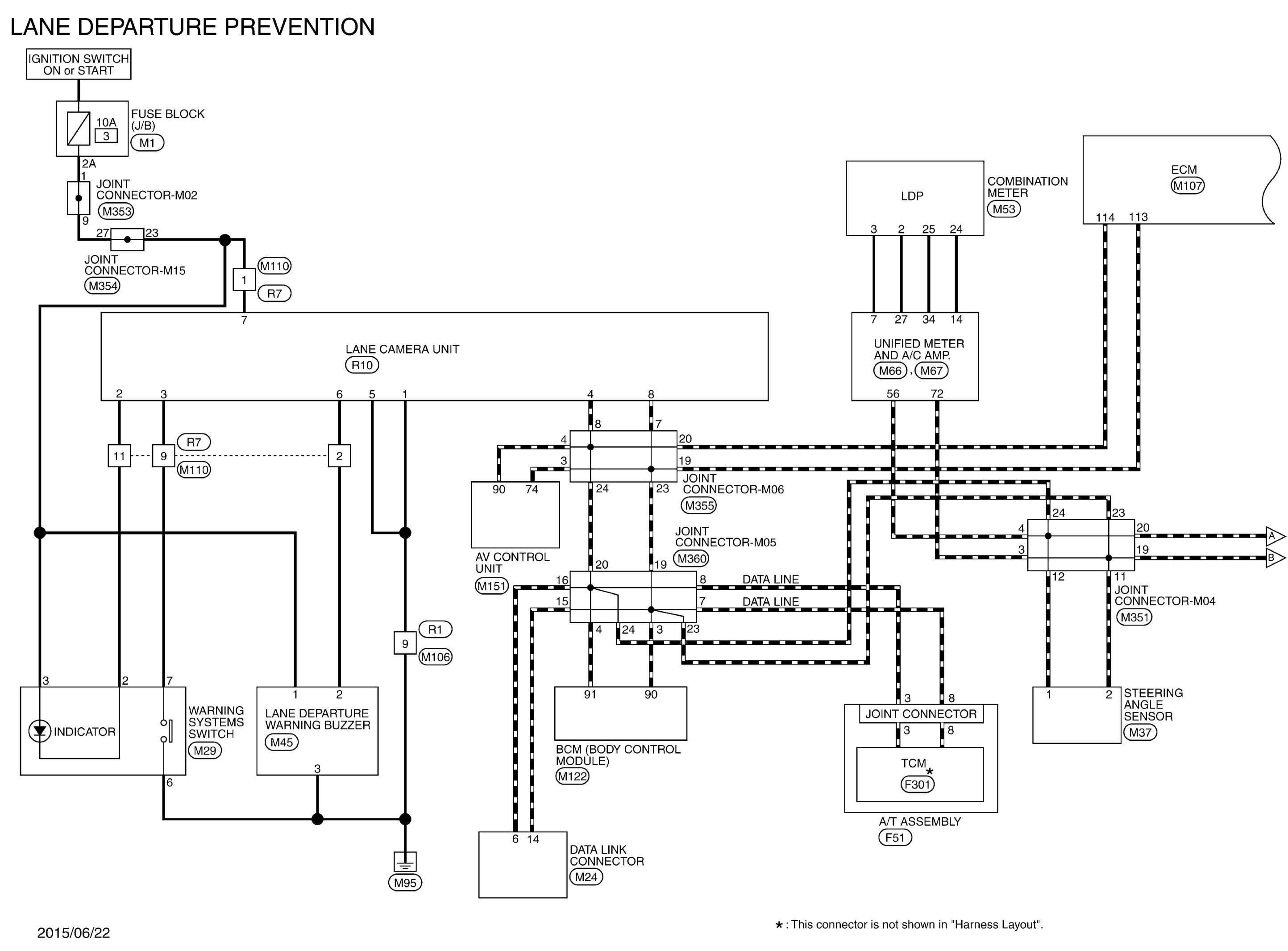

 Courtesy of NISSAN NORTH AMERICA, INC.
|

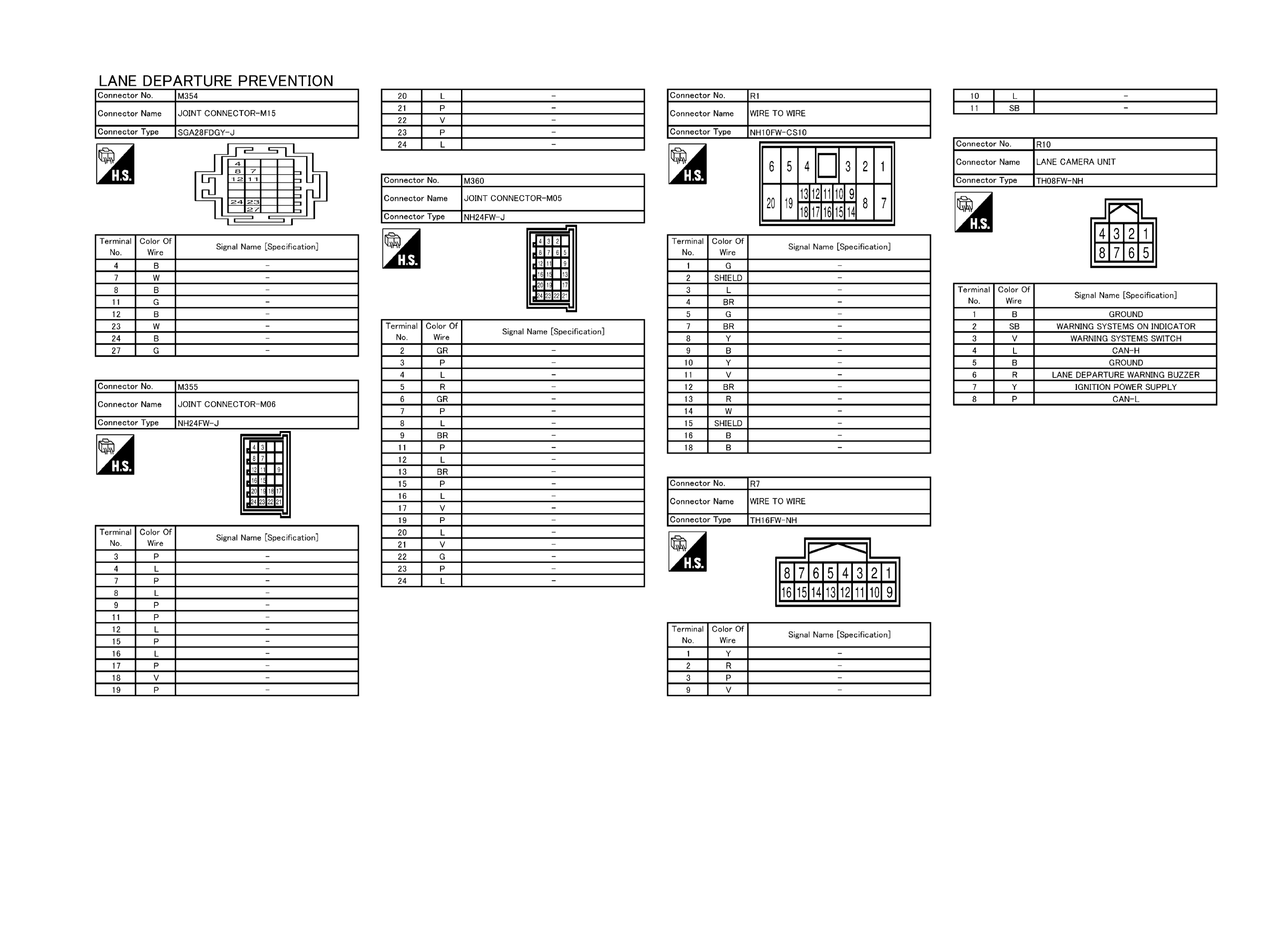

 Courtesy of NISSAN NORTH AMERICA, INC.
|

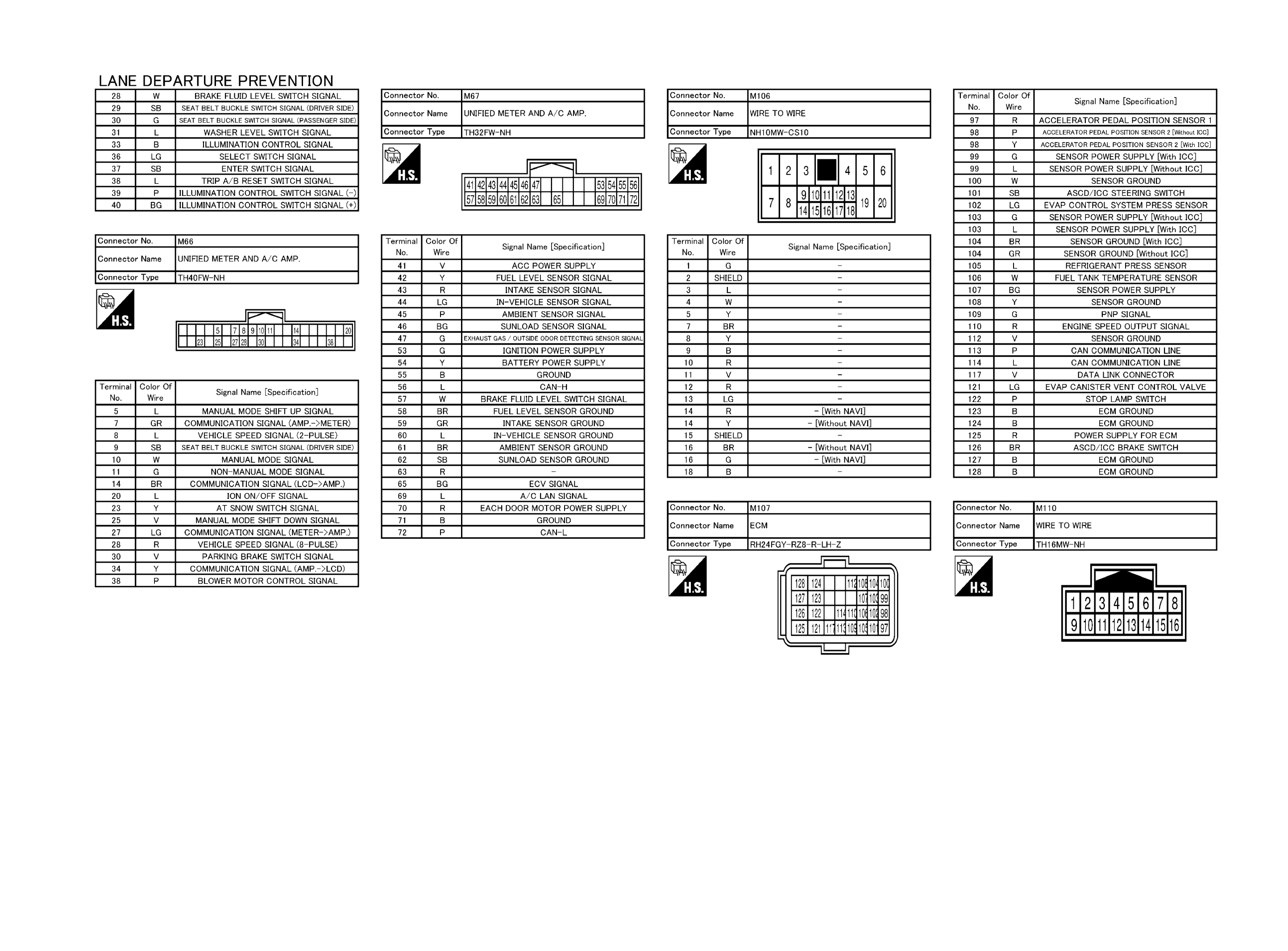

 Courtesy of NISSAN NORTH AMERICA, INC.
|

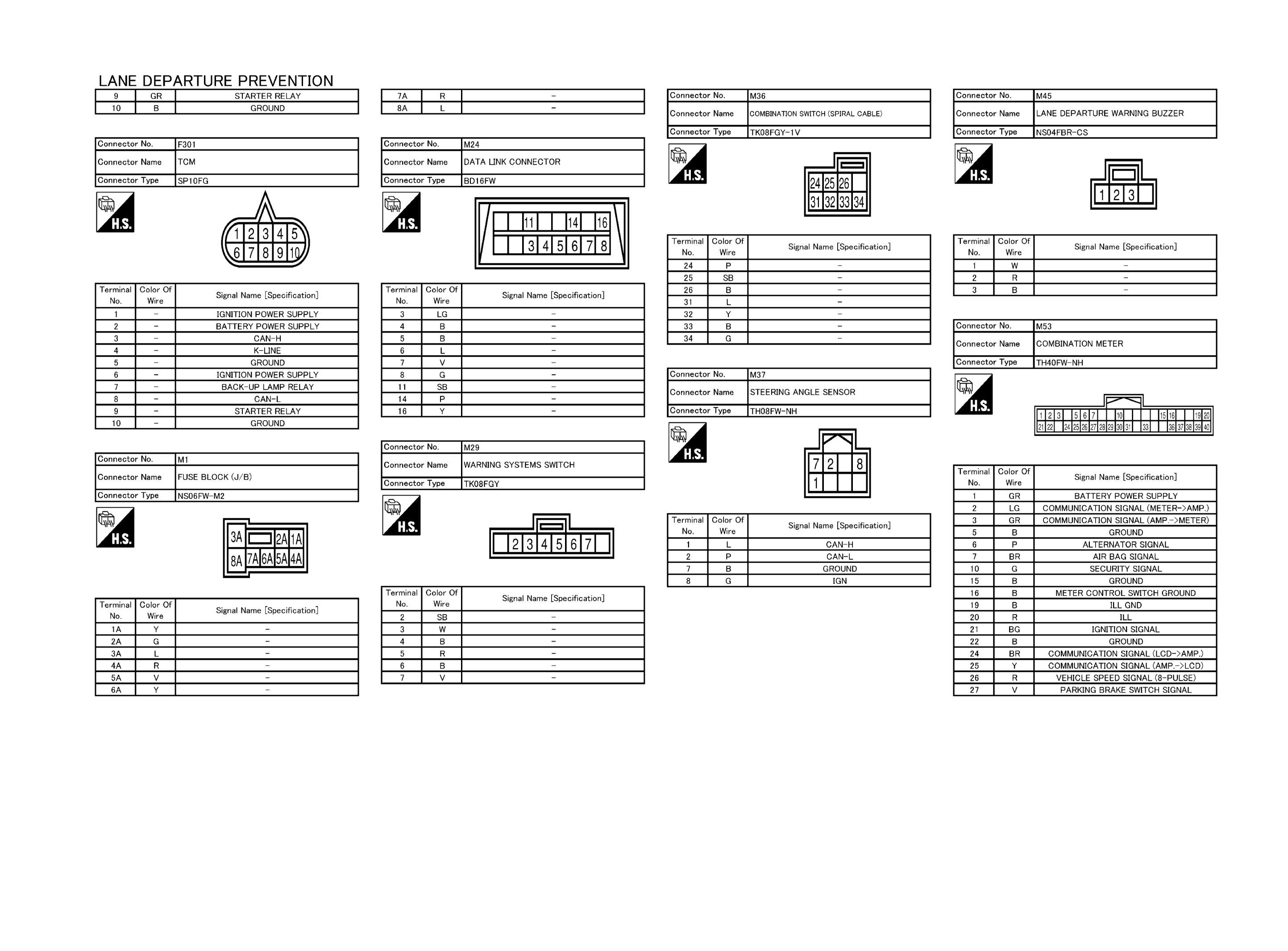

 Courtesy of NISSAN NORTH AMERICA, INC.
|
