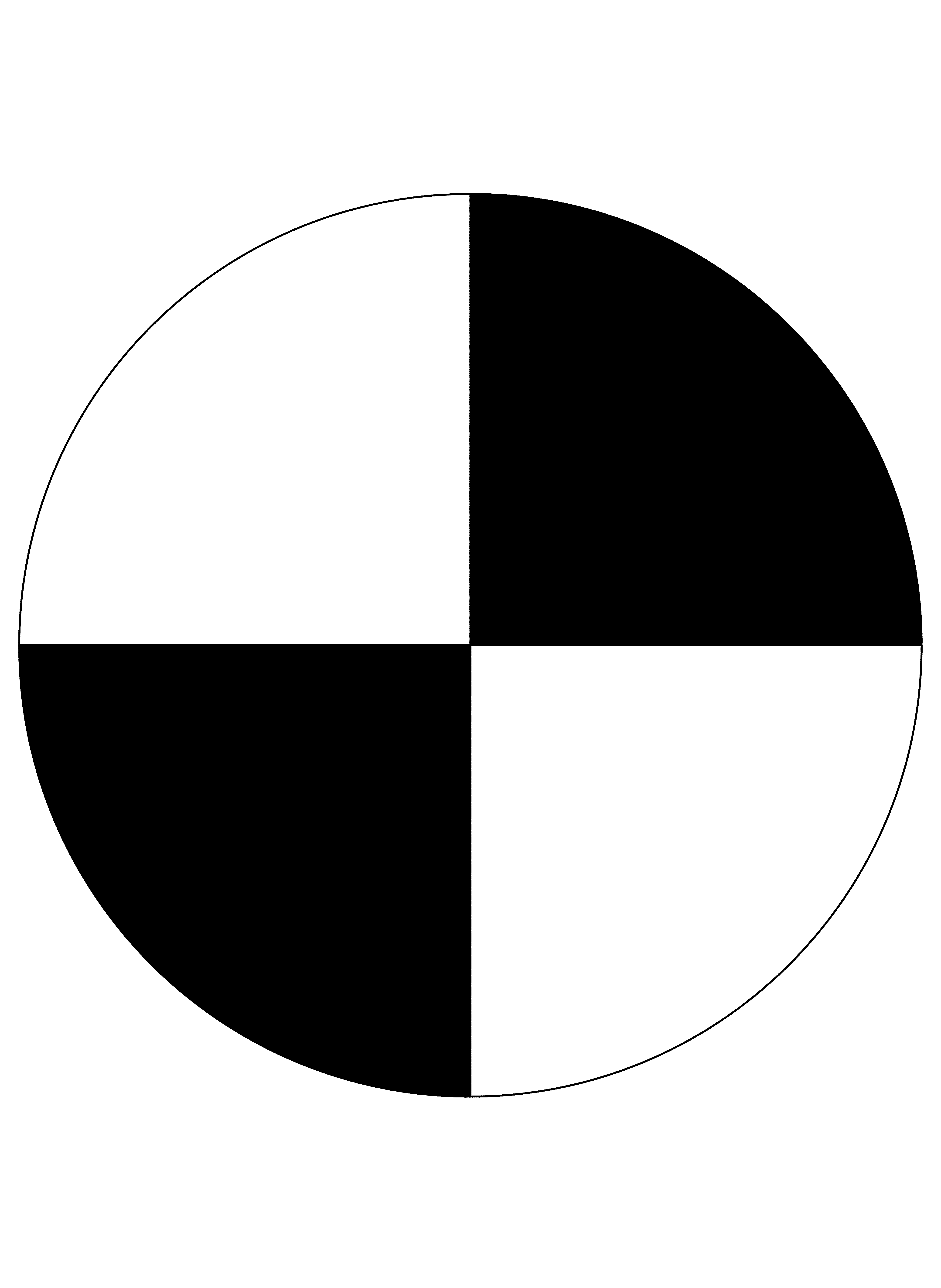

Special Repair Requirement (Target Mark Sample)

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Print this illustration so that the diameter of the circle is 200 mm (7.87 in).

Courtesy of NISSAN NORTH AMERICA, INC.
