Special Repair Requirement (Camera Aiming Adjustment)

WARNING: This page is about a different car, the 2016 Infiniti QX50. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Perform the adjustment under unloaded vehicle condition.

CHECK VEHICLE HEIGHT

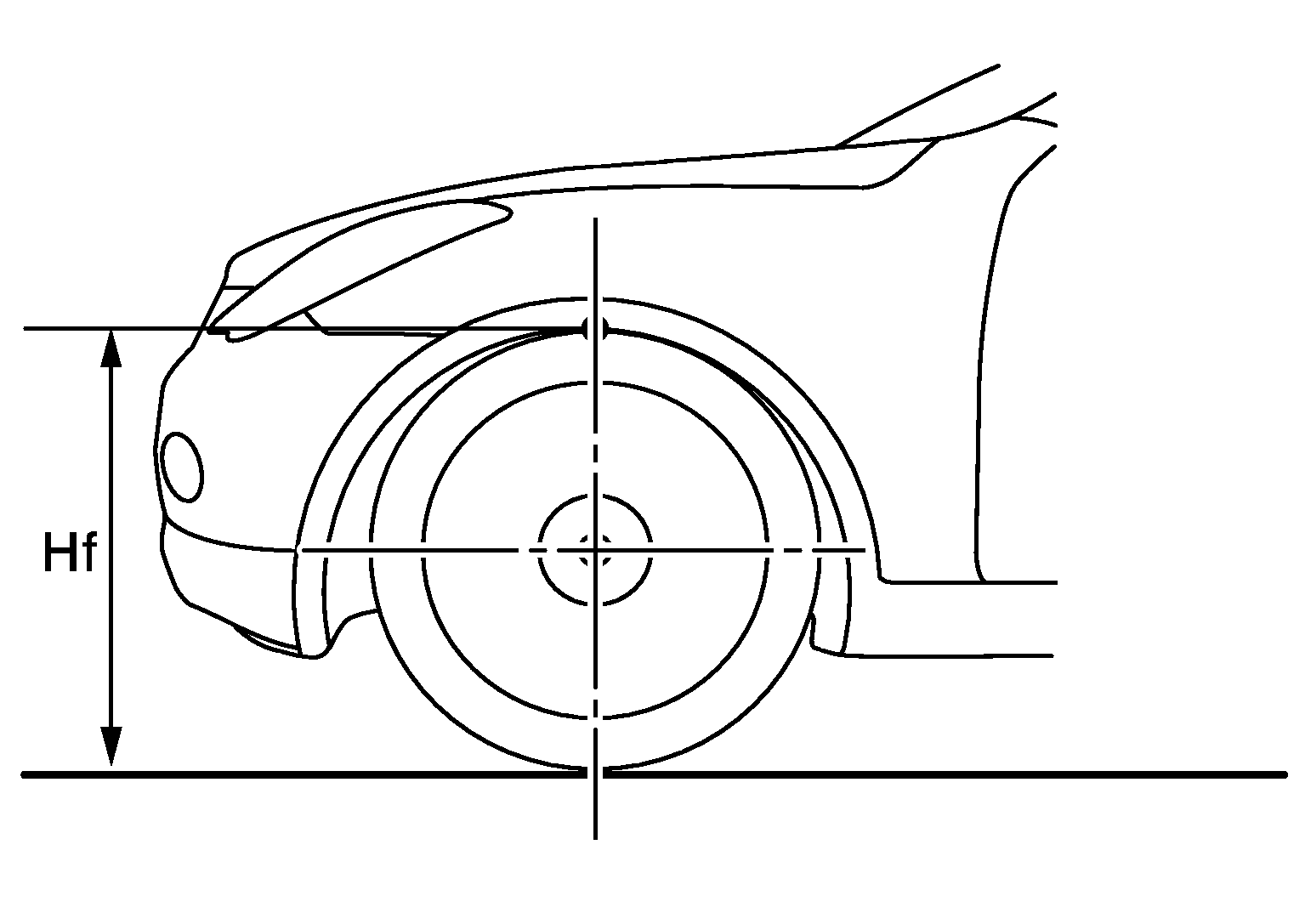

Measure the wheel arch height. Calculate "Dh".

Courtesy of NISSAN NORTH AMERICA, INC.

Dh [mm] = (Hfl + Hfr) ÷ 2 - 747
where,
	Hfl: Front left wheel arch height [mm]
	Hfr: Front right wheel arch height [mm]

NOTE:

"Dh" may be calculated as a minus value.

GO TO STEP 2 .

CAMERA AIMING ADJUSTMENT

CONSULT WORK SUPPORT

CAUTION:

Operate CONSULT outside the vehicle, and close all the doors. (To retain vehicle attitude appropriately)

Select "Work Support" on "LANE CAMERA" with CONSULT.
Select "AUTO AIM".
Confirm the following items;
- The target should be accurately placed.
- The vehicle should be stopped.
Select "Start" to perform camera aiming.
CAUTION:
Never select "Start" when the target is not accurately placed.
Input "Dh", and then select "Start".
CAUTION:
Never change "Ht" and "Dt".

Confirm the displayed item.

"Normally Completed": Select "Completion".

"SUSPENSION" or "ABNORMALLY COMPLETED": Perform the following services.

Displayed item		Possible cause	Service procedure
SUSPENSION	00H Routine not activated	A target is not-yet-placed. (The lane camera unit cannot detect a target.) Lane camera unit malfunction.	Position the target appropriately again. Perform the aiming again. Refer to SPECIAL REPAIR REQUIREMENT (TARGET SETTING) .
SUSPENSION	10H Writing error	Temporary malfunction in internal processing of the lane camera unit. Lane camera unit malfunction.
ABNORMALLY COMPLETED	-	The position of the target is not correct. The position of the lane camera unit is not correct. Inappropriate work environment. Inappropriate vehicle condition.	Position the target appropriately again. Perform the aiming again. Refer to SPECIAL REPAIR REQUIREMENT (PREPARATION) .

NOTE:

Replace camera unit if "SUSPENSION" is repeatedly indicated during the above two services are performed.

Confirm that "Normally Completed" is displayed and then select "End" to close the aiming adjustment procedure.

GO TO STEP 3 .

PERFORM SELF - DIAGNOSIS

Perform self-diagnosis of lane camera unit with CONSULT.

Is any DTC detected?

YES

Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to DTC INDEX .

NO

GO TO STEP 4 .

ACTION TEST

Test the LDW/LDP system operation by action test. Refer to DESCRIPTION .

WORK END
