Disassembly And Assembly: Disassembly

Remove rear console assembly. Refer to REMOVAL AND INSTALLATION .
Remove rear console rear finisher.

Courtesy of NISSAN NORTH AMERICA, INC.

Pull back rear console rear finisher, and then disengage metal clips.

: Metal clip
Remove rear console mask.

Courtesy of NISSAN NORTH AMERICA, INC.

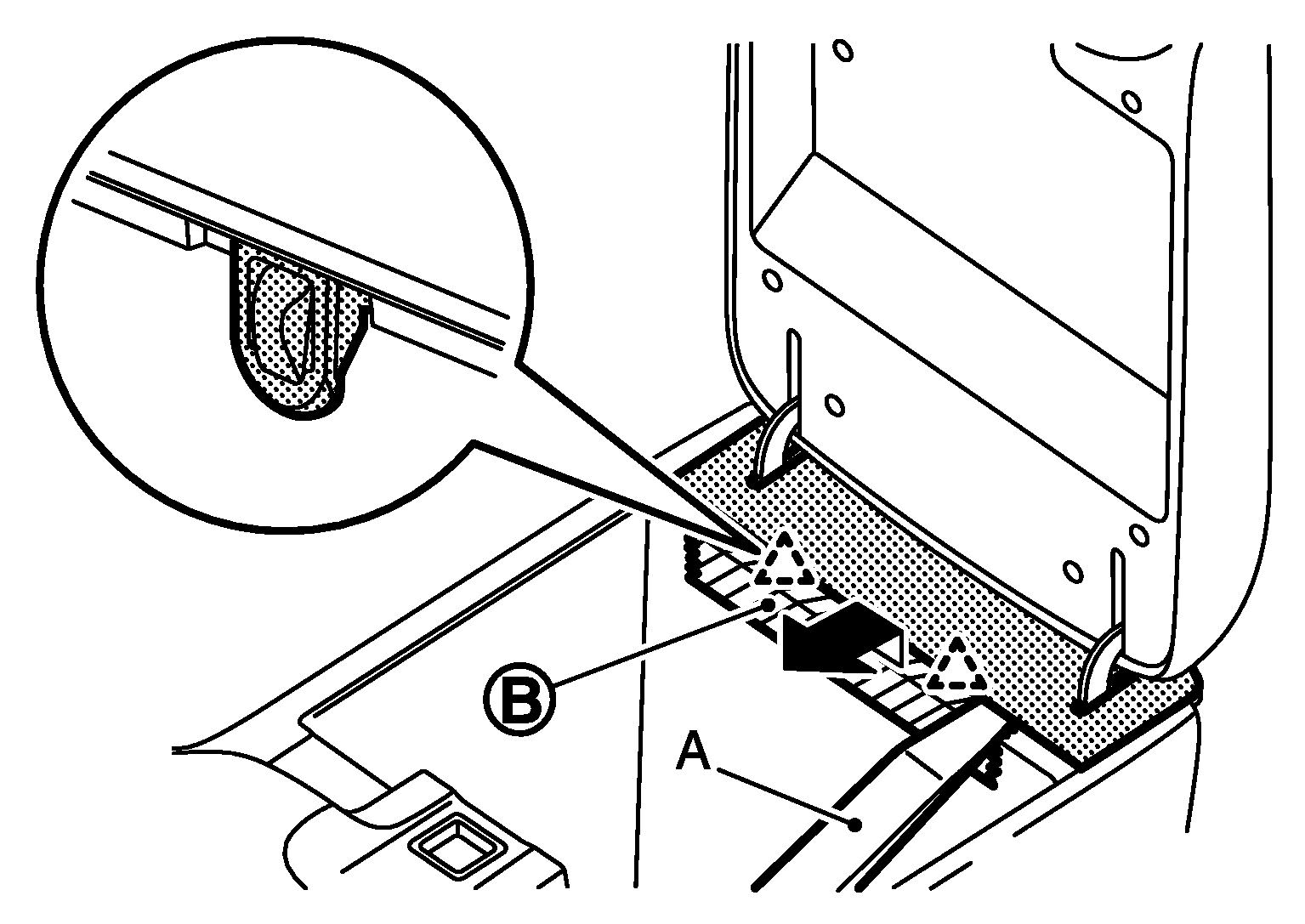

1. Open the rear console lid assembly.
2. Remove rear console hinge mask fixing pawls with remover tool (A).
3. Pull rear console hinge mask up and back.
: Pawl

CAUTION:
Apply protective tape (B) on the part to protect it from damage.
Remove console lid assembly mounting screws and then remove console lid assembly.

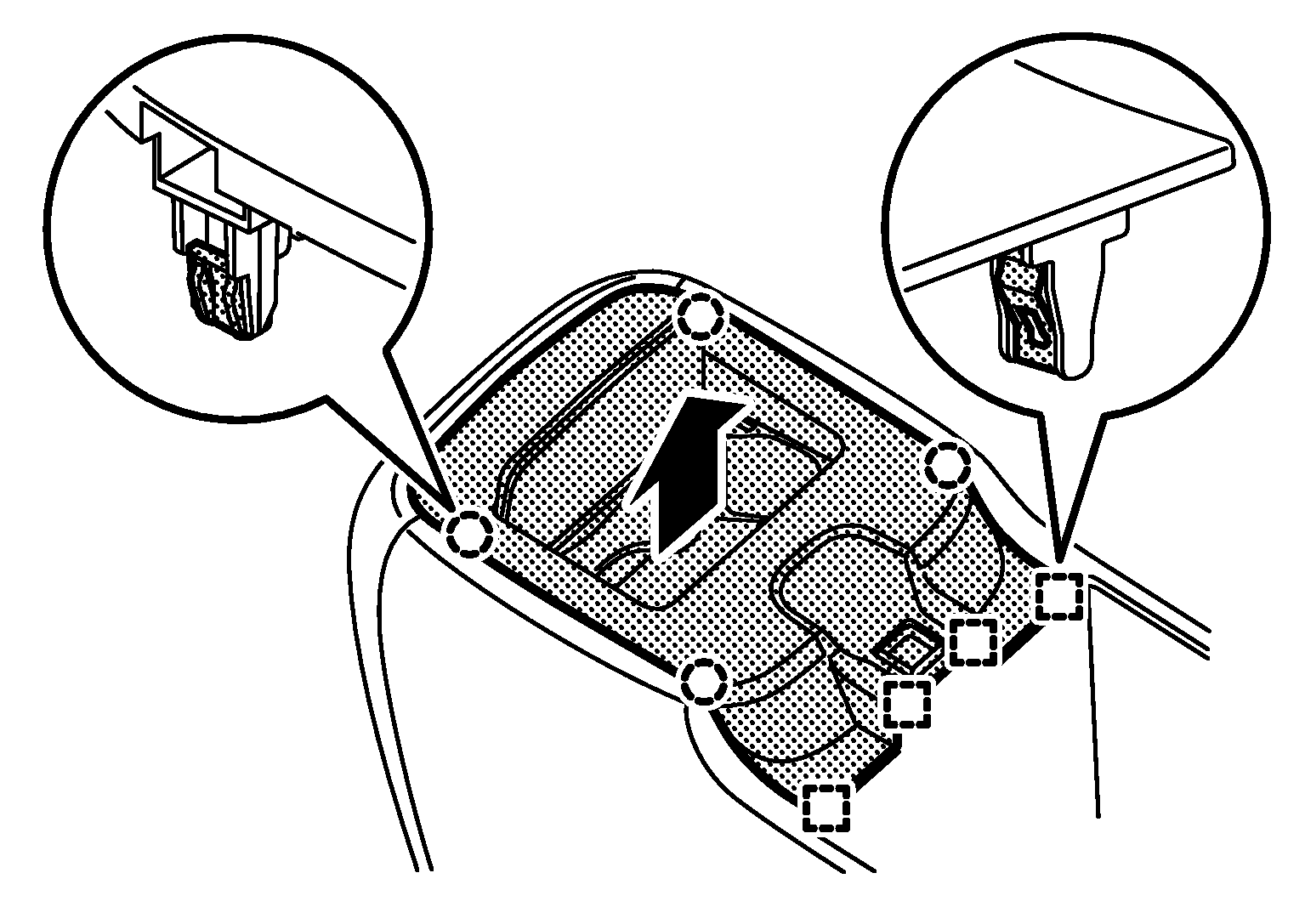

Remove rear cup holder assembly.

Courtesy of NISSAN NORTH AMERICA, INC.
1. Open the rear console lid assembly.
2. Pull upward to release rear cup holder assembly fixing clips and metal clips from rear console assembly.
3. Pull rear console mask up and back.
: Clip

: Metal clip

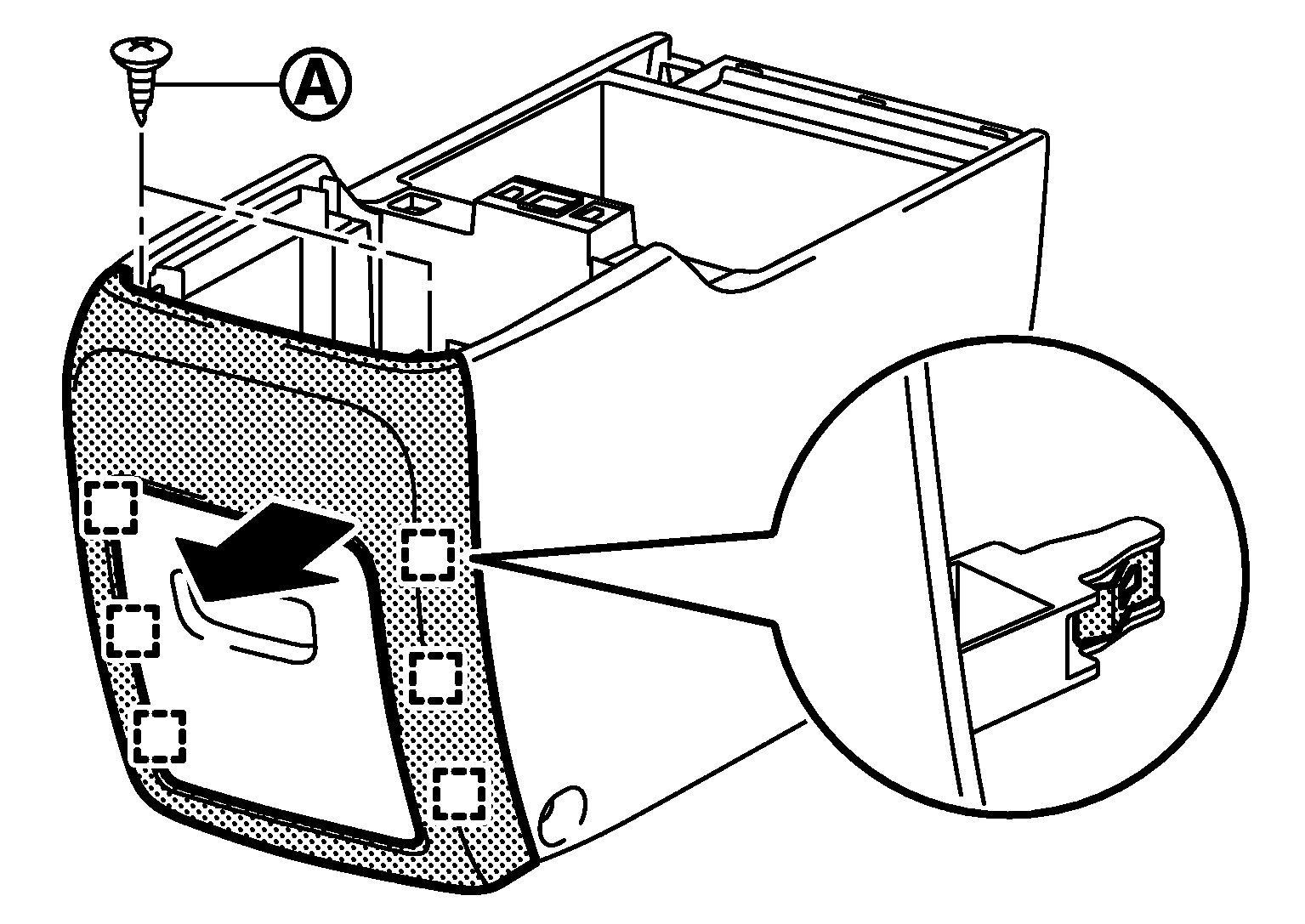

Remove rear console front finisher.

Courtesy of NISSAN NORTH AMERICA, INC.
1. Remove screws (A).
2. Pull rear console front finisher, and then disengage metal clips.
: Metal clip

	: Clip
	: Metal clip
