Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

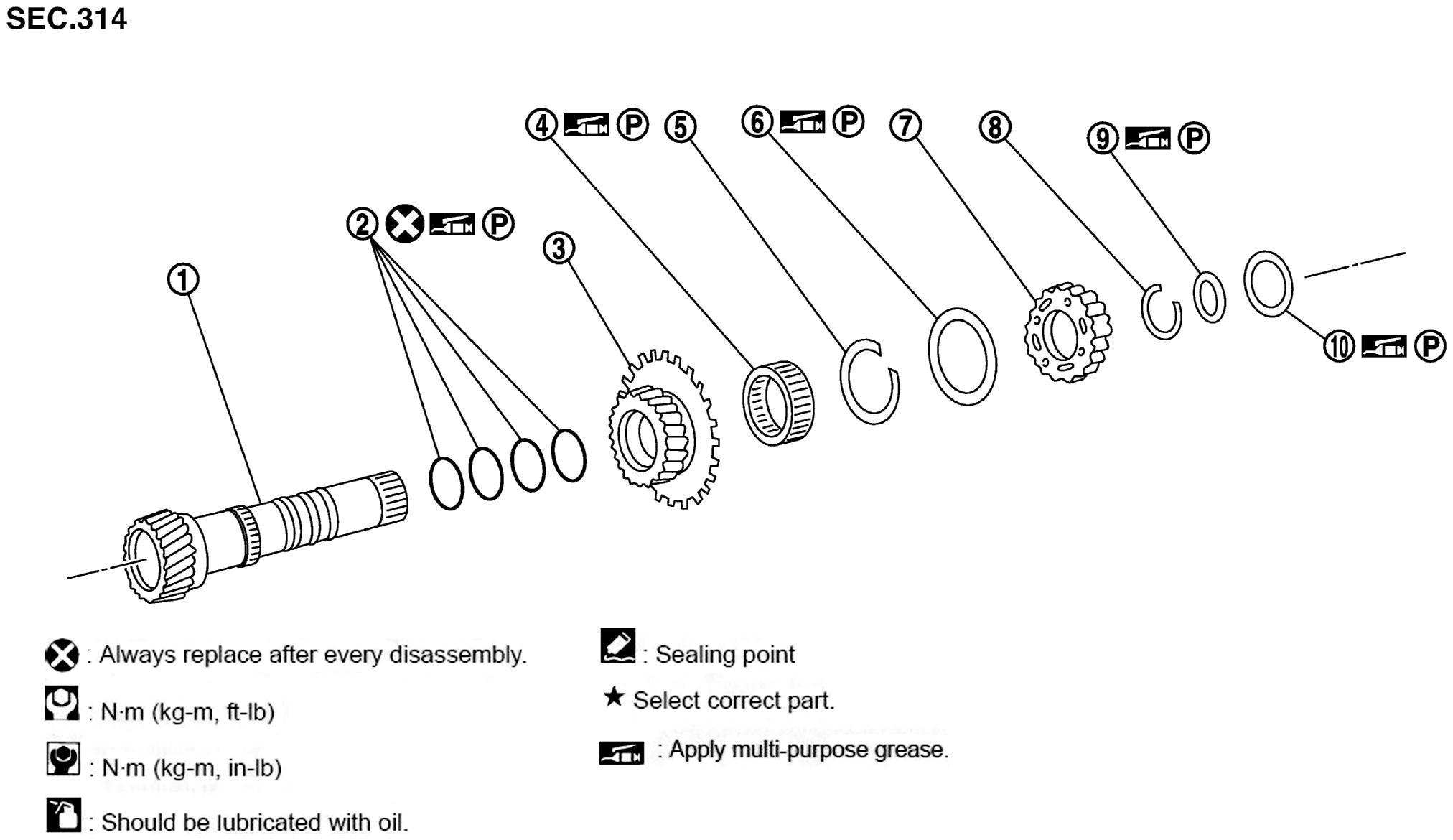

GNSJSDIA1918ZZ-918Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Mid sun gear WHITE-2 Seal ring WHITE-3 Rear sun gear
WHITE-4 2nd one-way clutch WHITE-5 Snap ring WHITE-6 Needle bearing
WHITE-7 High and low reverse clutch hub WHITE-8 Snap ring WHITE-9 Bearing race
WHITE-10 Needle bearing
DISAS : Always replace after every disassembly.
GP : Apply petroleum jelly.
