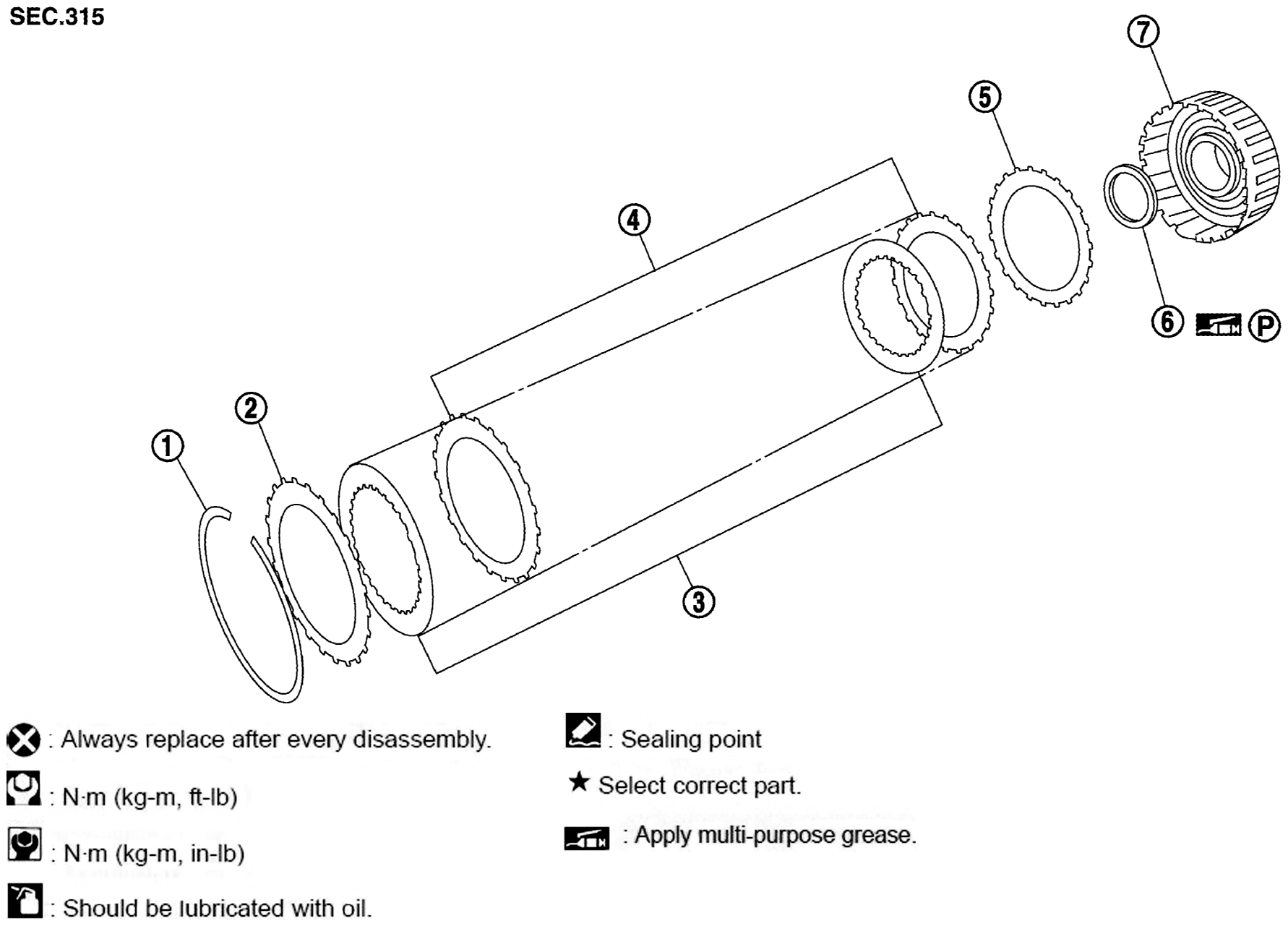

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Snap ring	High and low reverse clutch retaining plate	High and low reverse clutch drive plate
High and low reverse clutch driven plate	High and low reverse clutch dish plate	Bearing race
High and low reverse clutch drum
: Apply petroleum jelly.
