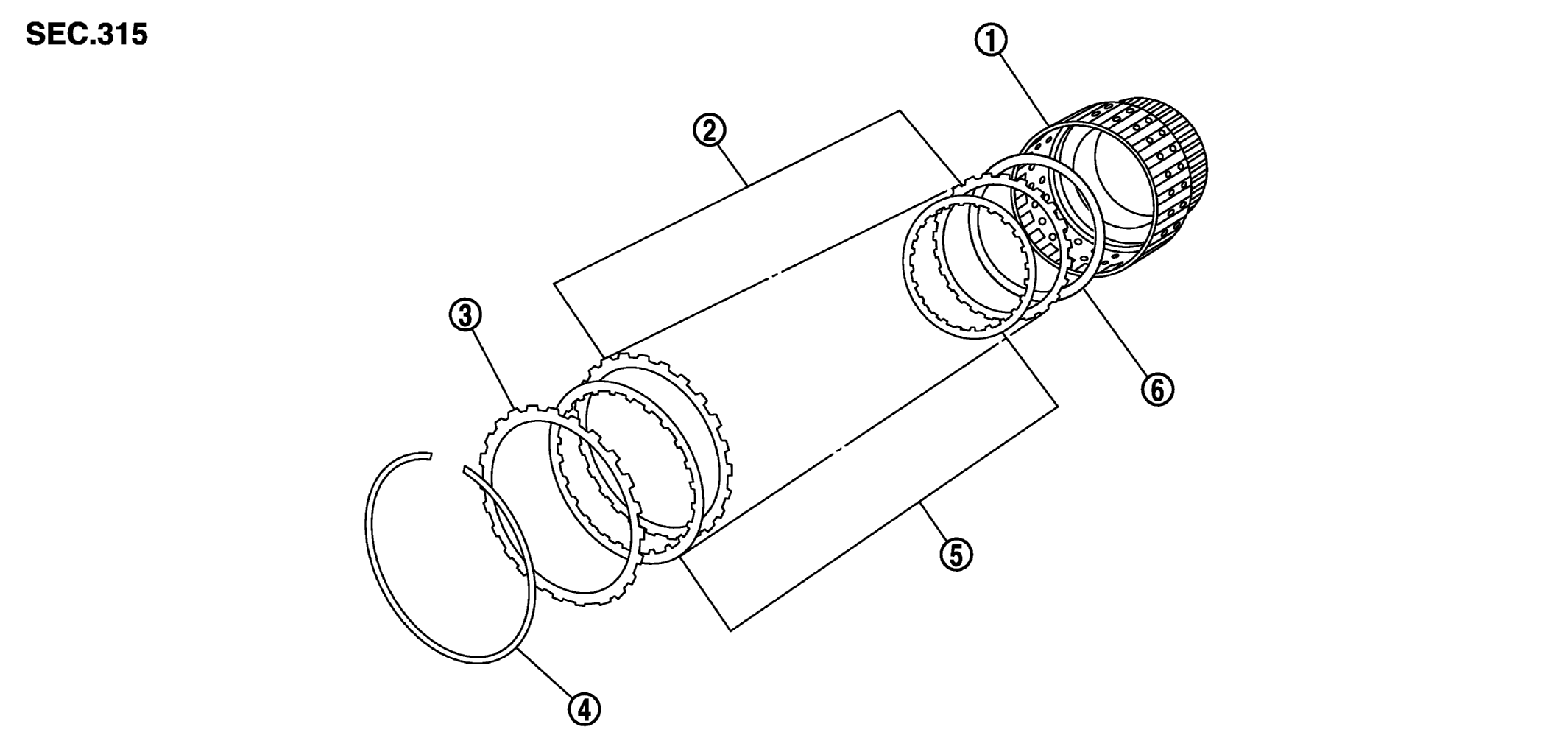

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	Direct clutch drum		Direct clutch driven plate		Direct clutch retaining plate
	Snap ring		Direct clutch drive plate		Direct clutch dish plate
