Circuit Diagram: Notes

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

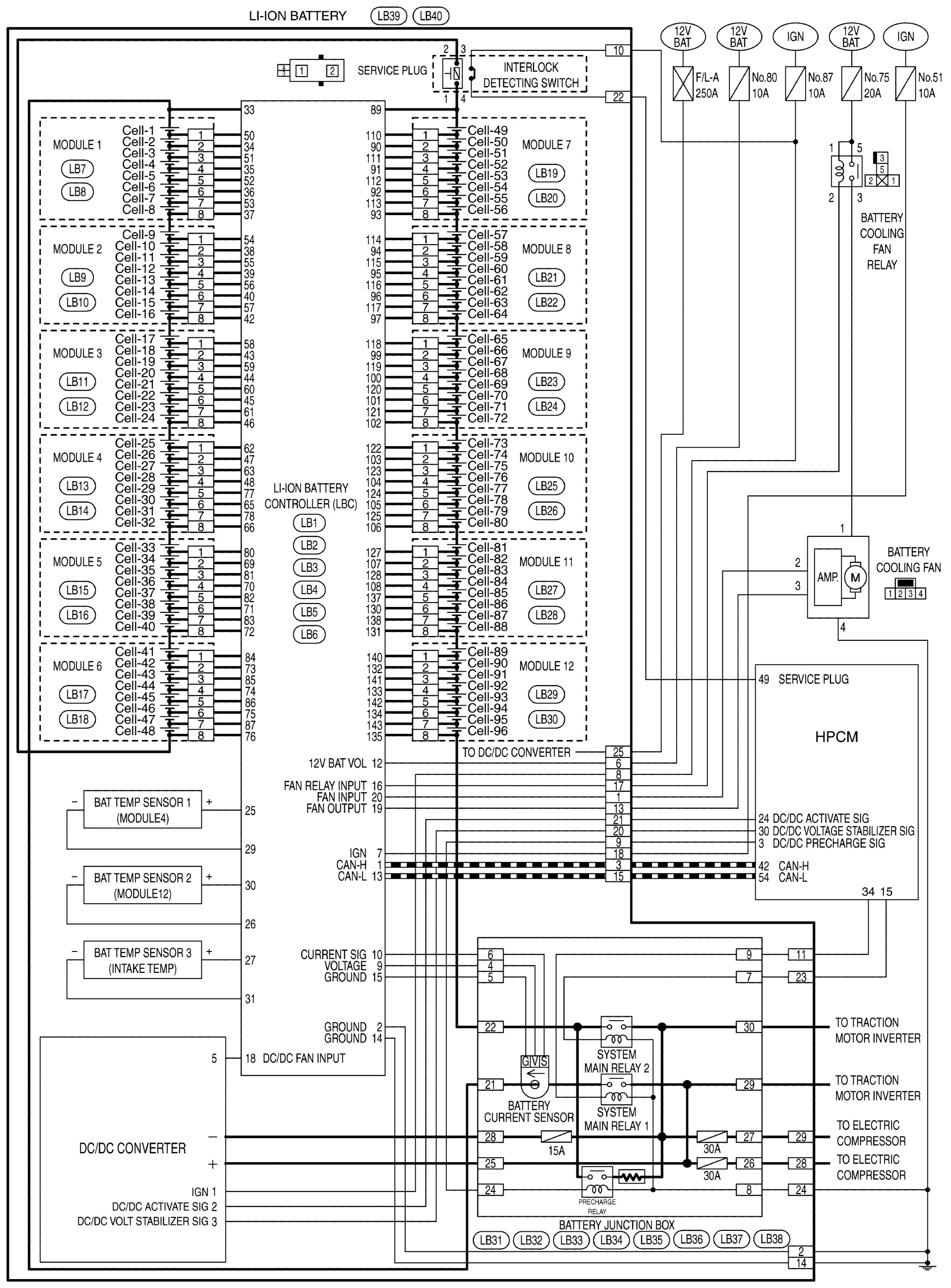

G09166308Courtesy of NISSAN NORTH AMERICA, INC.

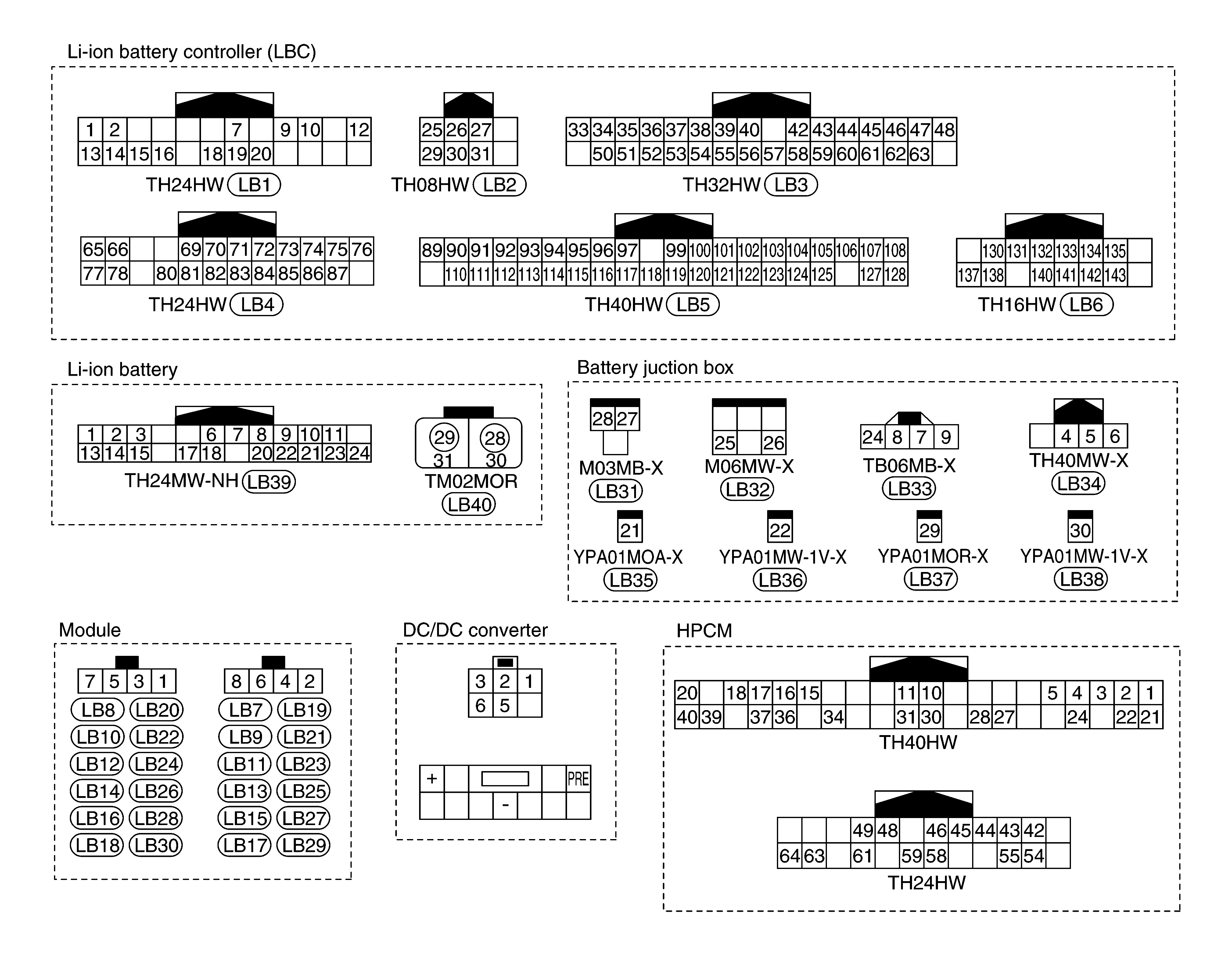

G09166309Courtesy of NISSAN NORTH AMERICA, INC.
