Air Flow
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 |
: Vehicle front |
|
|
|
|

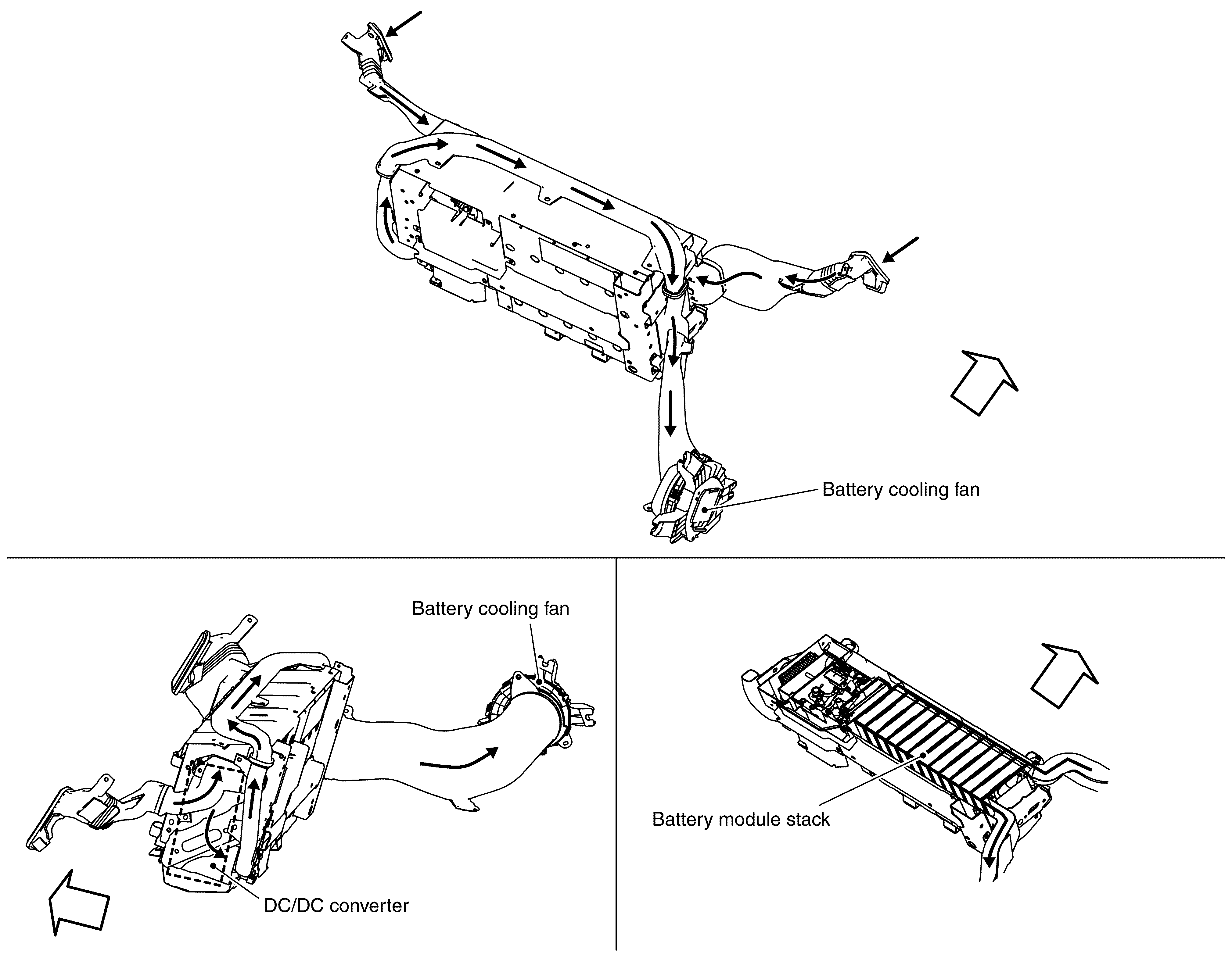

The air in the passenger compartment is sent from the ducts of both side of rear seat to the battery cooling fan. The air is then divided for 2 systems (battery module stack and DC/DC converter) to cool the entire battery pack.
