Component Parts: Module: Notes
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

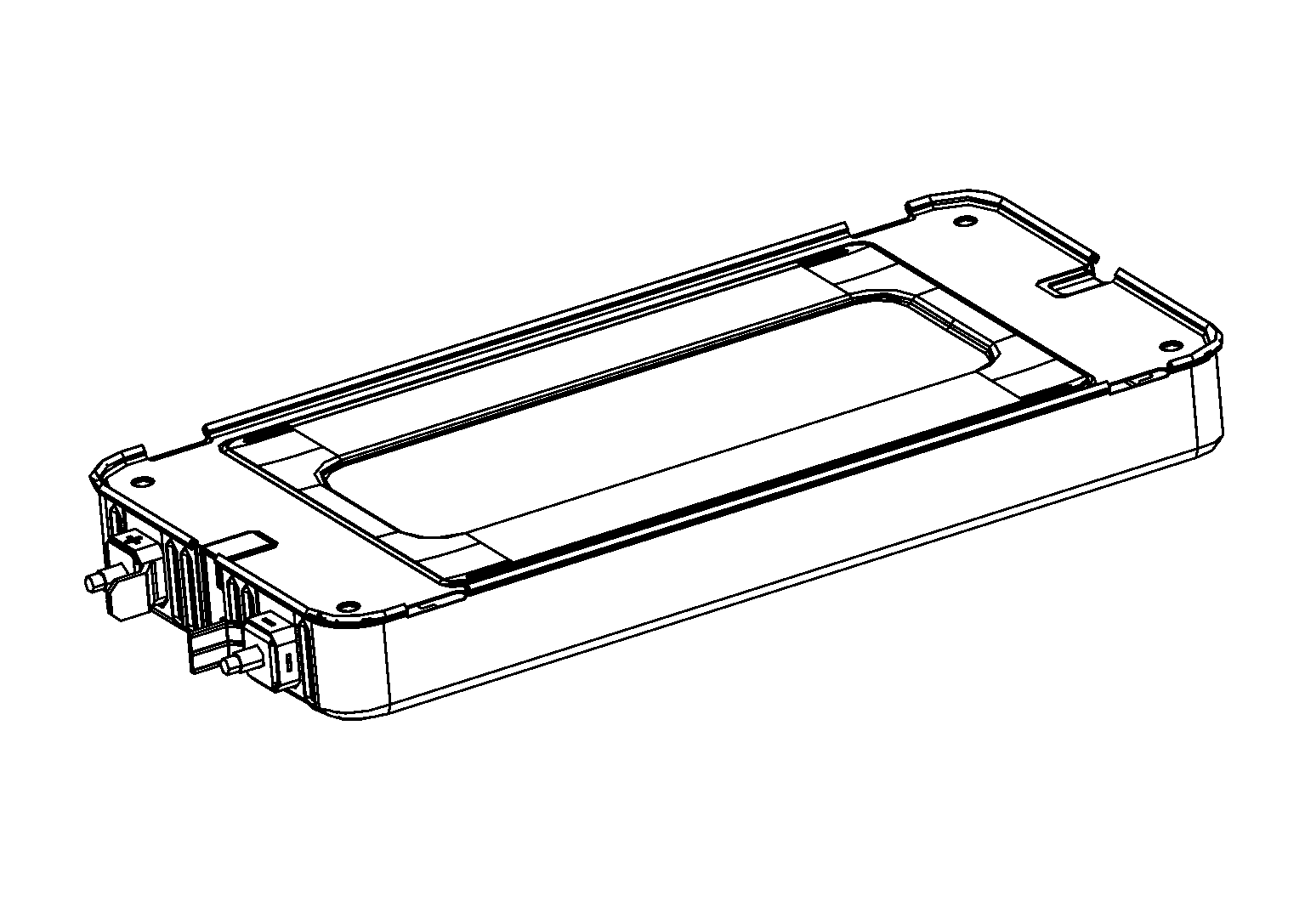

- Each module contains 8 laminated cells joined together.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- The Li-ion battery contains 12 modules.
- There are two kinds of modules, according to the location of positive and negative terminals.
| Positive terminal |
: Red |
| Negative terminal |
: Black |
