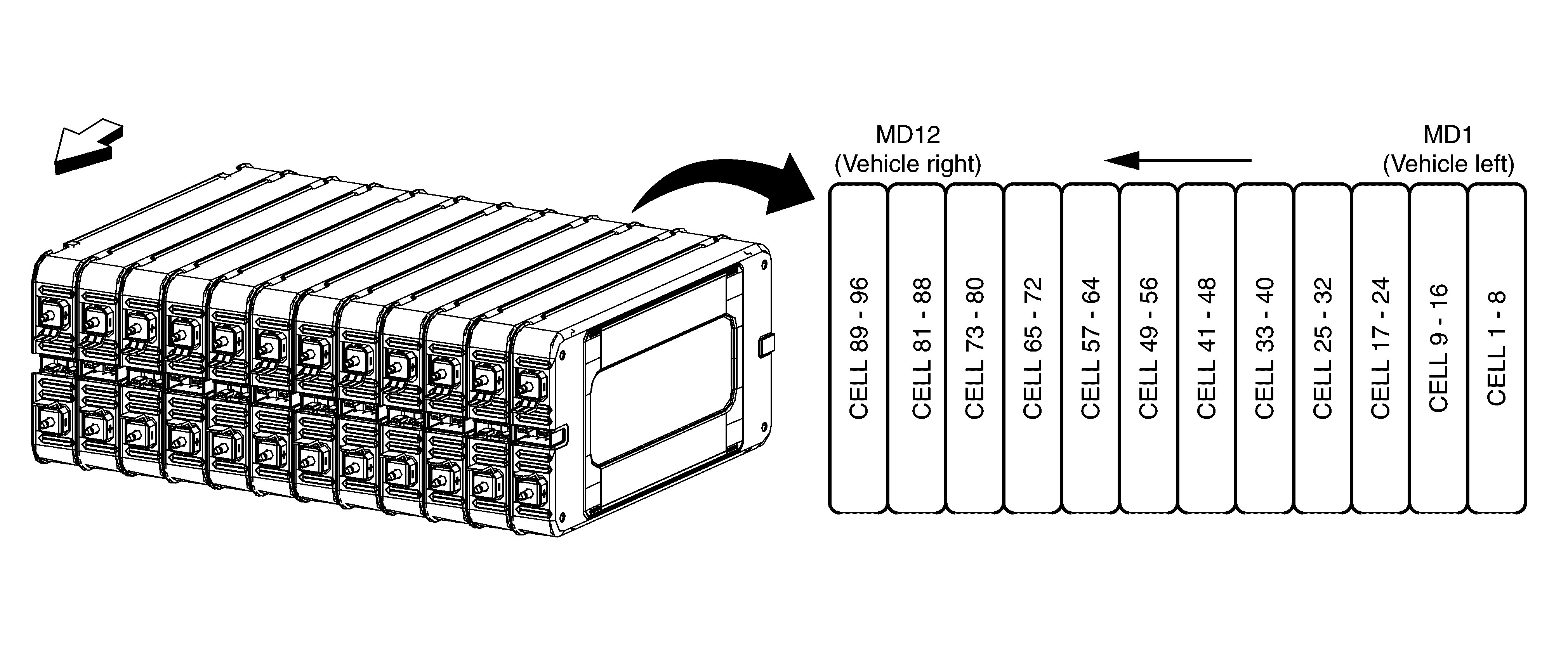

Module Layout
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 |
: Vehicle upper |
MD: Module |
|
|
NOTE:
Module 1 (MD1) has the highest electrical potential, and module 12 (MD12) has the lowest electrical potential.
