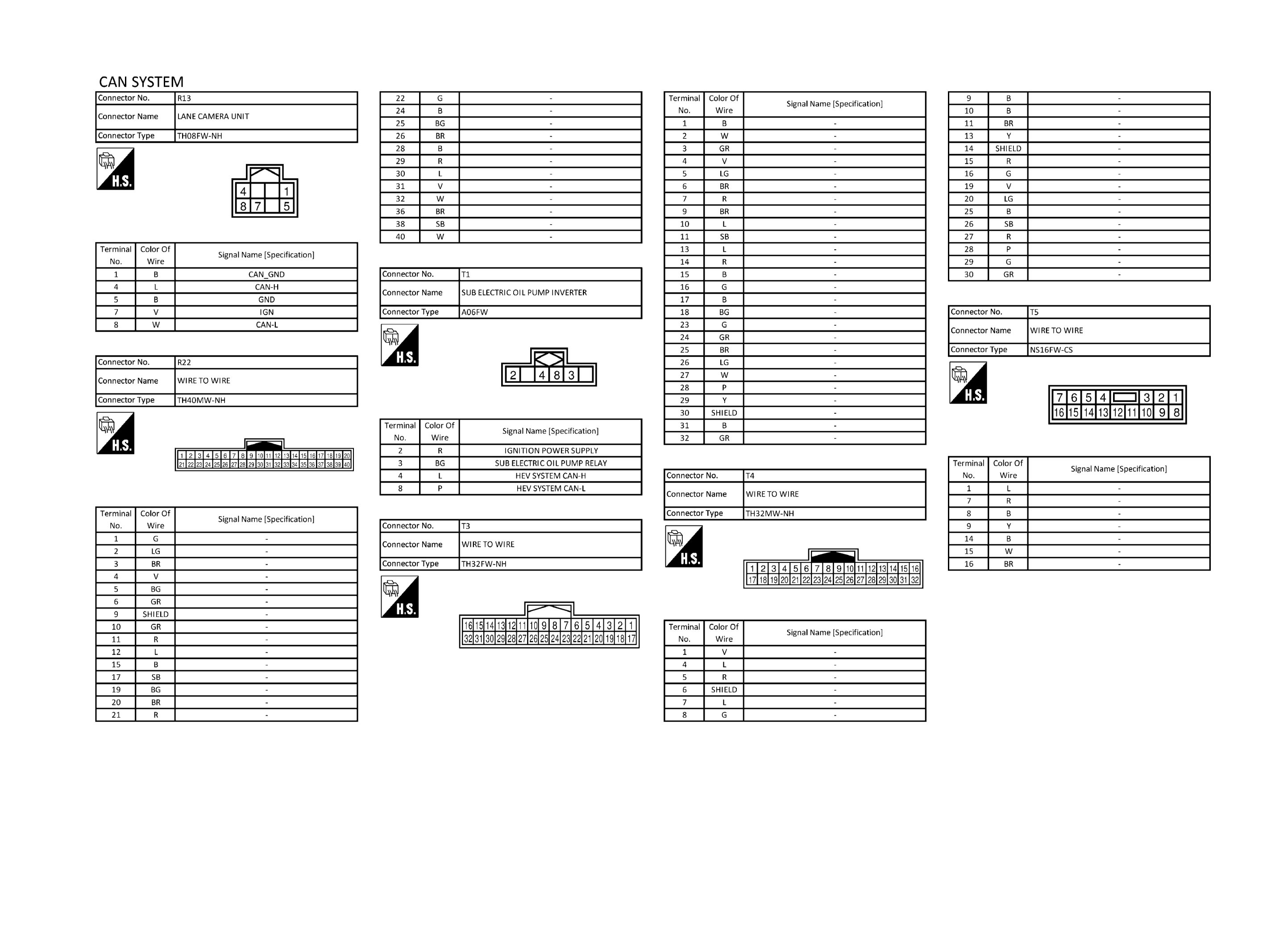

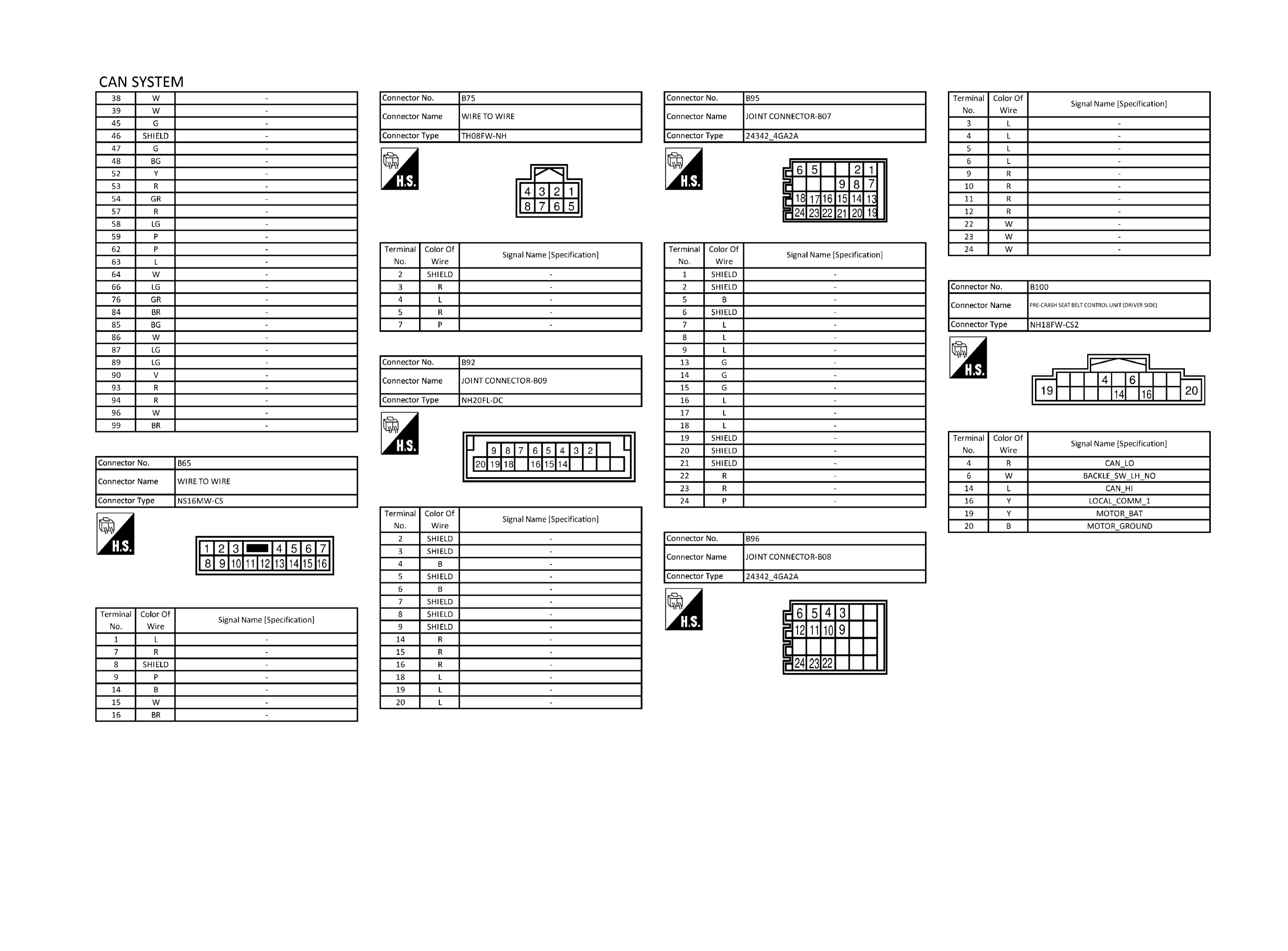

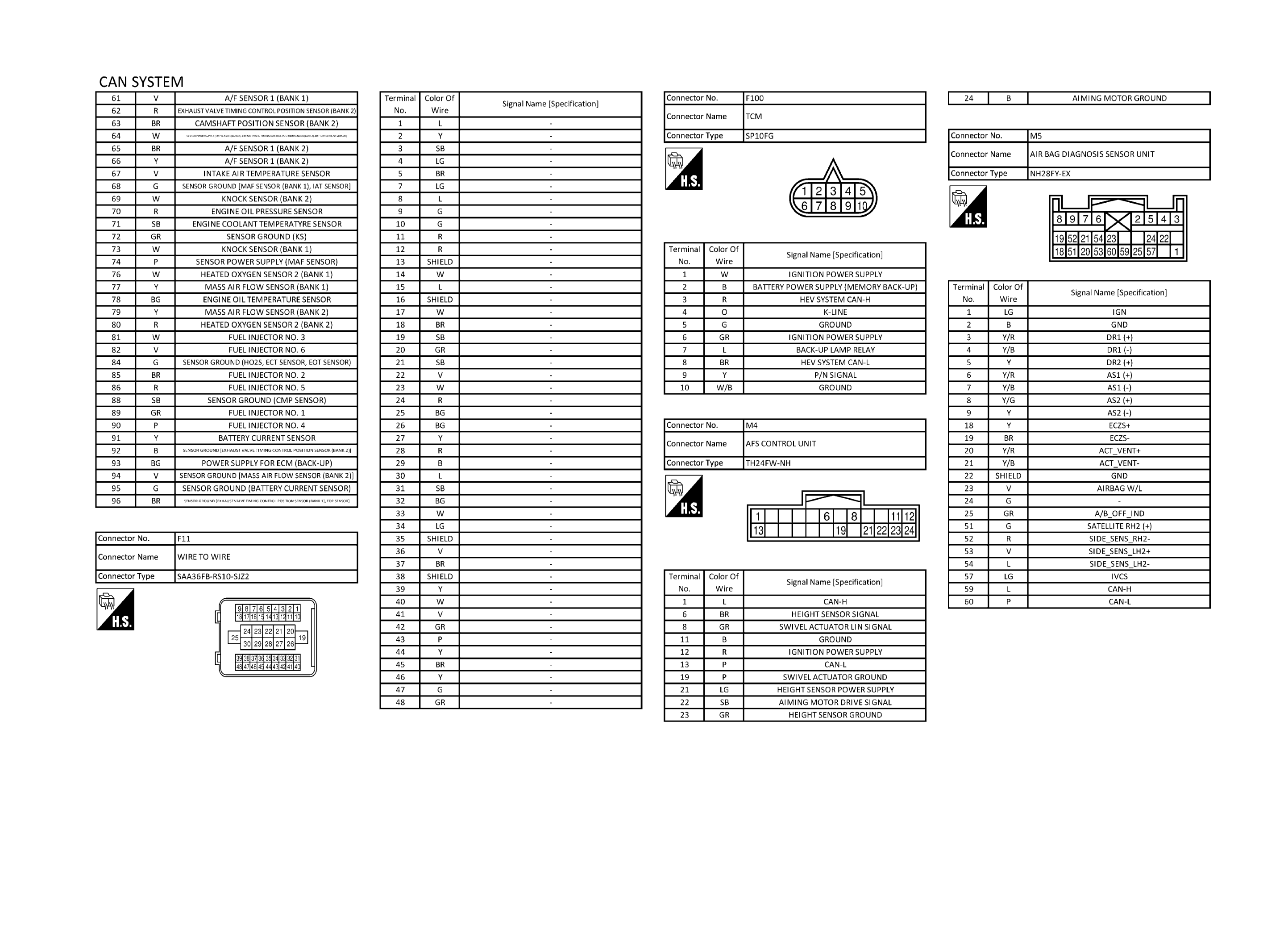

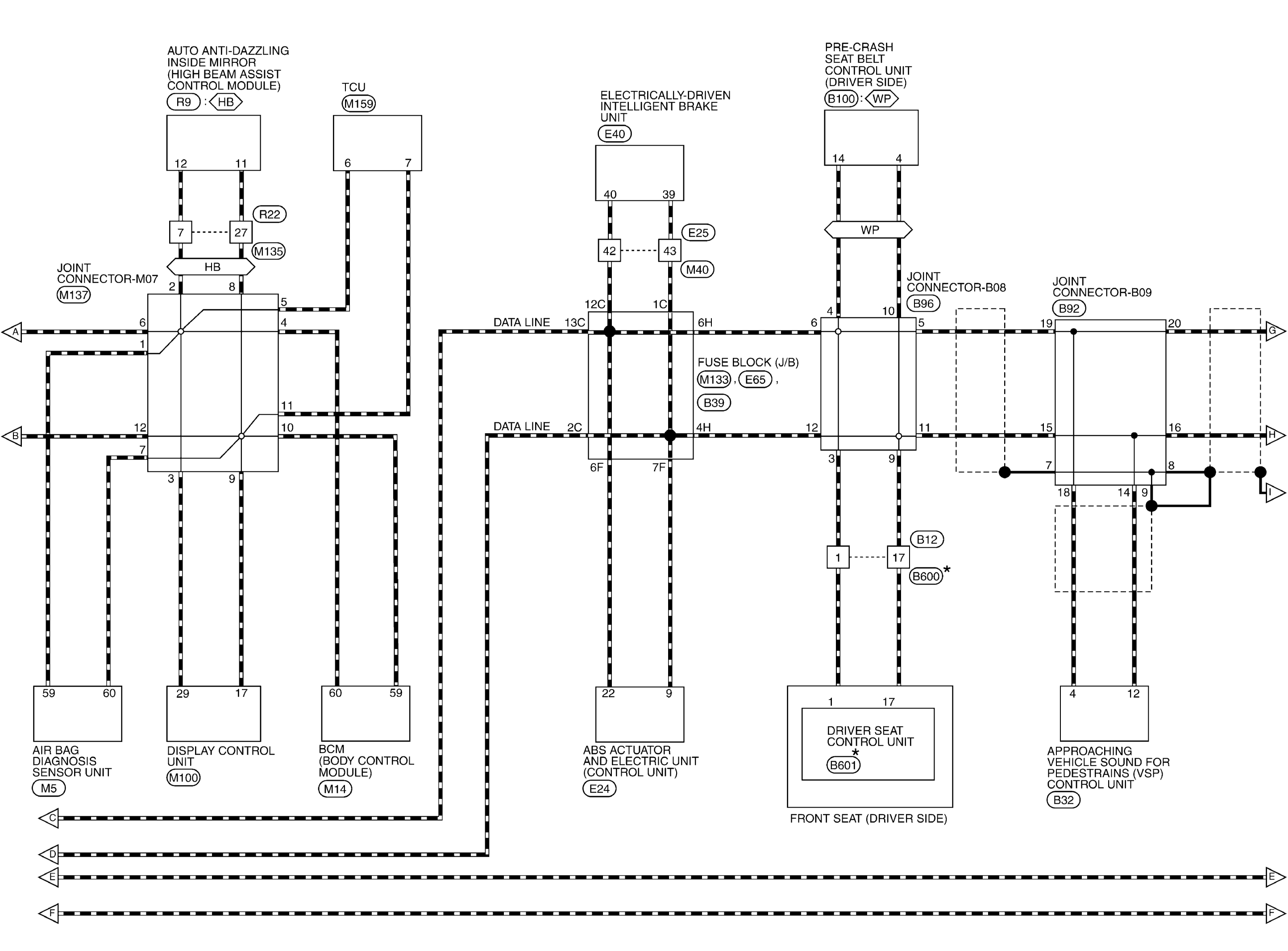

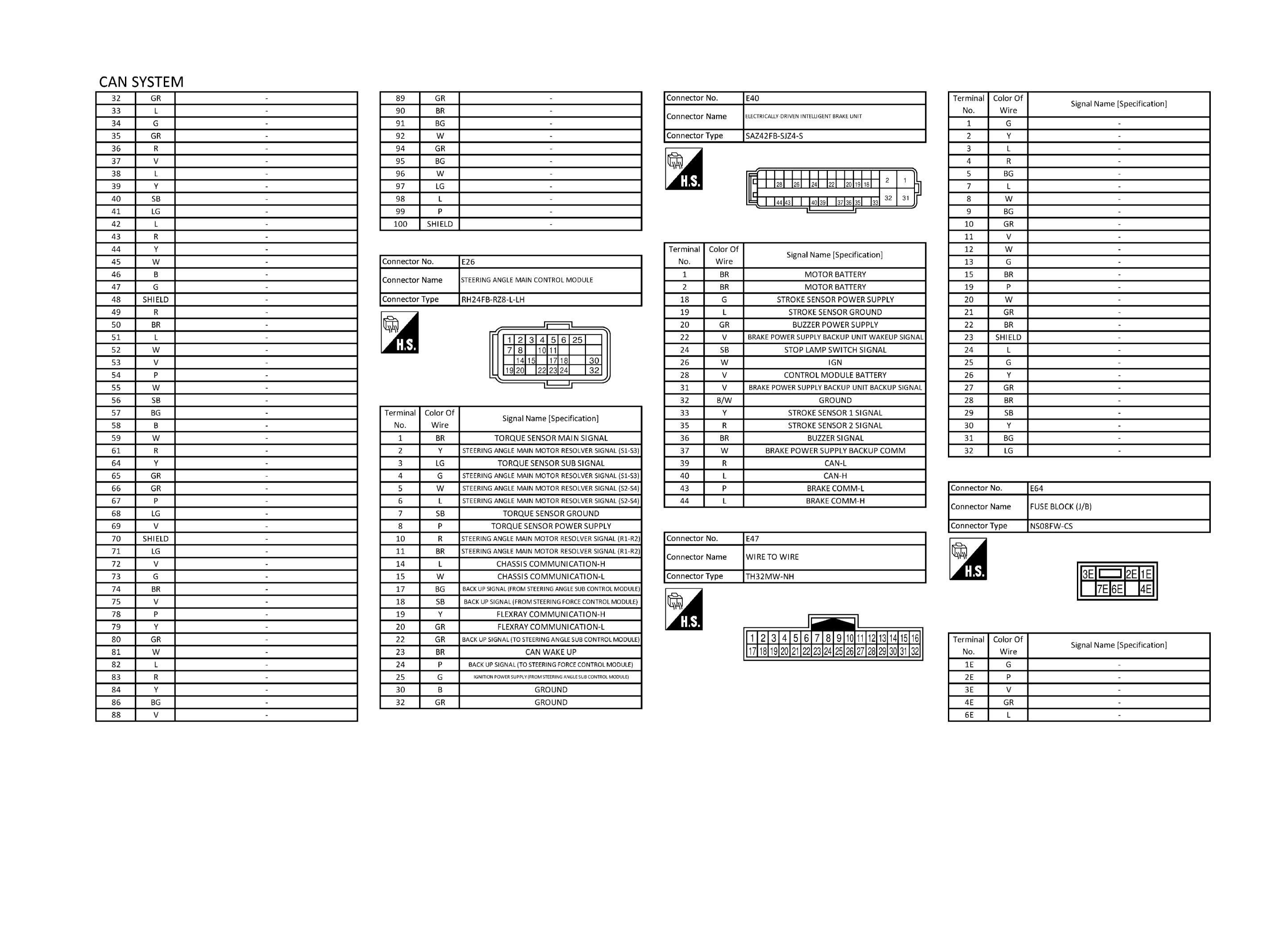

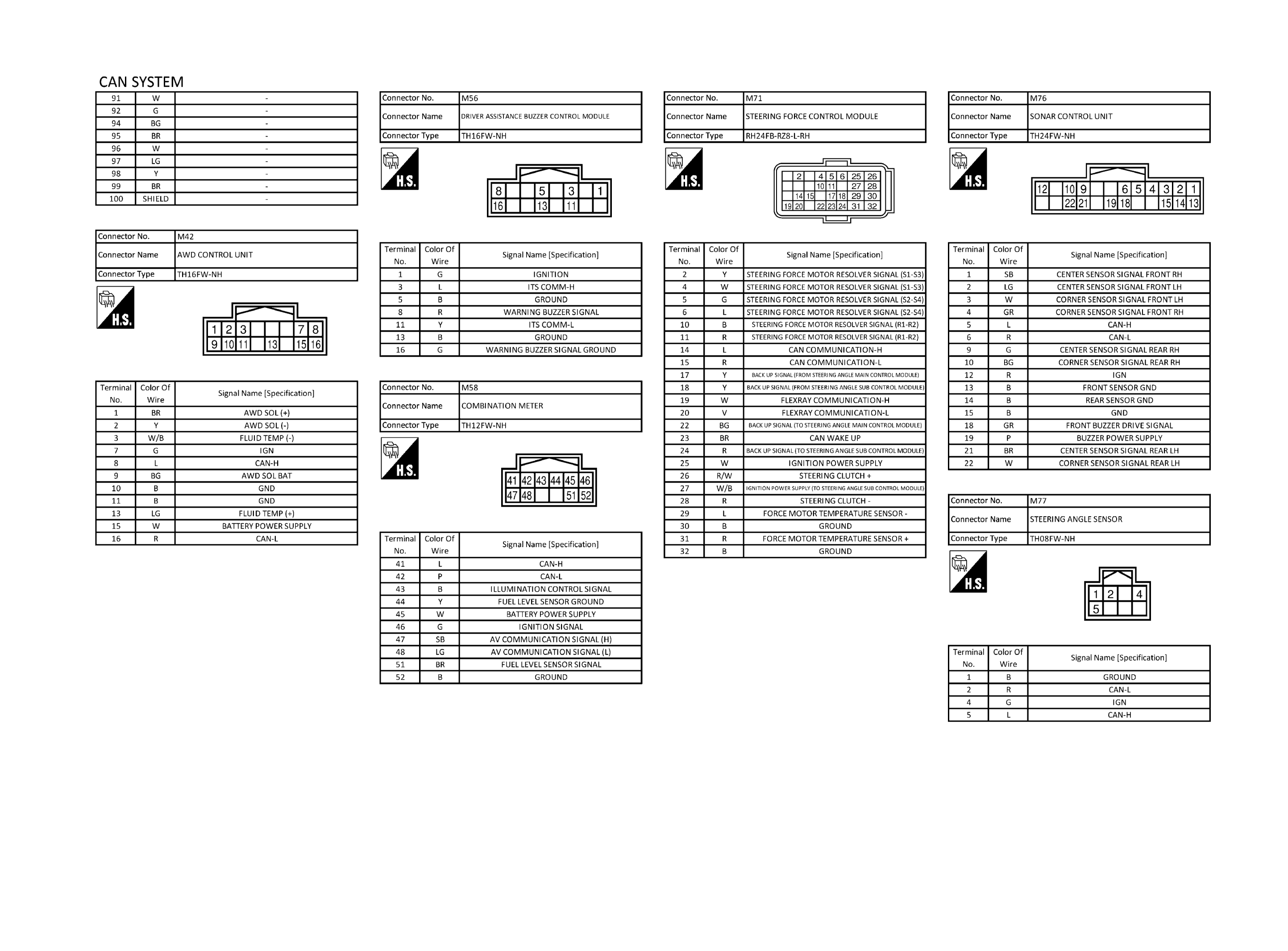

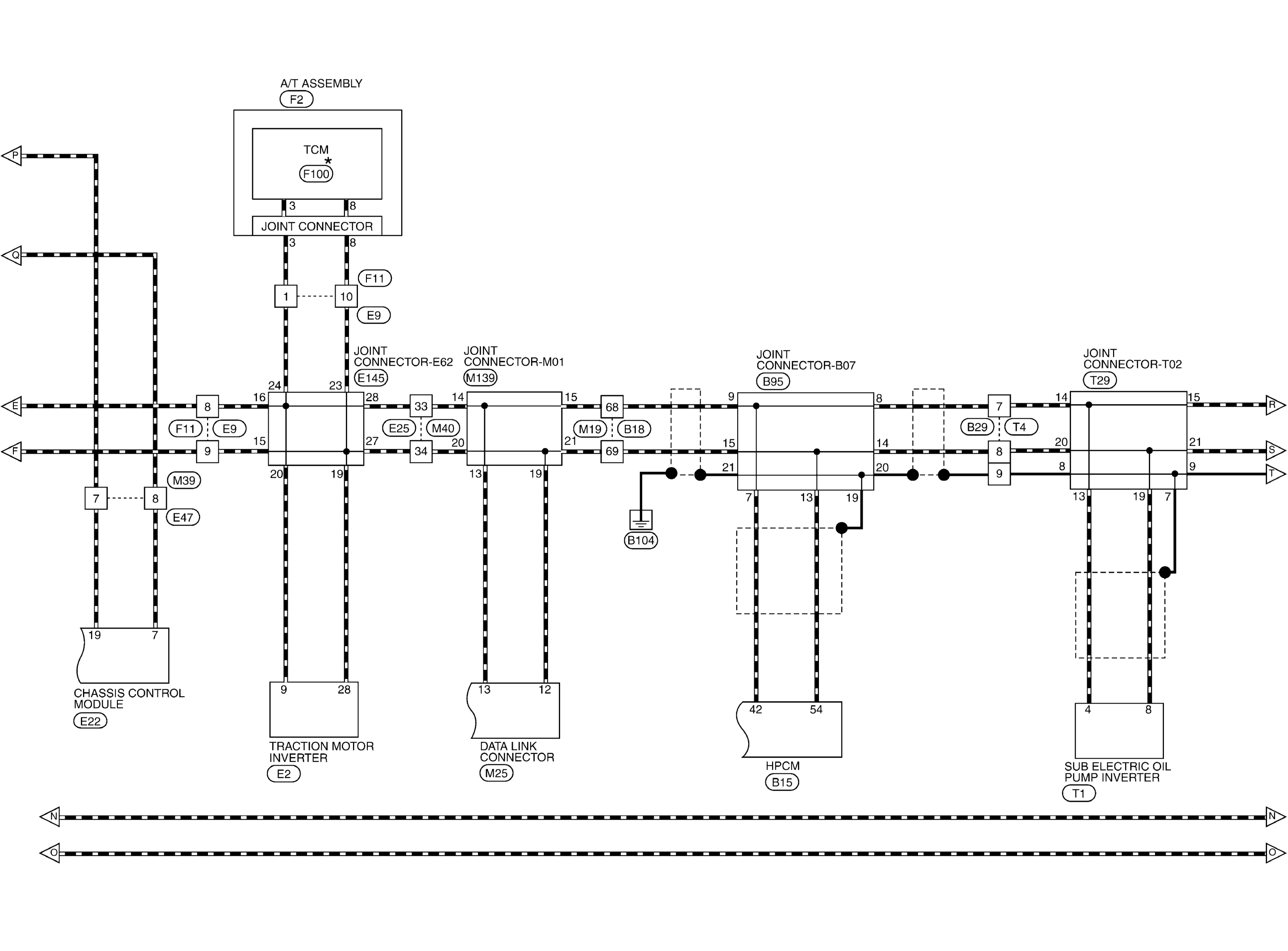

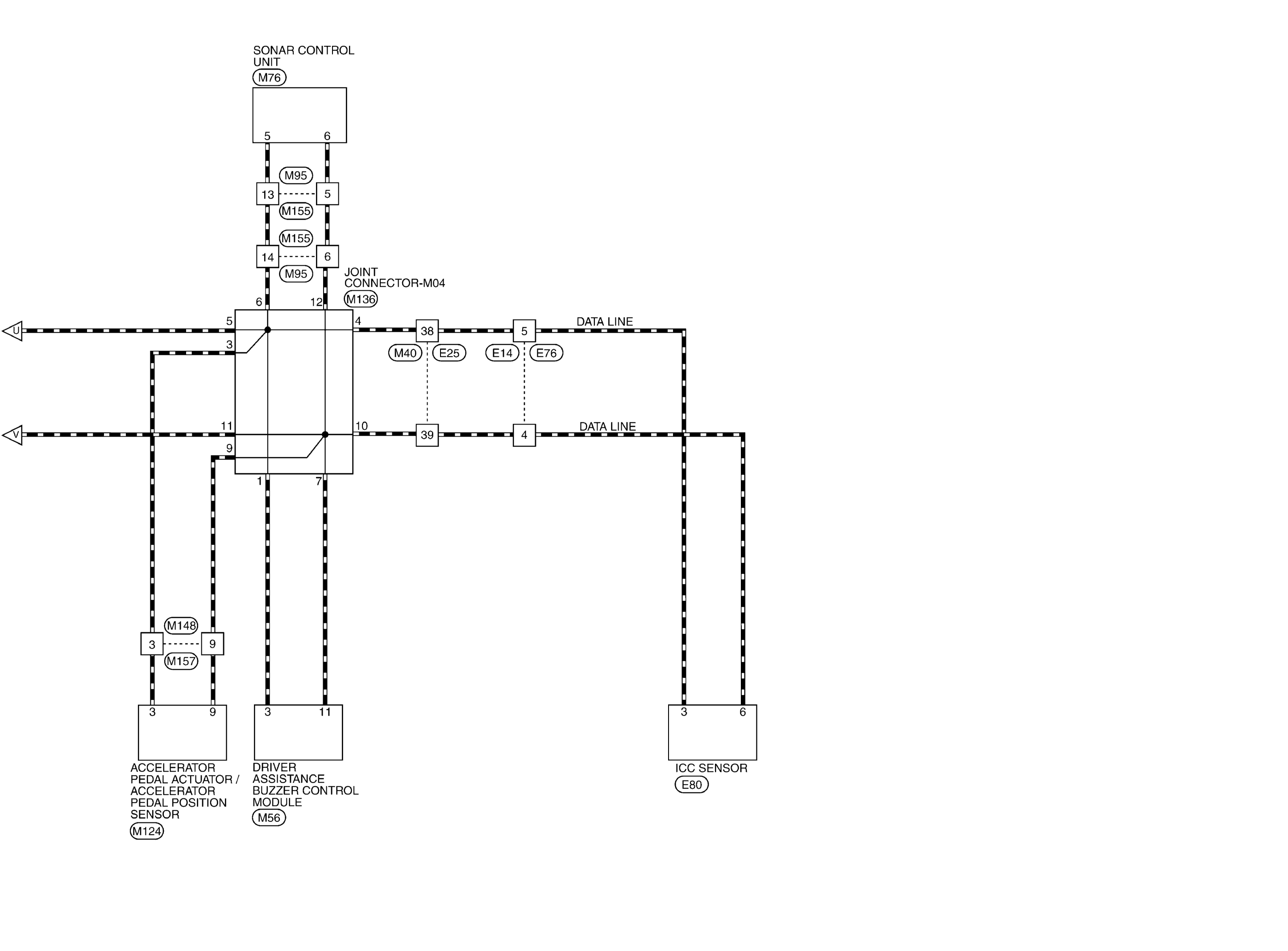

Can System: Wiring Diagram

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

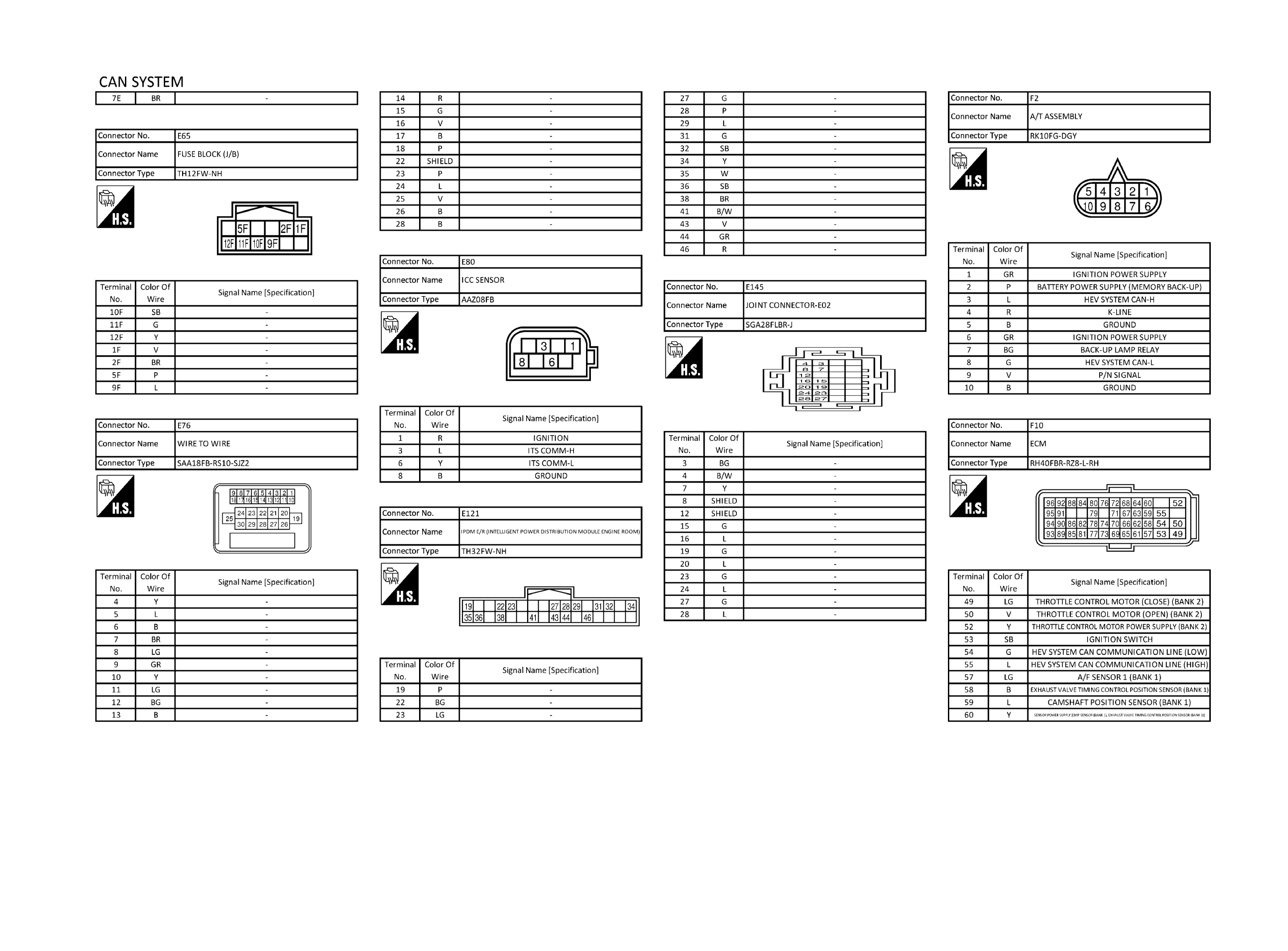

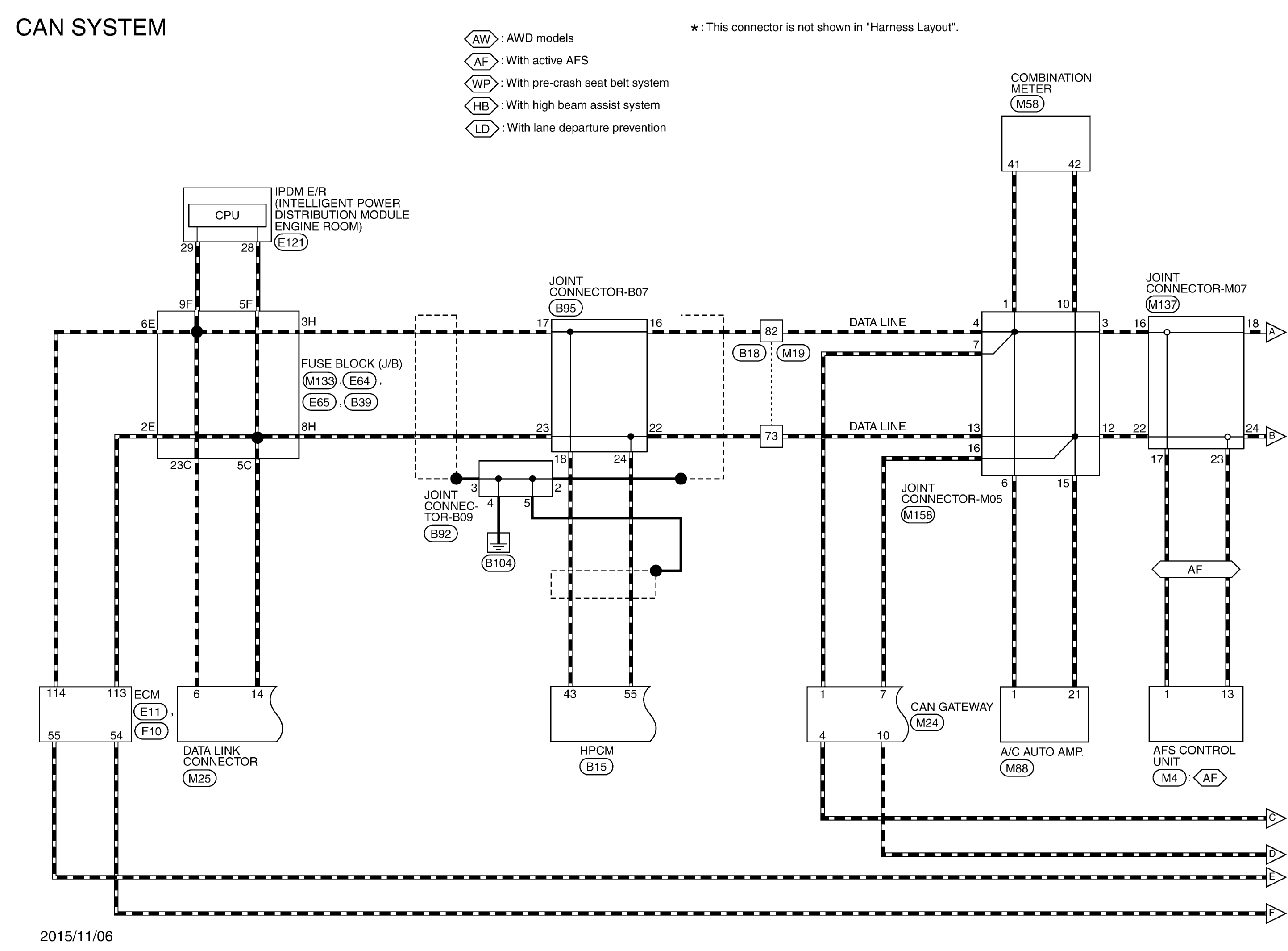

GNSJRMWJ0747GB-747

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0748GB-748

Courtesy of NISSAN NORTH AMERICA, INC.

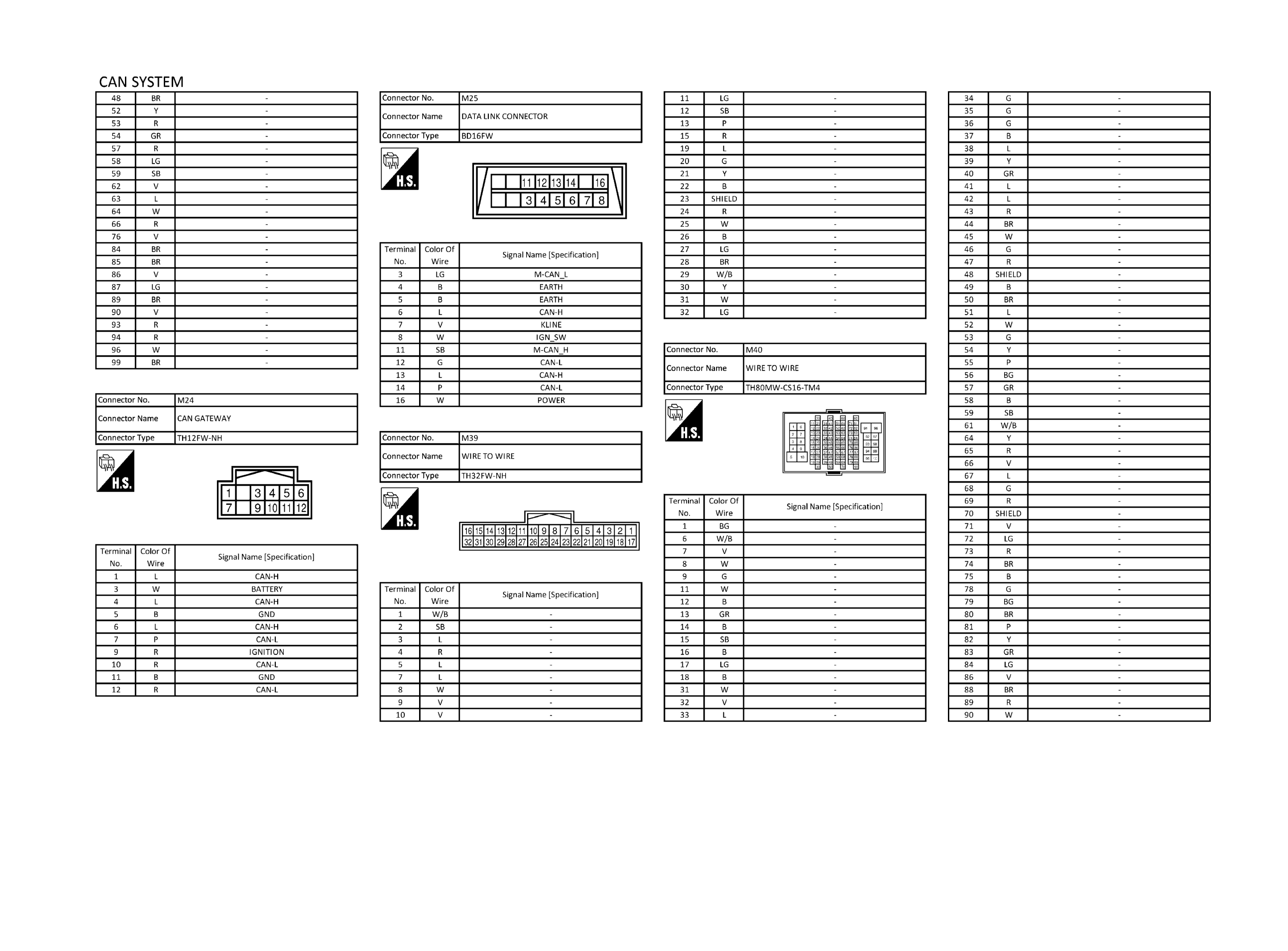

GNSJRMWJ0749GB-749

Courtesy of NISSAN NORTH AMERICA, INC.

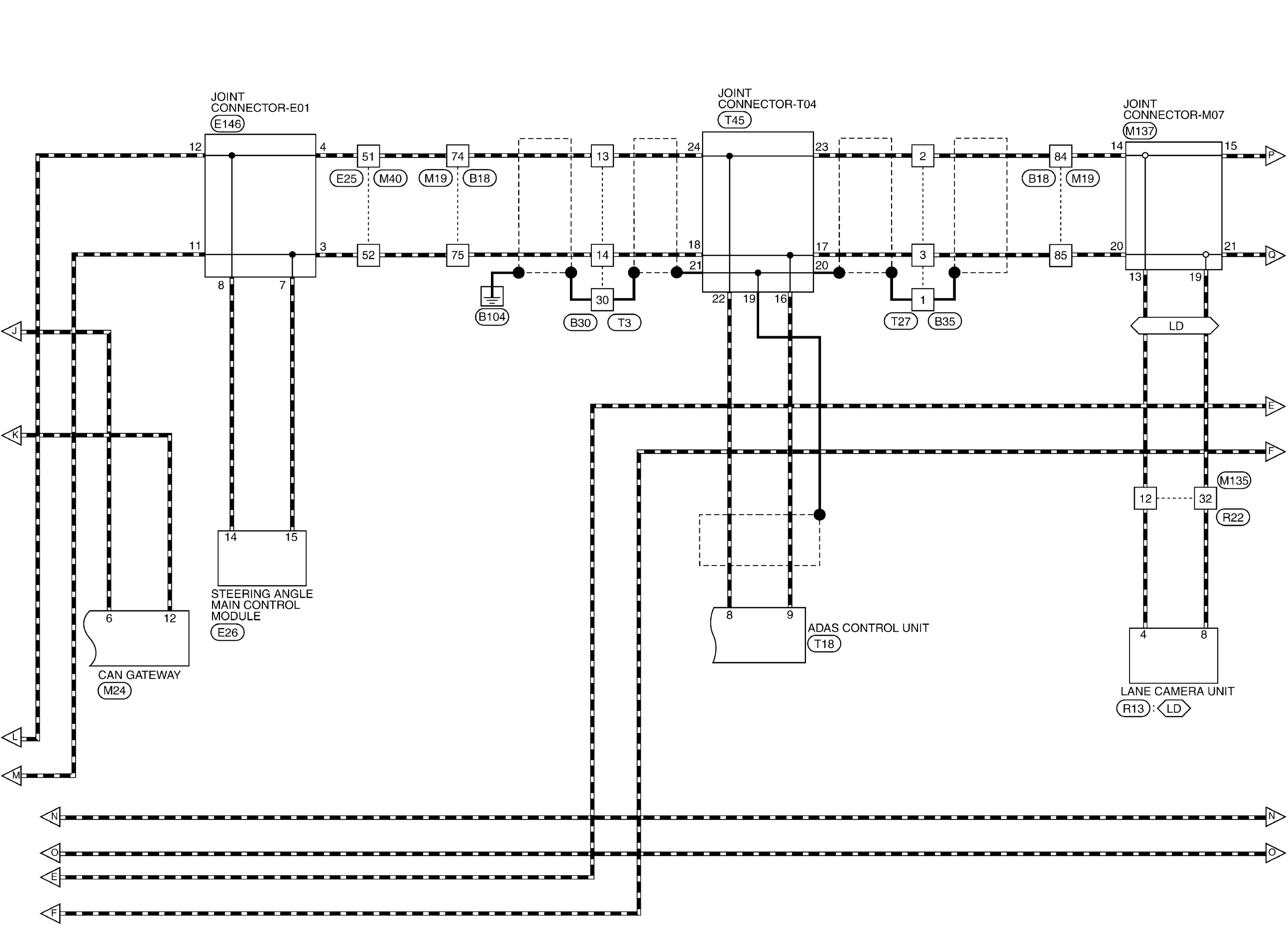

GNSJRMWJ0750GB-750

Courtesy of NISSAN NORTH AMERICA, INC.

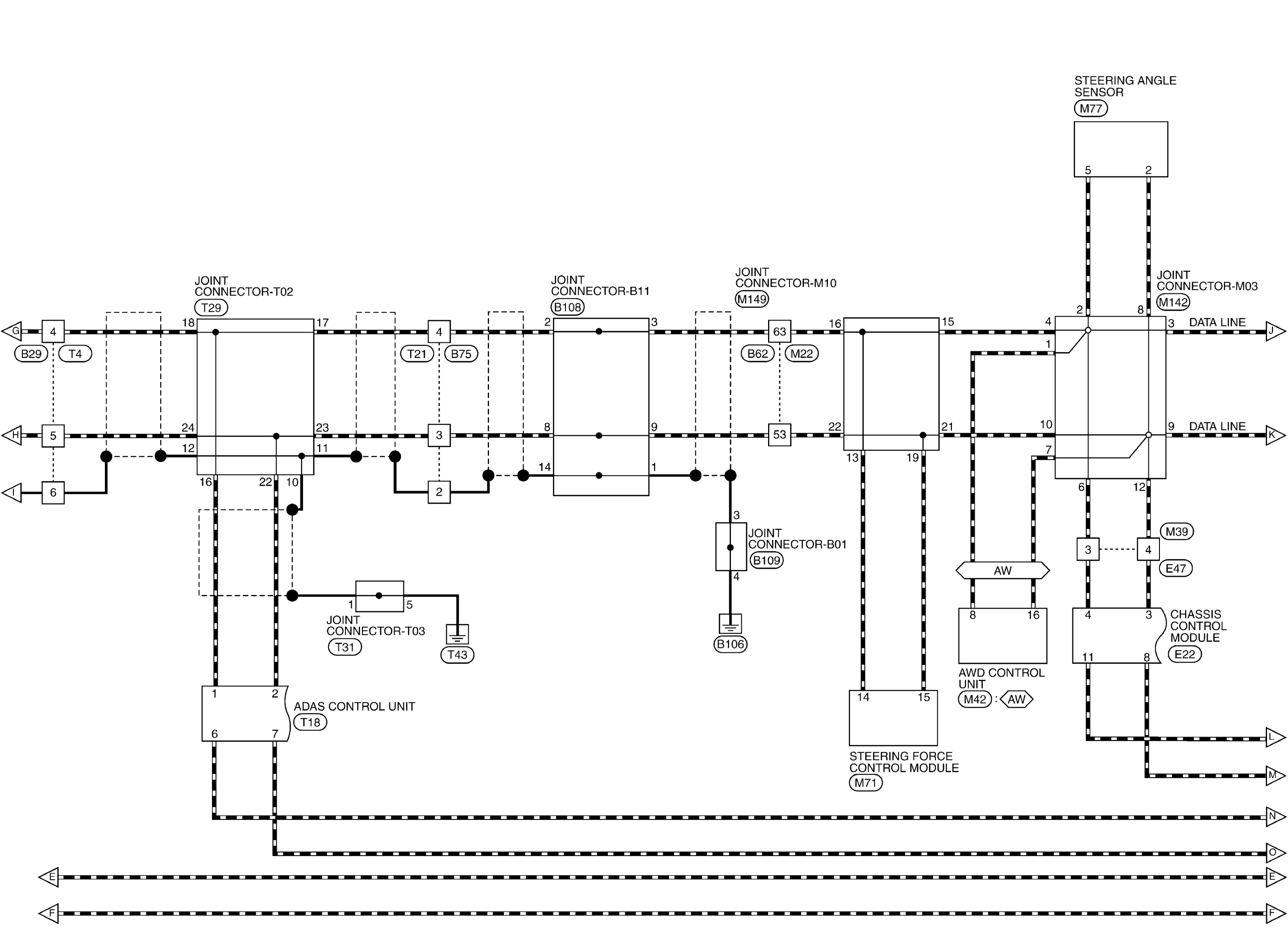

GNSJRMWJ0751GB-751

Courtesy of NISSAN NORTH AMERICA, INC.

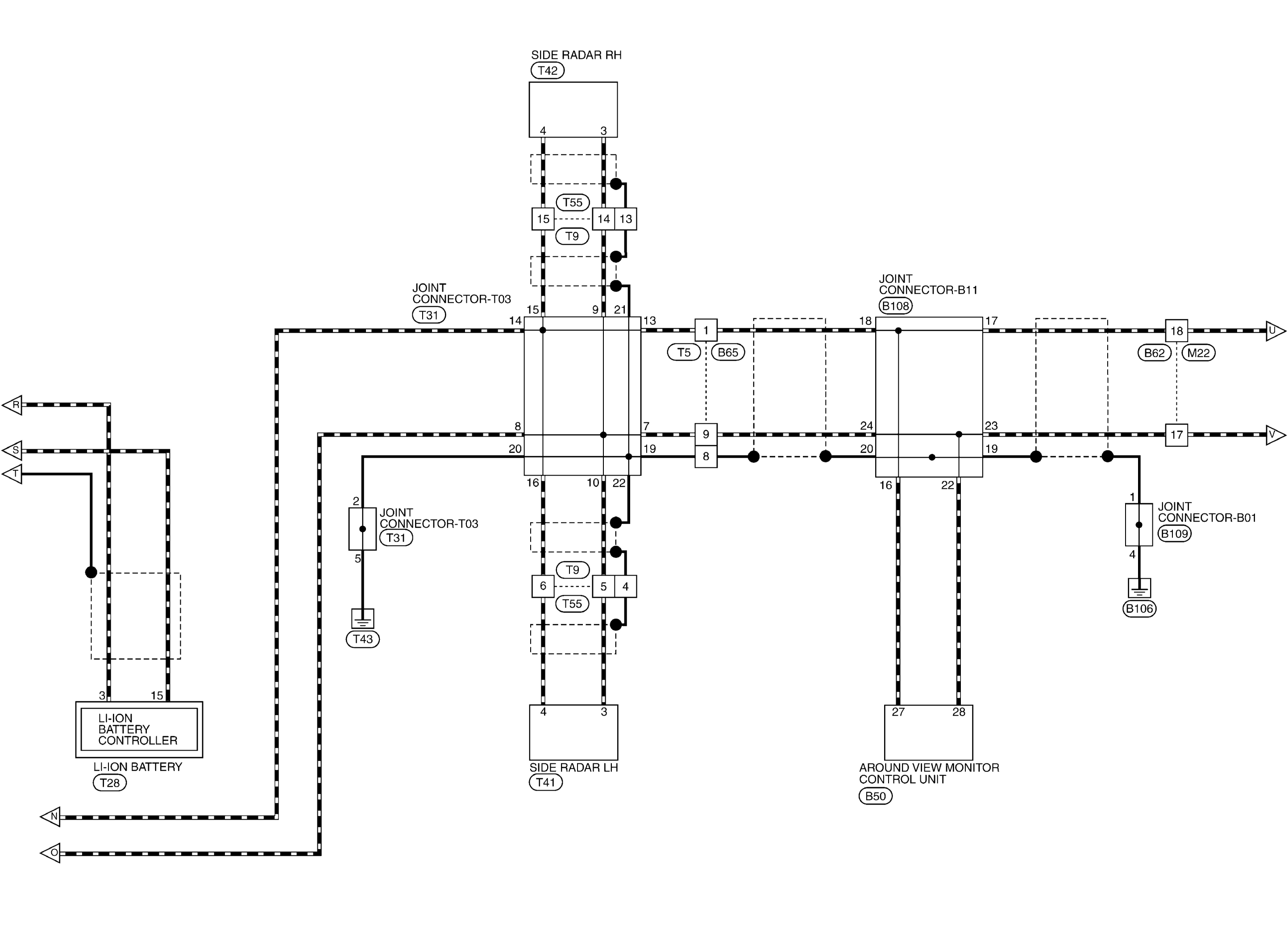

GNSJRMWJ0752GB-752

Courtesy of NISSAN NORTH AMERICA, INC.

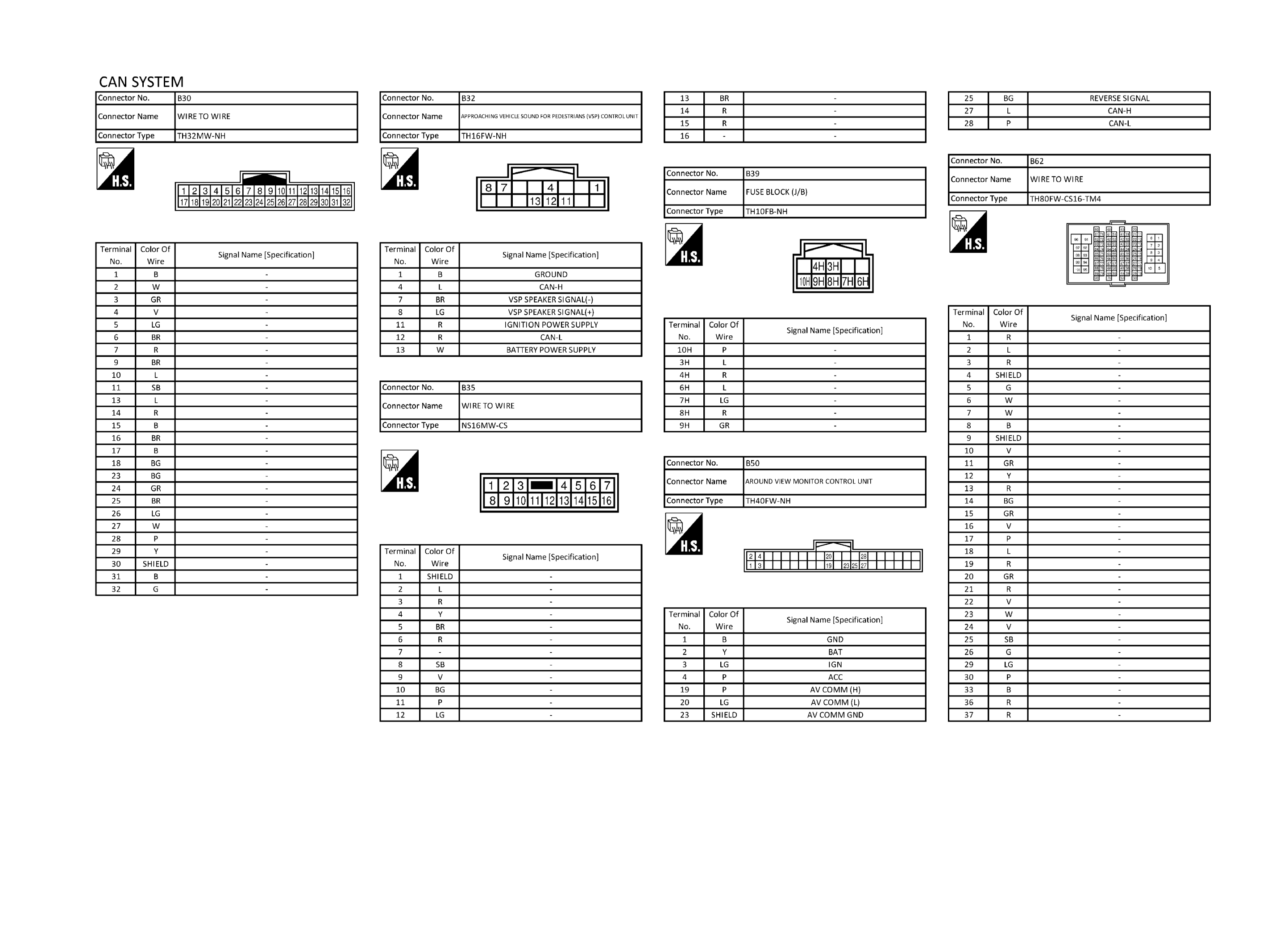

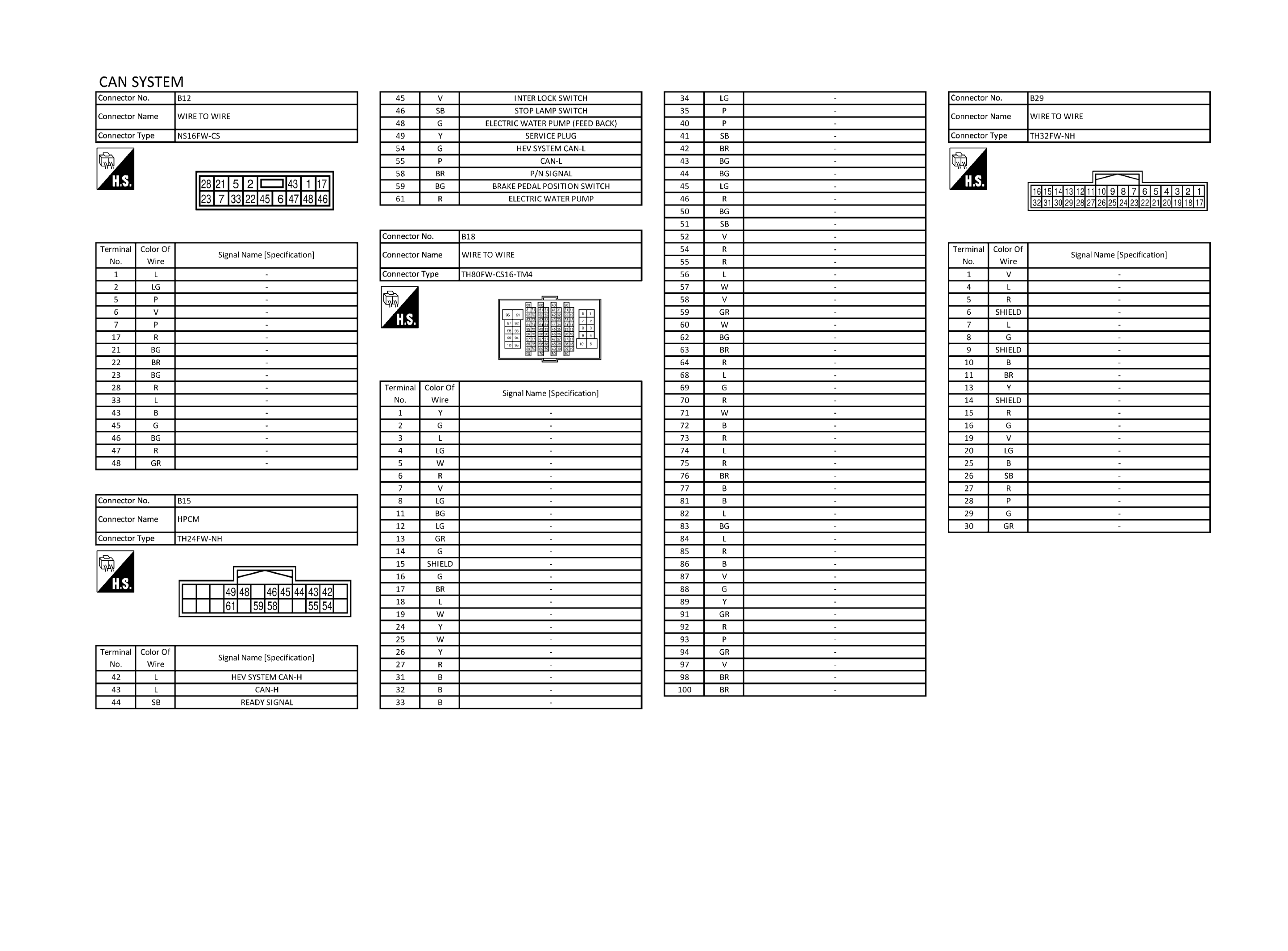

GNSJRMWJ0753GB-753

Courtesy of NISSAN NORTH AMERICA, INC.

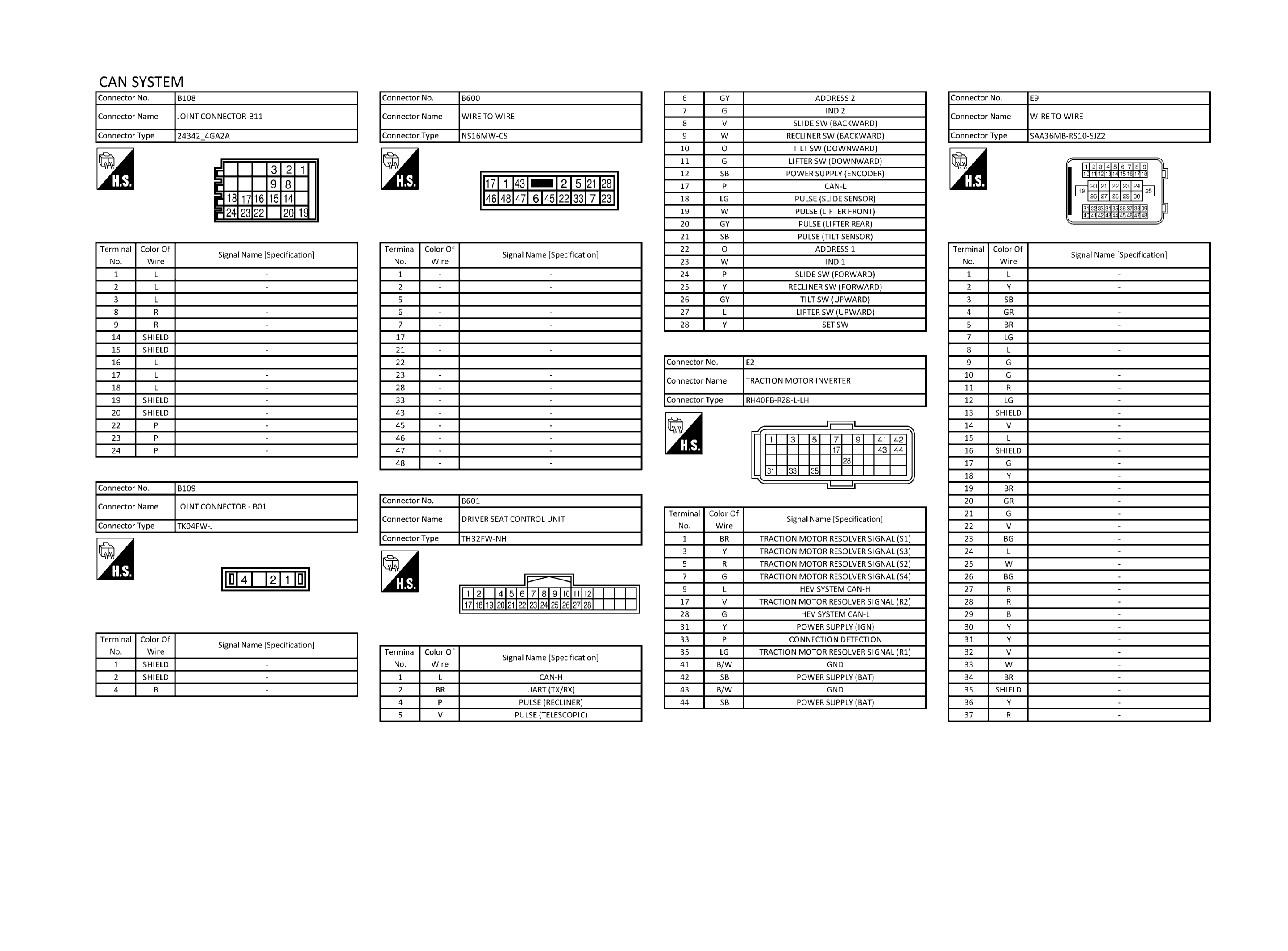

GNSJRMWJ0754GB-754

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0755GB-755

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0756GB-756

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0757GB-757

Courtesy of NISSAN NORTH AMERICA, INC.

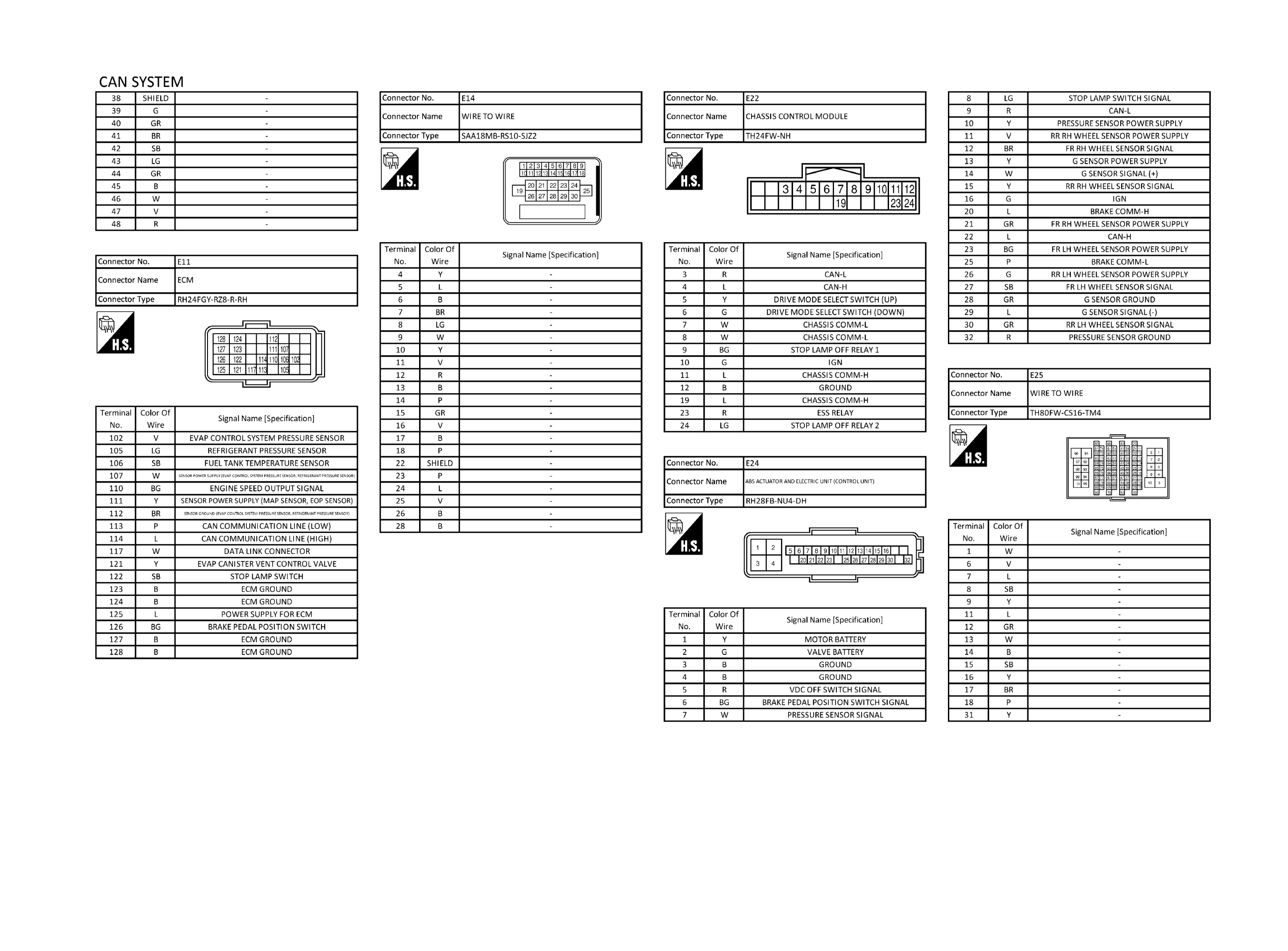

GNSJRMWJ0758GB-758

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0759GB-759

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0760GB-760

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0761GB-761

Courtesy of NISSAN NORTH AMERICA, INC.

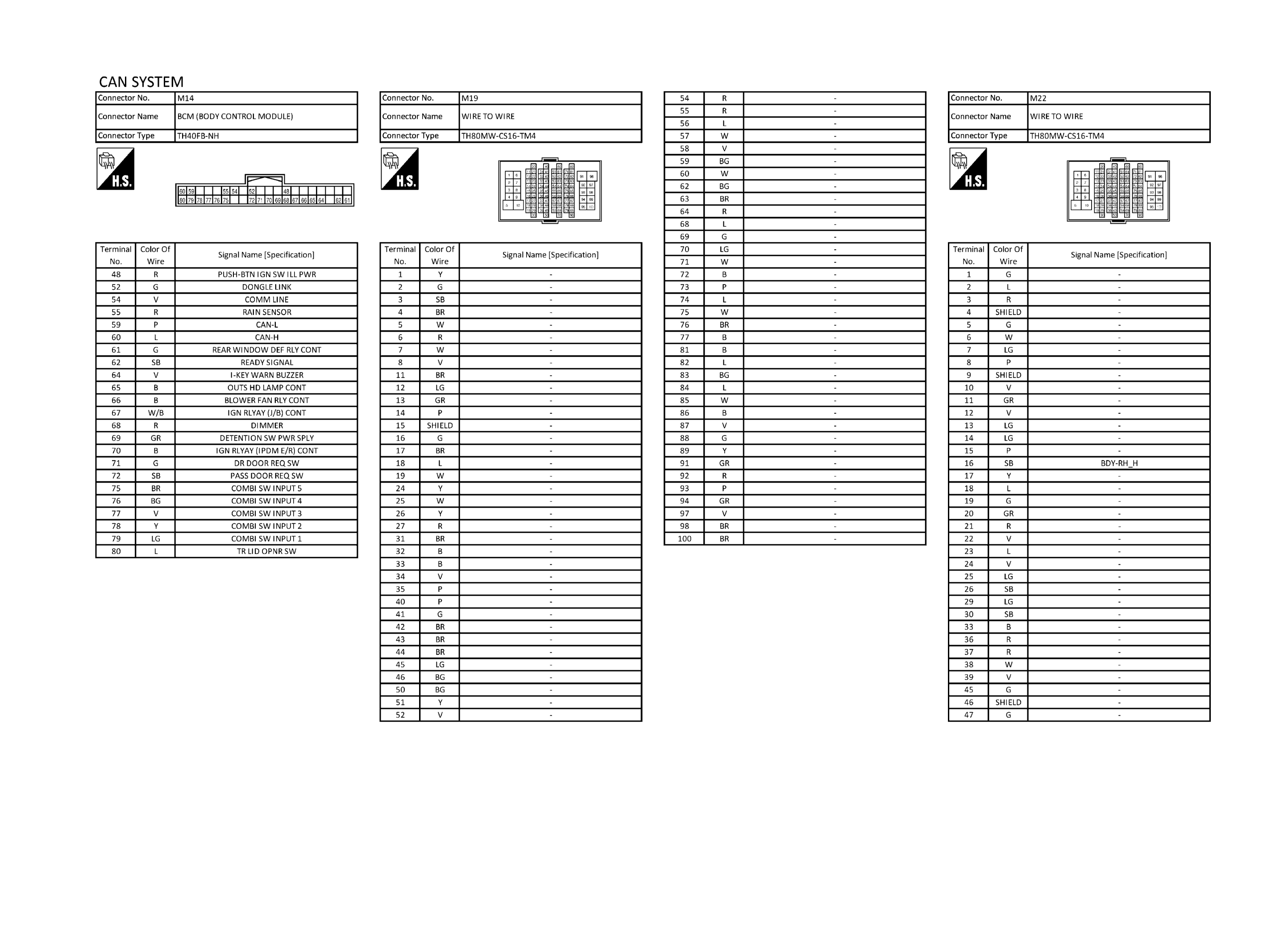

GNSJRMWJ0762GB-762

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0763GB-763

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0764GB-764

Courtesy of NISSAN NORTH AMERICA, INC.

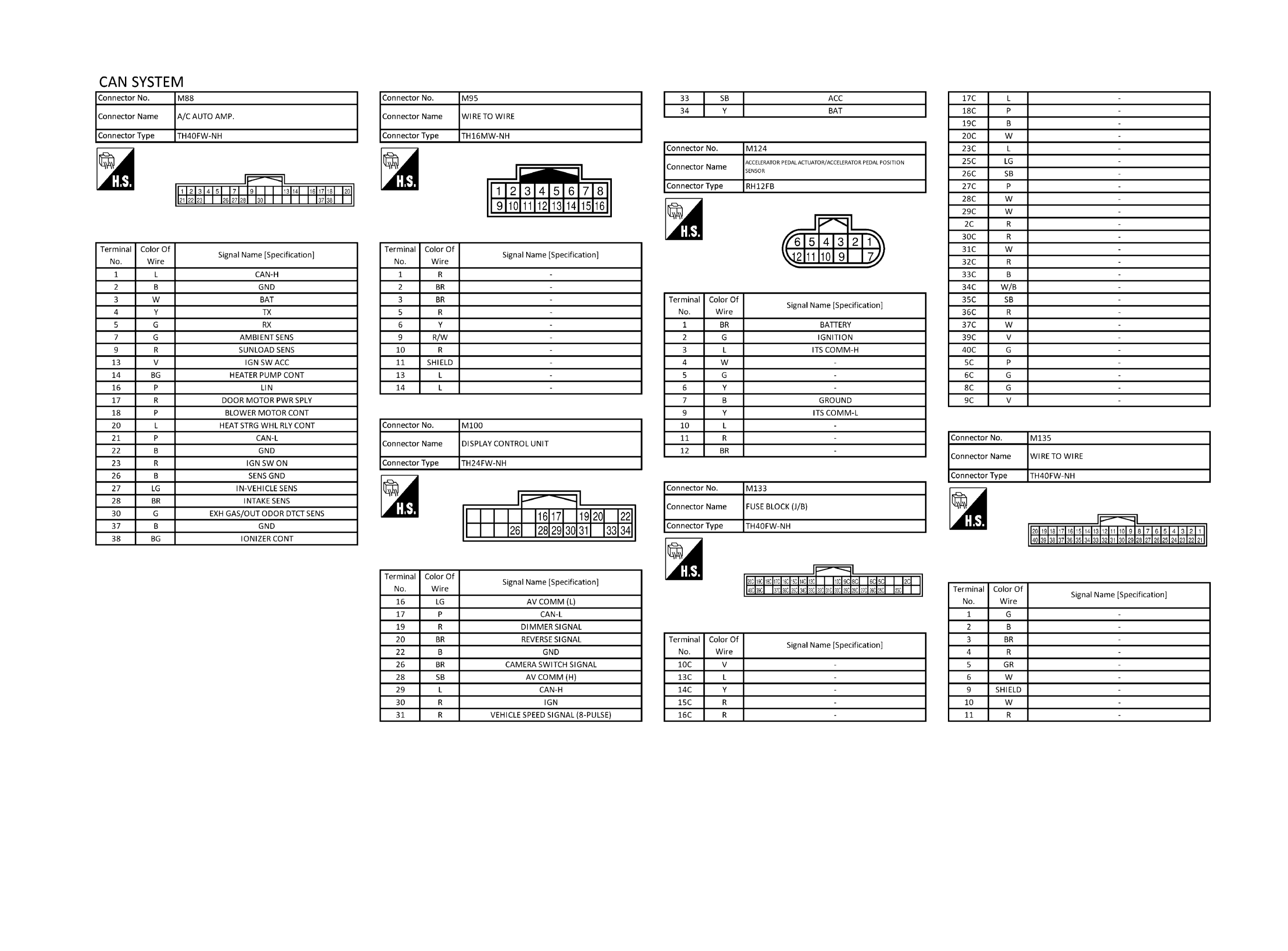

GNSJRMWJ0765GB-765

Courtesy of NISSAN NORTH AMERICA, INC.

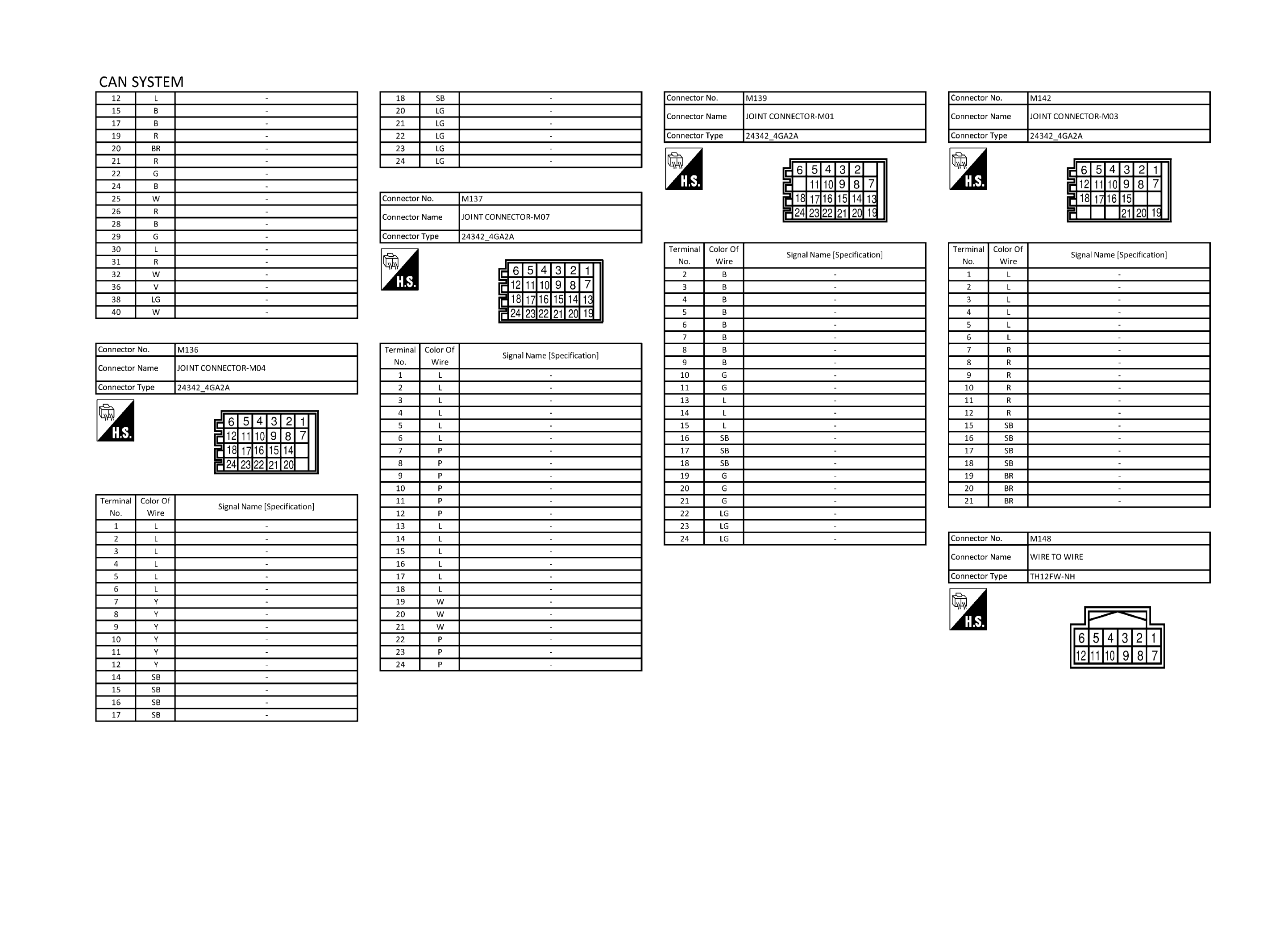

GNSJRMWJ0766GB-766

Courtesy of NISSAN NORTH AMERICA, INC.

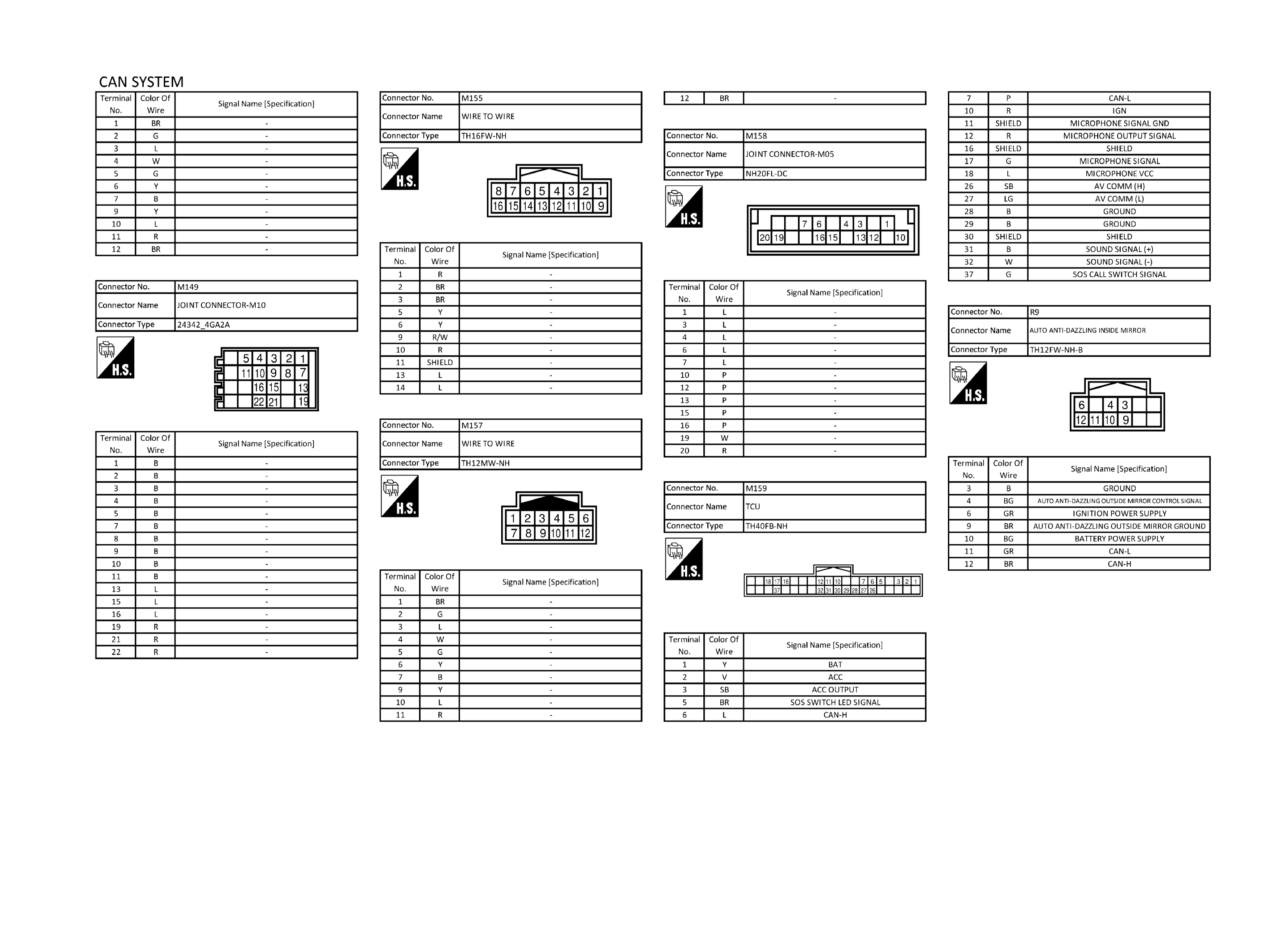

GNSJRMWJ0767GB-767

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0768GB-768

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWJ0769GB-769

Courtesy of NISSAN NORTH AMERICA, INC.

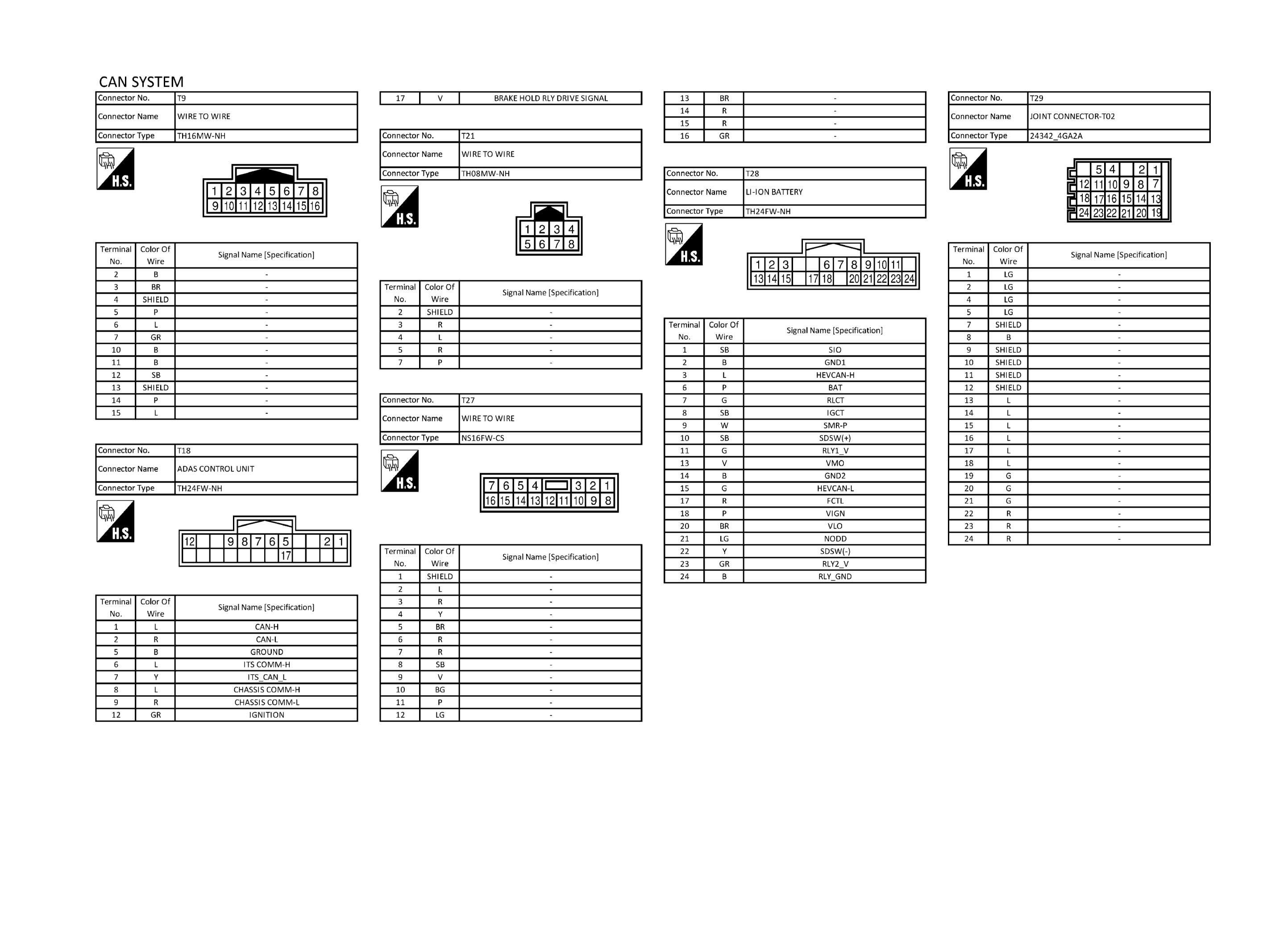

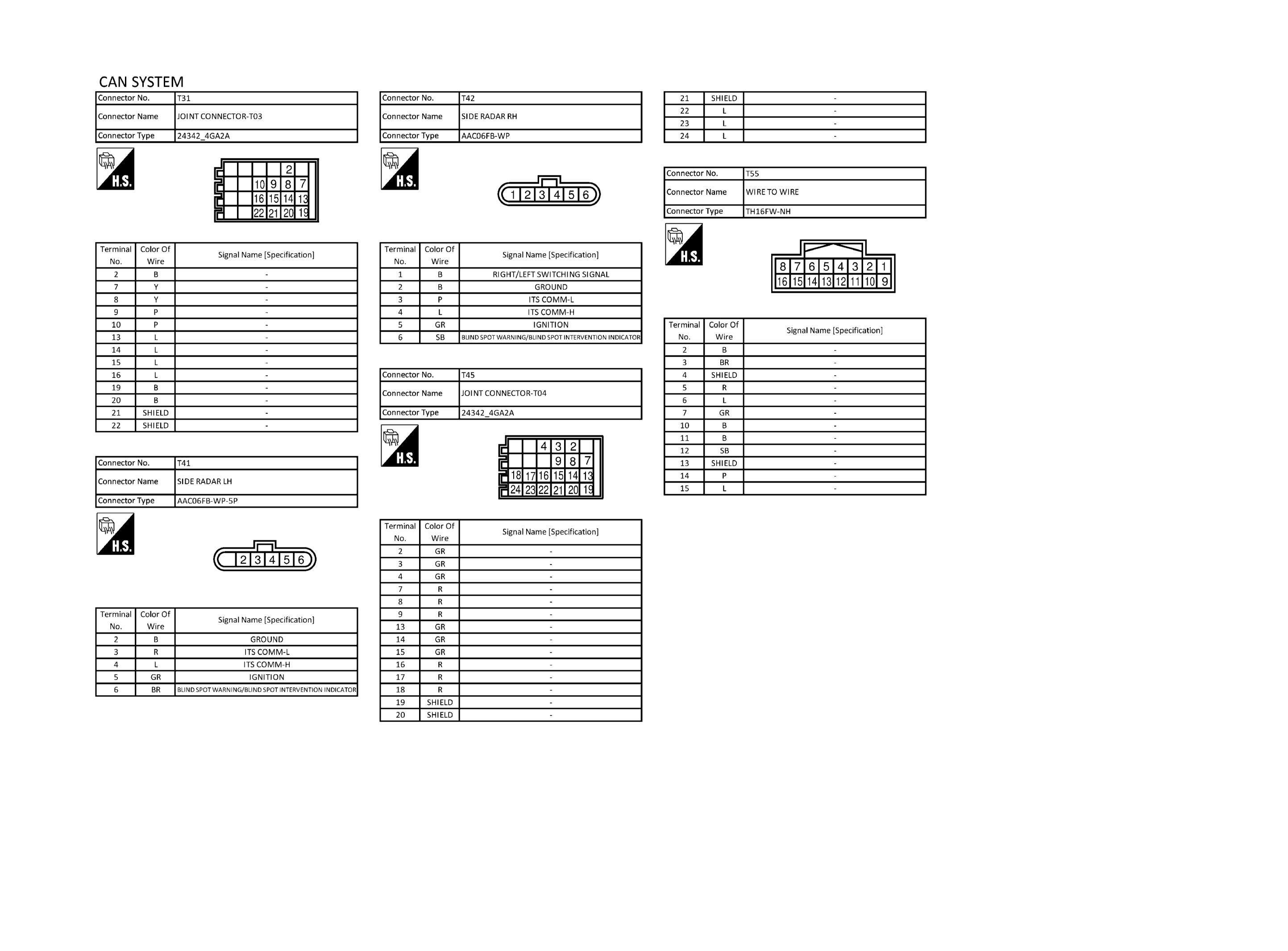

GNSJRMWJ0770GB-770

Courtesy of NISSAN NORTH AMERICA, INC.
