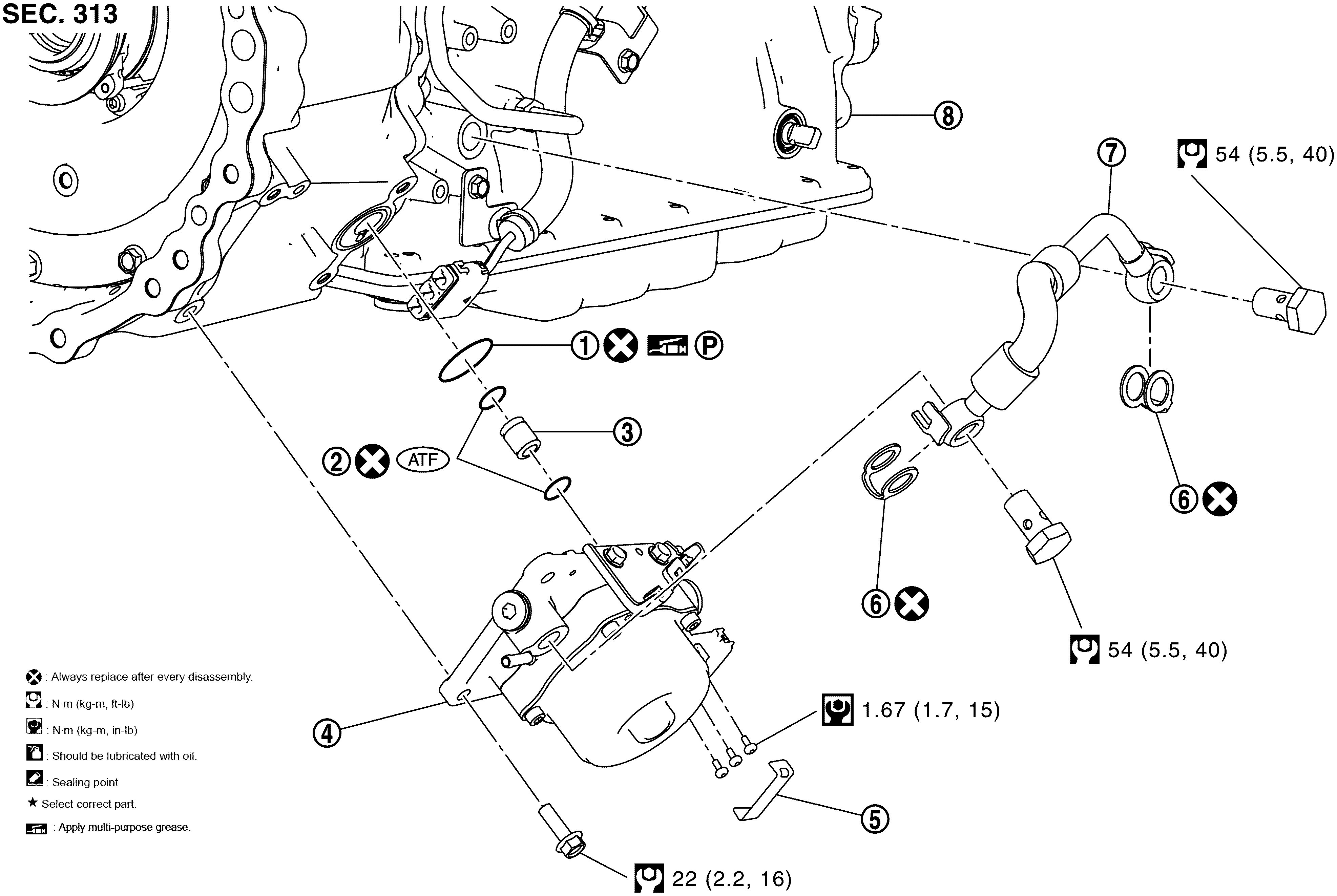

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

	O-ring	O-ring	Joint pipe
	Sub electric oil pump	Cover	Gasket
	Fluid tube	Transmission assembly
	: Always replace after every disassembly.
	: N•m (kg-m, ft-lb)
	: N•m (kg-m, in-lb)
: Apply ATF
: Apply petroleum jelly
