Removal And Installation: Installation

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

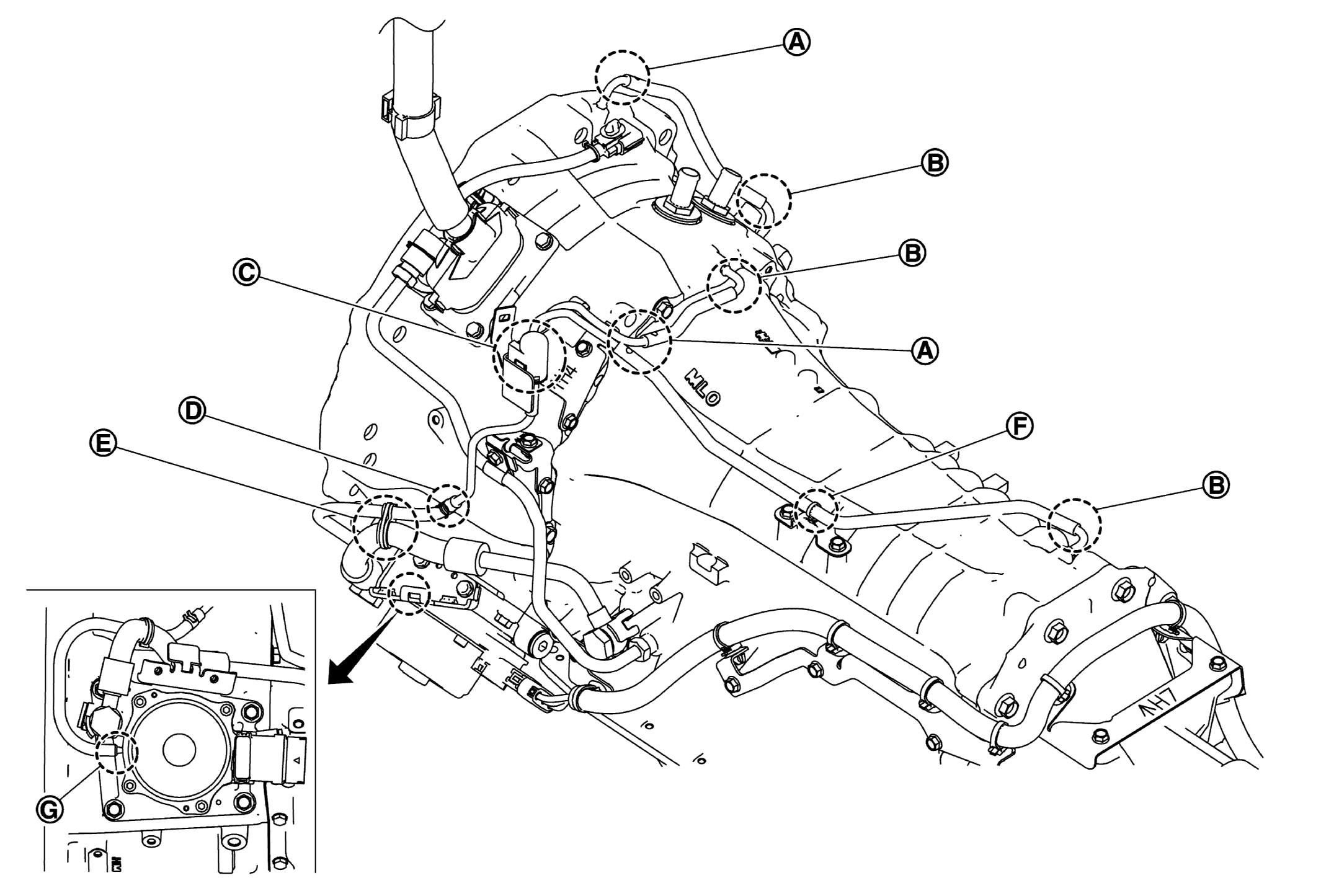

Note the following and install in the reverse order of removal.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Never bend the air breather hose to prevent damage to the hose.
Figure
- Insert air breather hose to air breather tube so that the paint mark is facing upward.
- Insert air breather hose to air breather tube all the way to the curve of the tube.
Figure
- Insert air breather hose to air breather tube all the way to the curve of the tube.
Figure
- Insert the air breather box into the bracket until it fully locks in place.
Figure
- Insert air breather hose to air breather tube so that the paint mark is facing leftward.
- Insert air breather hose to air breather tube all the way to the curve of the tube.
- Install hose clamp so that its tab is facing leftward.
Figure
- Securely install clip to air breather hose and sub electric oil pump tube.
Figure
- Securely install clip to bracket.
Figure
- Insert air breather hose to tube all the way to the bulge of the tube.
