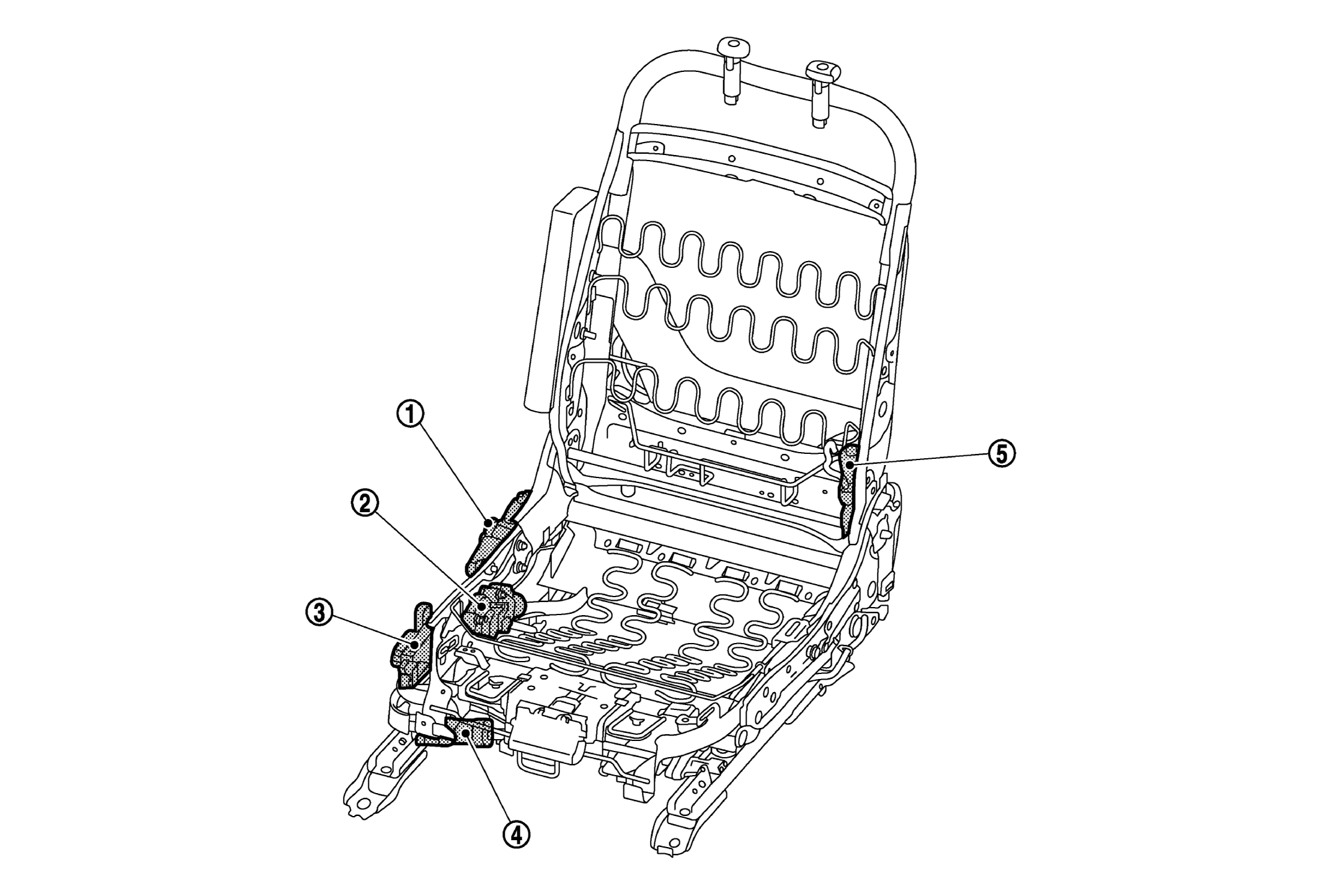

Component Location

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
	Lifting motor (rear)	Lifting motor (rear) is installed to seat frame assembly. Lifting motor (rear) is moved upward/downward by changing the rotation direction of lifting motor (rear).
	Lifting motor (front)	Lifting motor (front) is installed to seat frame assembly. Lifting motor (front) is moved upward/downward by changing the rotation direction of lifting motor (front).
	Power seat switch	Refer to POWER SEAT SWITCH .
	Sliding motor	Sliding motor is installed to the seat frame assembly. Slides the seat forward/backward by changing the rotation direction of sliding motor.
	Reclining motor	Reclining motor is installed to seat frame assembly. Seatback is reclined forward/backward by changing the rotation direction of reclining motor.
