Component Location

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

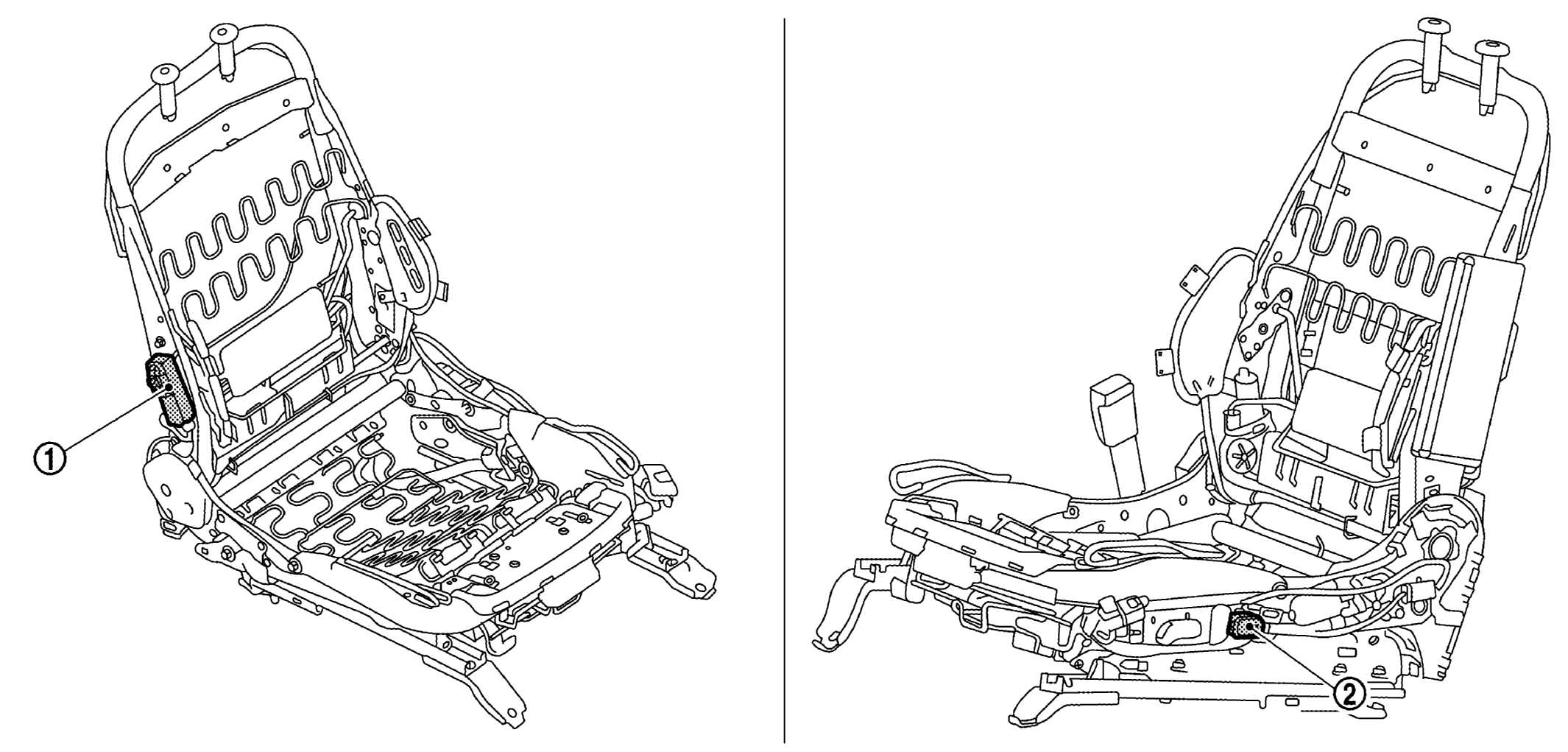

G09163222Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
WHITE-1 Lumbar support motor With the power supplied to lumbar support switch, operates the forward and backward movement of seatback support.
WHITE-2 Lumbar support switch Refer to LUMBAR SUPPORT SWITCH .
