Component Location

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

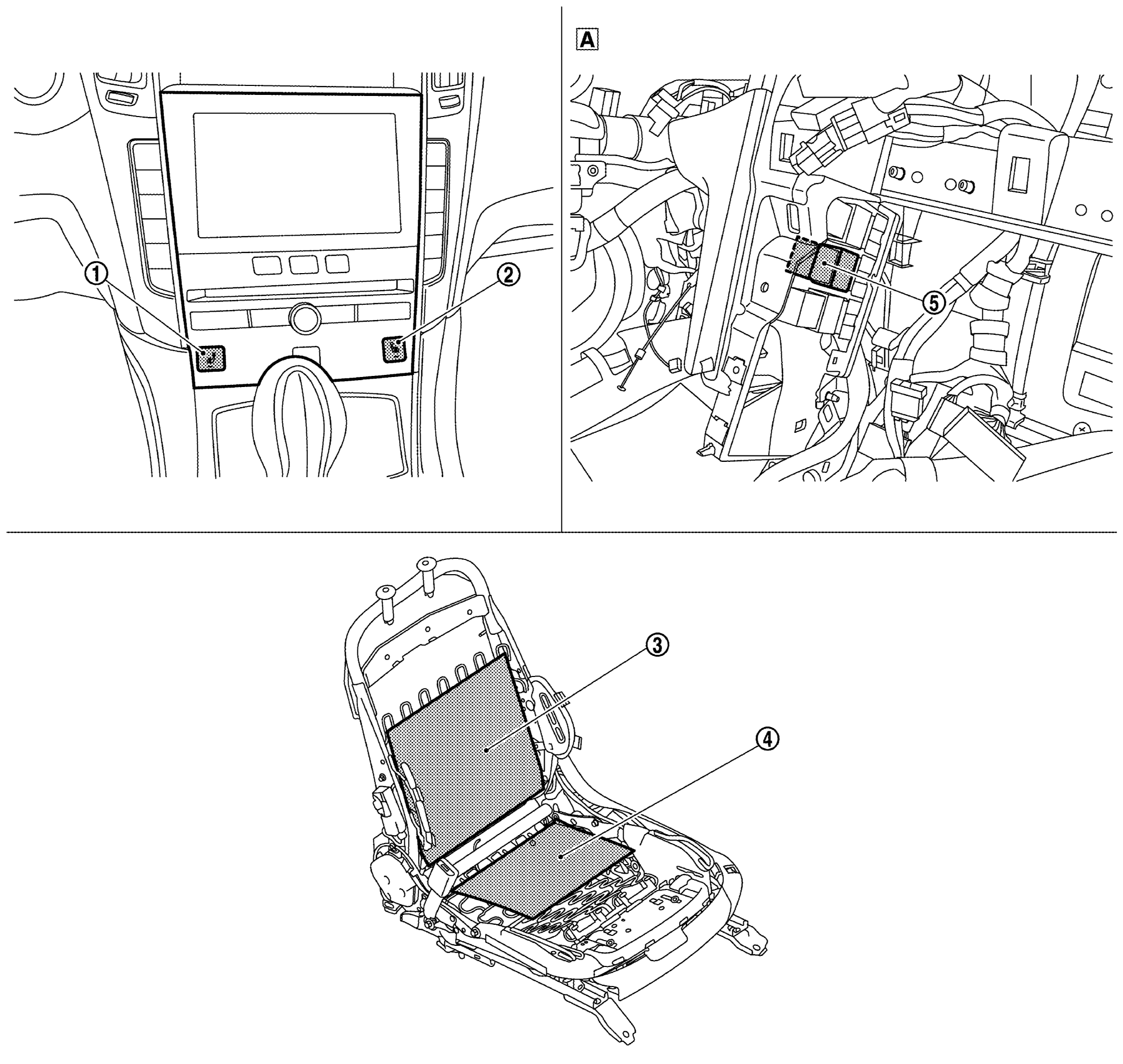

View with AV control unit or NAVI control unit removed

No.	Component	Function
	Integral switch (heated seat switch LH)	Adjusts heated seat temperature and activates heated seat system. Refer to COMPONENT LOCATION for detailed installation location.
	Integral switch (heated seat switch RH)
	Seatback heater	Warms seatback. Contains heat sensor that outputs seatback heater temperature to A/C auto amp.
	Seat cushion heater	Warms seat cushion. Contains heat sensor that outputs seat cushion heater temperature to A/C auto amp. Built-in heat sensor.
	Heated seat relay	Supplies power to the heated seat being controlled by ignition power supply.
