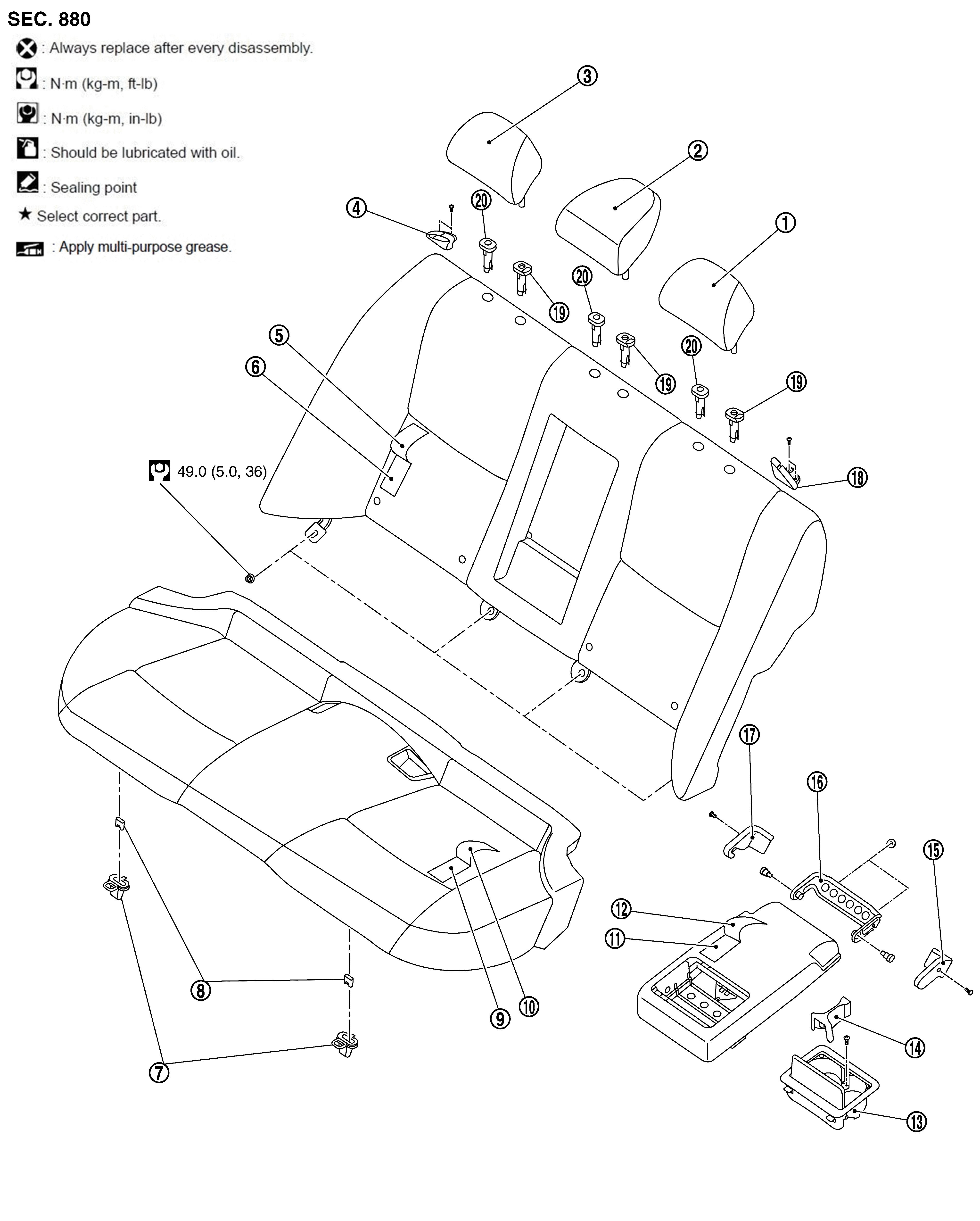

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
| Headrest LH | Headrest center | Headrest RH | |||
| Seat belt hook RH | Seatback trim | Seatback pad | |||
| Seat cushion hook | Hook cover | Seat cushion pad | |||
| Seat cushion trim | Armrest pad | Armrest trim | |||
| Cup holder | Cup holder spacer | Hinge cover LH | |||
| Hinge bracket | Hinge cover RH | Seat belt hook LH | |||
| Headrest holder (lock) | Headrest holder (free) | ||||
| : N•m (kg - m, ft - lb) | |||||
