Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

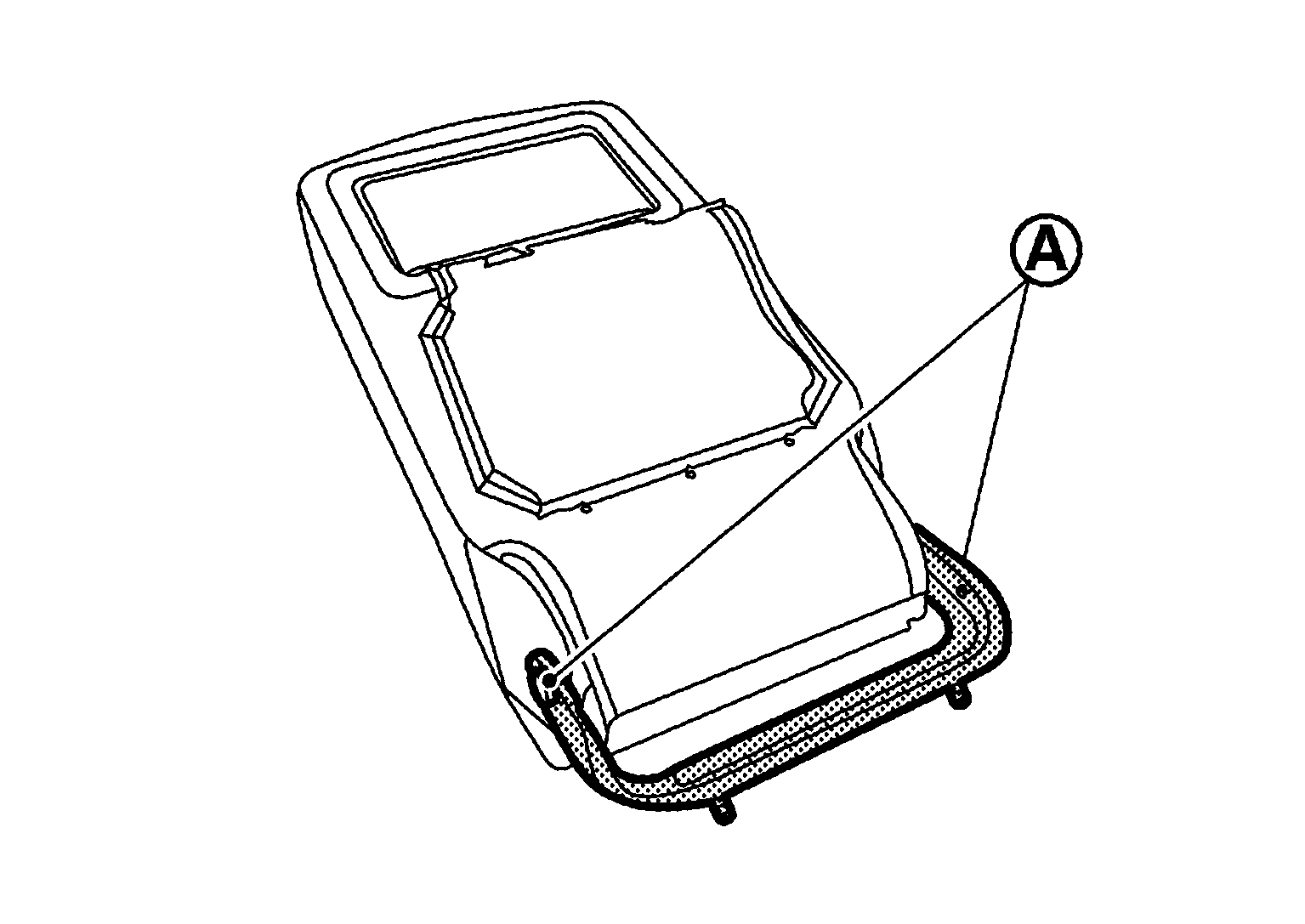

  1. Remove hinge bracket fixing bolts MARU-A-W , and then remove hinge bracket.
    G09163322Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove cup holder.

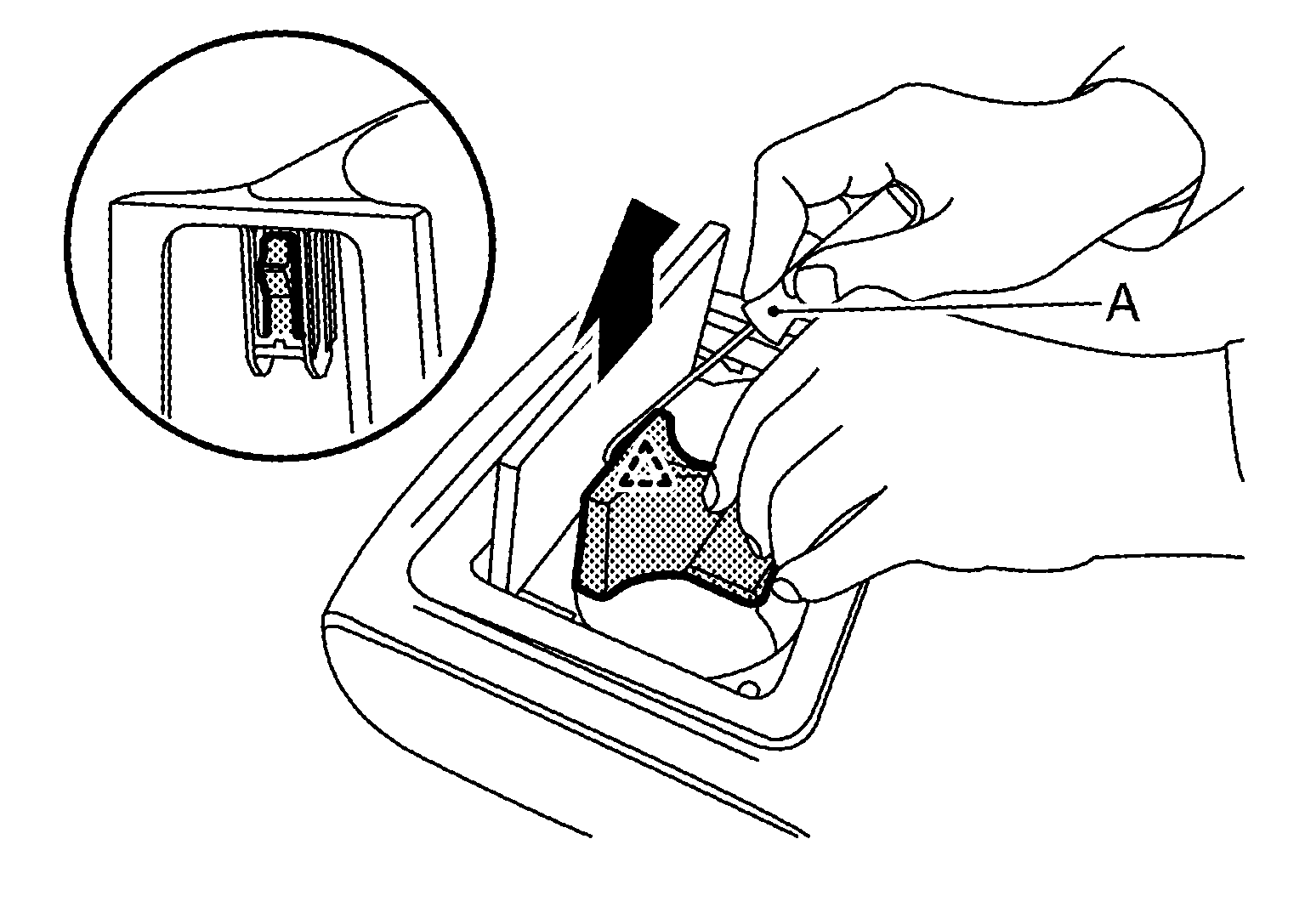

    1. Disengage cup holder spacer fixing pawls by pull up while push cup holder spacer fixing pawl using a pic tool (A).
      GNSJMJIA8813ZZ-813Courtesy of NISSAN NORTH AMERICA, INC.
      SANKAKU-H : Pawl

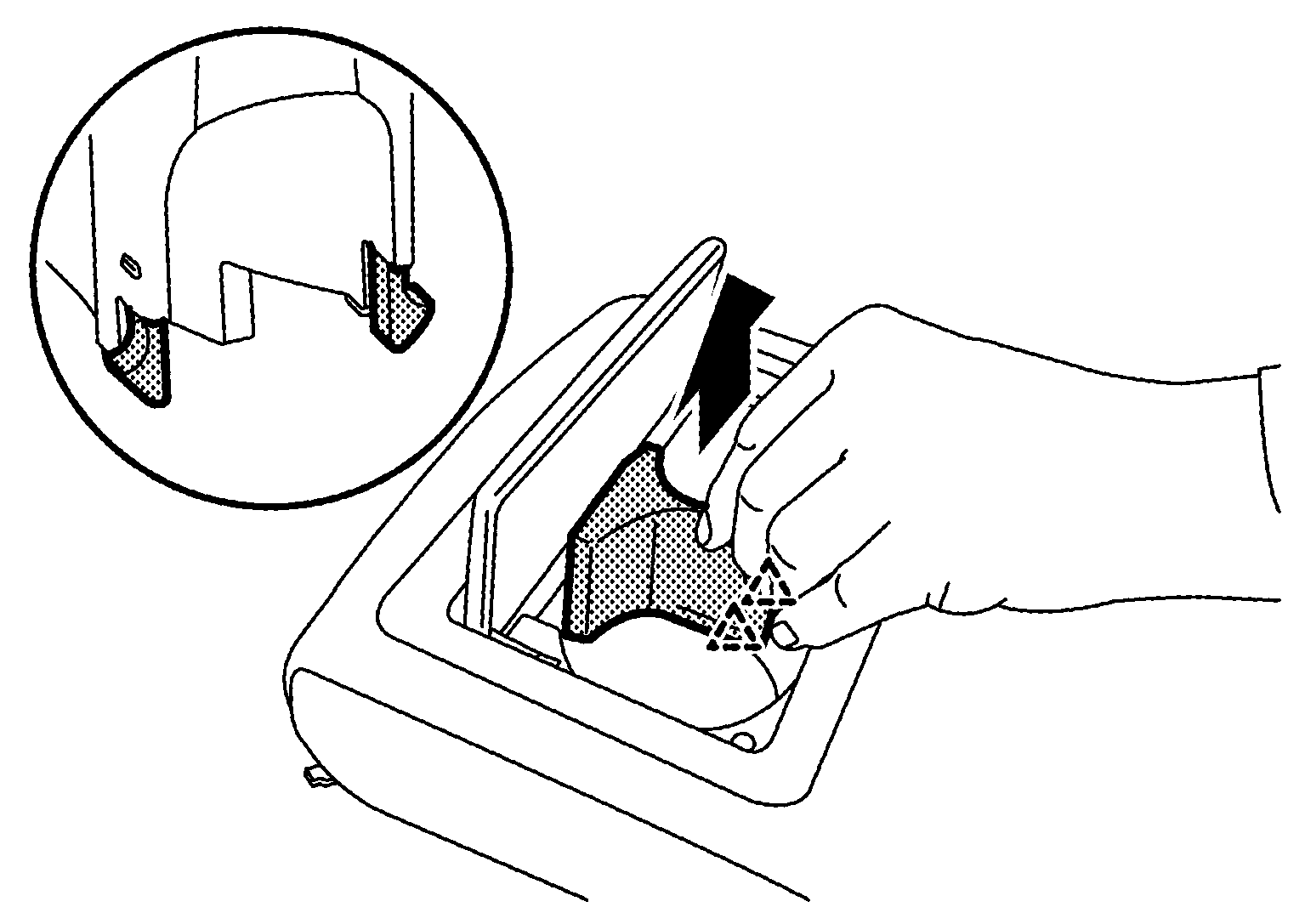

    2. Disengage cup holder spacer fixing pawls, and then remove cup holder spacer.
      GNSJMJIA8814ZZ-814Courtesy of NISSAN NORTH AMERICA, INC.
      SANKAKU-H : Pawl
    3. Remove cup holder fixing screw MARU-A-W .
      G09163325Courtesy of NISSAN NORTH AMERICA, INC.

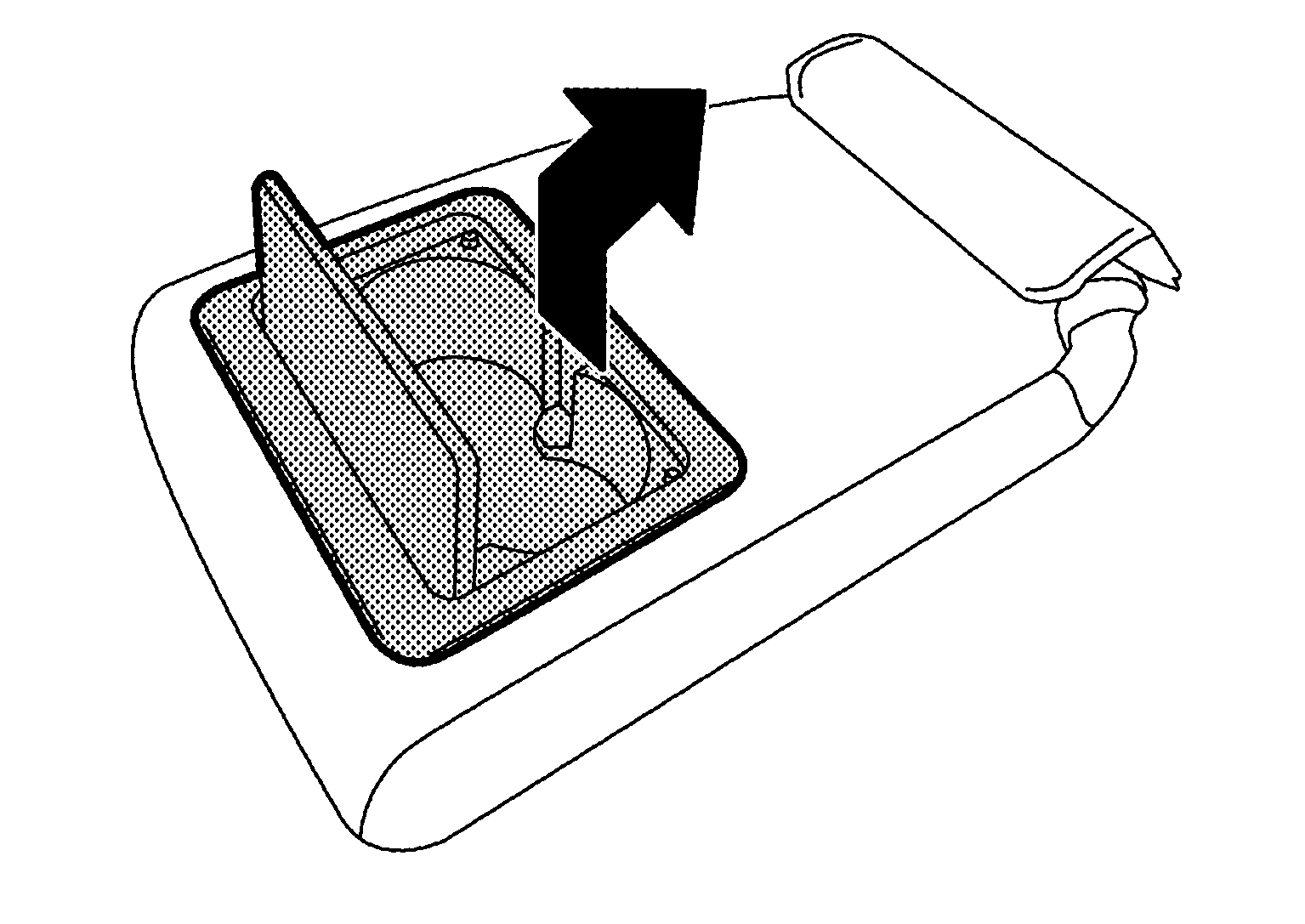

    4. Pull up cup holder of vehicle rear side, and then remove cup holder.
      G09163326Courtesy of NISSAN NORTH AMERICA, INC.

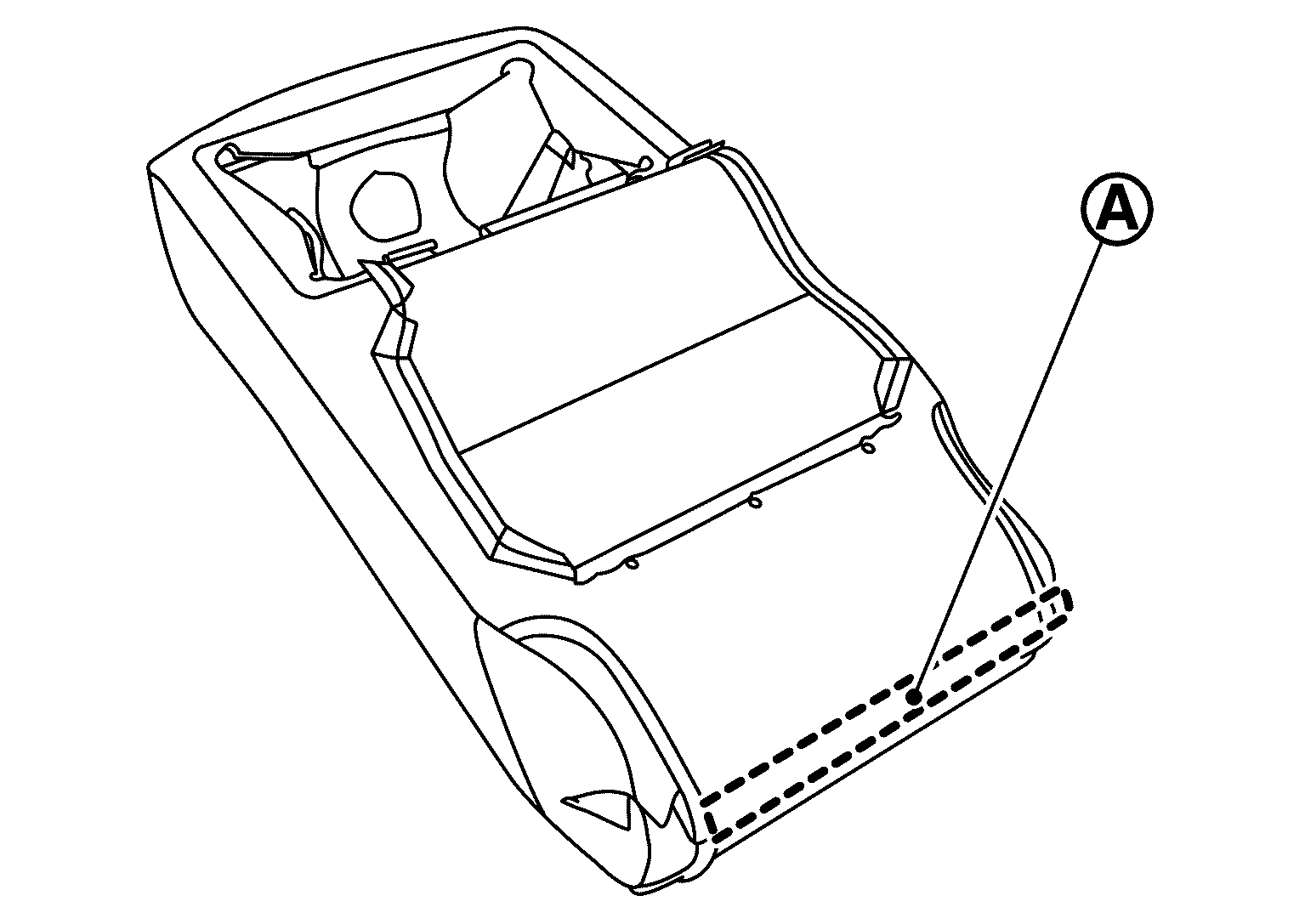

  3. Disengage armrest trim fixing retainer MARU-A-W , and then separate armrest trim and armrest pad.
    G09163327Courtesy of NISSAN NORTH AMERICA, INC.
