Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Disengage seatback board fixing rubber band .

Courtesy of NISSAN NORTH AMERICA, INC.
Disengage seat cushion trim fixing rubber band .

Courtesy of NISSAN NORTH AMERICA, INC.
Remove seat cushion outside finisher outer side. Refer to REMOVAL AND INSTALLATION

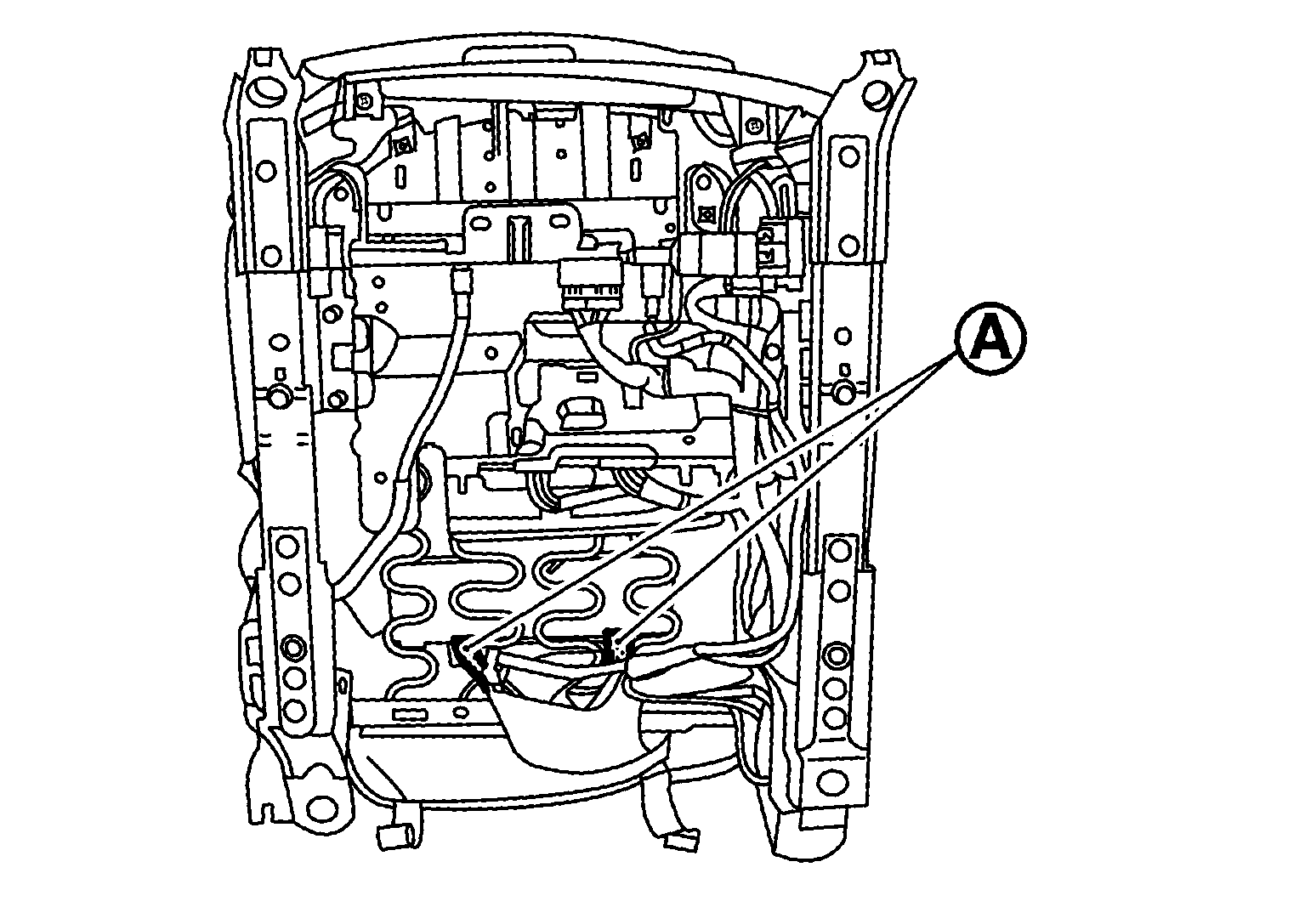

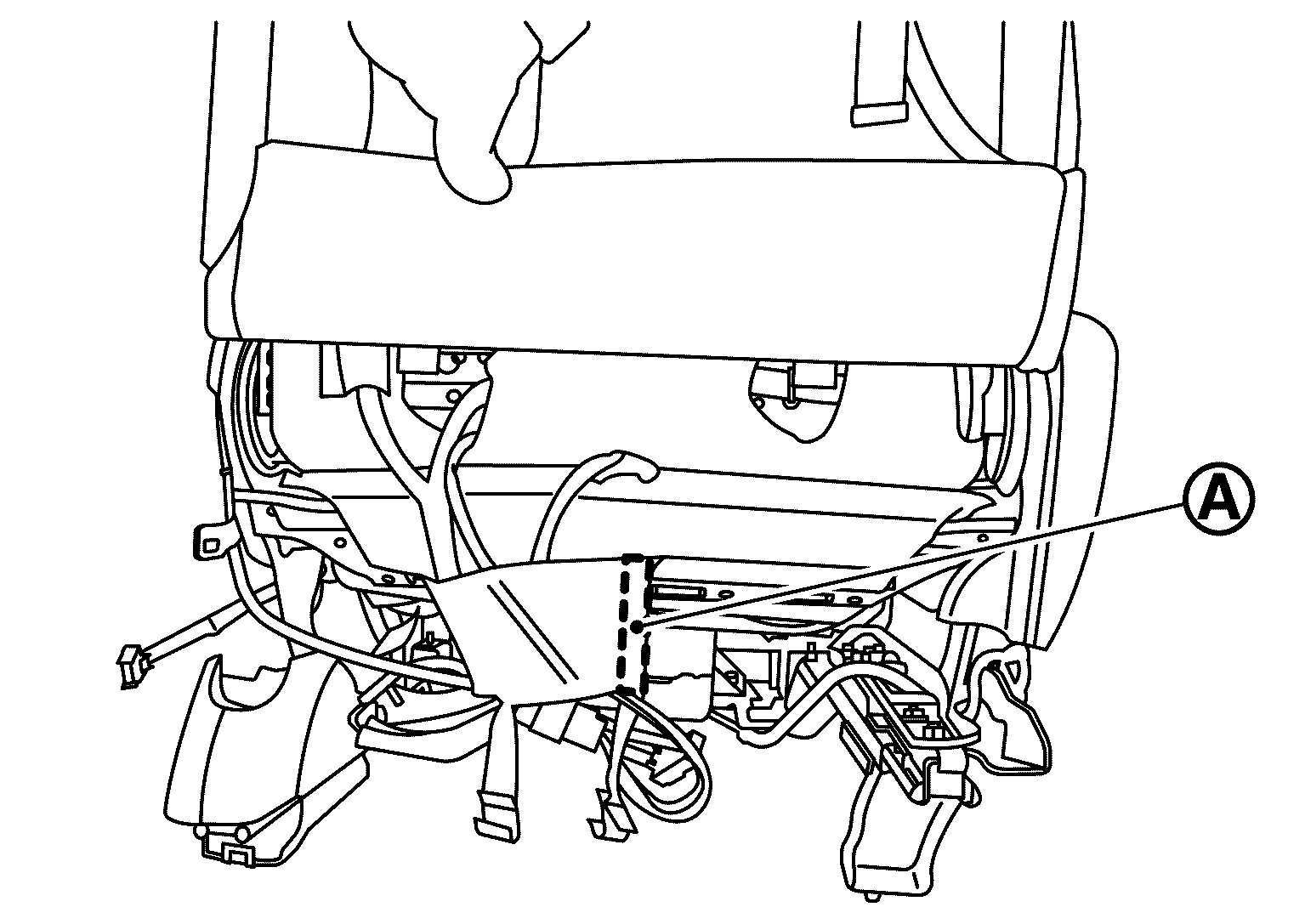

Disengage seat cushion trim fixing hook-and-loop fastener .

Courtesy of NISSAN NORTH AMERICA, INC.

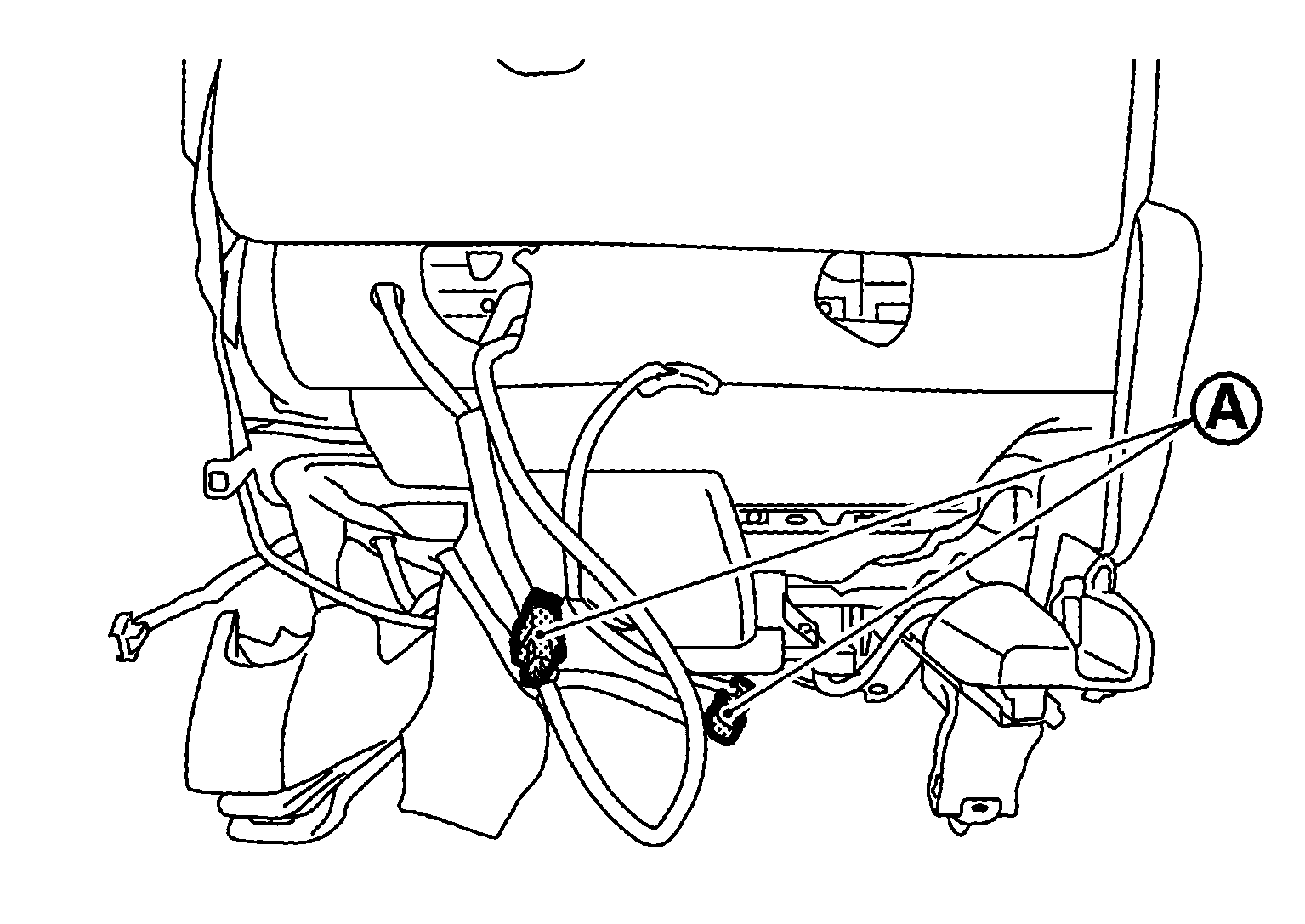

Disconnect seat heater harness connector .

Courtesy of NISSAN NORTH AMERICA, INC.

Disengage seat cushion retainer

and rubber band

.

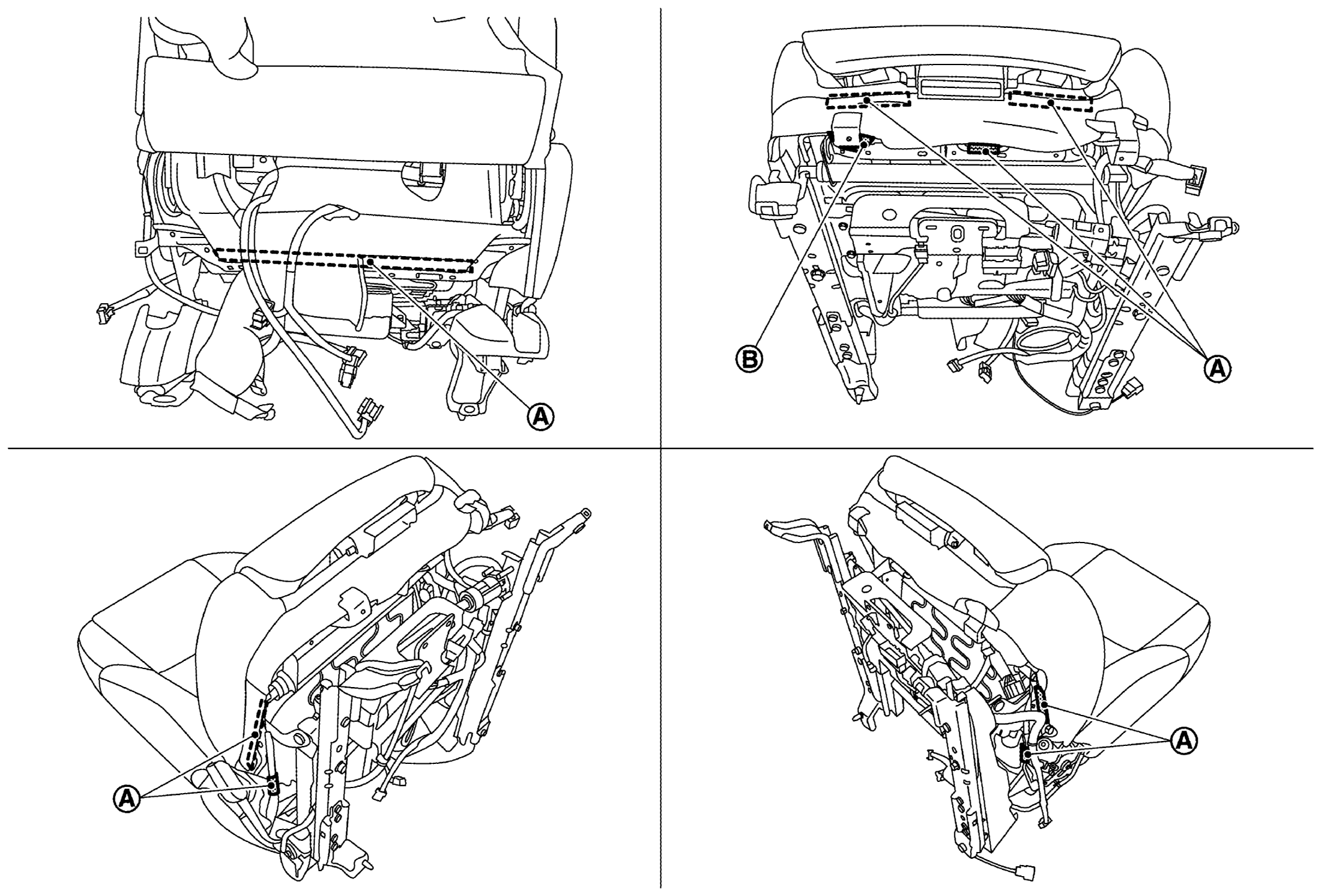

With thigh extension

G09163298

Courtesy of NISSAN NORTH AMERICA, INC.

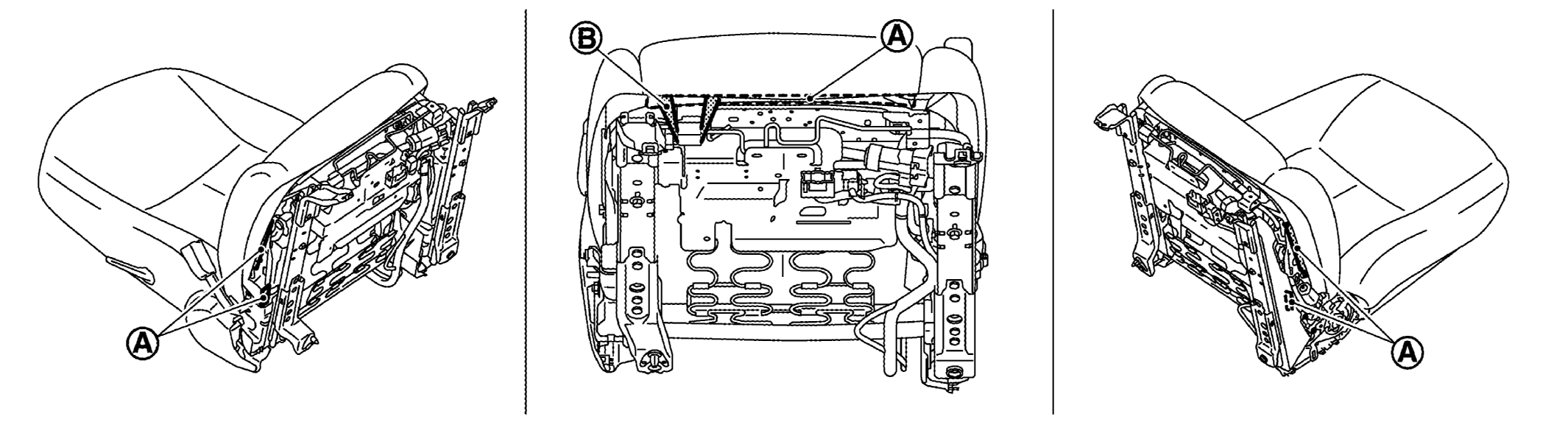

Without thigh extension

G09163299

Courtesy of NISSAN NORTH AMERICA, INC.

Remove seat cushion retainer of thigh extension portion (with thigh extension only).

Extend thigh extension.

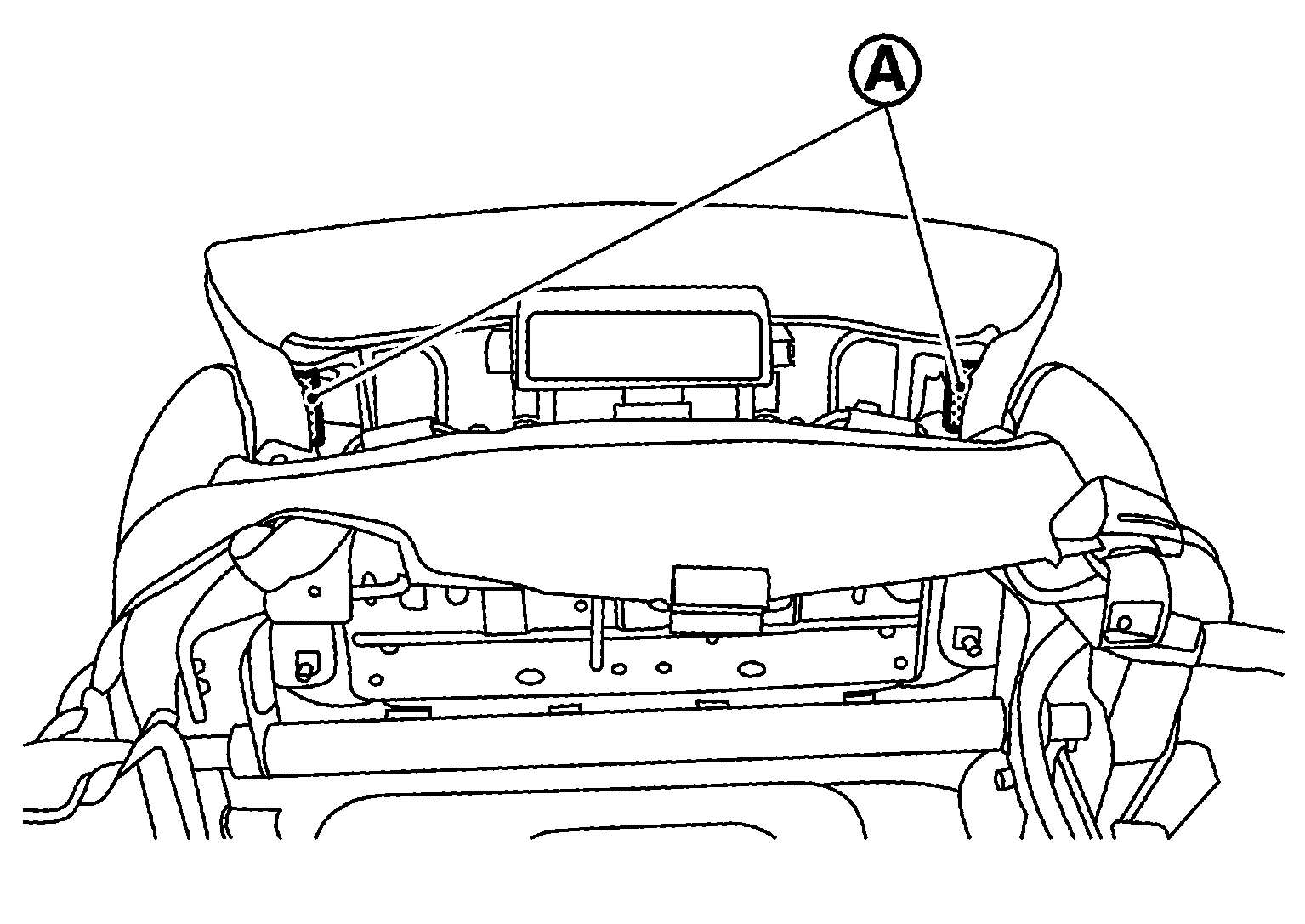

Remove seat cushion retainer

, and then roll up seat cushion trim and thigh extension pad as a set.

G09163300

Courtesy of NISSAN NORTH AMERICA, INC.

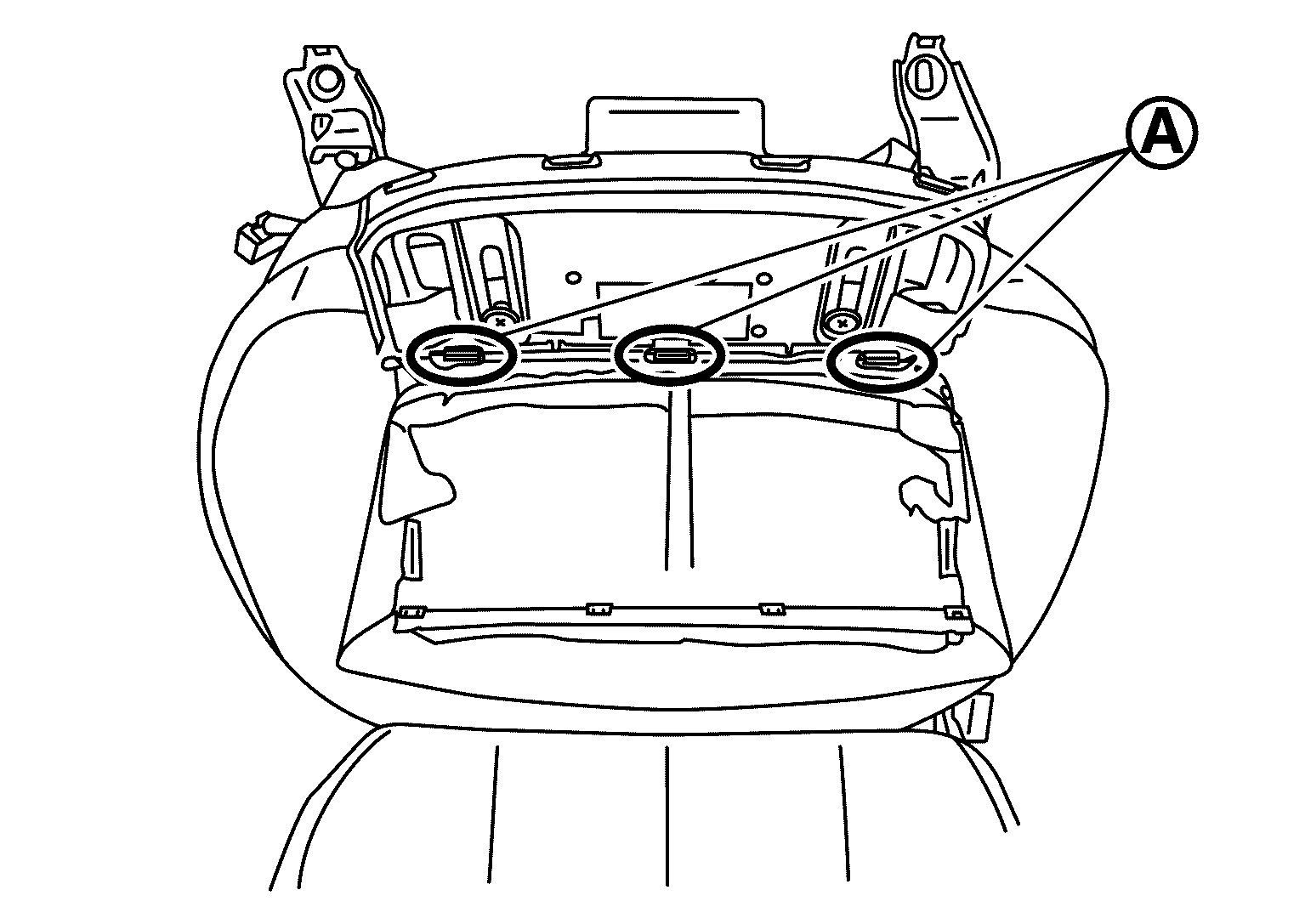

Disengage seat cushion trim fixing portion

.

G09163301

Courtesy of NISSAN NORTH AMERICA, INC.

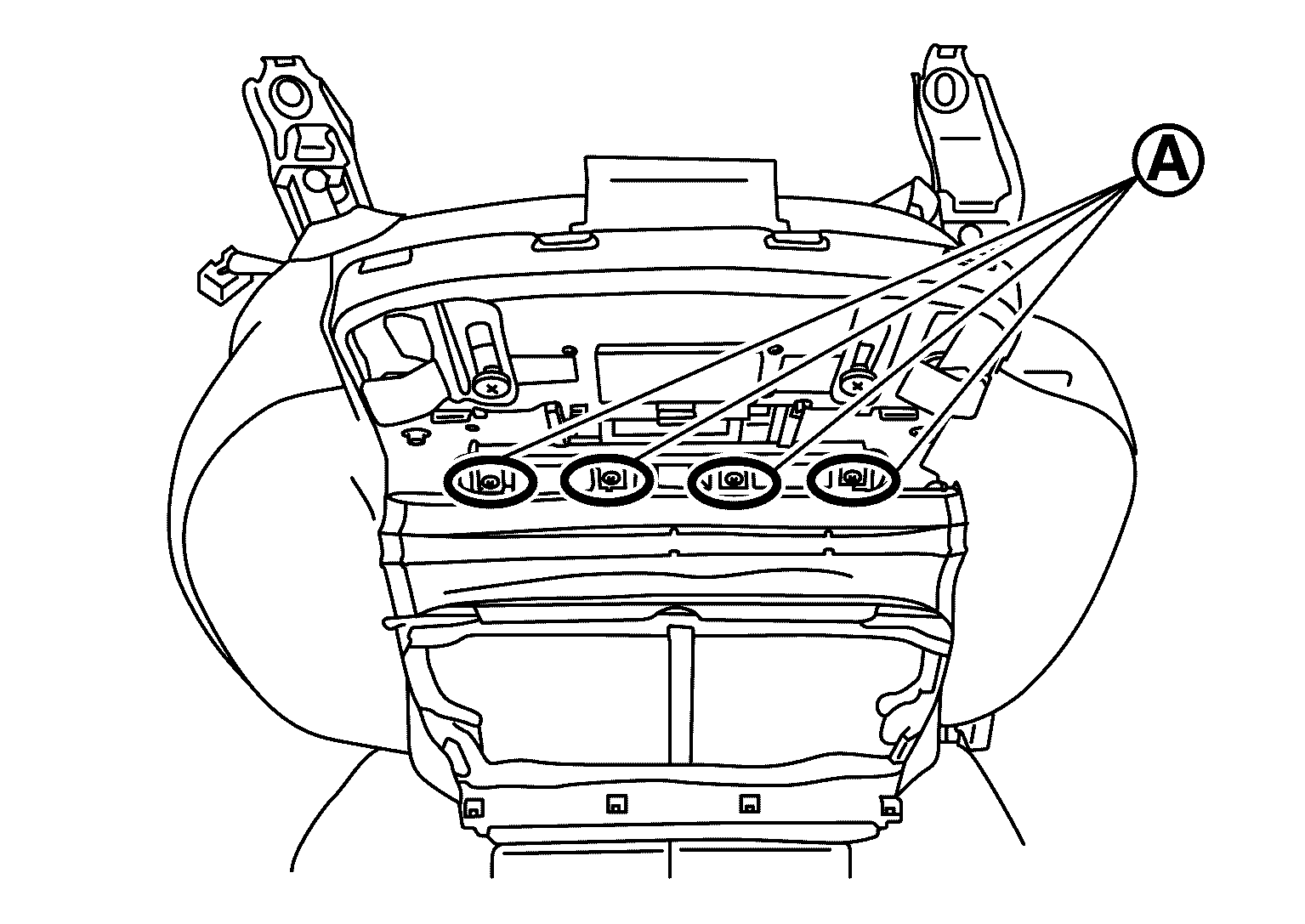

Disengage seat cushion trim fixing portion

.

G09163302

Courtesy of NISSAN NORTH AMERICA, INC.

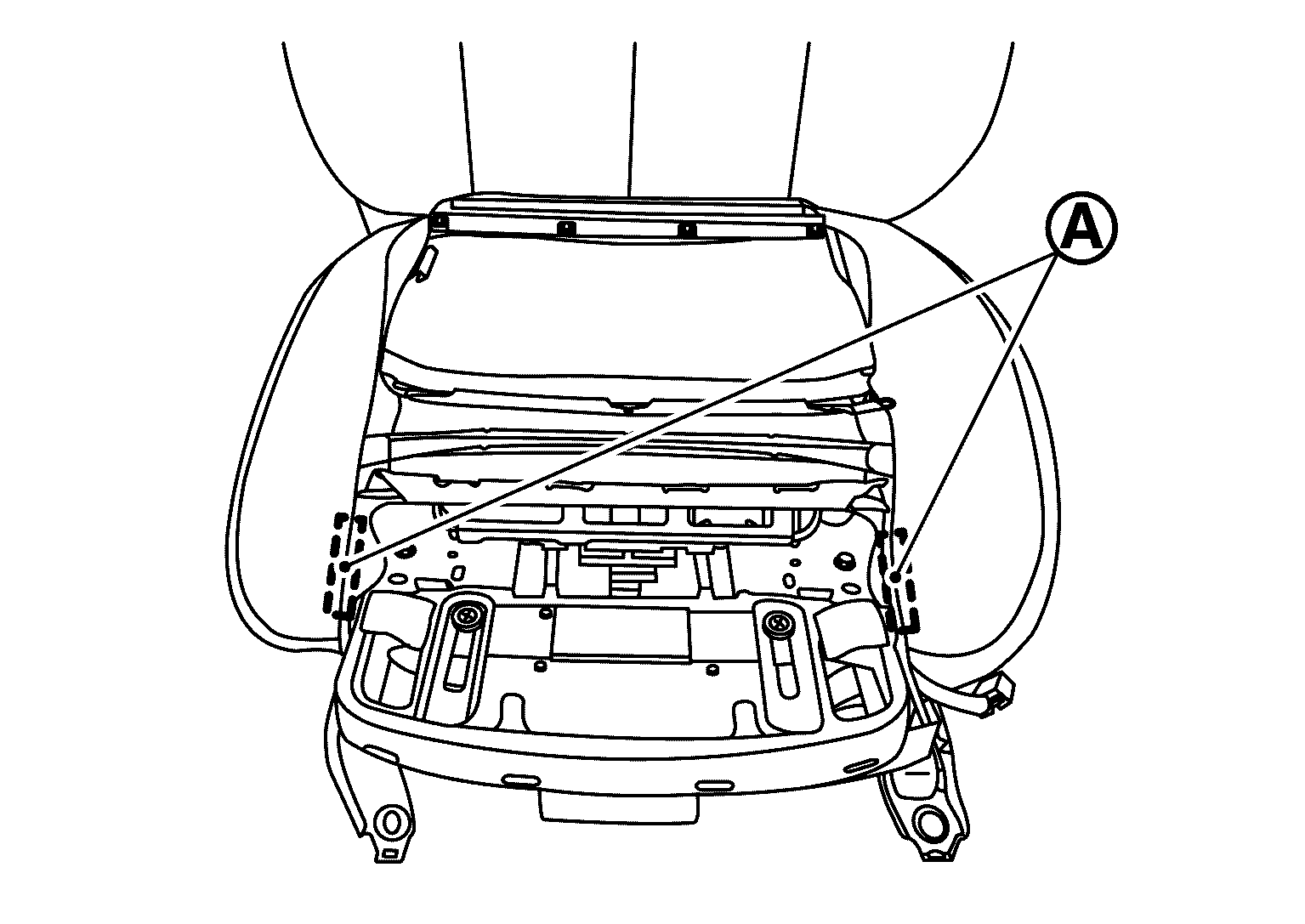

Remove seat cushion retainer

.

G09163303

Courtesy of NISSAN NORTH AMERICA, INC.

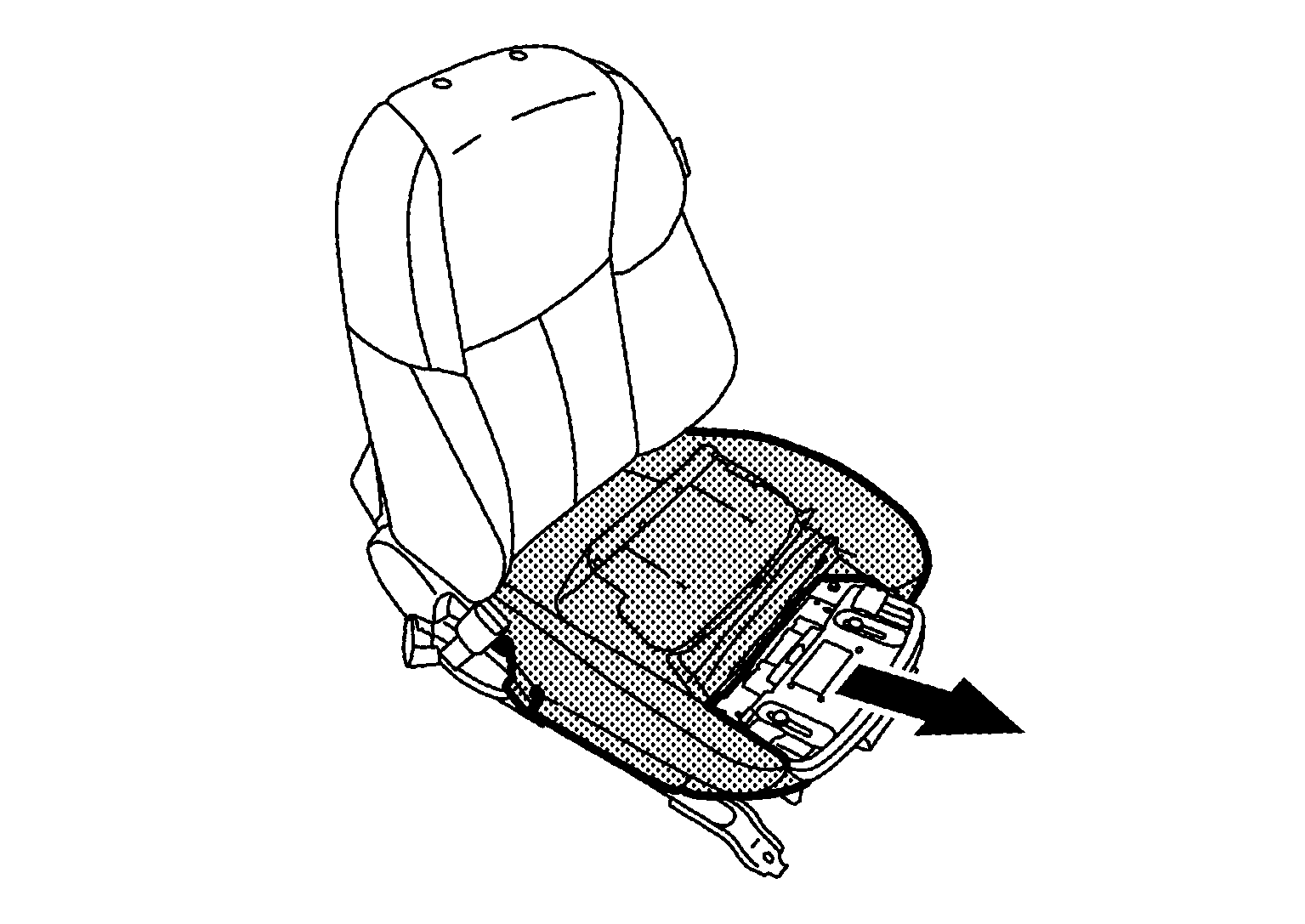

Remove seat cushion trim and seat cushion pad as a set.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove hog rings, and then separate seat cushion trim and seat cushion pad.
CAUTION:
Before performing separating operation, check the installation position of hog rings.
