Seat Cushion Outside Finisher

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

CAUTION:

When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

SEAT CUSHION OUTSIDE FINISHER OUTER SIDE

  1. Remove seat cushion forward finisher.

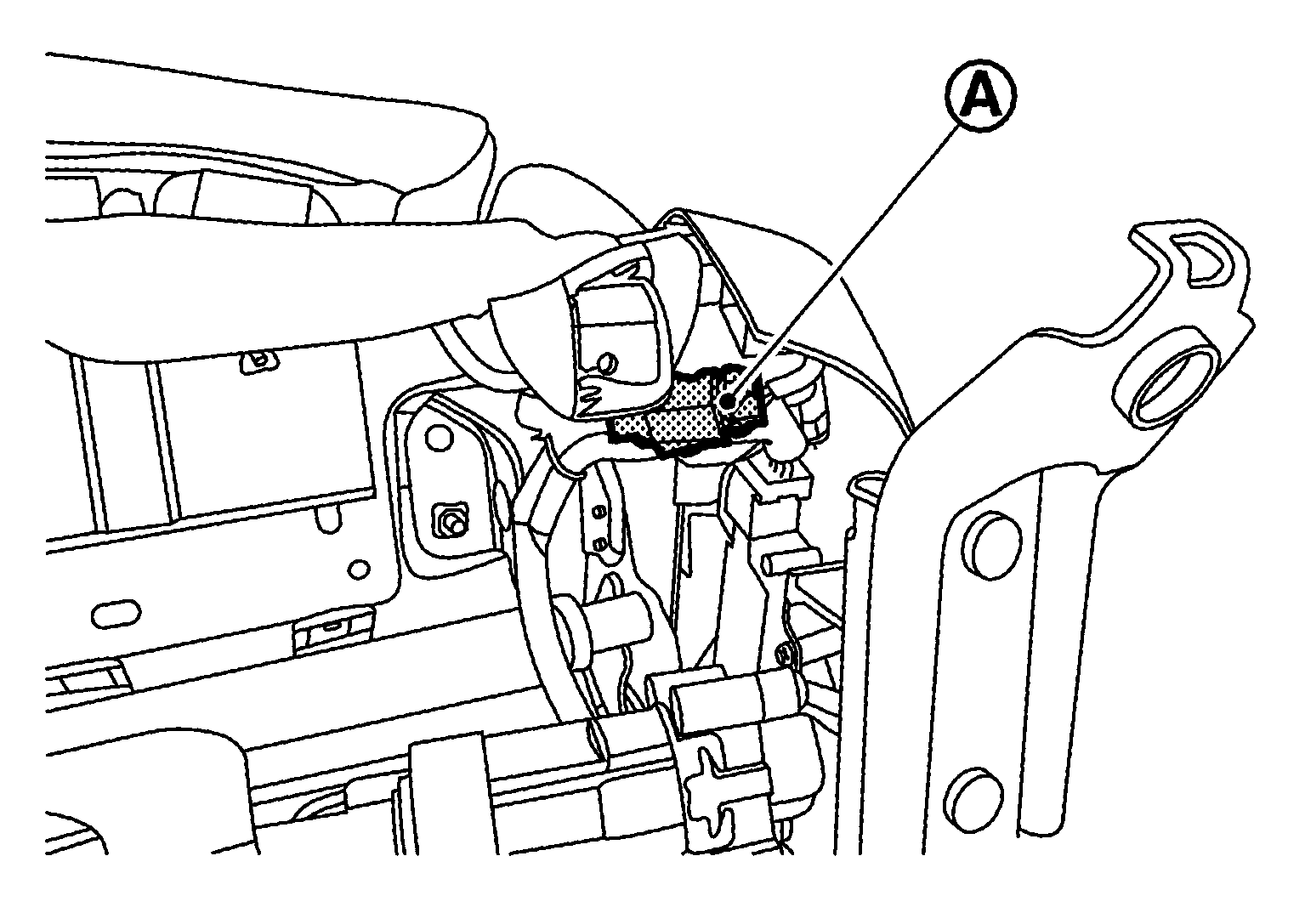

  2. Disconnect side support harness connector MARU-A-W (with side support only).
    G09163310Courtesy of NISSAN NORTH AMERICA, INC.

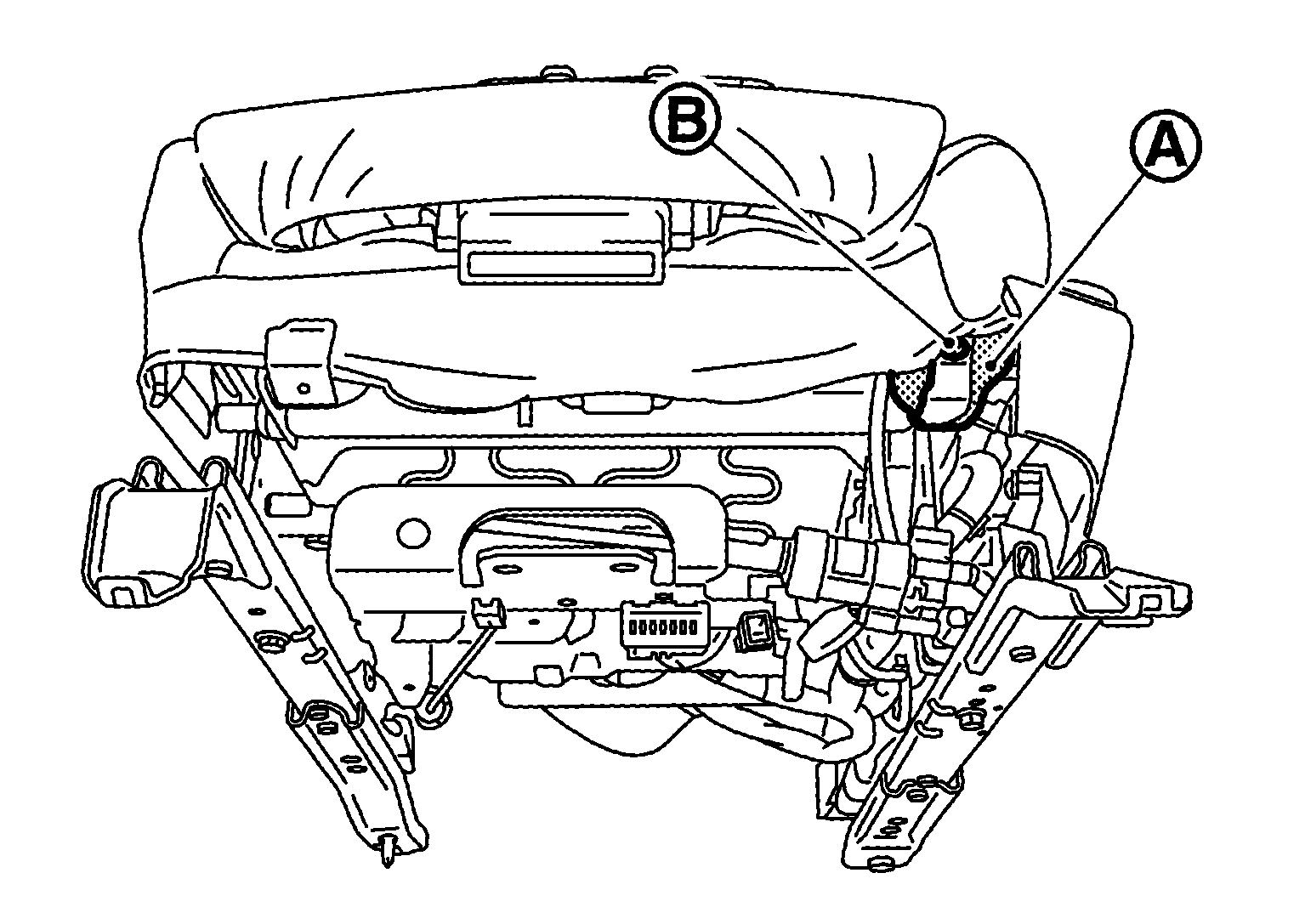

  3. Remove seat cushion trim fixing rubber band MARU-A-W , and then remove seat cushion outside finisher outer side fixing screw MARU-B-W .
    G09163311Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove seat cushion inside finisher outer side rear.

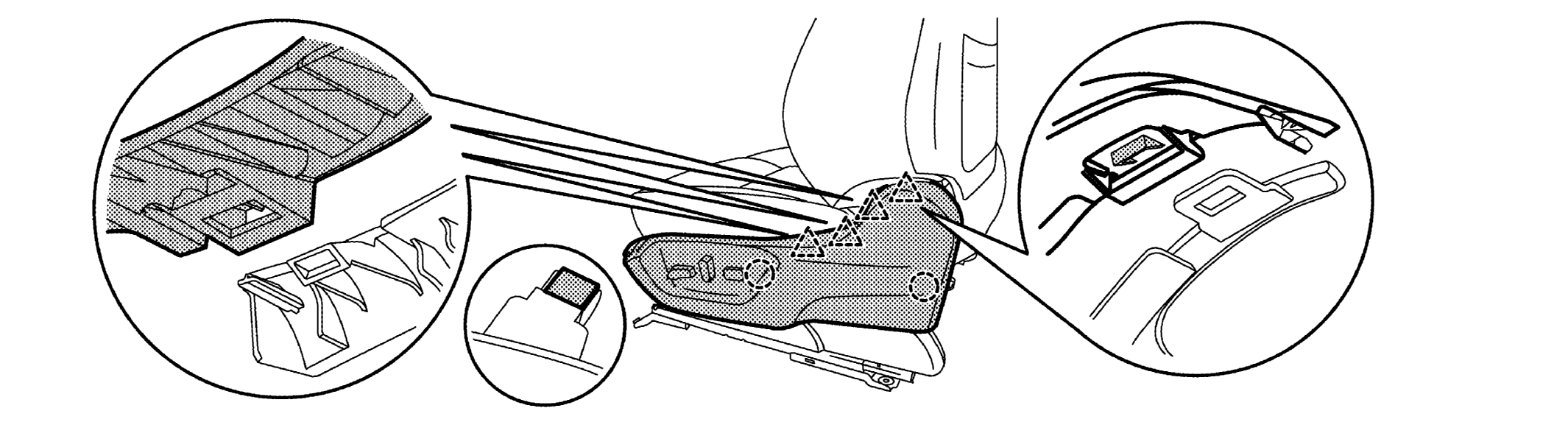

  5. Disengage seat cushion outside finisher outer side fixing clips and pawls.
    GNSJMJIA8803ZZ-803Courtesy of NISSAN NORTH AMERICA, INC.
    MARU-H : Clip
    SANKAKU-H : Pawl

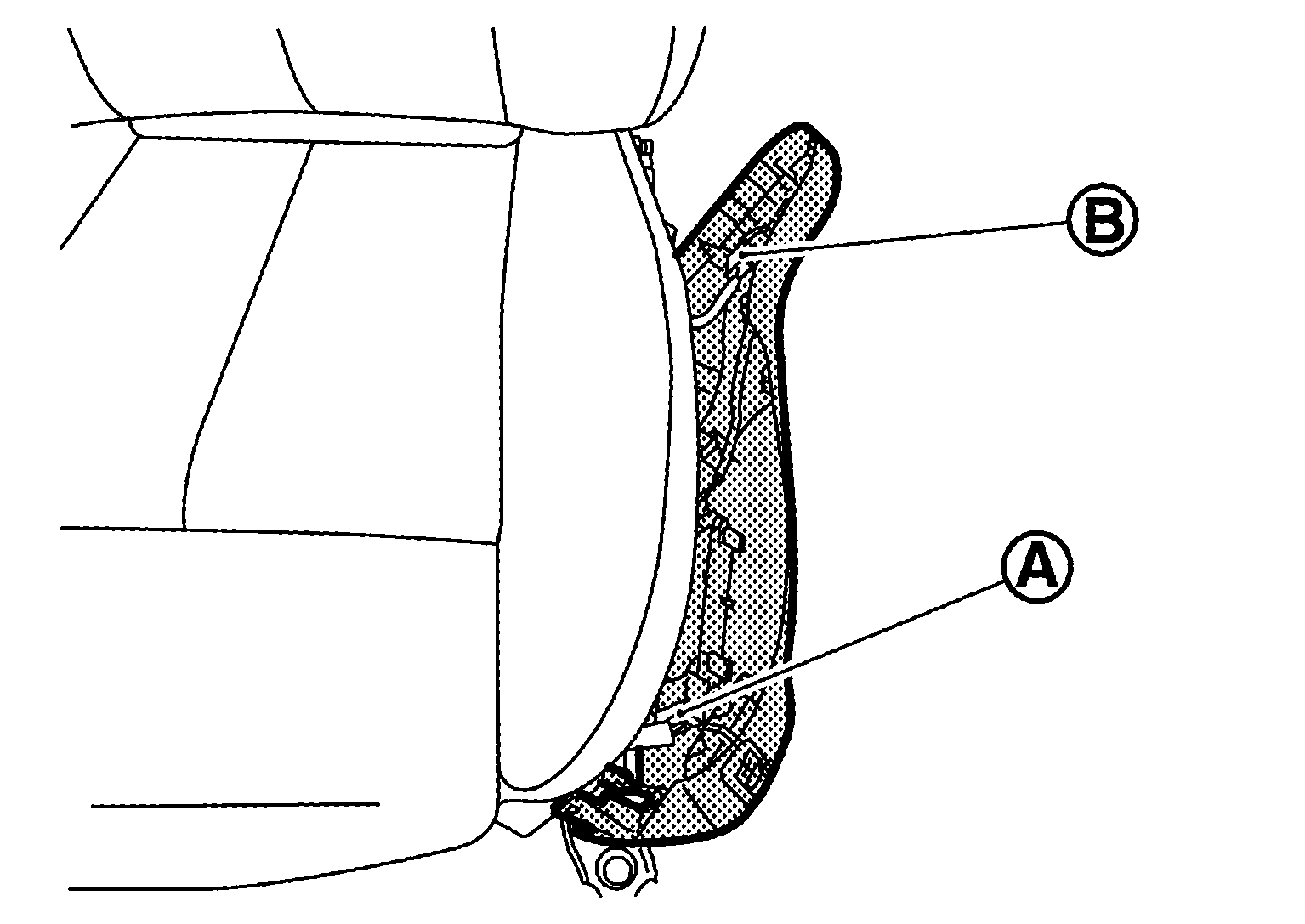

  6. Disconnect harness connector MARU-A-W , MARU-B-W (if equipped), and then remove seat cushion outside finisher outer side.
    G09163313Courtesy of NISSAN NORTH AMERICA, INC.

SEAT CUSHION OUTSIDE FINISHER INNER SIDE

  1. Remove seat cushion inside finisher inner side rear.

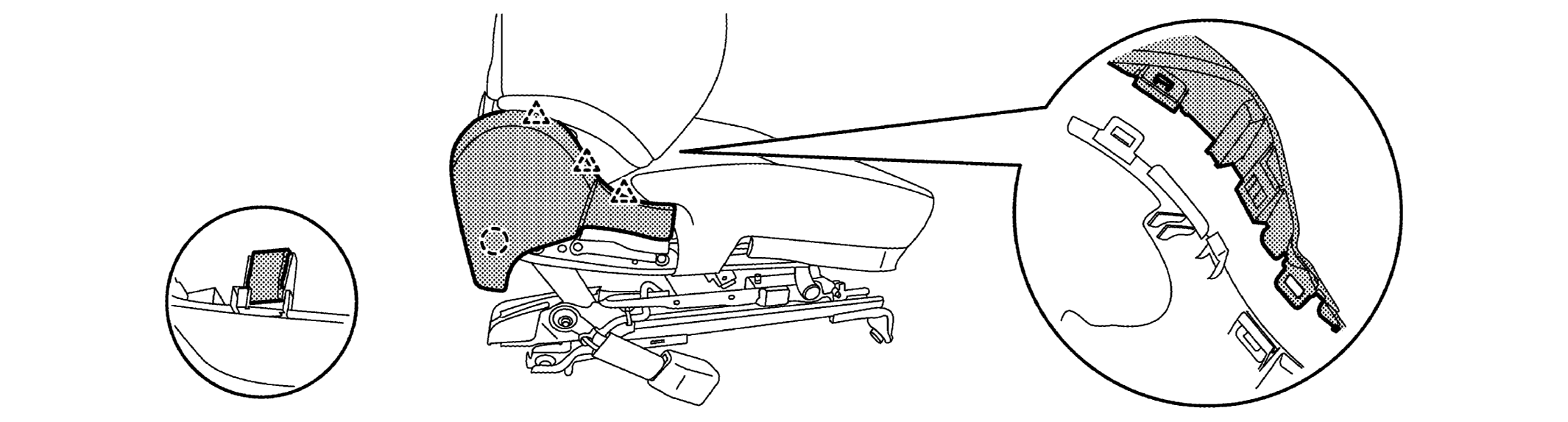

  2. Disengage seat cushion outside finisher inner side fixing clip and pawls, and then remove seat cushion outside finisher inner side.
    GNSJMJIA8805ZZ-805Courtesy of NISSAN NORTH AMERICA, INC.
    MARU-H : Clip
    SANKAKU-H : Pawl

INSTALLATION

Install in the reverse order of removal.
