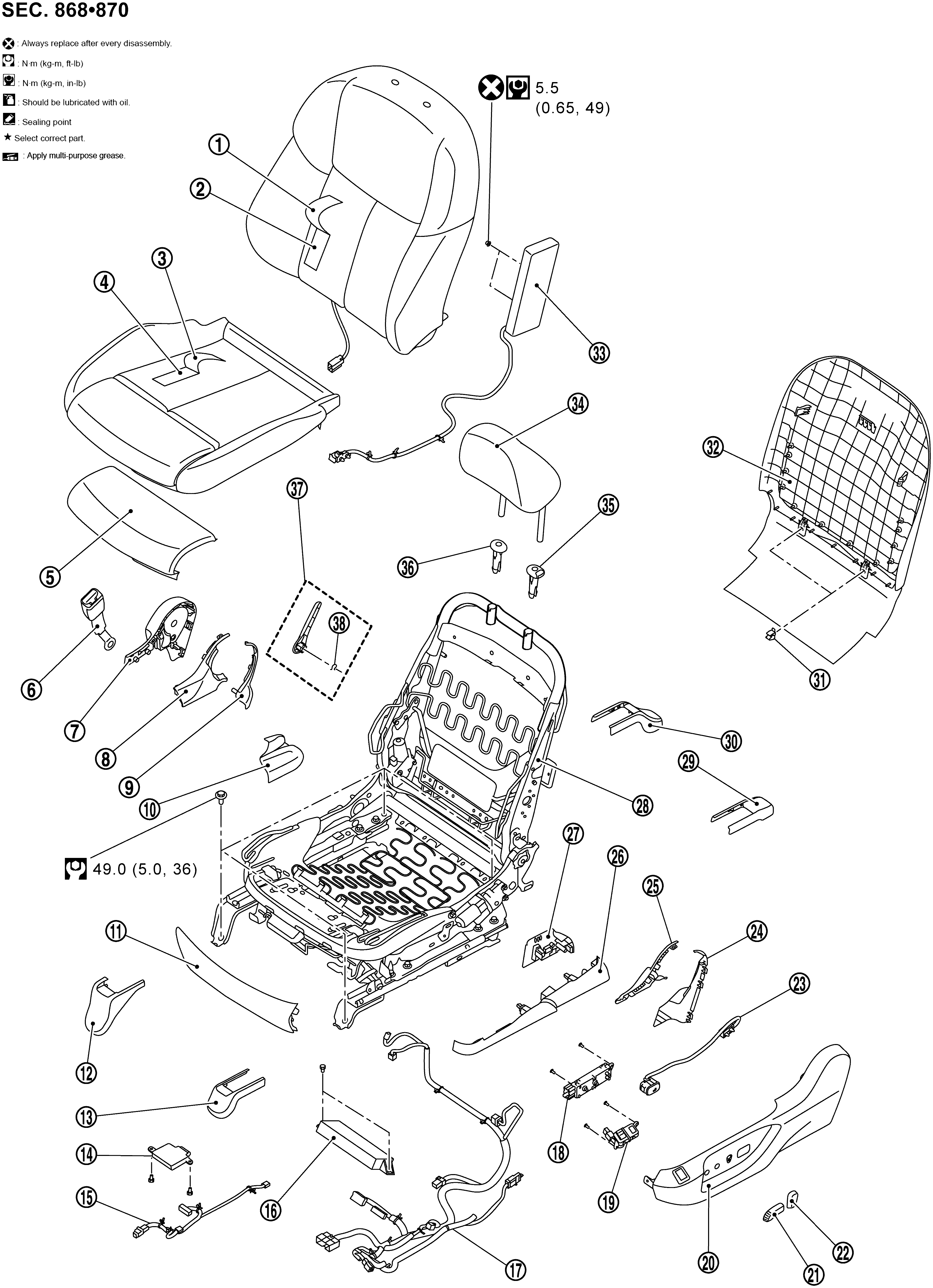

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Seatback trim	Seatback pad	Seat cushion trim
Seat cushion pad	Forward pad	Seat belt buckle ^*
Seat cushion outside finisher inner side	Seat cushion inside finisher inner side front	Seat cushion inside finisher inner side rear
Seat cushion lowside finisher inner side	Seat cushion forward finisher	Front leg cover inner side
Front leg cover outer side	Occupant detection system control unit	ODS harness connector
Driver seat control unit	Harness assembly	Power seat switch
Side support switch	Seat cushion outside finisher outer side	Slide knob
Reclining knob	Lumber support switch	Seat cushion inside finisher outer side rear
Seat cushion inside finisher outer side front	Seat cushion outside finisher outer side lower	Seat cushion inside finisher outer side lower
Seat frame	Rear leg cover outer side	Rear leg cover inner side
M-clip	Seatback board	Side air bag assembly
Headrest	Headrest holder (lock)	Headrest holder (free)
Lumber lever	Snap ring
: Always replace after every disassembly.
: N•m (kg - m, in - lb)
: N•m (kg - m, ft - lb)

* : Tighten together with seat belt buckle and tongue. Refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .
