Trunk Lid Lock: Inspection

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
  1. After opening and closing the trunk lid, check that trunk lid is fixed to the vehicle body normally.
  2. Check the lock/unlock operation of trunk lid.
  3. Check trunk lid lock assembly for poor lubrication. Apply body grease if necessary.
    GNSJMKIB2116ZZ-116Courtesy of NISSAN NORTH AMERICA, INC.
    GREASE : Body grease

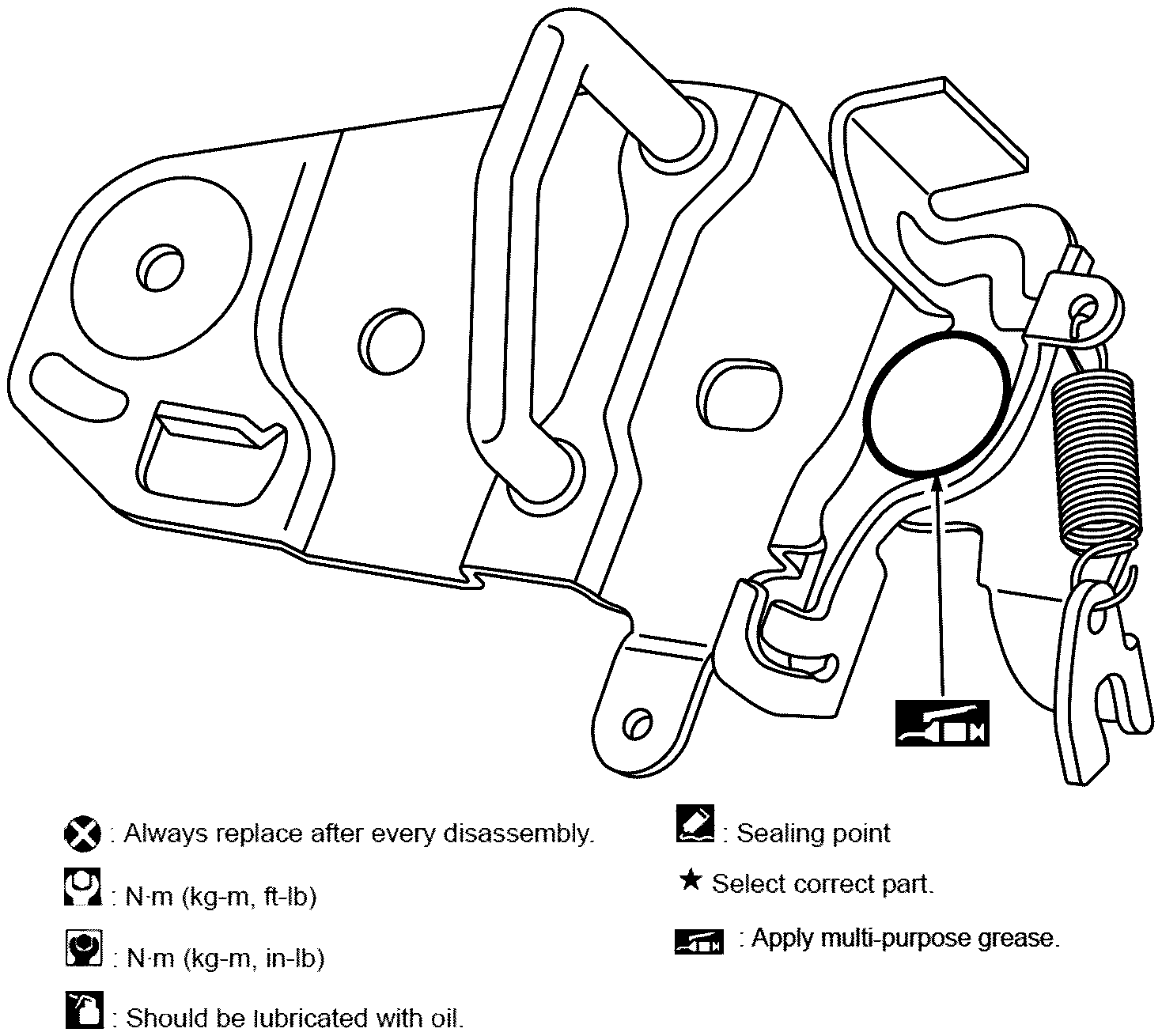

  4. Check trunk lid striker for poor lubrication. Apply body grease if necessary.
    GNSJMKIB2120ZZ-120Courtesy of NISSAN NORTH AMERICA, INC.
    GREASE : Body grease
