Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove driver seat. Refer to REMOVAL AND INSTALLATION .
  2. Remove mounting bolts MARU-A-W and clip of the side air bag harness WHITE-1 from the harness mounting bracket WHITE-2 .

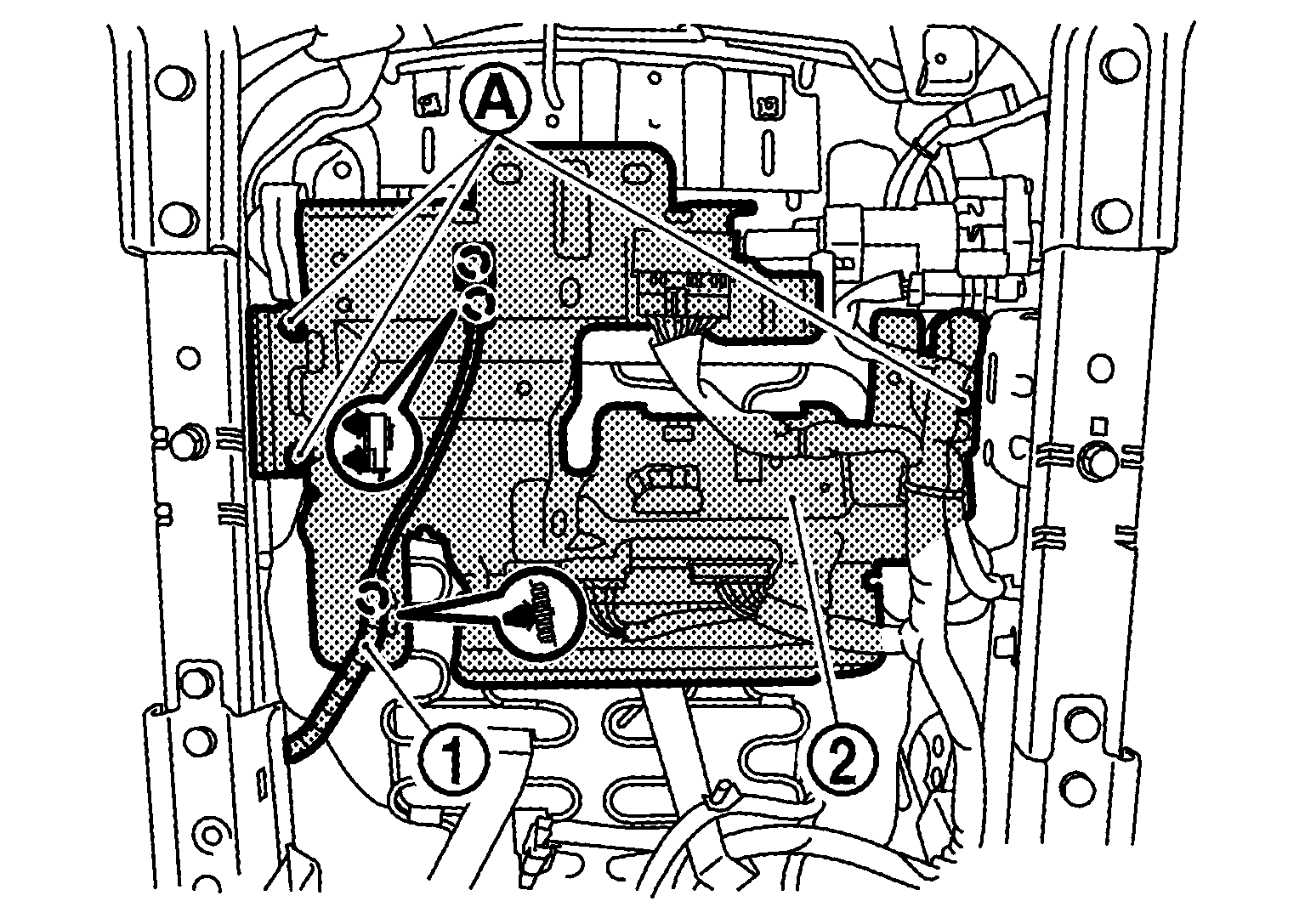

    GNSJMJIA8996ZZ-996Courtesy of NISSAN NORTH AMERICA, INC.
    MARU-H : Clip
  3. Disconnect driver seat control unit connector.
  4. Remove mounting bolt MARU-A-W .

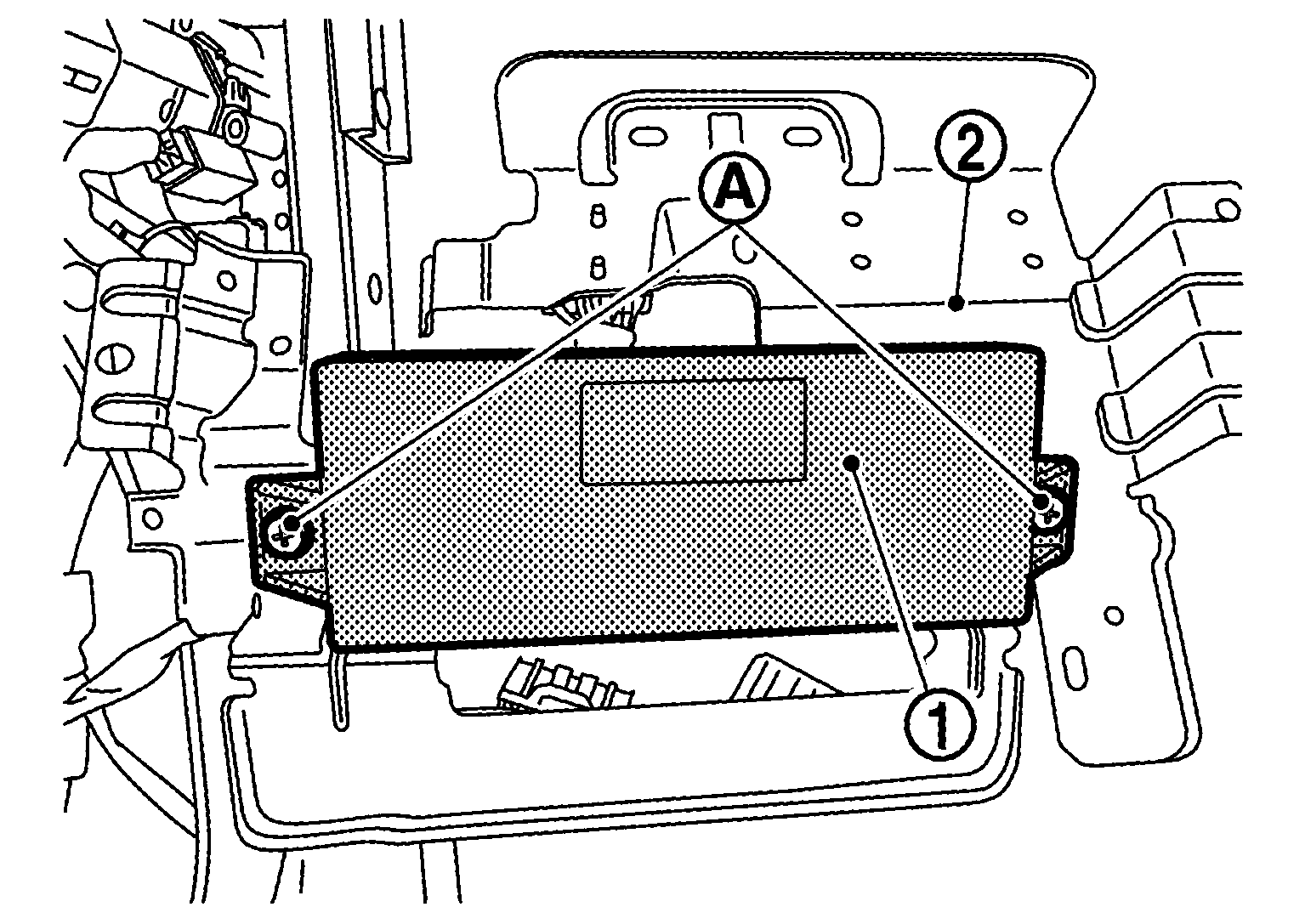

    G09159517Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove driver seat control unit WHITE-1 from the harness mounting bracket WHITE-2 .
