Infiniti
>>
2017
>>
QX70 RWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Exterior Body Panels
>>
Door & Lock (With Intelligent Key System) (Circuit Diagnosis, Symptom Diagnosis & Removal And Installation)
>>
Circuit Diagnosis
>>
Integrated HOMELINK Transmitter System
>>

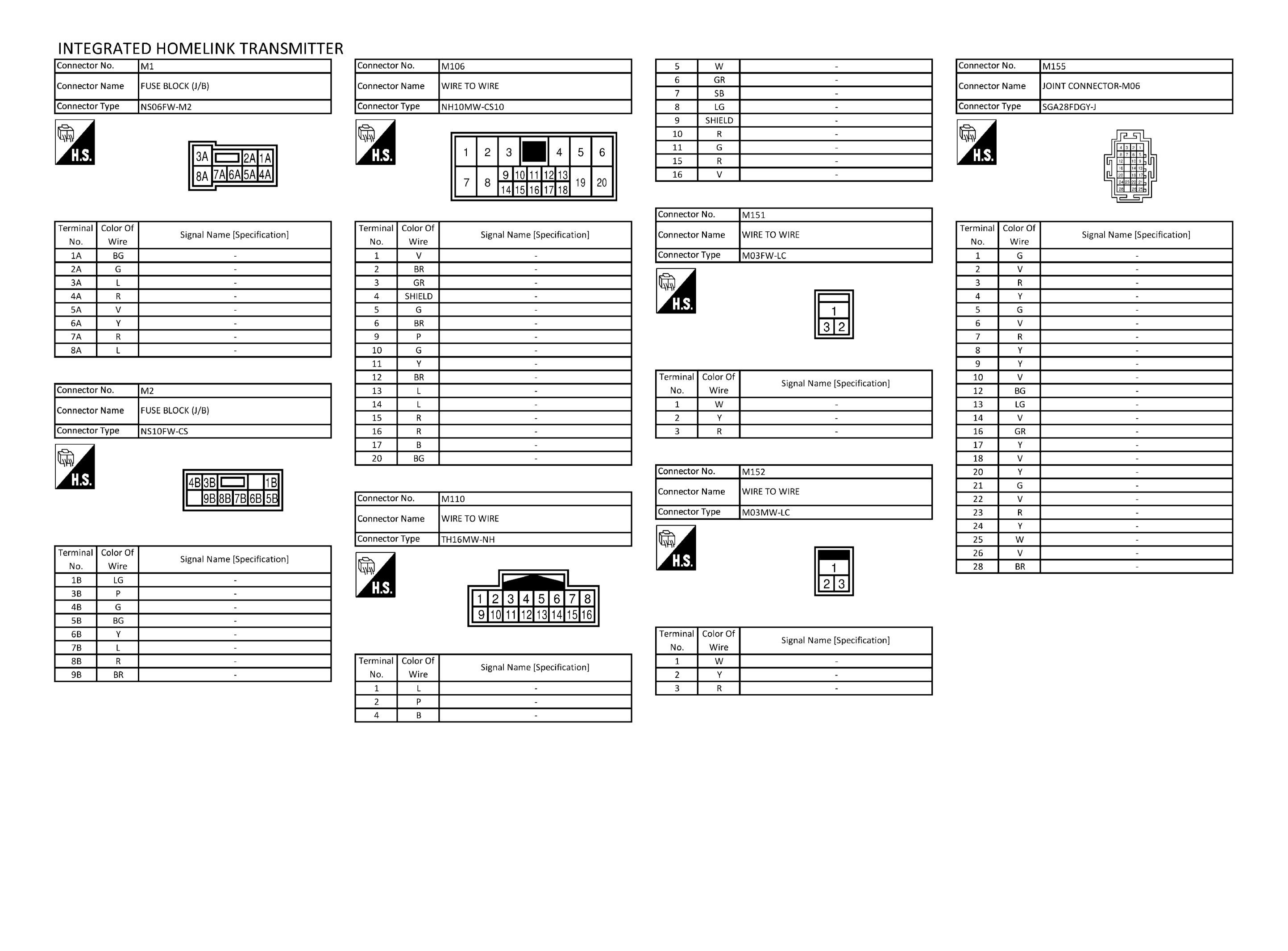

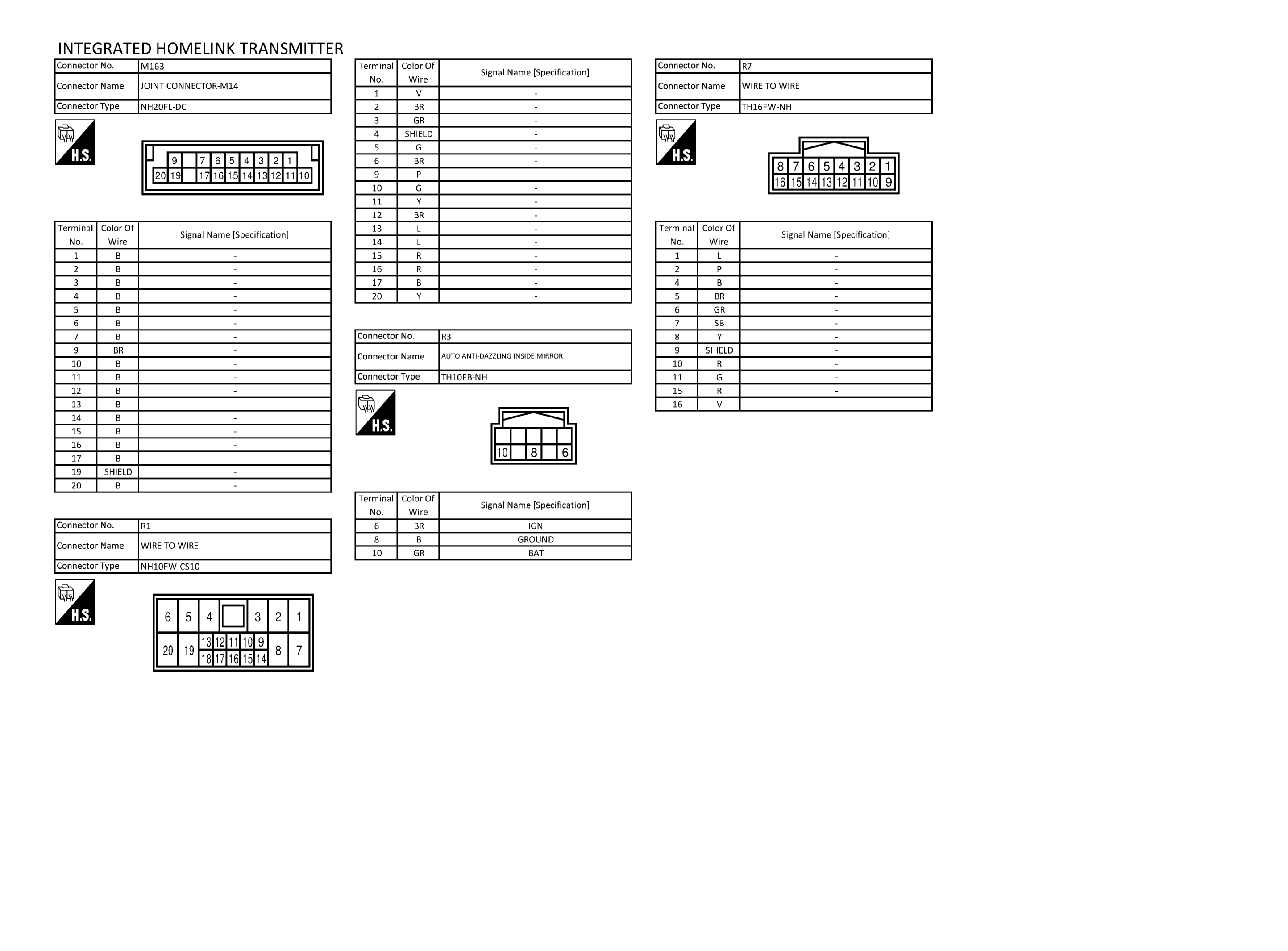

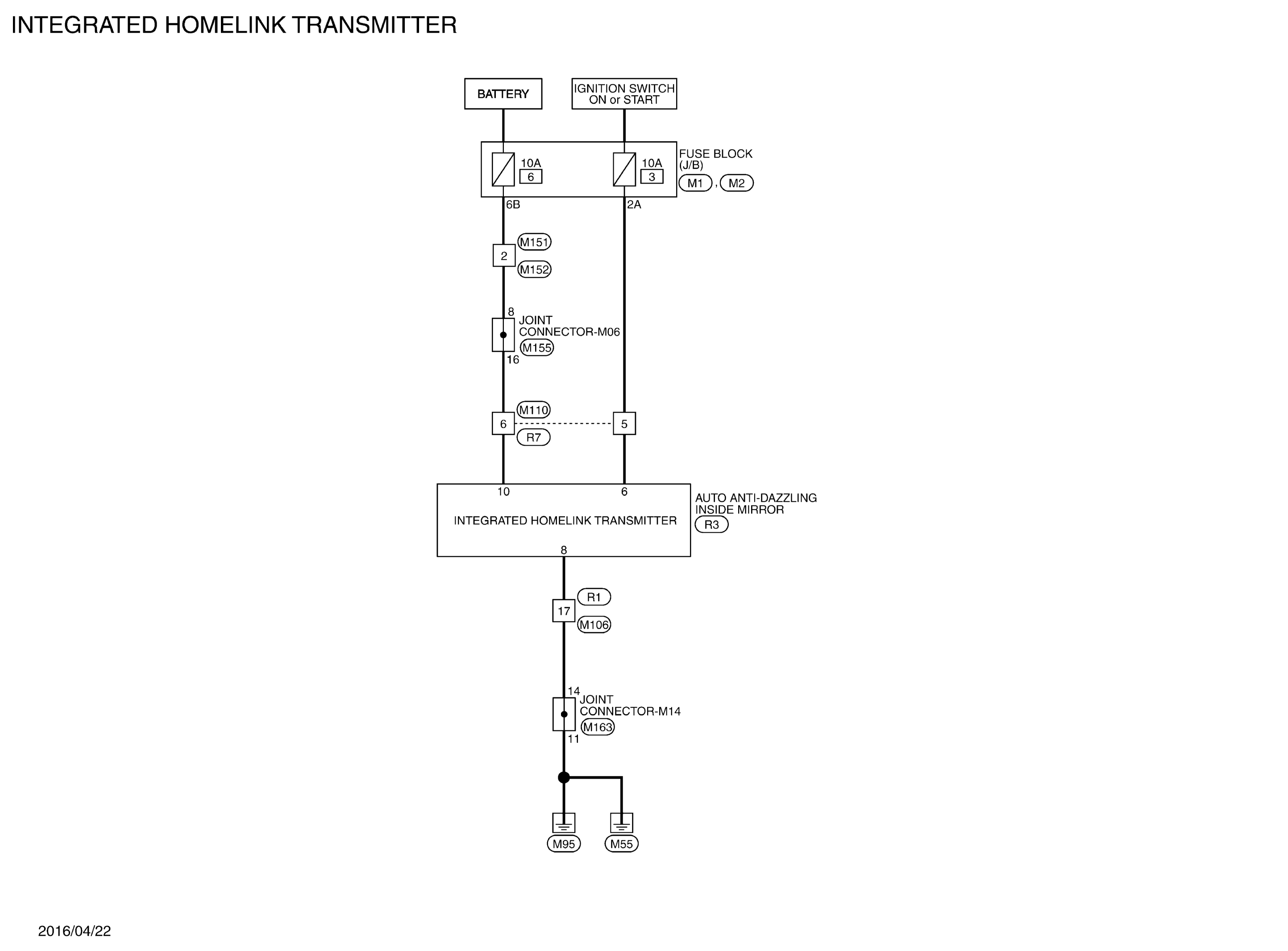

Wiring Diagram - Integrated HOMELINK Transmitter System
Wiring Diagram - Integrated HOMELINK Transmitter System
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
