Wiring Diagram - Ignition Power Supply -

WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.

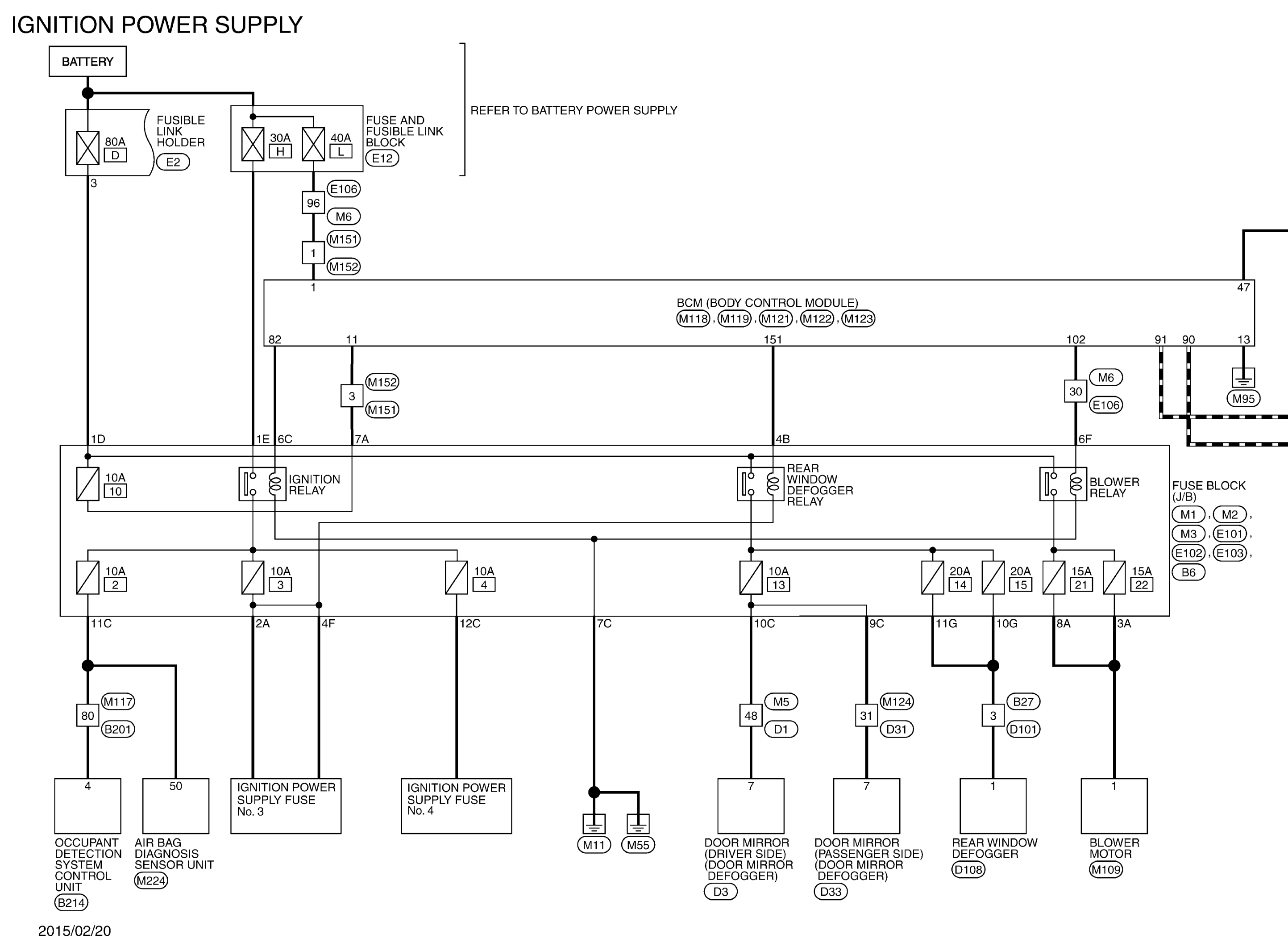

GNSJRMWH7952GB-952

Courtesy of NISSAN NORTH AMERICA, INC.

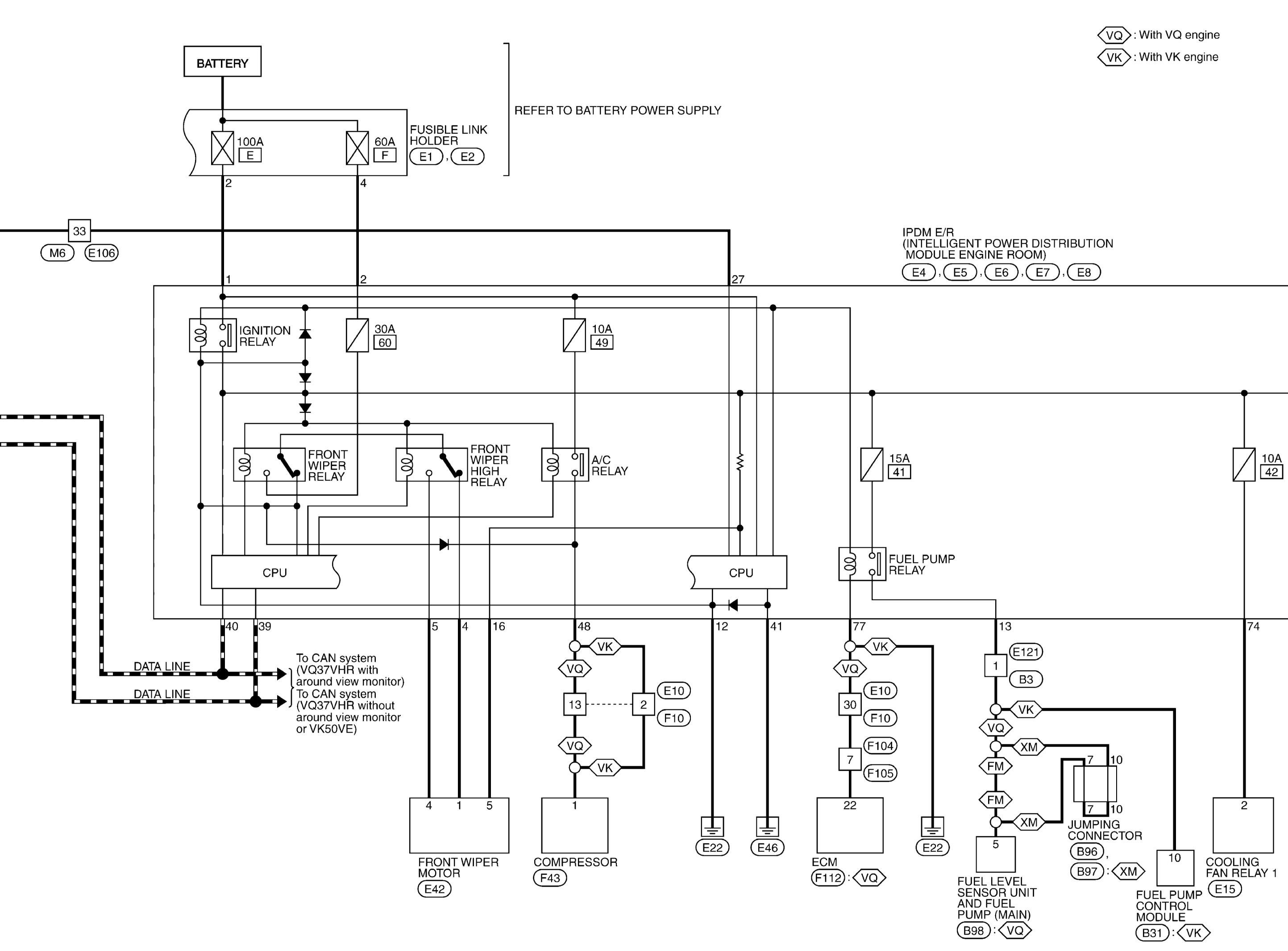

GNSJRMWH7953GB-953

Courtesy of NISSAN NORTH AMERICA, INC.

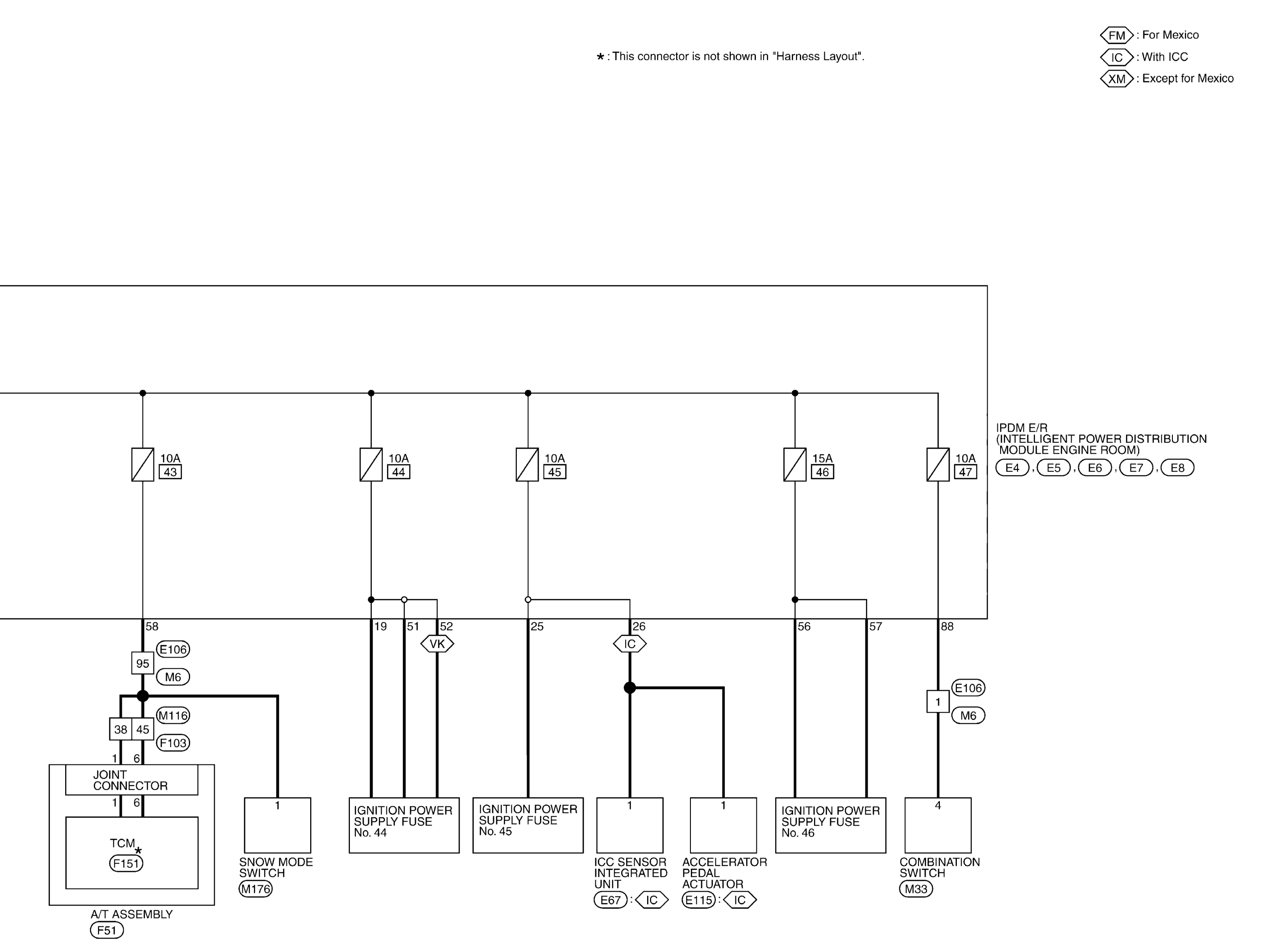

GNSJRMWH7954GB-954

Courtesy of NISSAN NORTH AMERICA, INC.

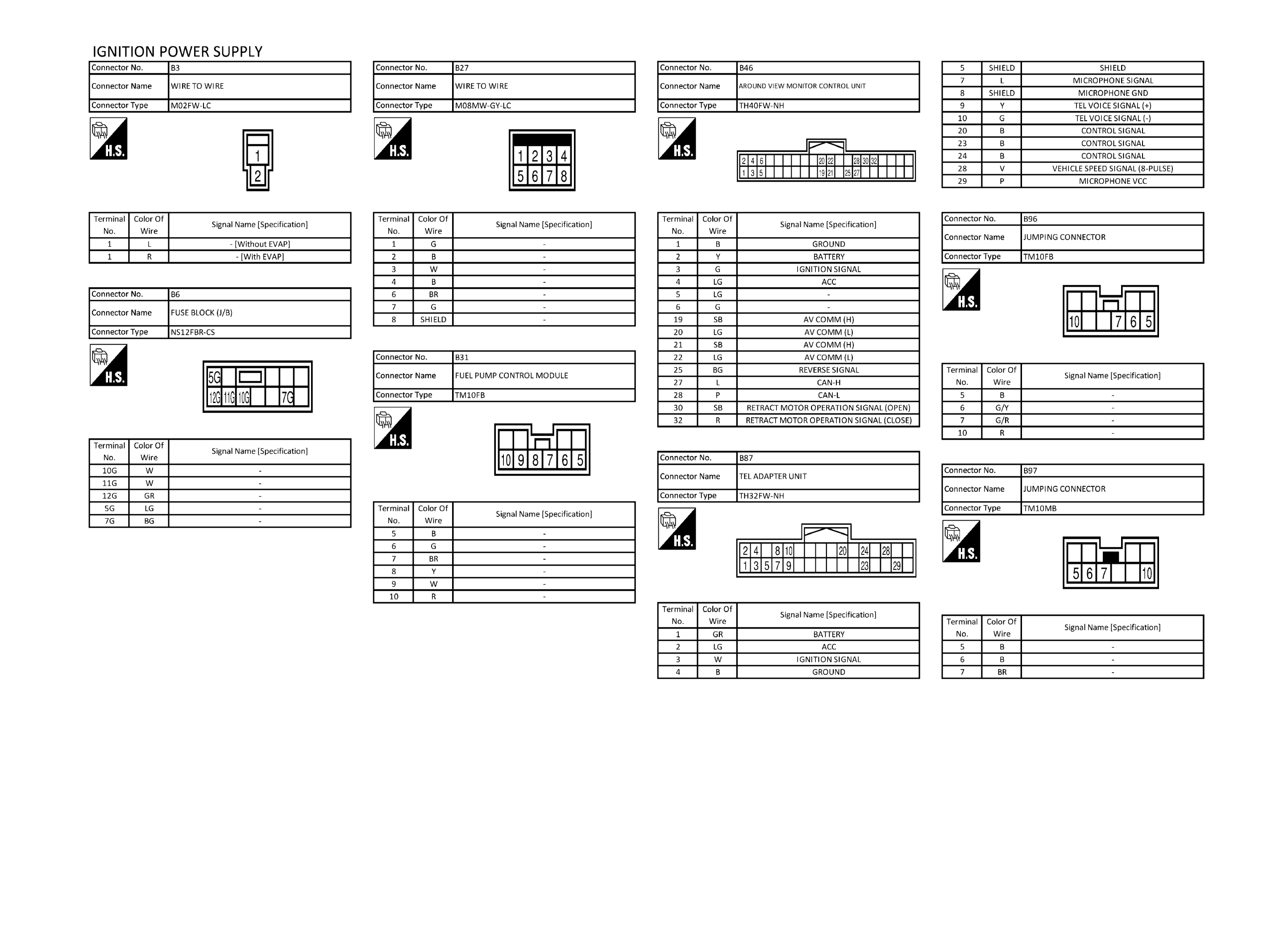

GNSJRMWH7955GB-955

Courtesy of NISSAN NORTH AMERICA, INC.

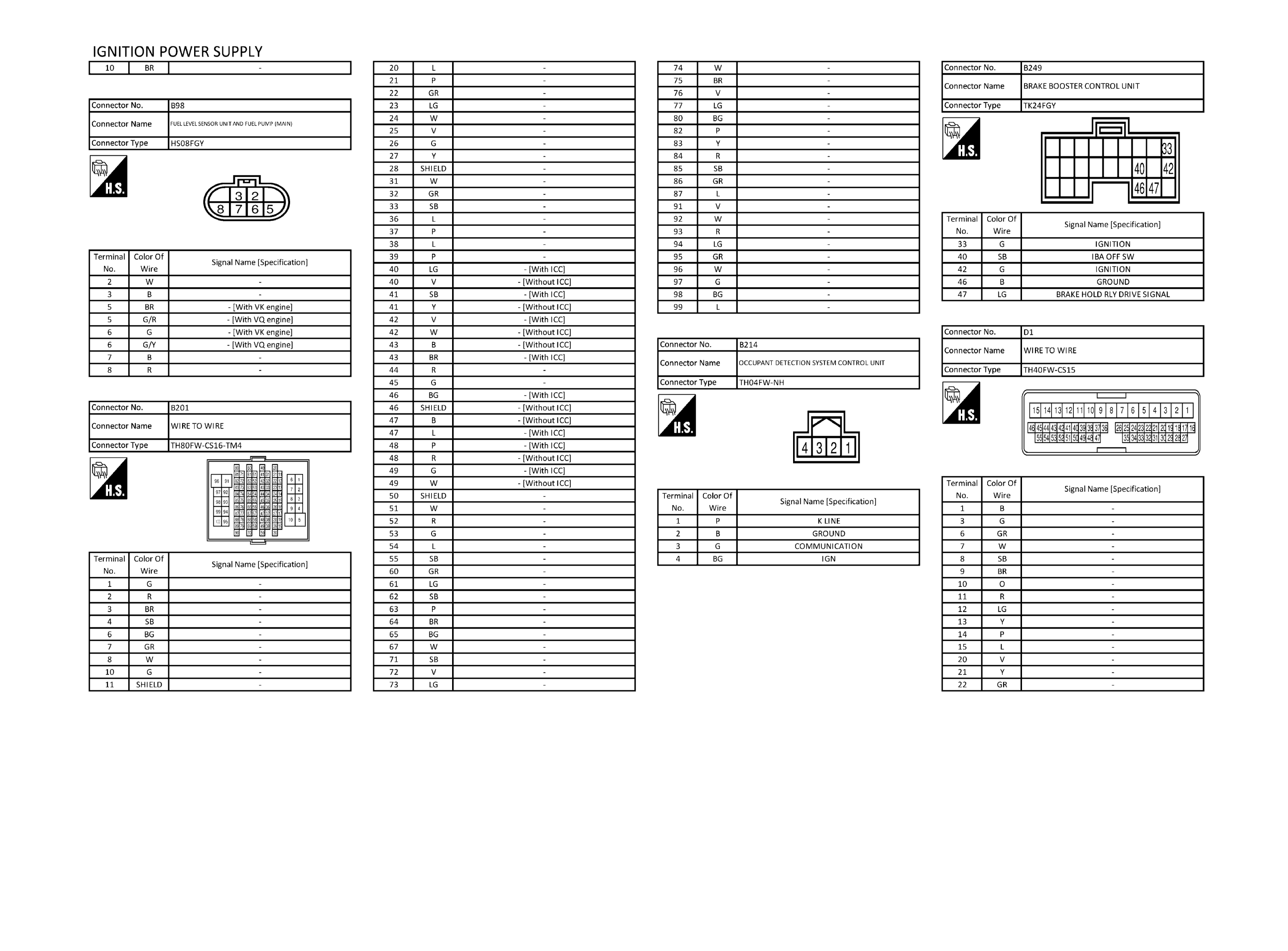

GNSJRMWH7956GB-956

Courtesy of NISSAN NORTH AMERICA, INC.

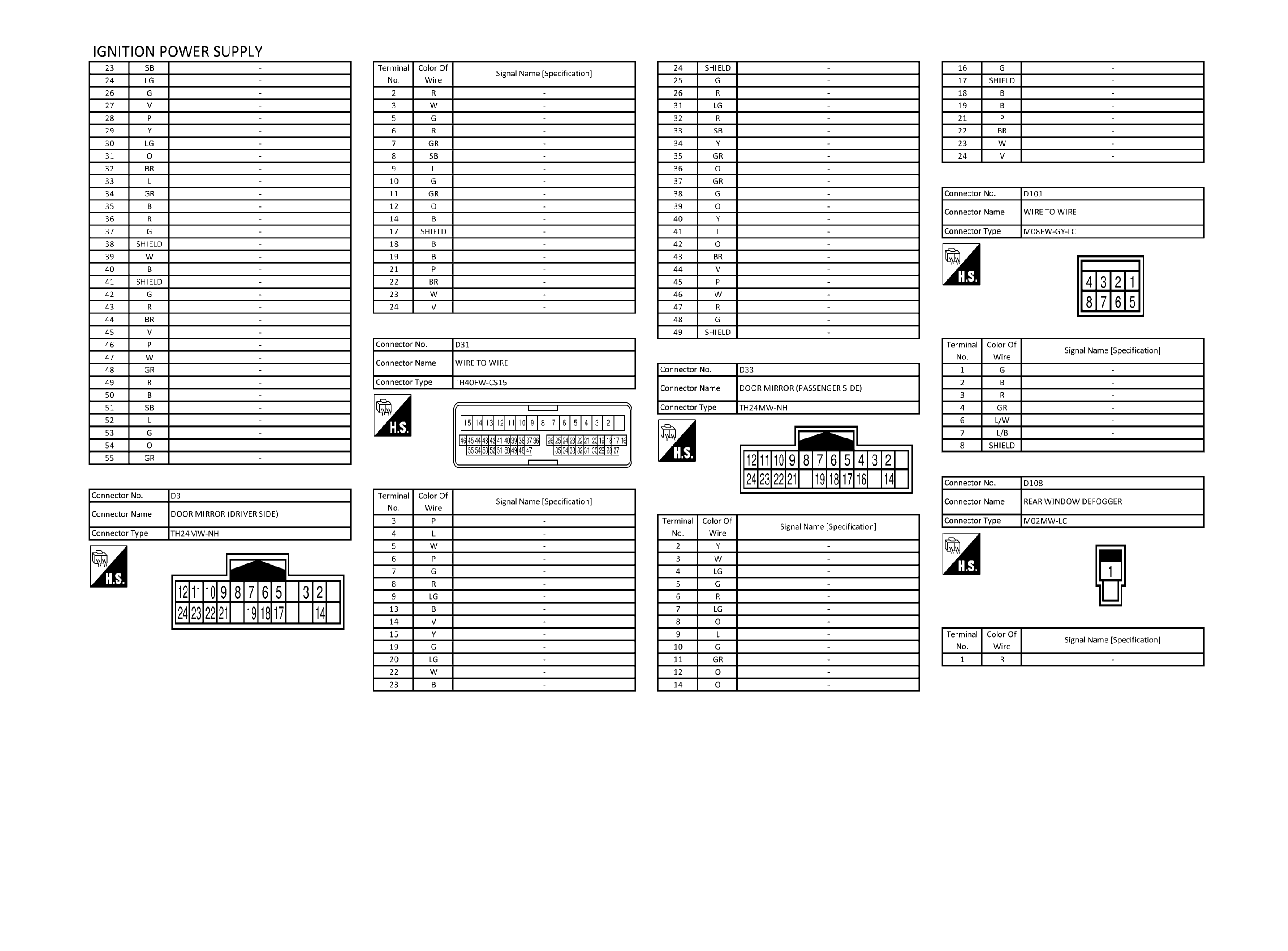

GNSJRMWH7957GB-957

Courtesy of NISSAN NORTH AMERICA, INC.

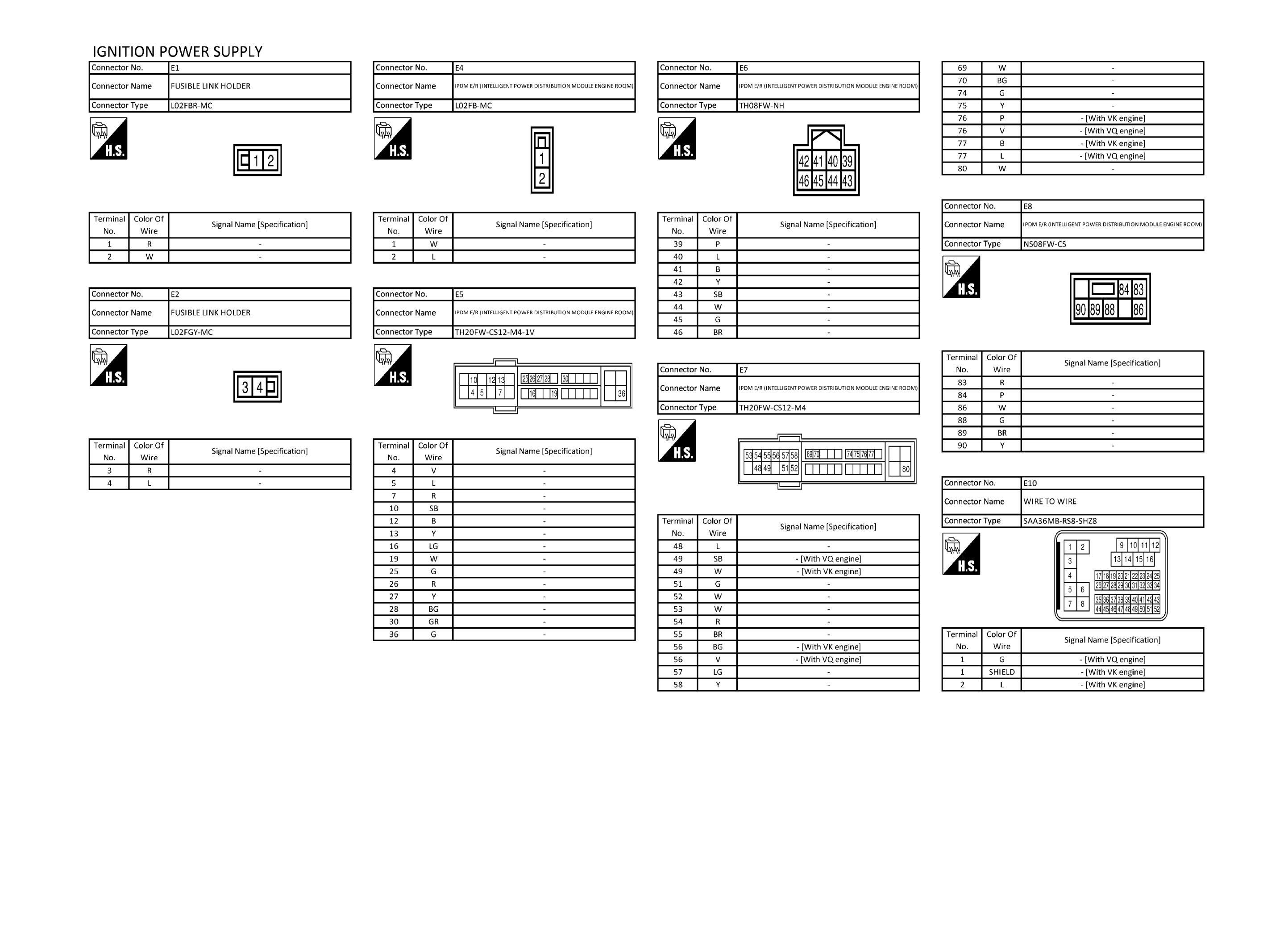

GNSJRMWH7958GB-958

Courtesy of NISSAN NORTH AMERICA, INC.

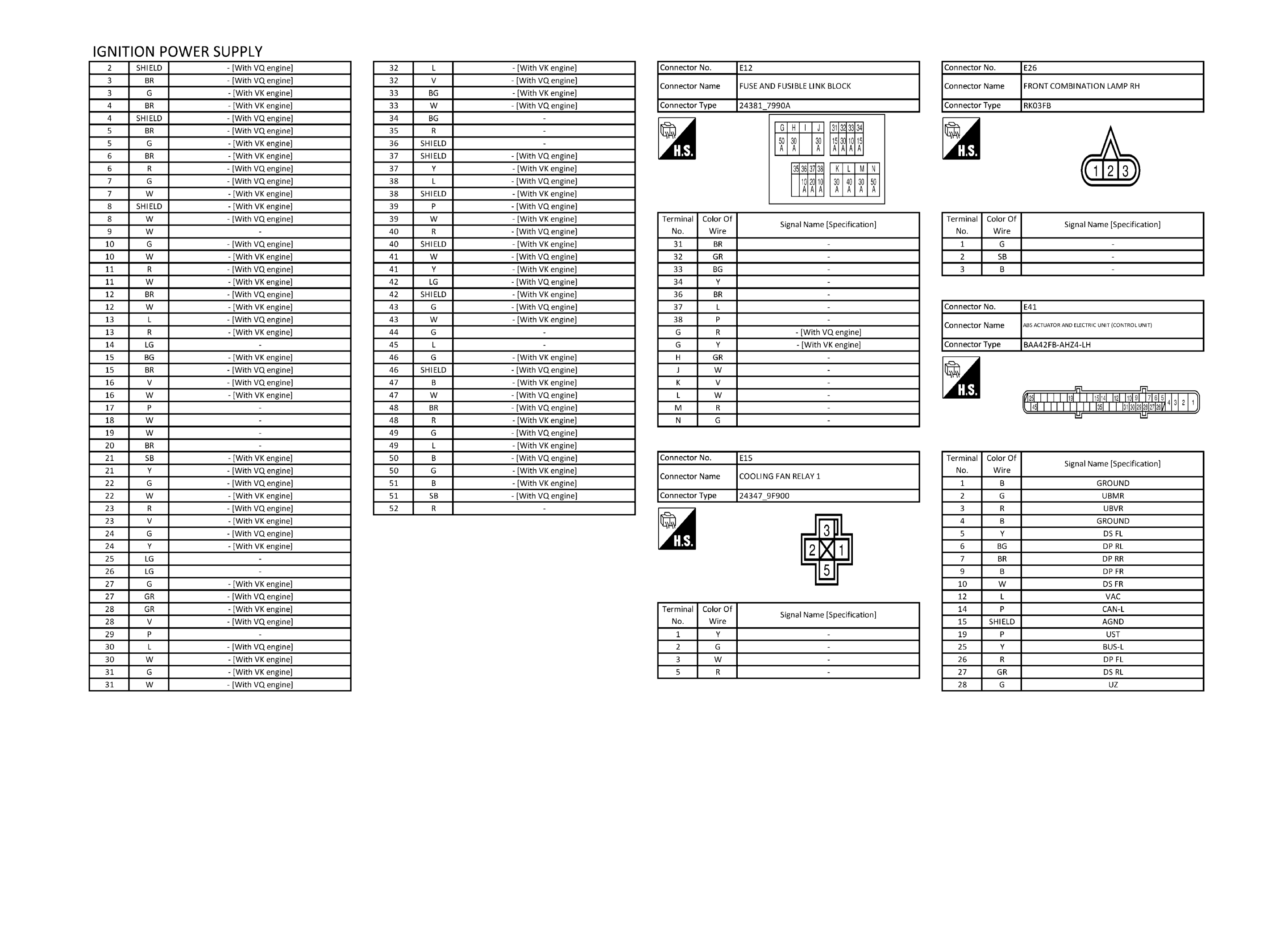

GNSJRMWH7959GB-959

Courtesy of NISSAN NORTH AMERICA, INC.

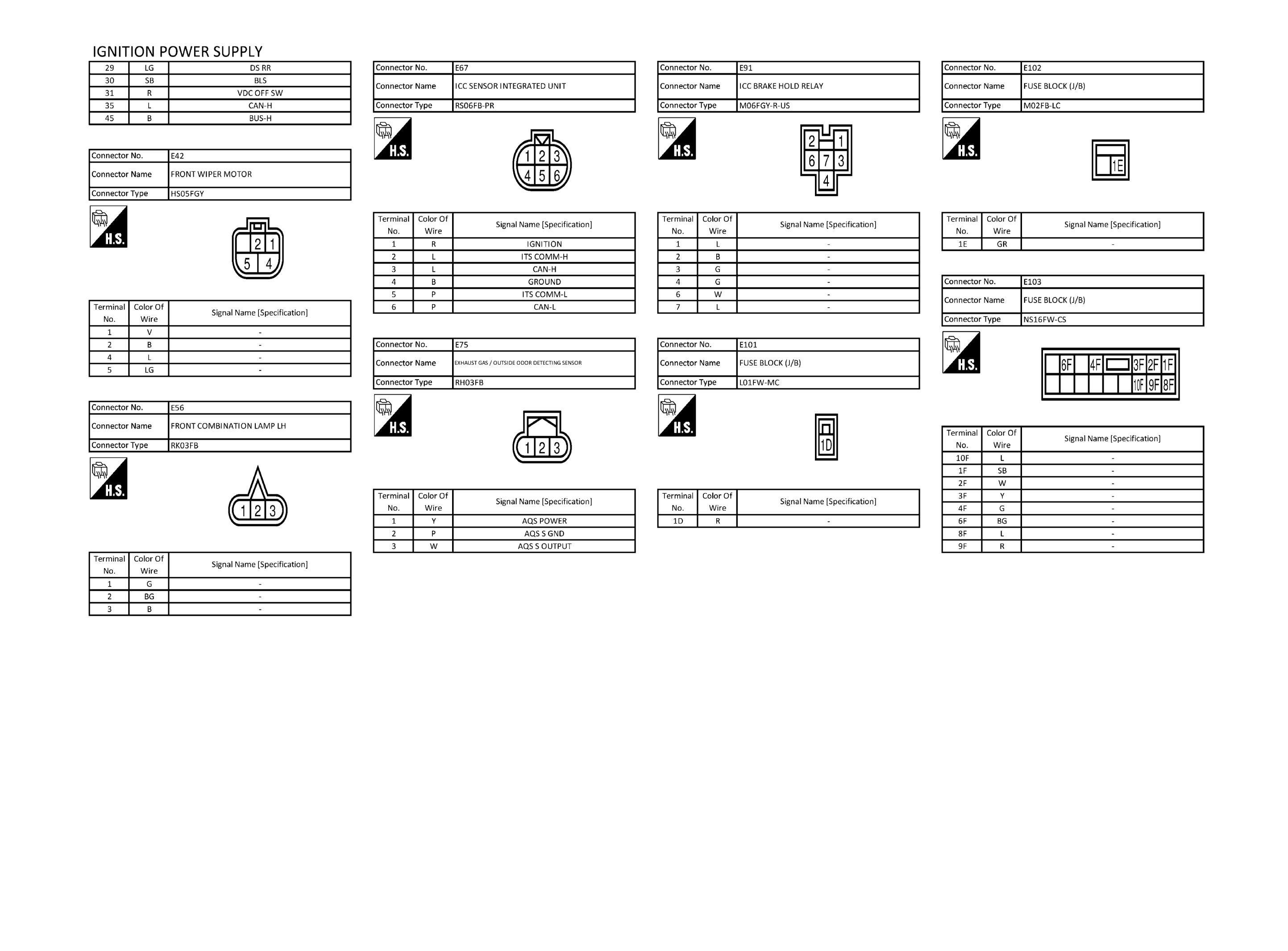

GNSJRMWH7960GB-960

Courtesy of NISSAN NORTH AMERICA, INC.

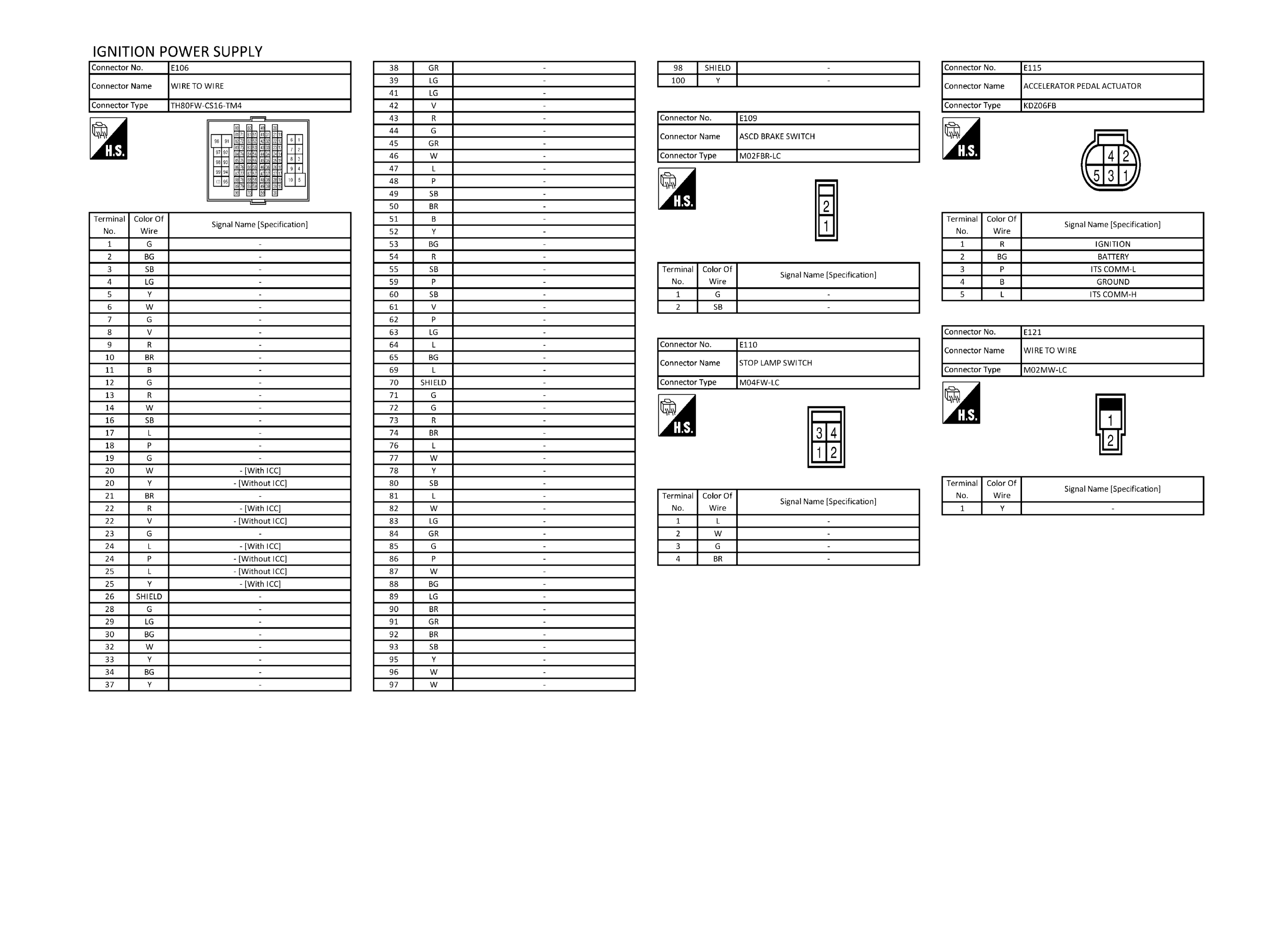

GNSJRMWH7961GB-961

Courtesy of NISSAN NORTH AMERICA, INC.

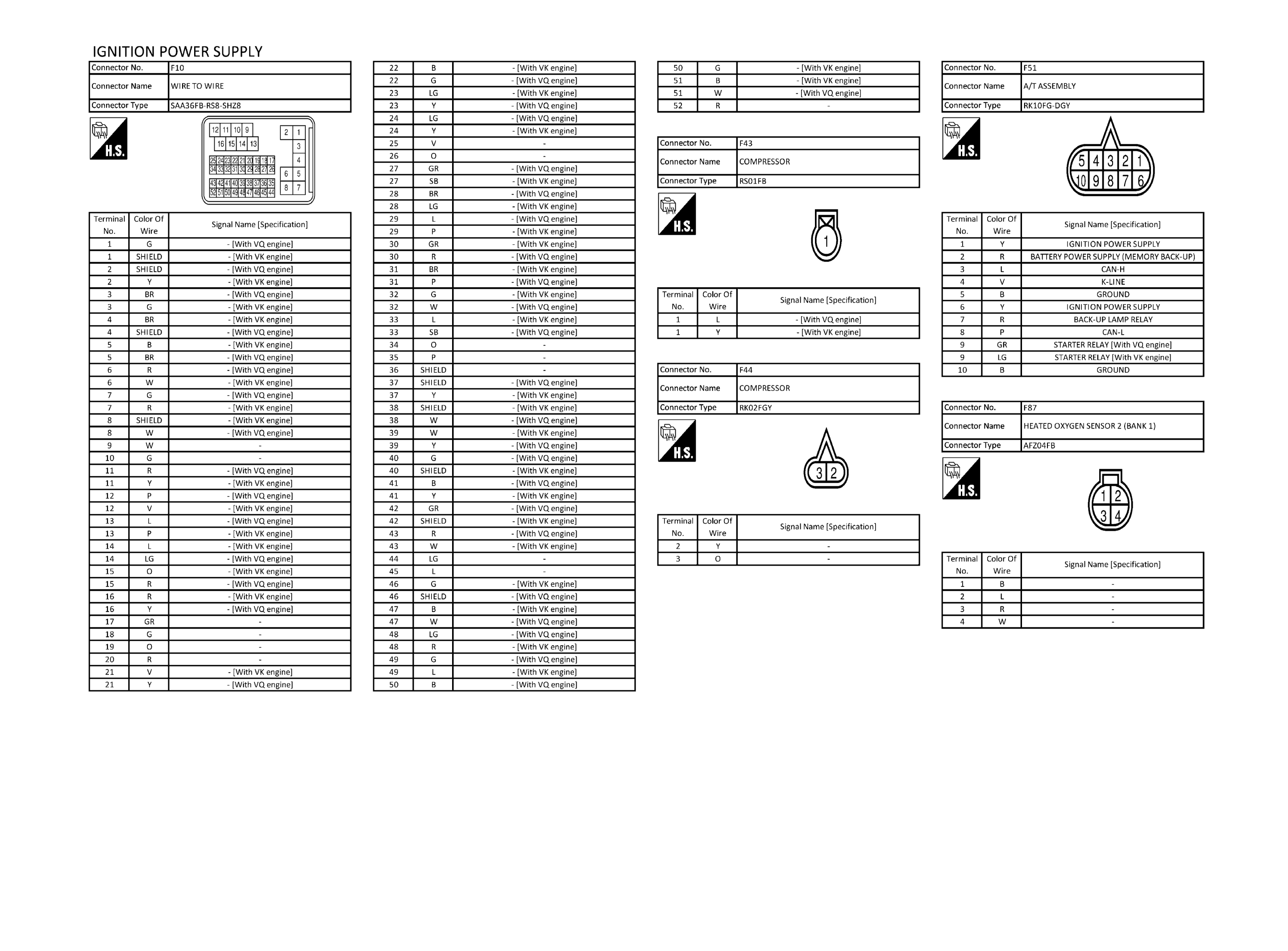

GNSJRMWH7962GB-962

Courtesy of NISSAN NORTH AMERICA, INC.

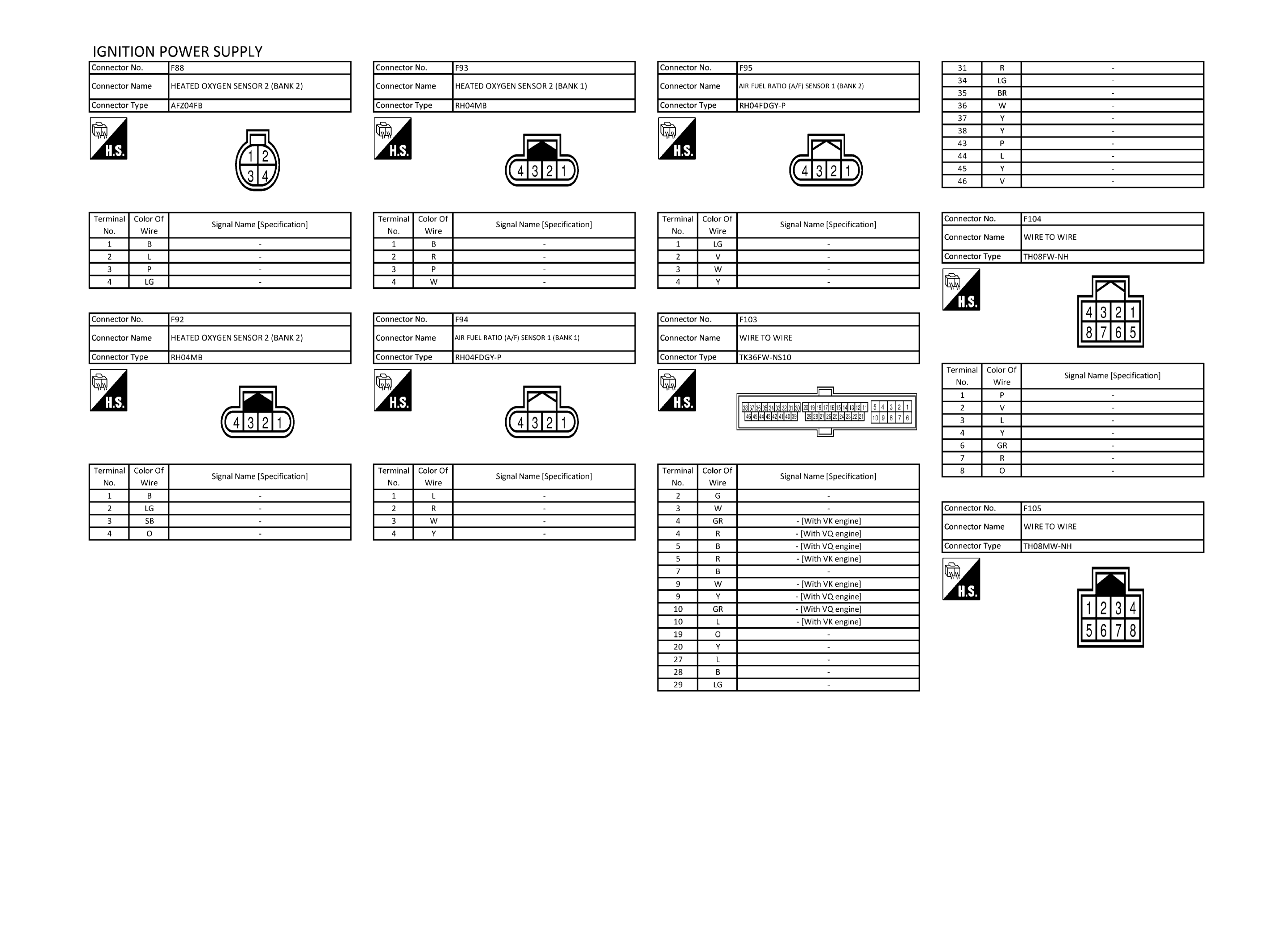

GNSJRMWH7963GB-963

Courtesy of NISSAN NORTH AMERICA, INC.

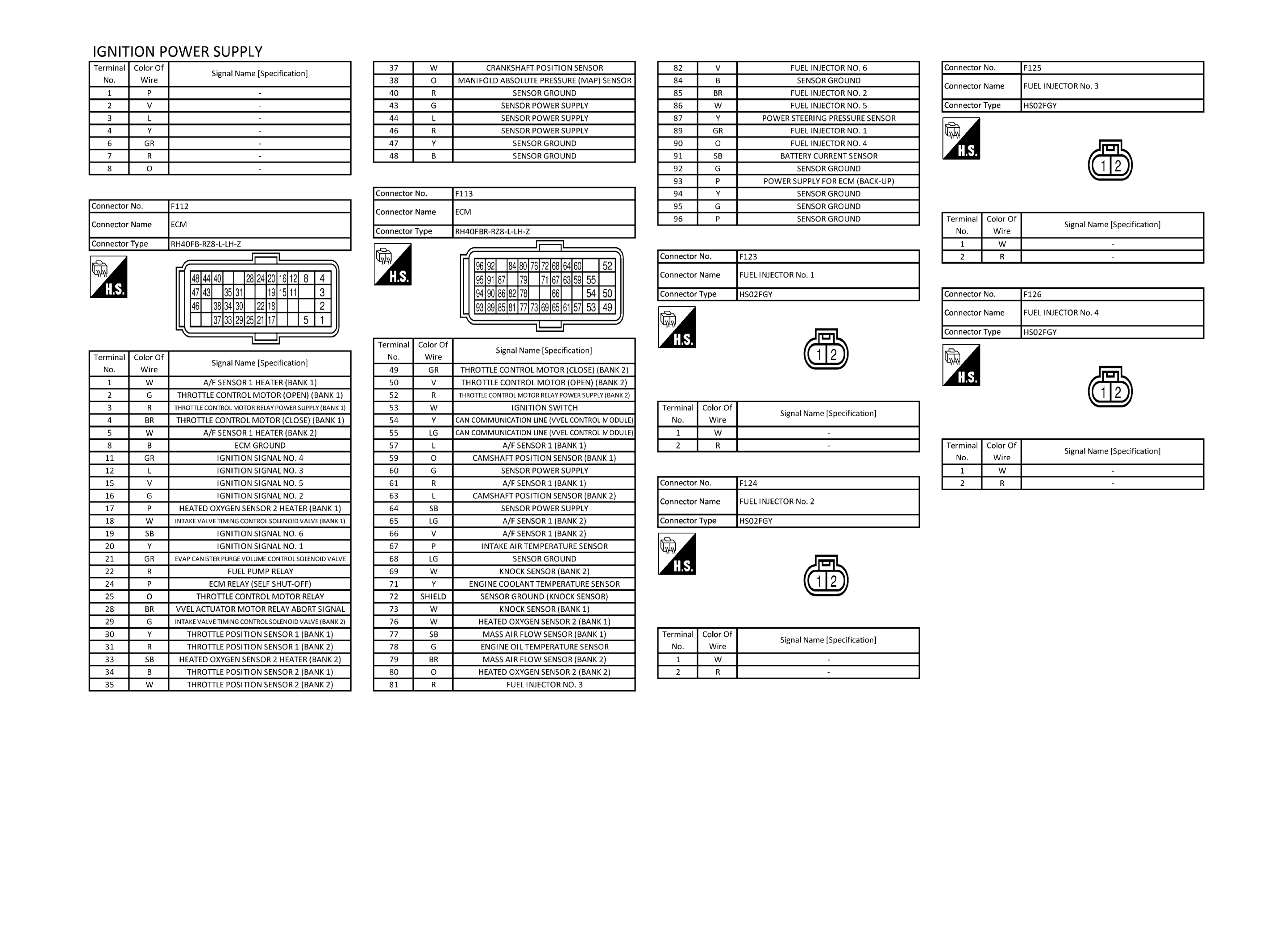

GNSJRMWH7964GB-964

Courtesy of NISSAN NORTH AMERICA, INC.

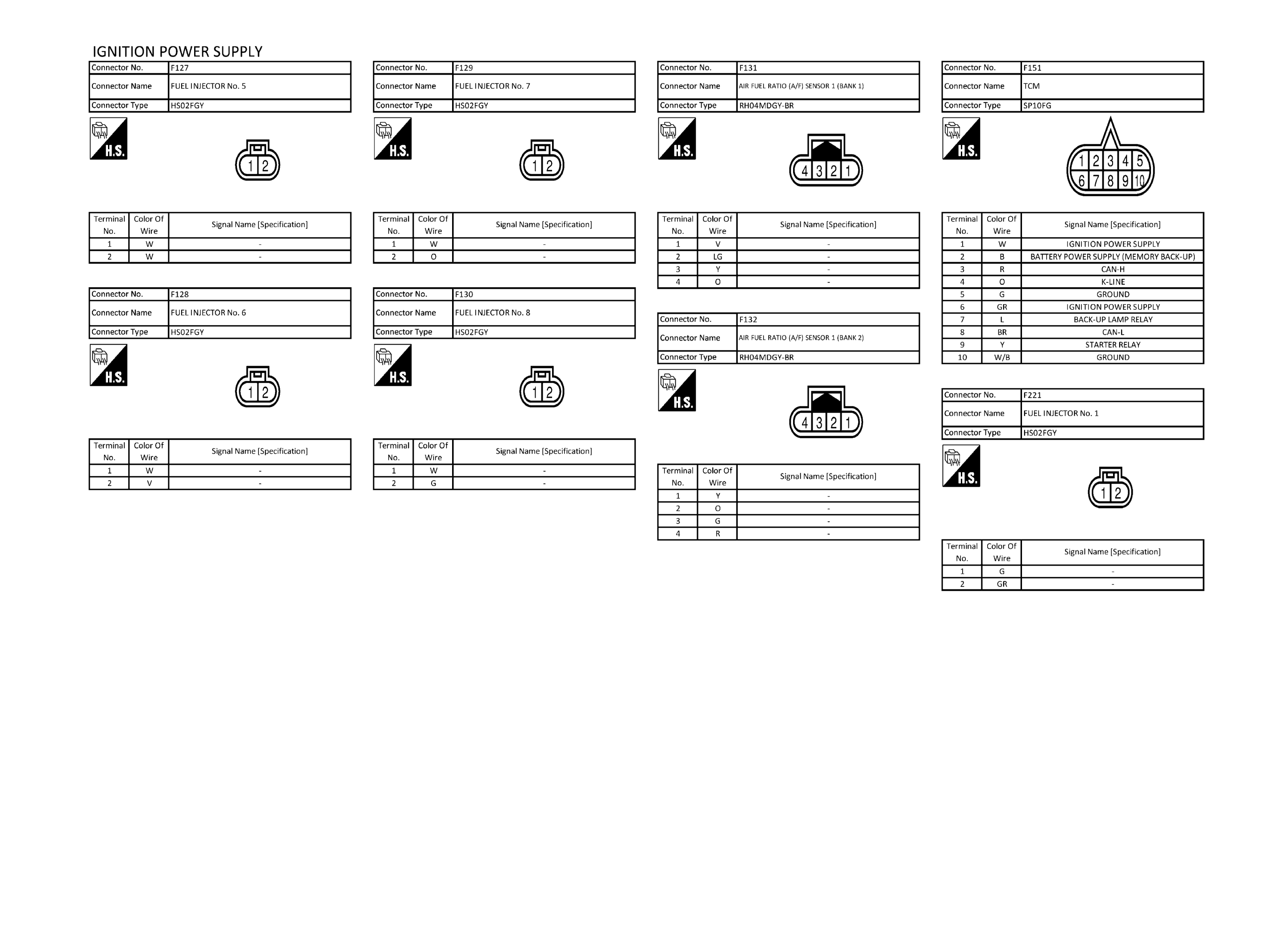

GNSJRMWH7965GB-965

Courtesy of NISSAN NORTH AMERICA, INC.

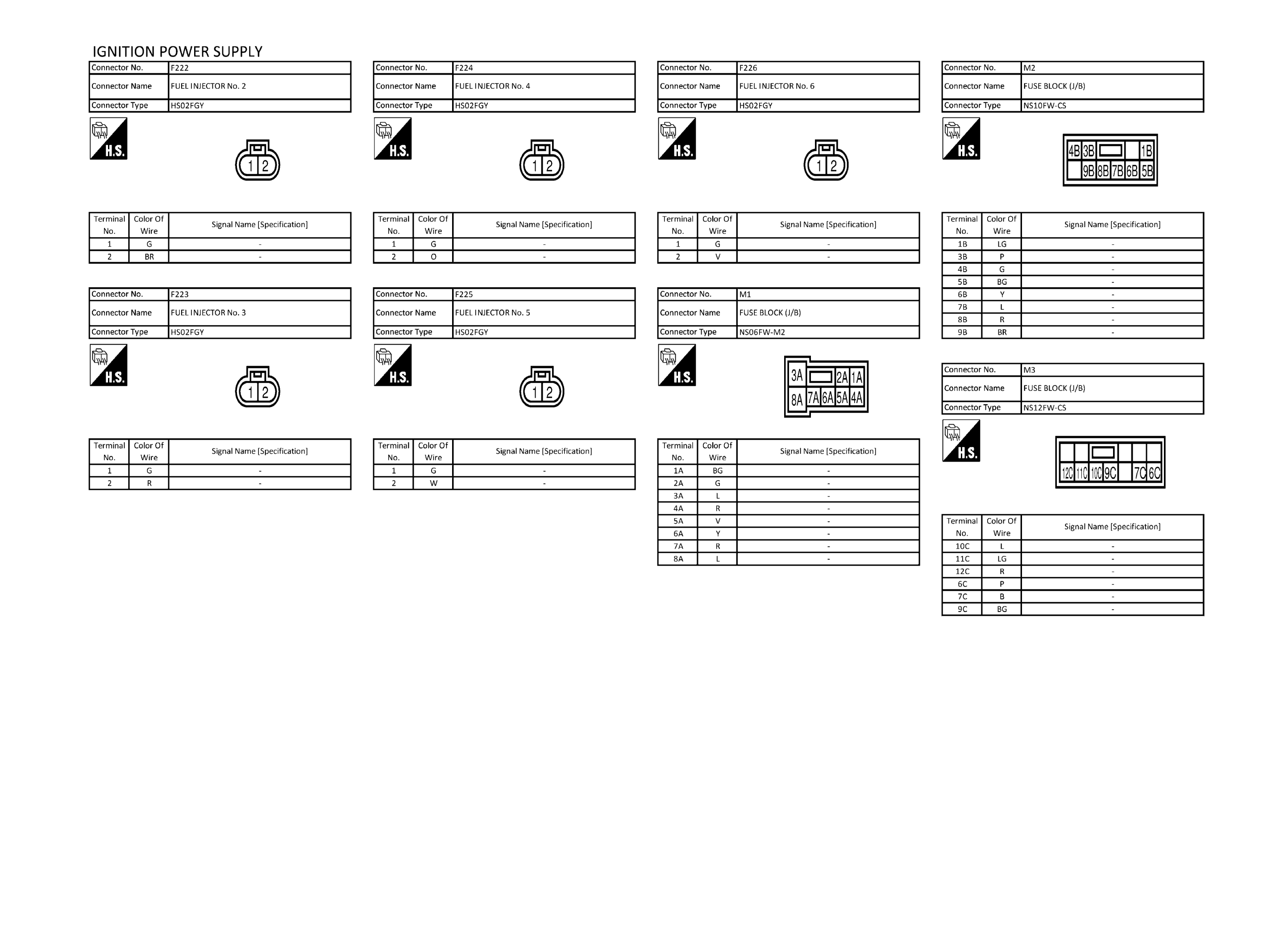

GNSJRMWH7966GB-966

Courtesy of NISSAN NORTH AMERICA, INC.

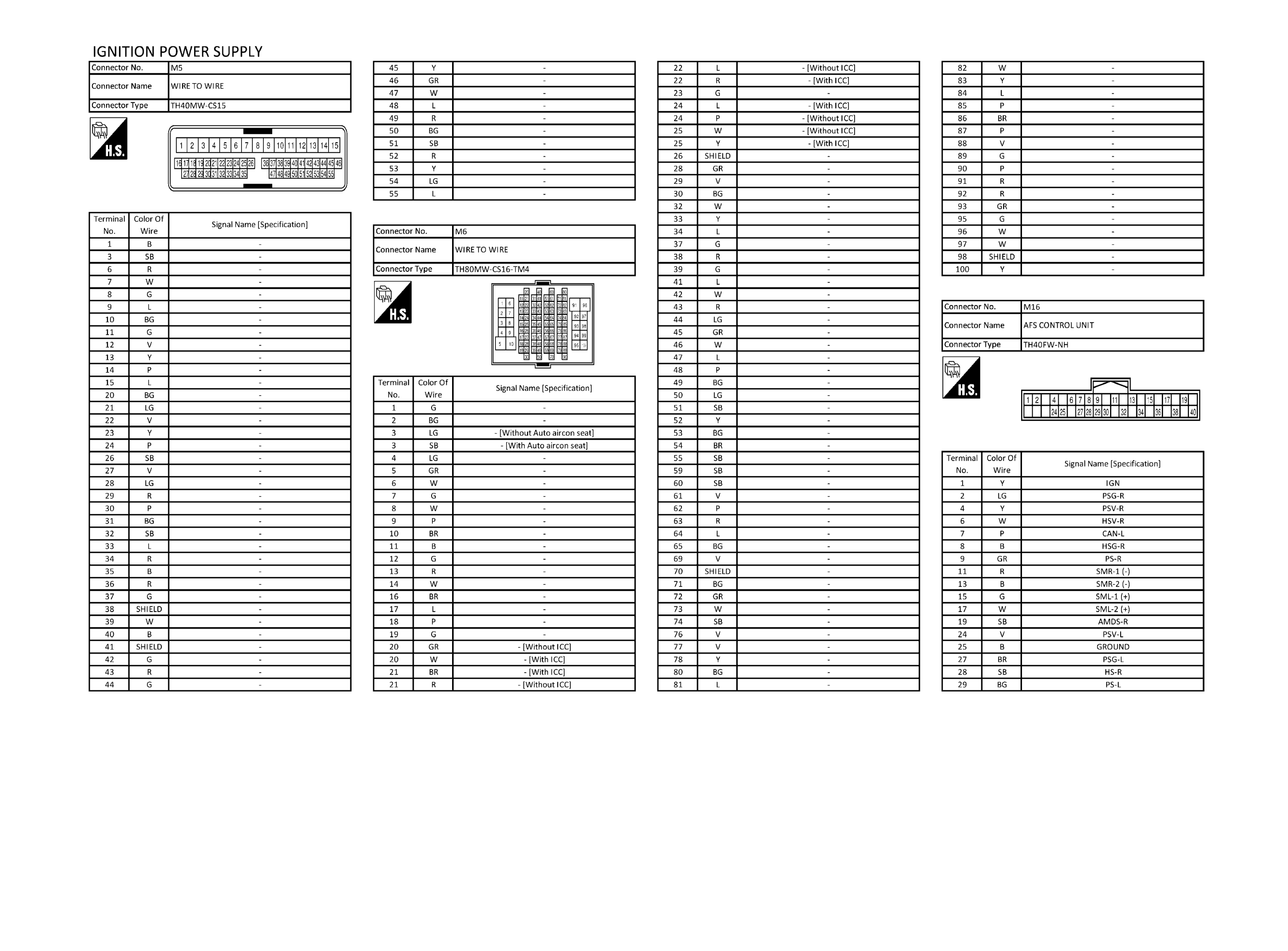

GNSJRMWH7967GB-967

Courtesy of NISSAN NORTH AMERICA, INC.

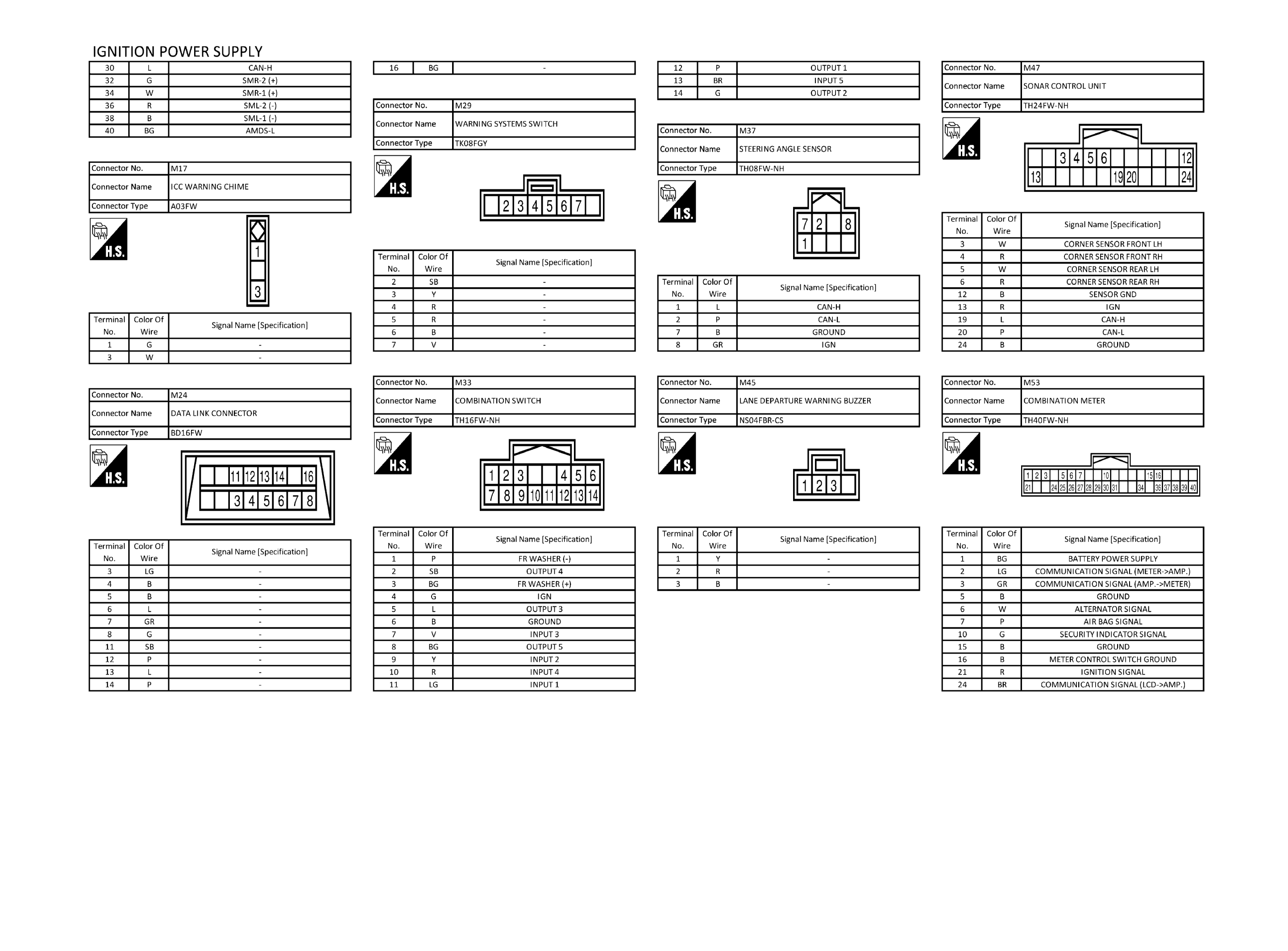

GNSJRMWH7968GB-968

Courtesy of NISSAN NORTH AMERICA, INC.

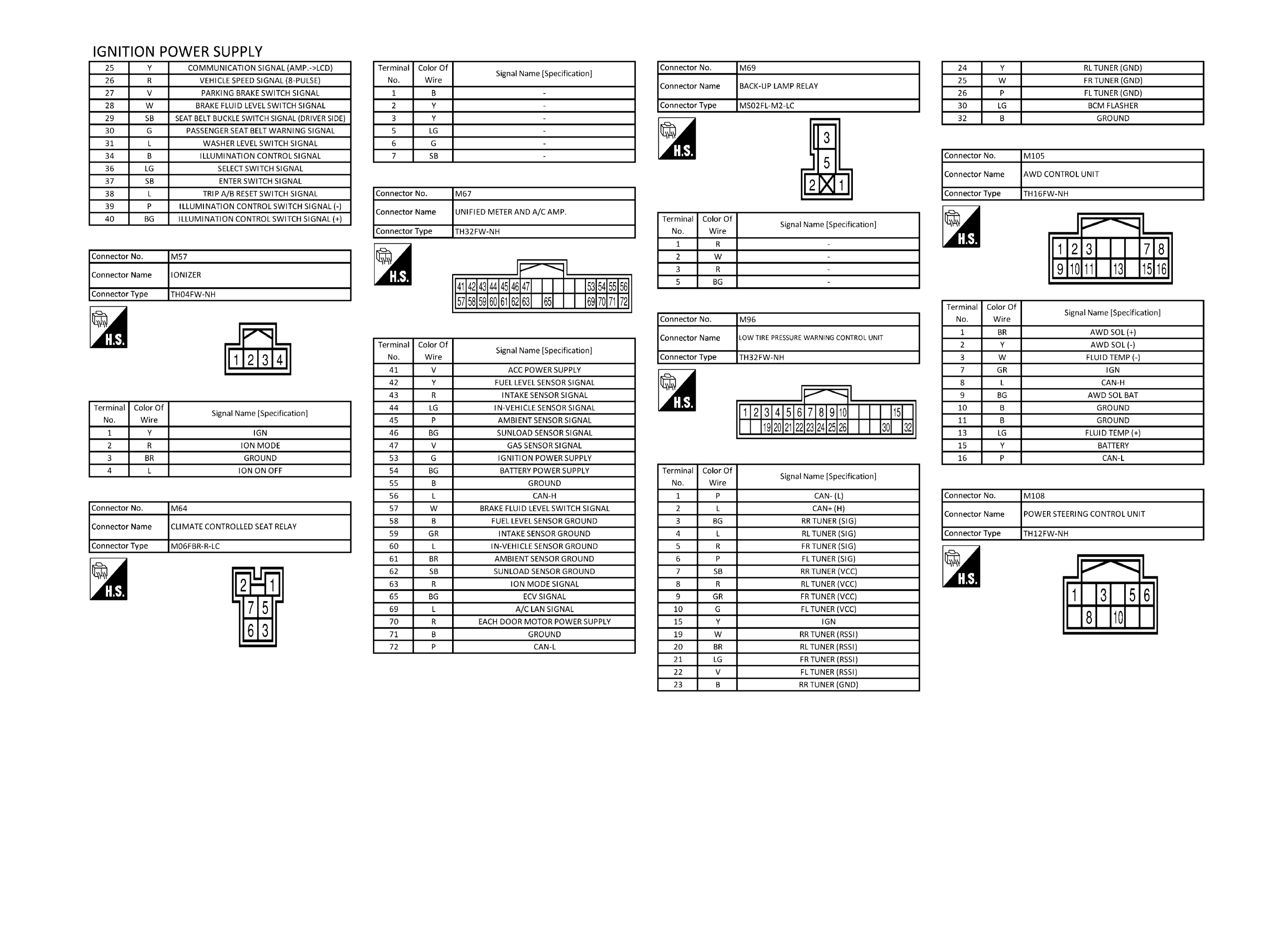

GNSJRMWH7969GB-969

Courtesy of NISSAN NORTH AMERICA, INC.

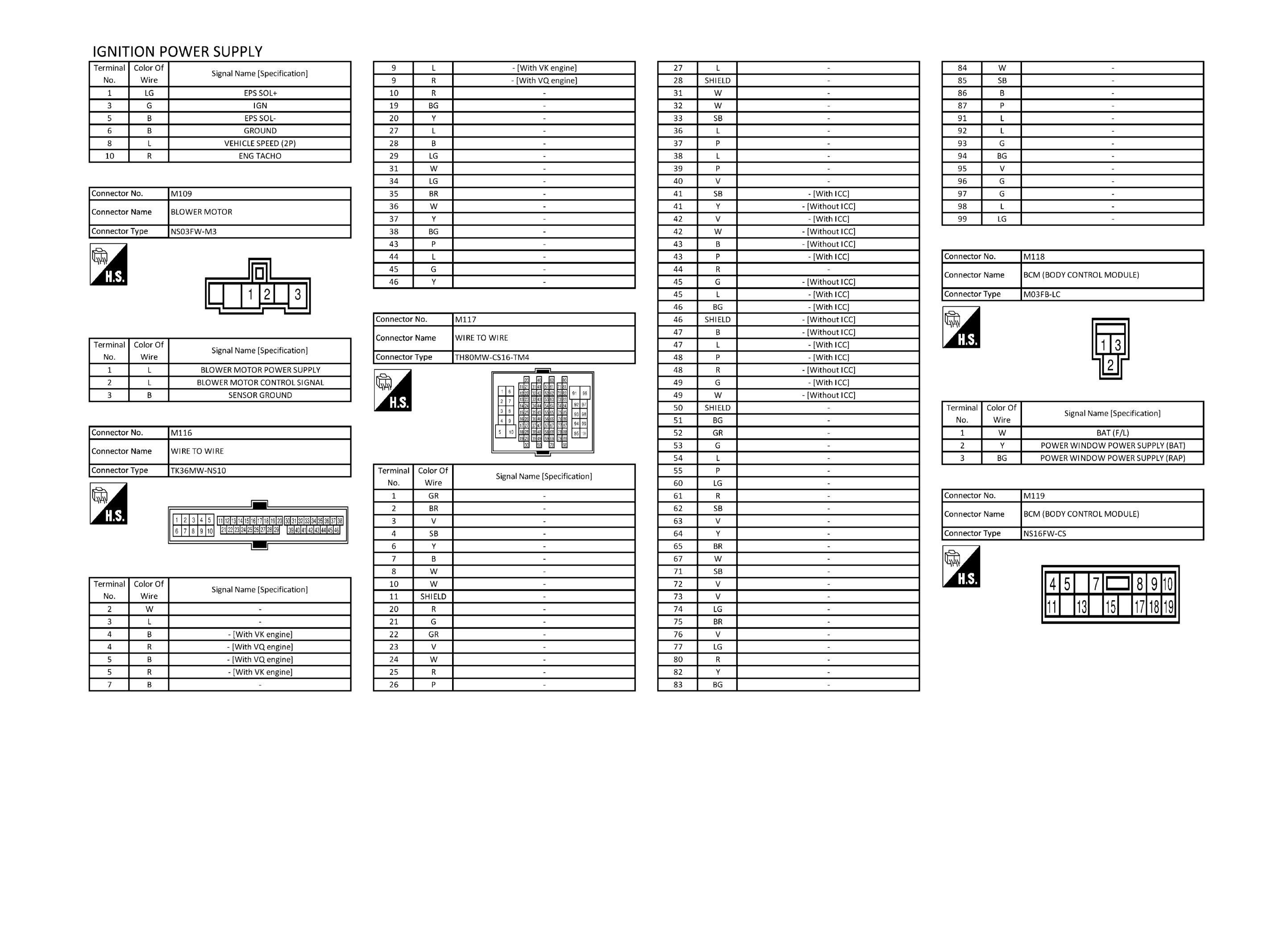

GNSJRMWH7970GB-970

Courtesy of NISSAN NORTH AMERICA, INC.

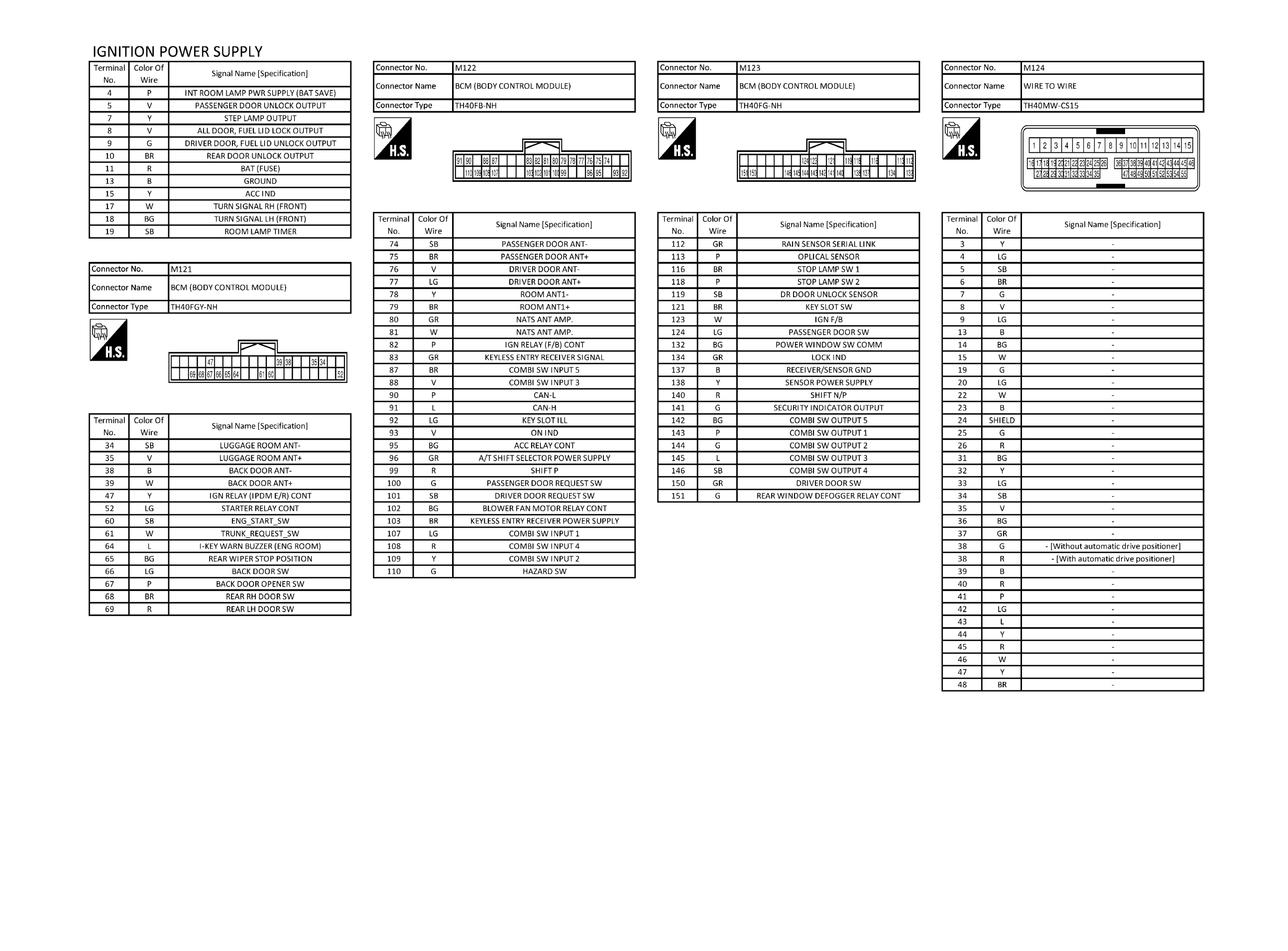

GNSJRMWH7971GB-971

Courtesy of NISSAN NORTH AMERICA, INC.

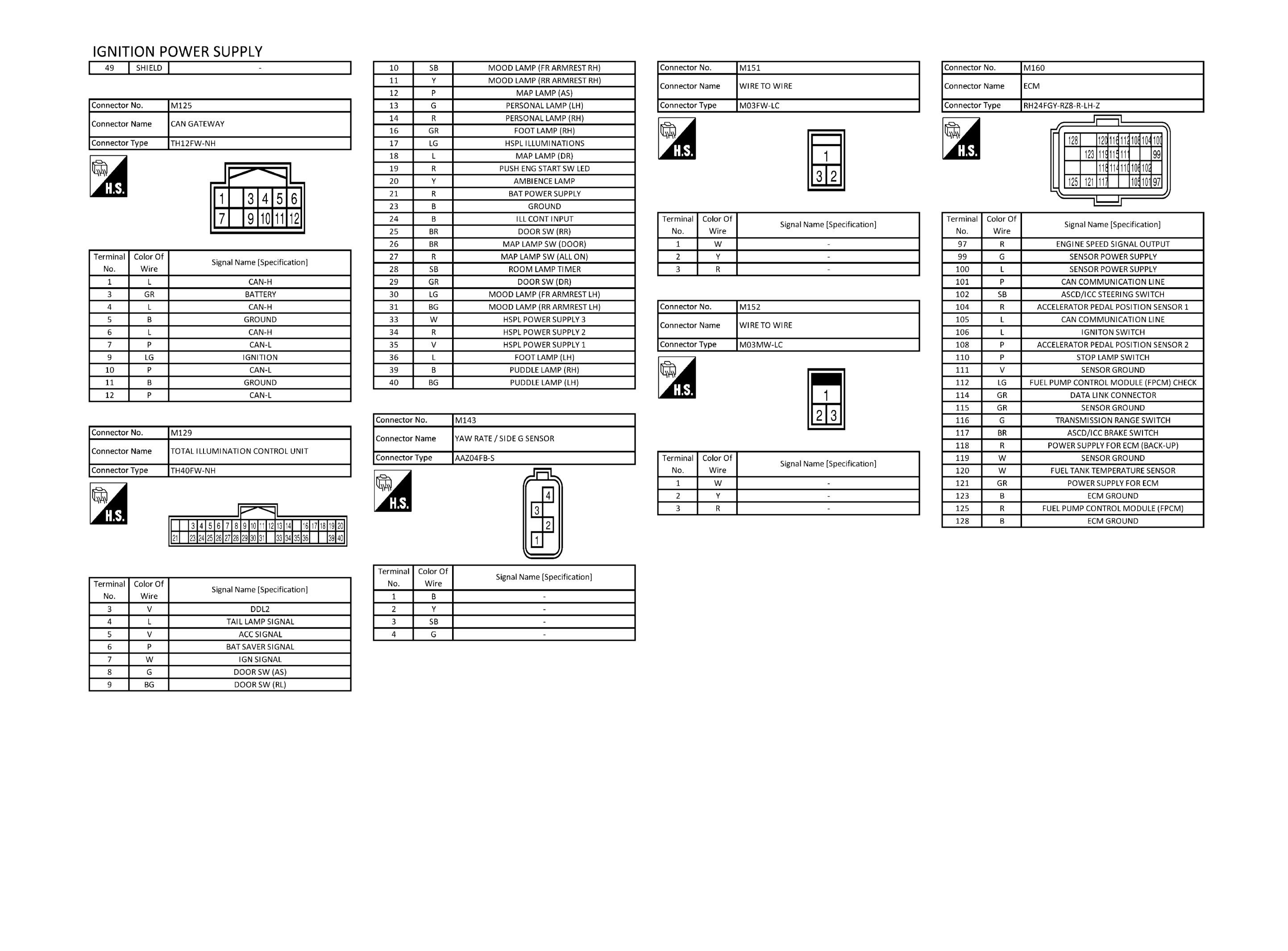

GNSJRMWH7972GB-972

Courtesy of NISSAN NORTH AMERICA, INC.

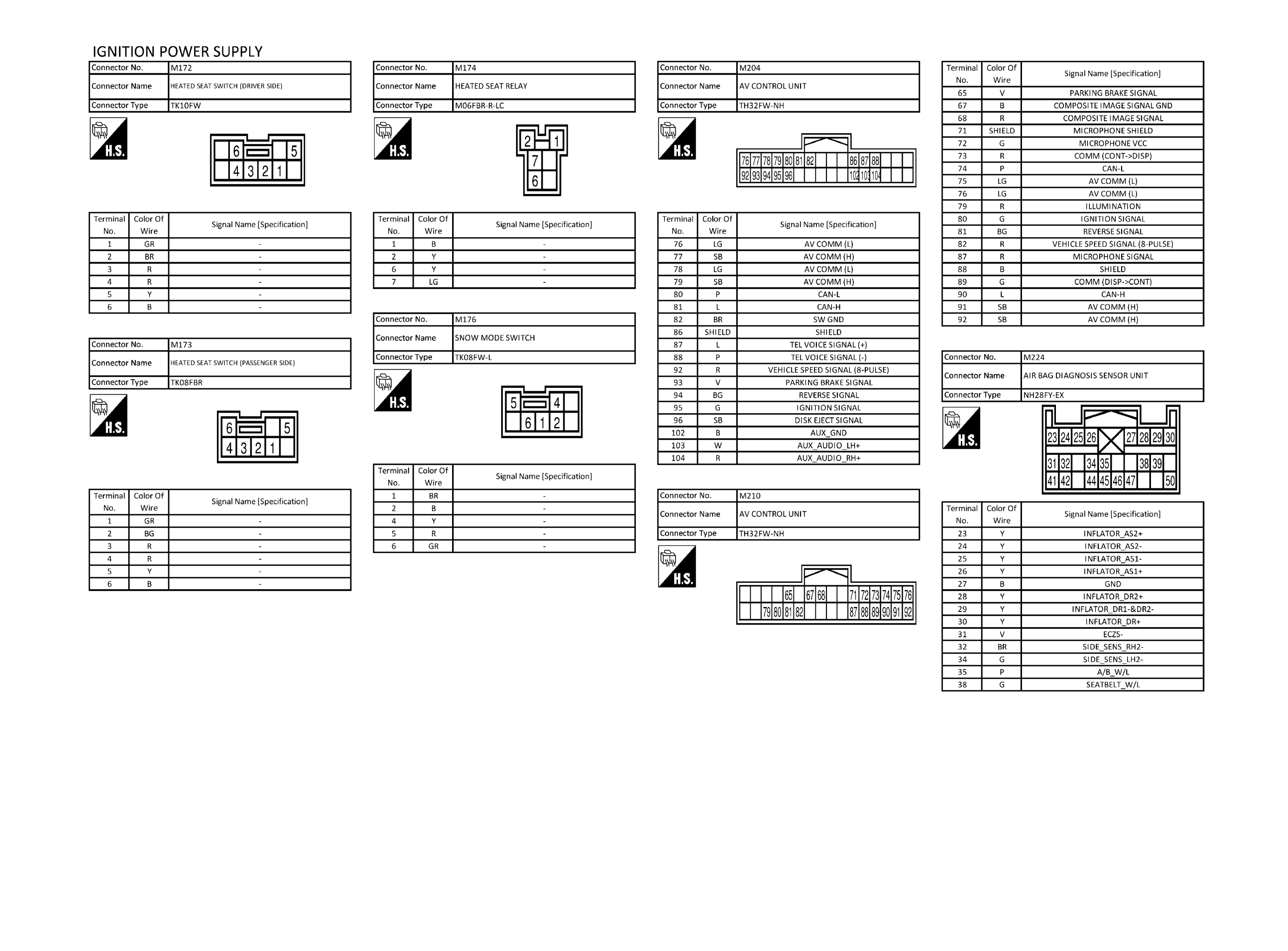

GNSJRMWH7973GB-973

Courtesy of NISSAN NORTH AMERICA, INC.

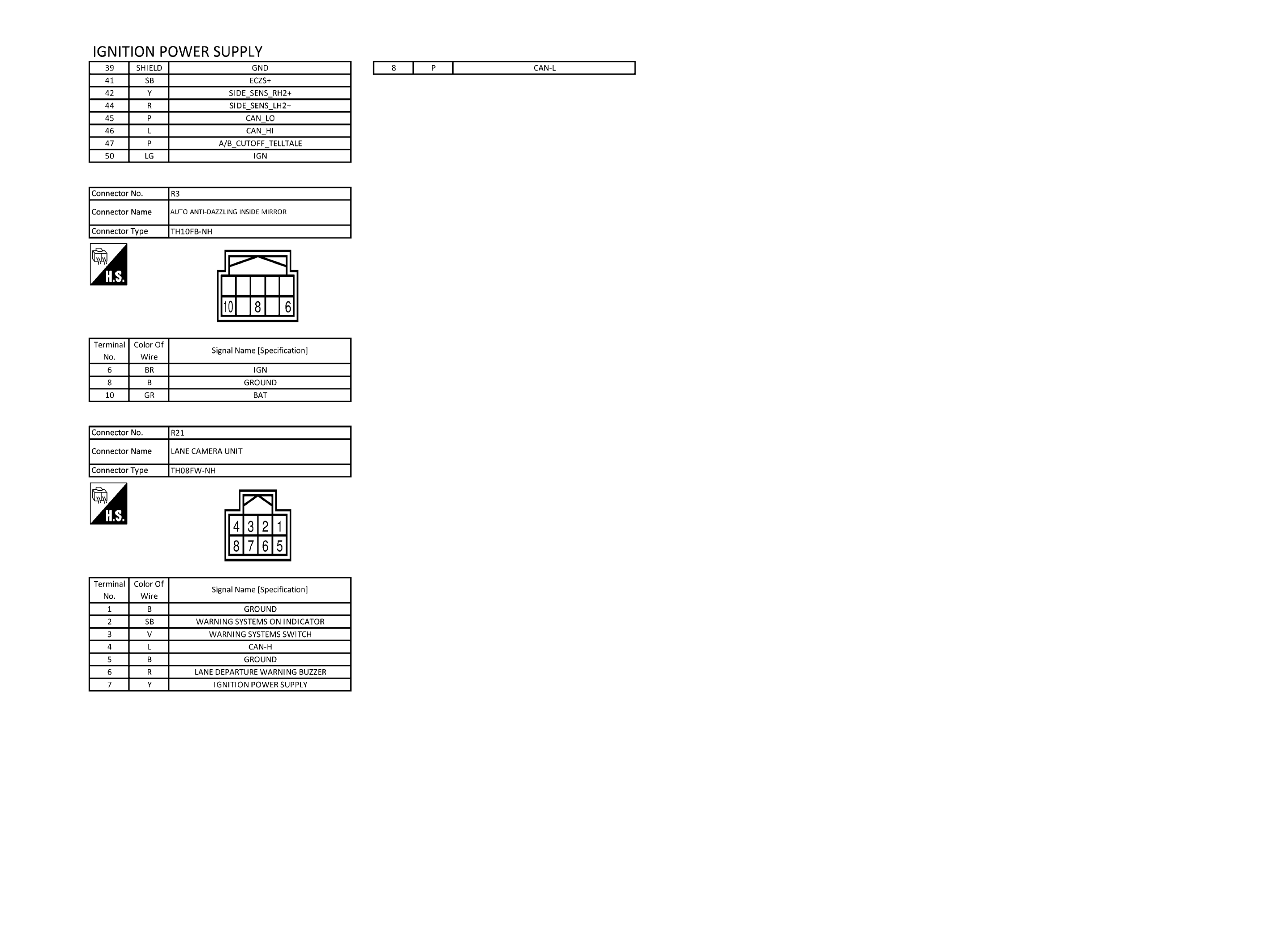

GNSJRMWH7974GB-974

Courtesy of NISSAN NORTH AMERICA, INC.
