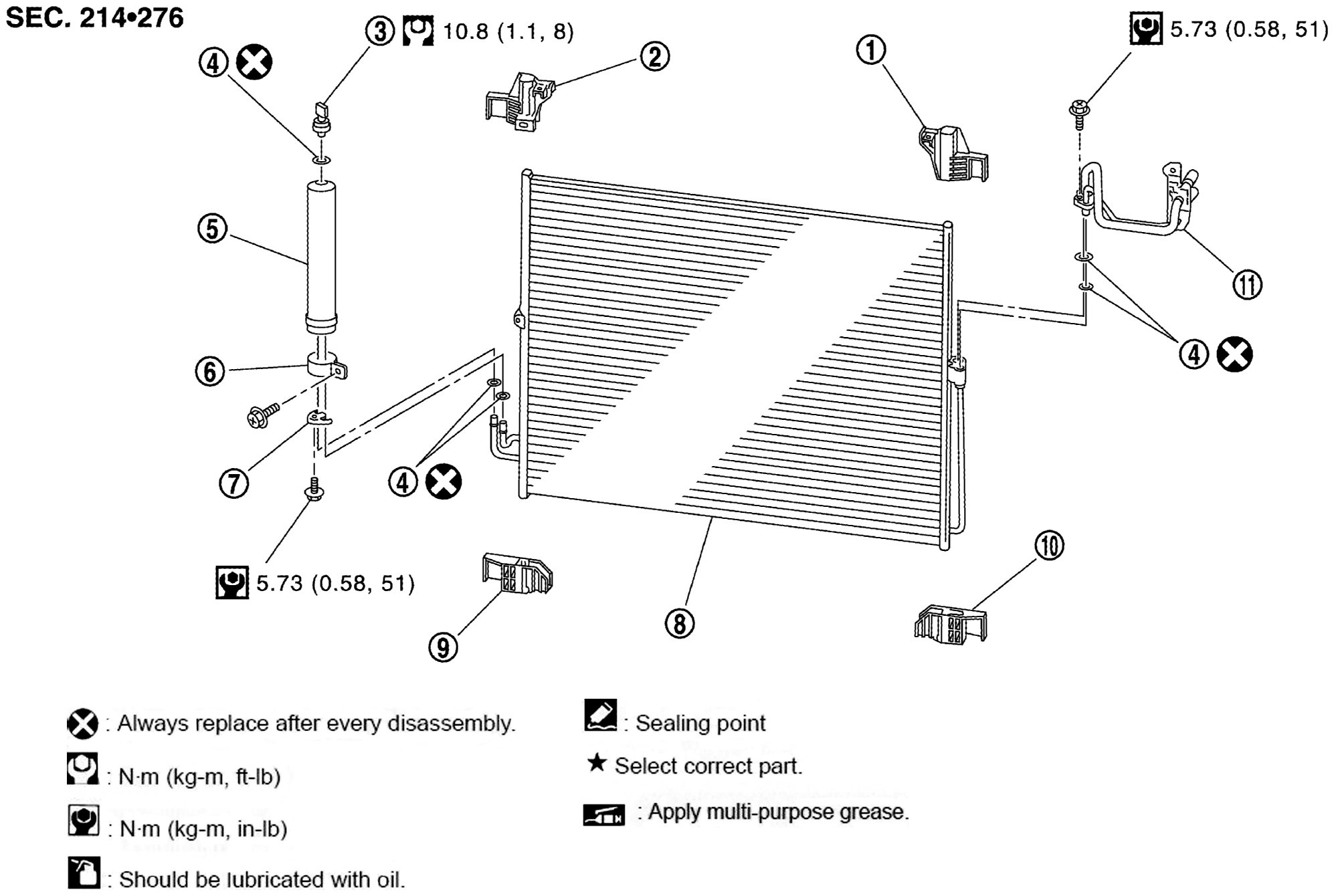

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Condenser upper bracket LH | 2. | Condenser upper bracket RH | 3. | Refrigerant pressure sensor |
| 4. | O - ring | 5. | Liquid tank | 6. | Liquid tank bracket |
| 7. | Bracket | 8. | Condenser | 9. | Condenser lower bracket RH |
| 10. | Condenser lower bracket LH | 11. | Condenser pipe assembly | ||
| Refer to COMPONENTS for symbols in the figure. | |||||
