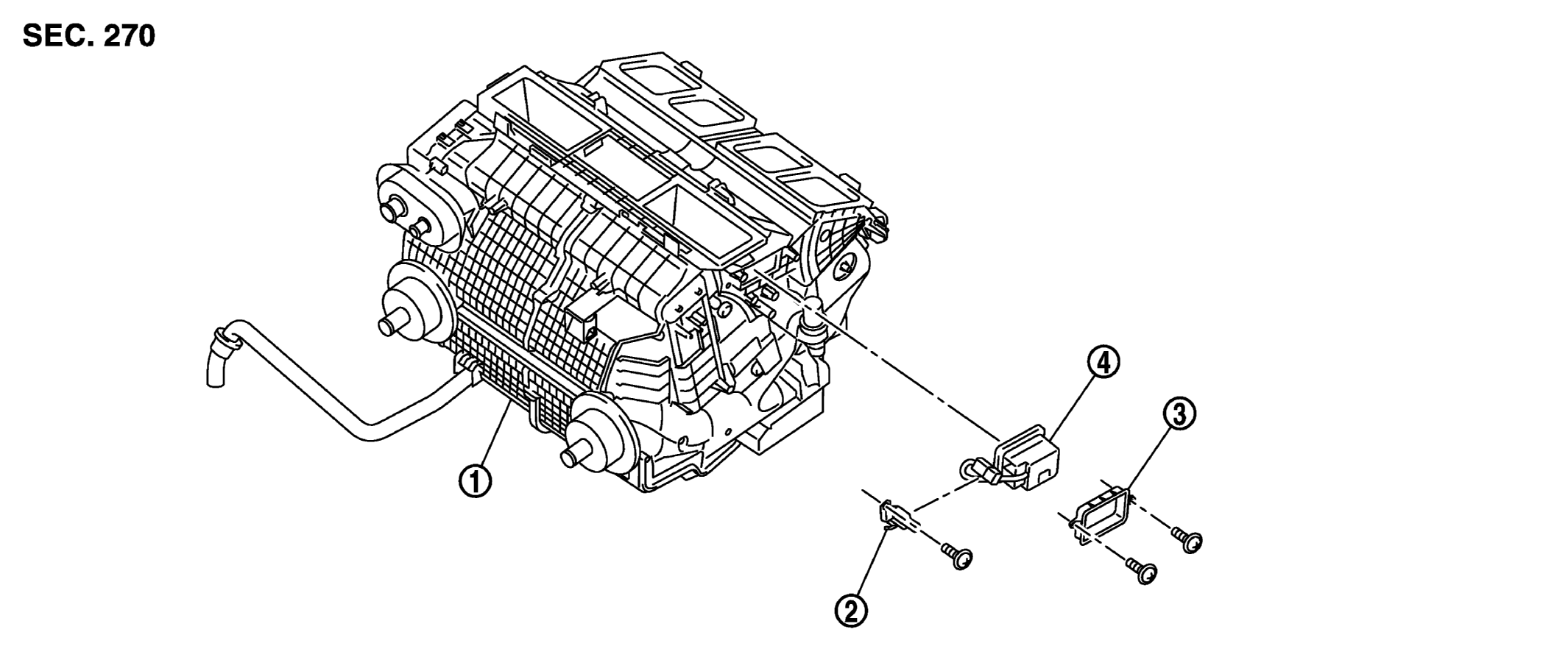

Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Heater & cooling unit assembly	2.	Ionizer harness bracket	3.	Ionizer bracket
4.	Ionizer
