Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX70. However, it is still accessible from the selected car via links, so may be relevant.

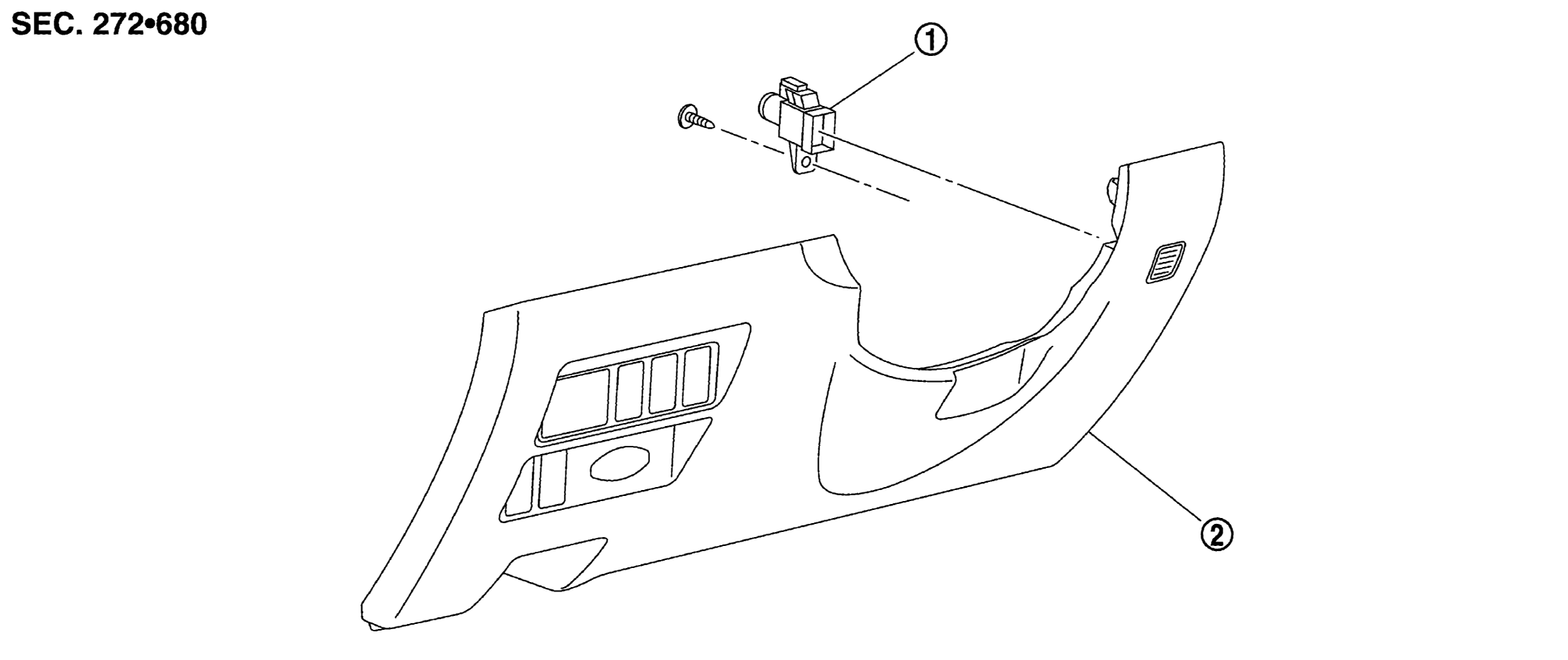

GNSJSIIA1297ZZ-297Courtesy of NISSAN NORTH AMERICA, INC.
1. In - vehicle sensor 2. Instrument lower panel LH
