Special Service Tool

The actual shapes of Kent - Moore tools may differ from those of special service tools illustrated here.

HFC-134a (R-134a) Service Tool and Equipment

• Never mix HFC - 134a (R - 134a) refrigerant and/or its specified lubricant with CFC - 12 (R - 12) refrigerant and/or its lubricant.
• Separate and non - interchangeable service equipment must be used for handling each type of refrigerant/lubricant.
• Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles refrigerant and/or lubricant) are different between CFC - 12 (R - 12) and HFC - 134a (R - 134a). This is to avoid mixed use of the refrigerants/lubricant.
• Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and compressor malfunction may result.

Tool number (Kent - Moore No.) Tool name		Description

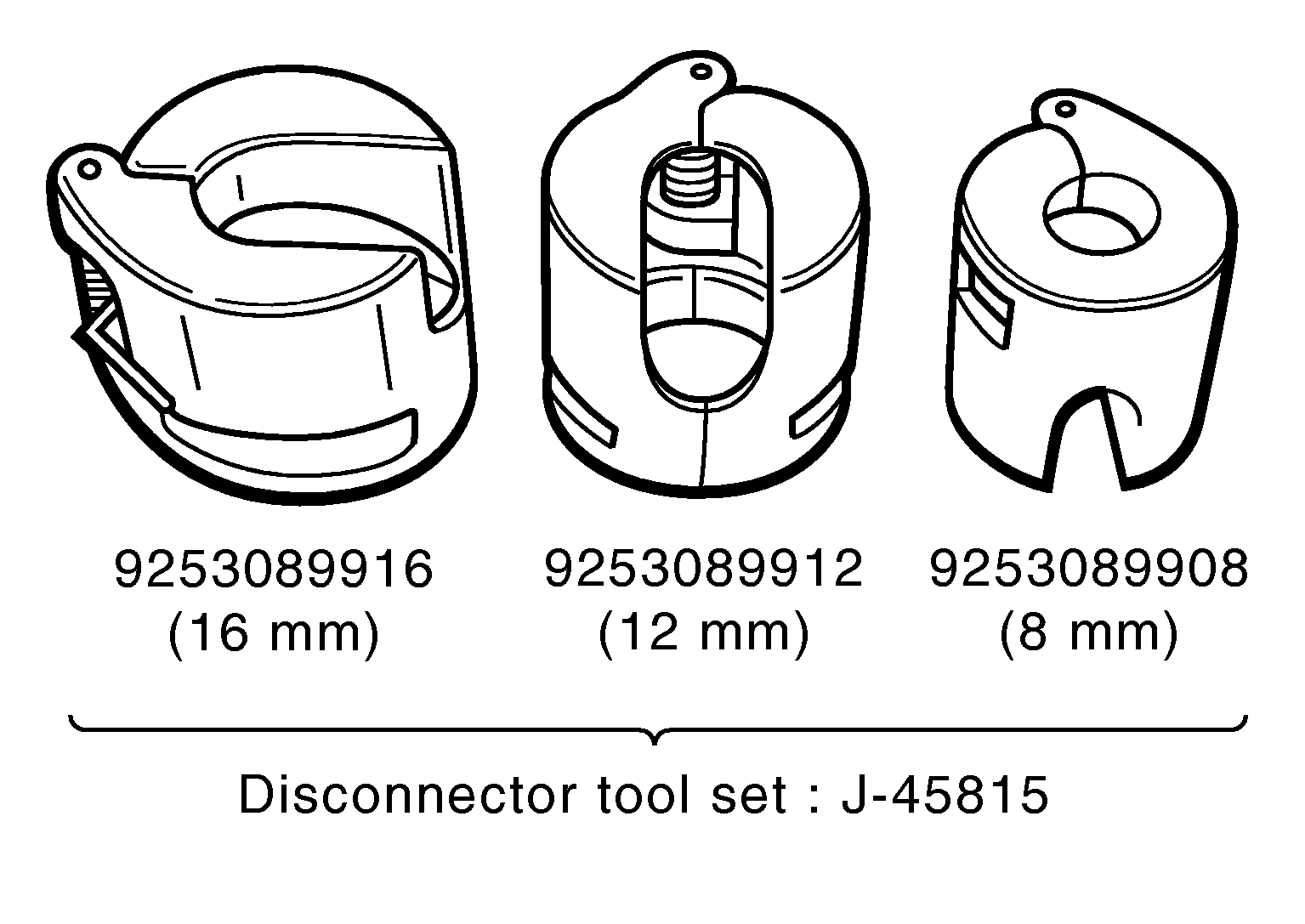

9253089908 (for high - pressure pipe 1) (-) 9253089912 (for high - pressure flexible hose) (-) 9253089916 (for low - pressure pipe 2 and low - pressure flexible hose) (-) Disconnector tool set (J - 45815)	Courtesy of NISSAN NORTH AMERICA, INC.	Disconnect one - touch joint connection
(ACR2005 - NI) ACR5 A/C Service Center	Courtesy of NISSAN NORTH AMERICA, INC.	Function: Refrigerant recovery, recycling and recharging

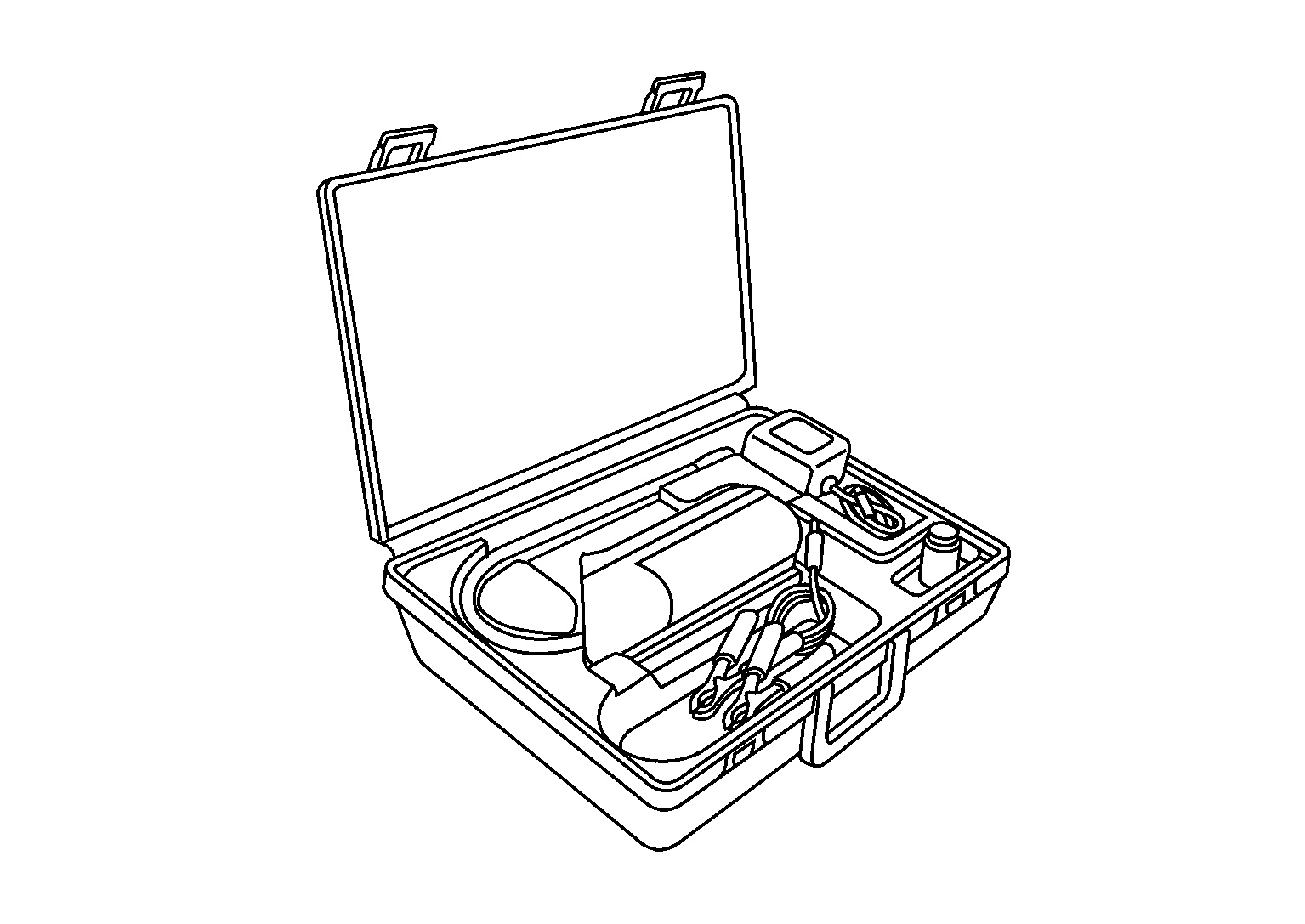

(J - 41995) Electrical leak detector	Courtesy of NISSAN NORTH AMERICA, INC.	Power supply: DC 12 V (Battery terminal)
(J - 43926) Refrigerant dye leak detection kit Kit includes: (J - 42220) UV lamp and UV safety goggles (J - 41459) HFC - 134a (R - 134a) dye injector Use with J - 41447, 1/4 ounce bottle (J - 41447) HFC - 134a (R - 134a) fluorescent leak detection dye (Box of 24, 1/4 ounce bottles) (J - 43872) Refrigerant dye cleaner	Courtesy of NISSAN NORTH AMERICA, INC.	Power supply: DC 12 V (Battery terminal)
(J - 42220) UV lamp and UV safety goggles	Courtesy of NISSAN NORTH AMERICA, INC.	Power supply: DC 12 V (Battery terminal) For checking refrigerant leakage when fluorescent dye is equipped in A/C system Includes: UV lamp and UV safety goggles
(J - 41447) HFC - 134a (R - 134a) fluorescent leak detection dye (Box of 24, 1/4 ounce bottles)	Courtesy of NISSAN NORTH AMERICA, INC.	Application: For HFC - 134a (R - 134a) PAG oil Container: 1/4 ounce (7.4 cc) bottle (Includes self - adhesive dye identification labels for affixing to vehicle after charging system with dye.)
(J - 41459) HFC - 134a (R - 134a) dye injector Use with J - 41447, 1/4 ounce bottle	Courtesy of NISSAN NORTH AMERICA, INC.	For injecting 1/4 ounce of fluorescent leak detection dye into A/C system
(J - 43872) Refrigerant dye cleaner	Courtesy of NISSAN NORTH AMERICA, INC.	For cleaning dye spills

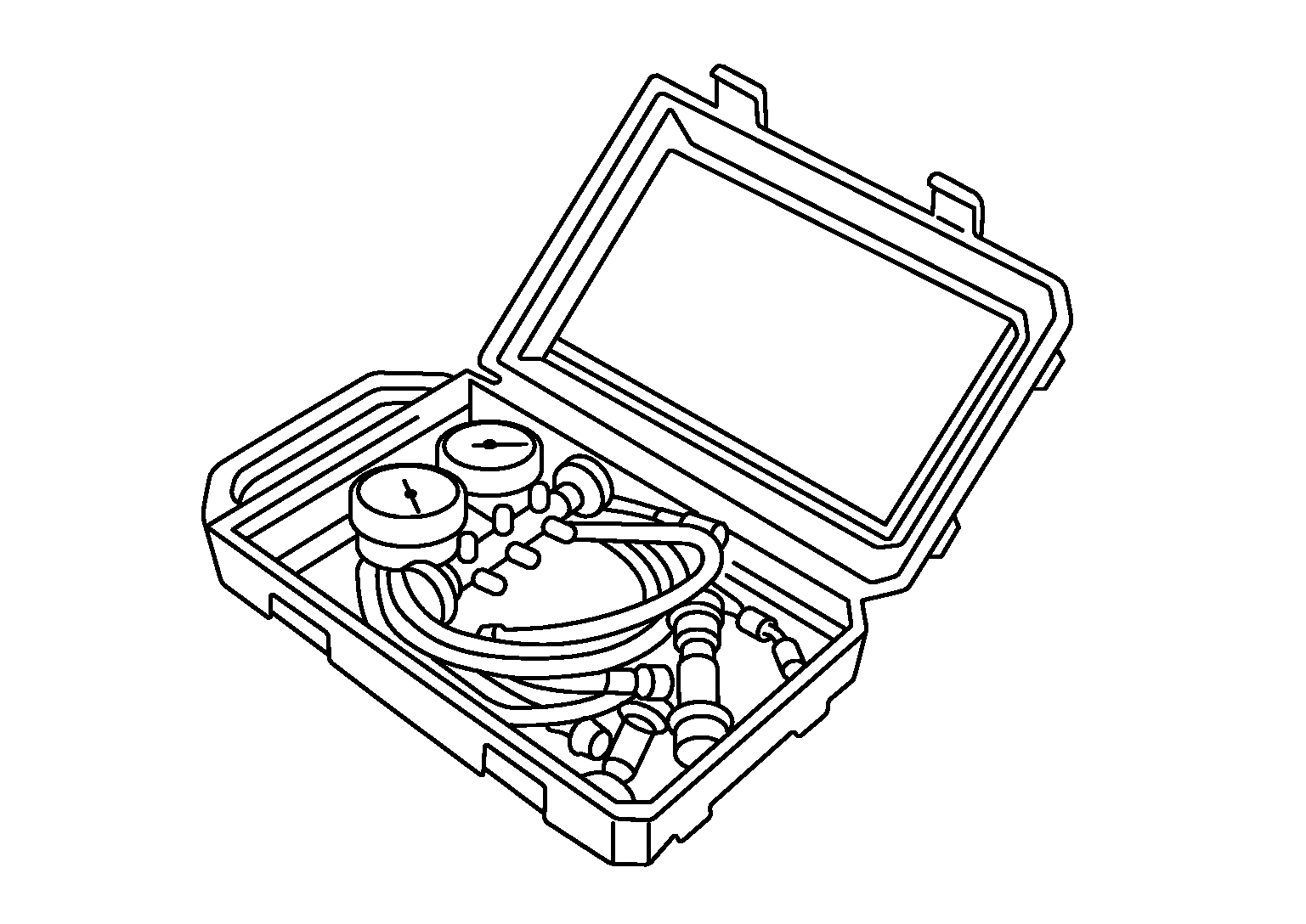

(J - 39183) Manifold gauge set (with hoses and couplers)	Courtesy of NISSAN NORTH AMERICA, INC.	Identification: The gauge face indicates HFC - 134a (R - 134a). Fitting size: Thread size 1/2' - 16 ACME
Service hoses High - pressure side hose (J - 39501 - 72) Low - pressure side hose (J - 39502 - 72) Utility hose (J - 39476 - 72)	Courtesy of NISSAN NORTH AMERICA, INC.	Hose color: Low - pressure side hose: Blue with black stripe High - pressure side hose: Red with black stripe Utility hose: Yellow with black stripe or green with black stripe Hose fitting to gauge: 1/2' - 16 ACME
Service couplers High - pressure side coupler (J - 39500 - 20) Low - pressure side coupler (J - 39500 - 24)	Courtesy of NISSAN NORTH AMERICA, INC.	Hose fitting to service hose: M14 x 1.5 fitting is optional or permanently attached.
(J - 39650) Refrigerant weight scale	Courtesy of NISSAN NORTH AMERICA, INC.	For measuring of refrigerant Fitting size: Thread size 1/2' - 16 ACME
(J - 39649) Vacuum pump (Including the isolator valve)	Courtesy of NISSAN NORTH AMERICA, INC.	Capacity: Air displacement: 4 CFM Micron rating: 20 microns Oil capacity: 482 g (17 oz.) Fitting size: Thread size 1/2' - 16 ACME
