Home >> Infiniti >> 2017 >> QX70 AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator >> Ecu Diagnosis Information >> IPDM E/R (Intelligent Power Distribution Module Engine Room) >> Wiring Diagram - IPDM E/R -

Wiring Diagram - IPDM E/R -

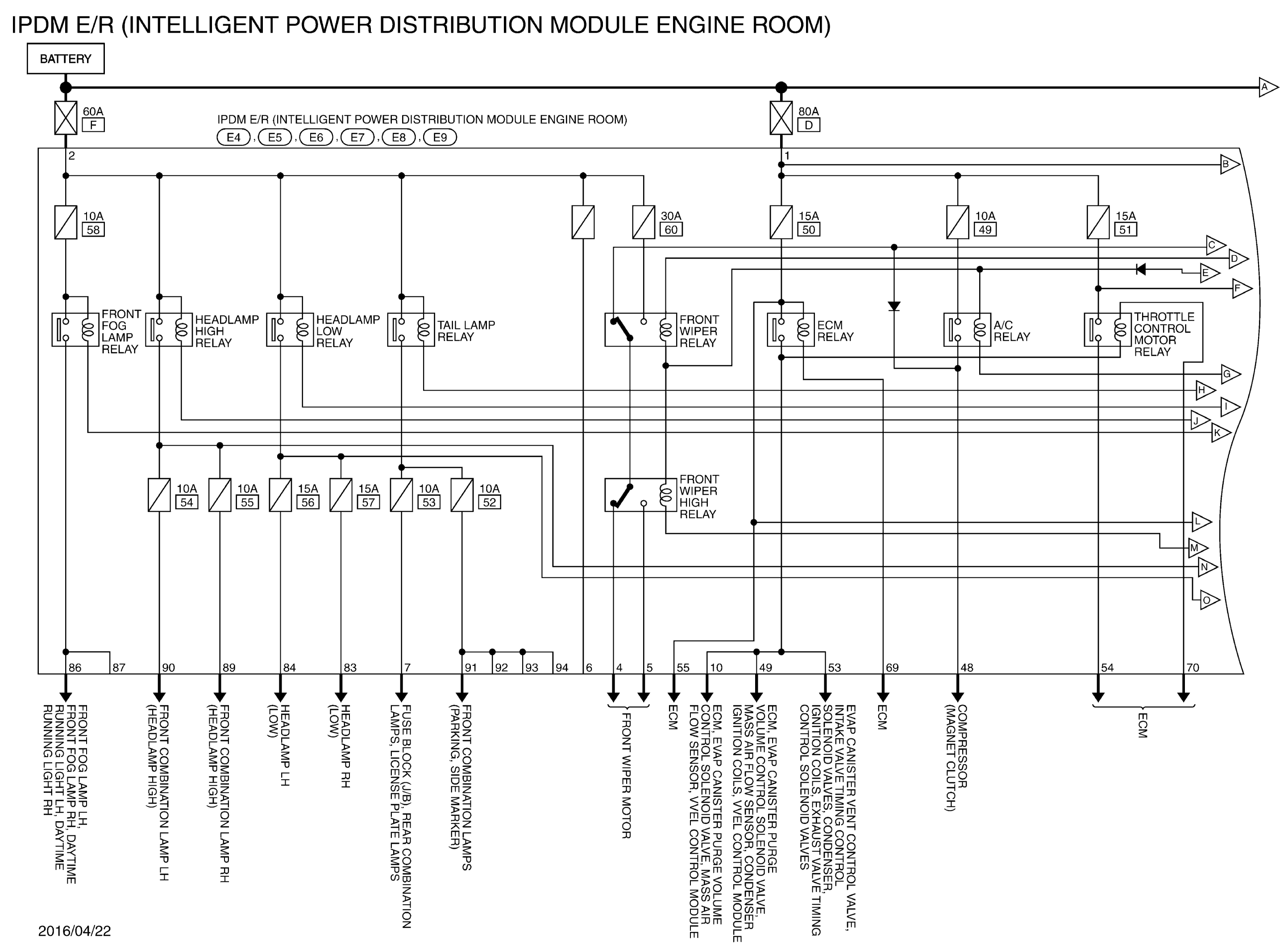

GNSJRMWJ7886GB-886

Courtesy of NISSAN NORTH AMERICA, INC.

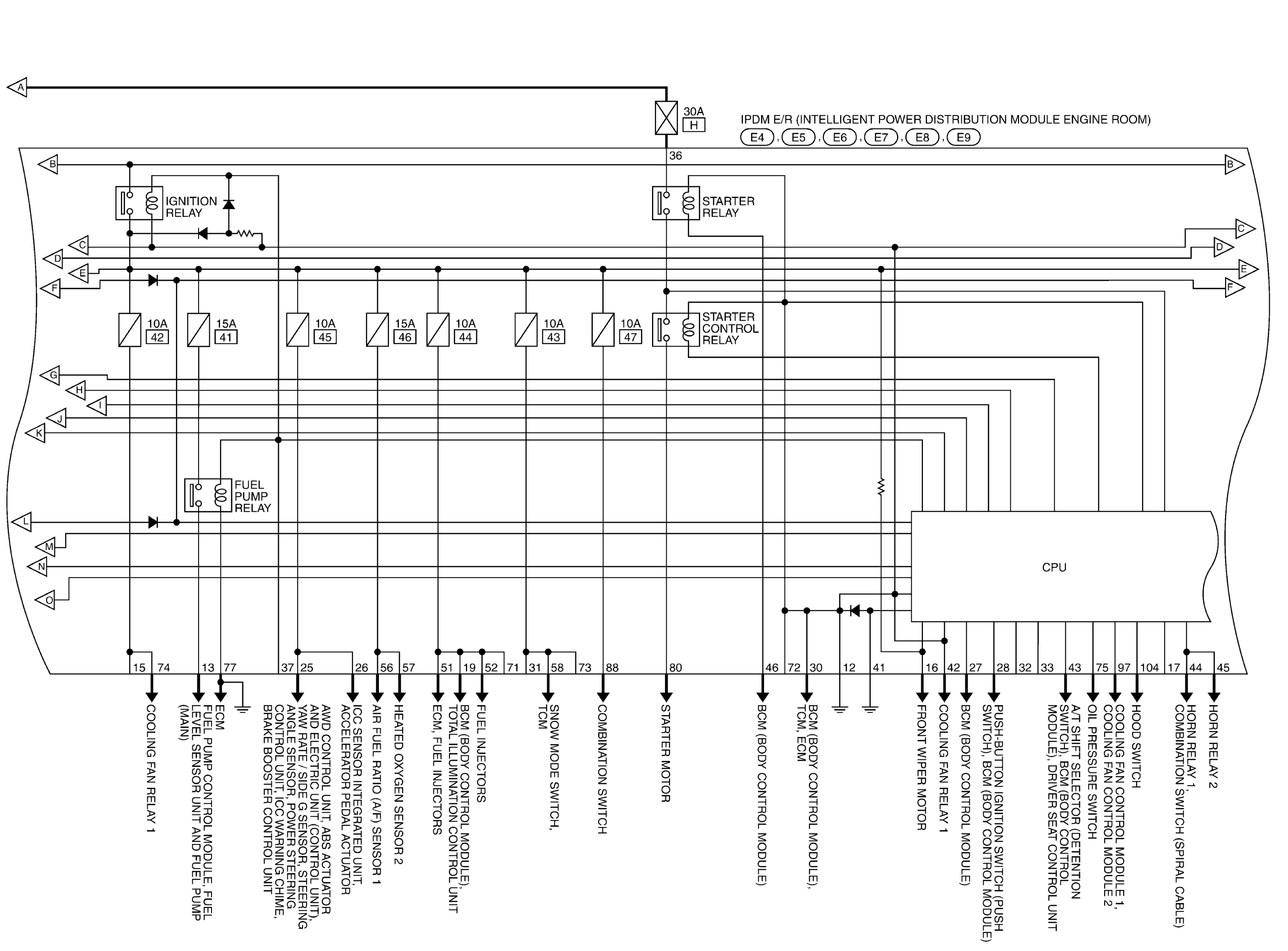

GNSJRMWJ7887GB-887

Courtesy of NISSAN NORTH AMERICA, INC.

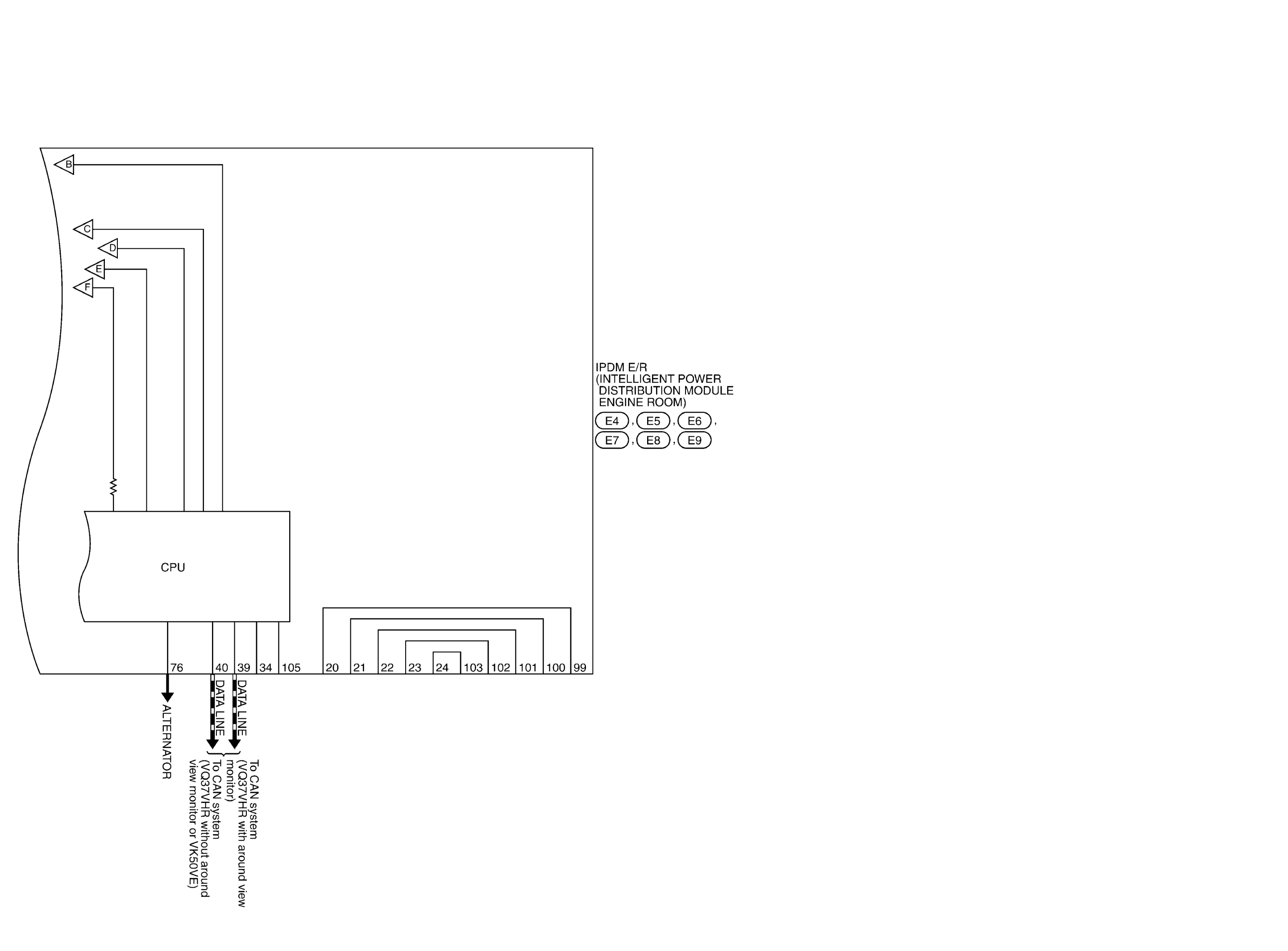

GNSJRMWJ7888GB-888

Courtesy of NISSAN NORTH AMERICA, INC.

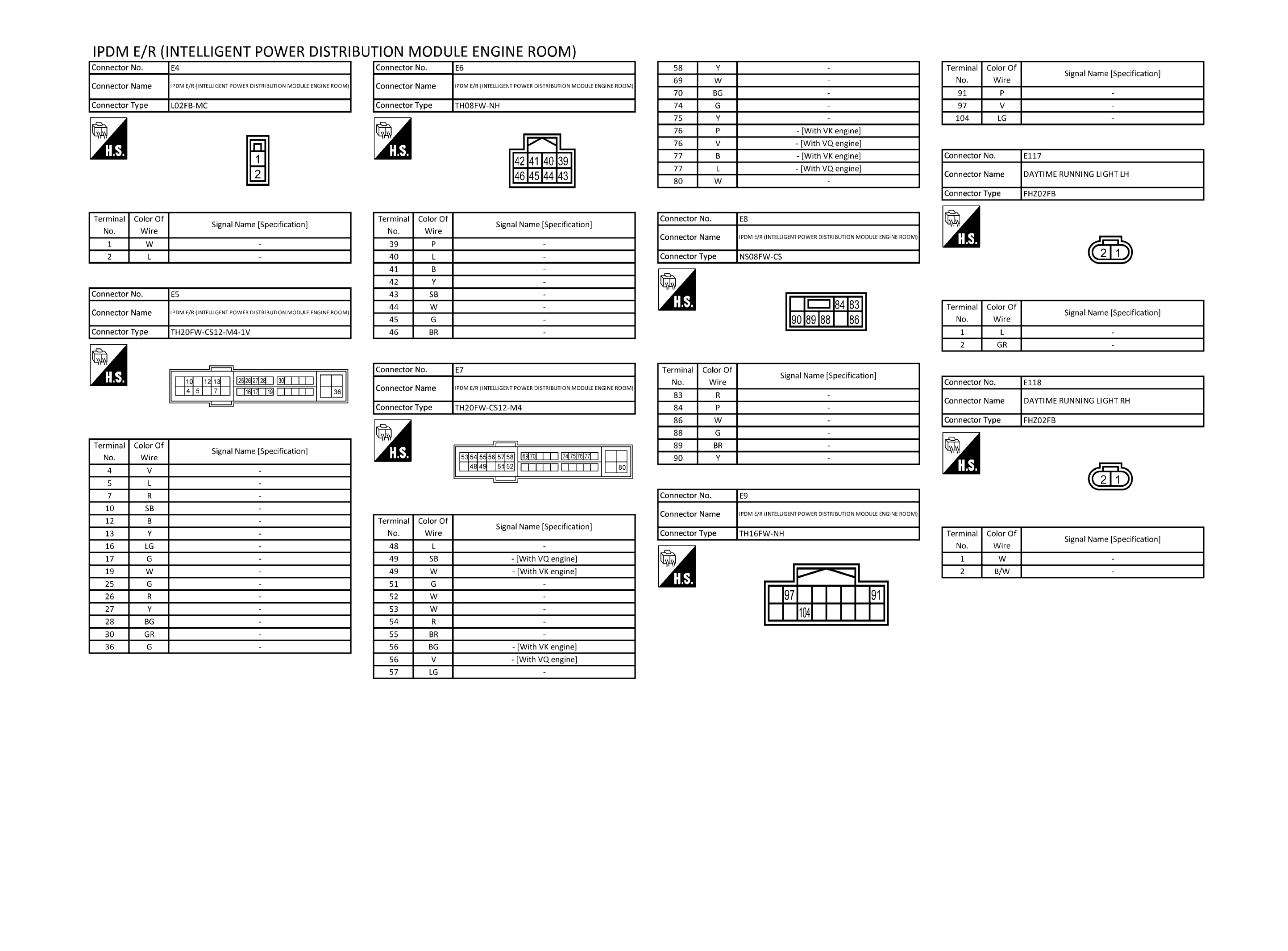

GNSJRMWJ7889GB-889

Courtesy of NISSAN NORTH AMERICA, INC.
