Wiring Diagram - Meter

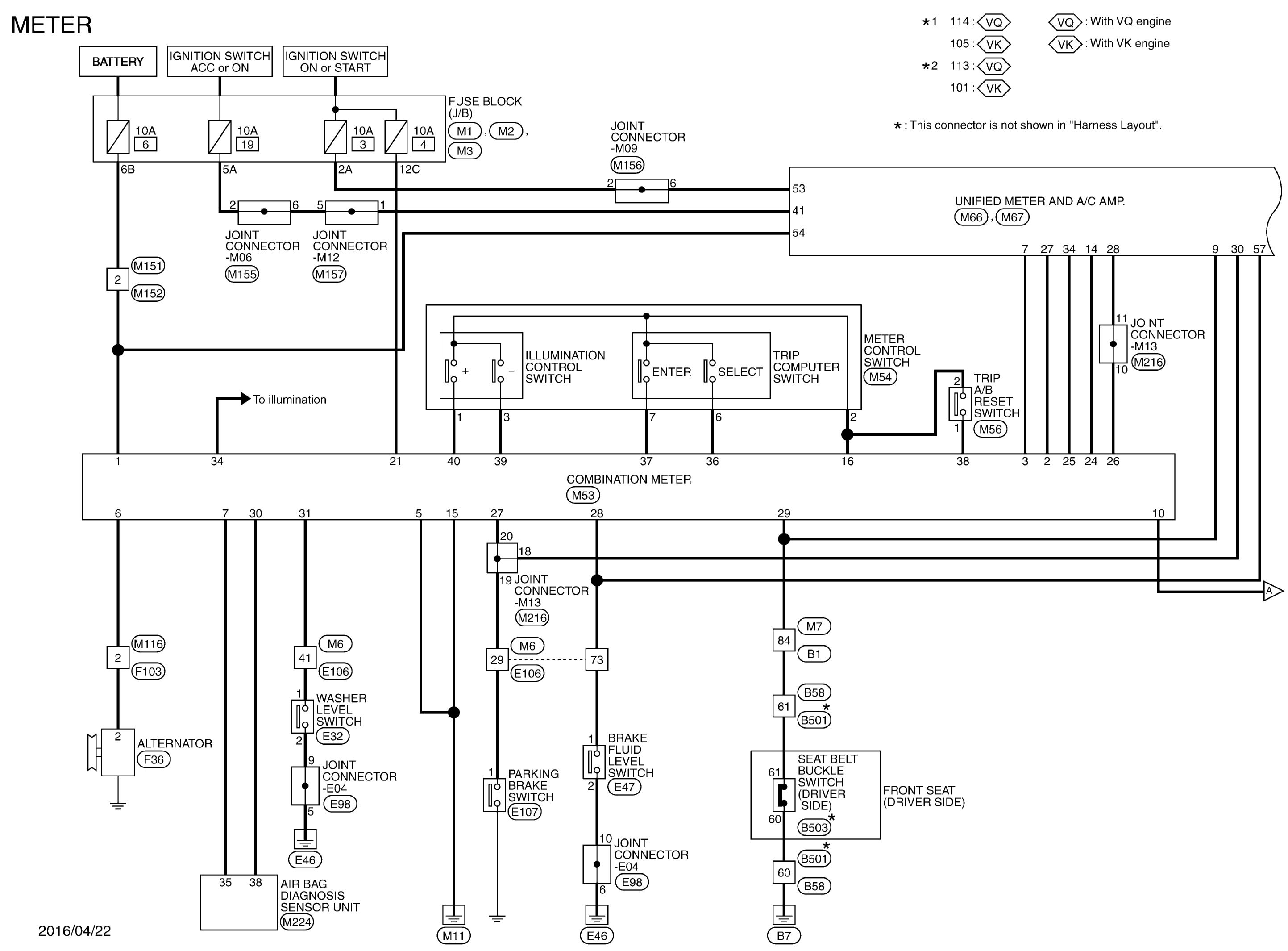

GNSJRNWF8753GB-753

Courtesy of NISSAN NORTH AMERICA, INC.

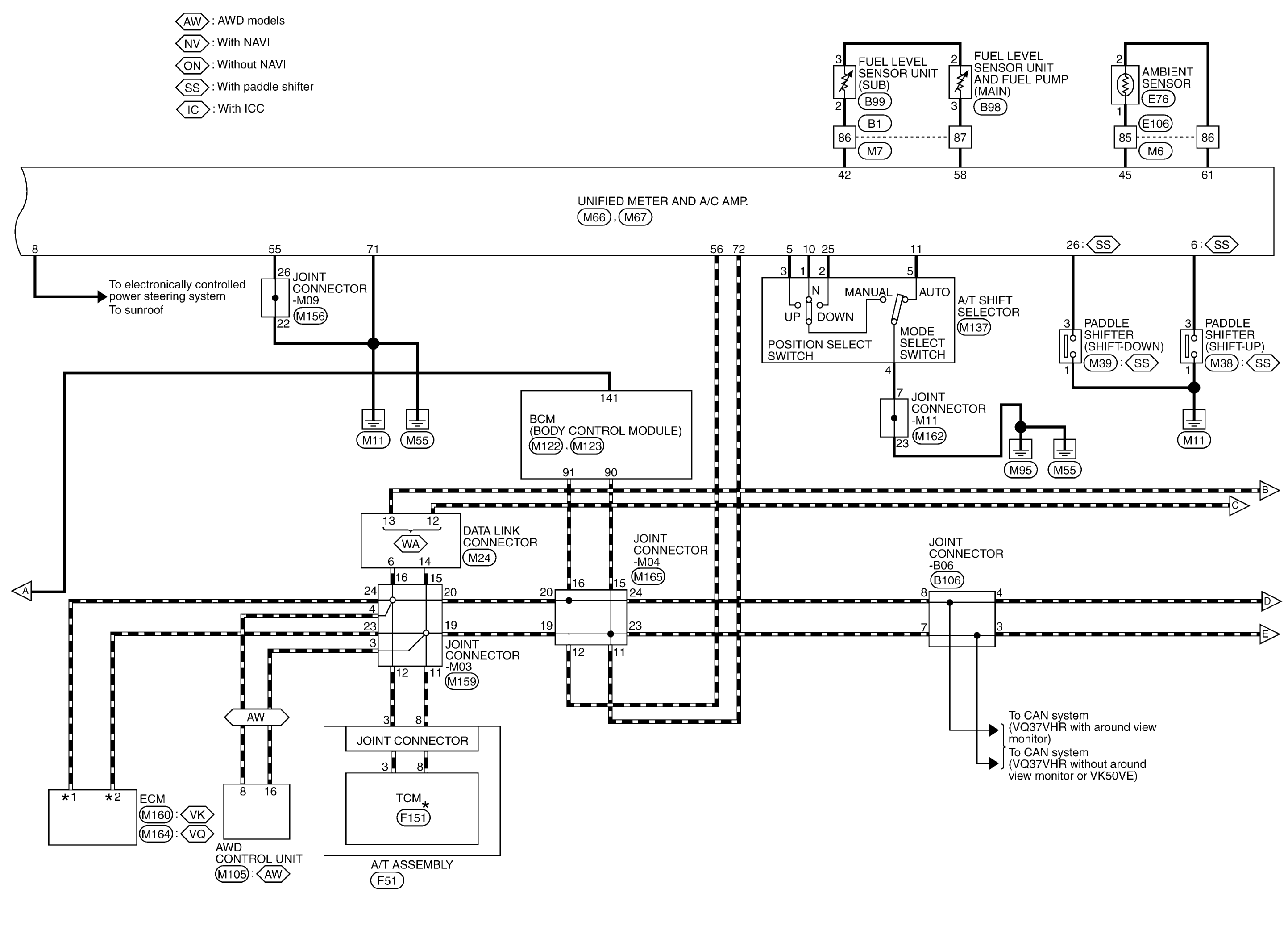

GNSJRNWF8754GB-754

Courtesy of NISSAN NORTH AMERICA, INC.

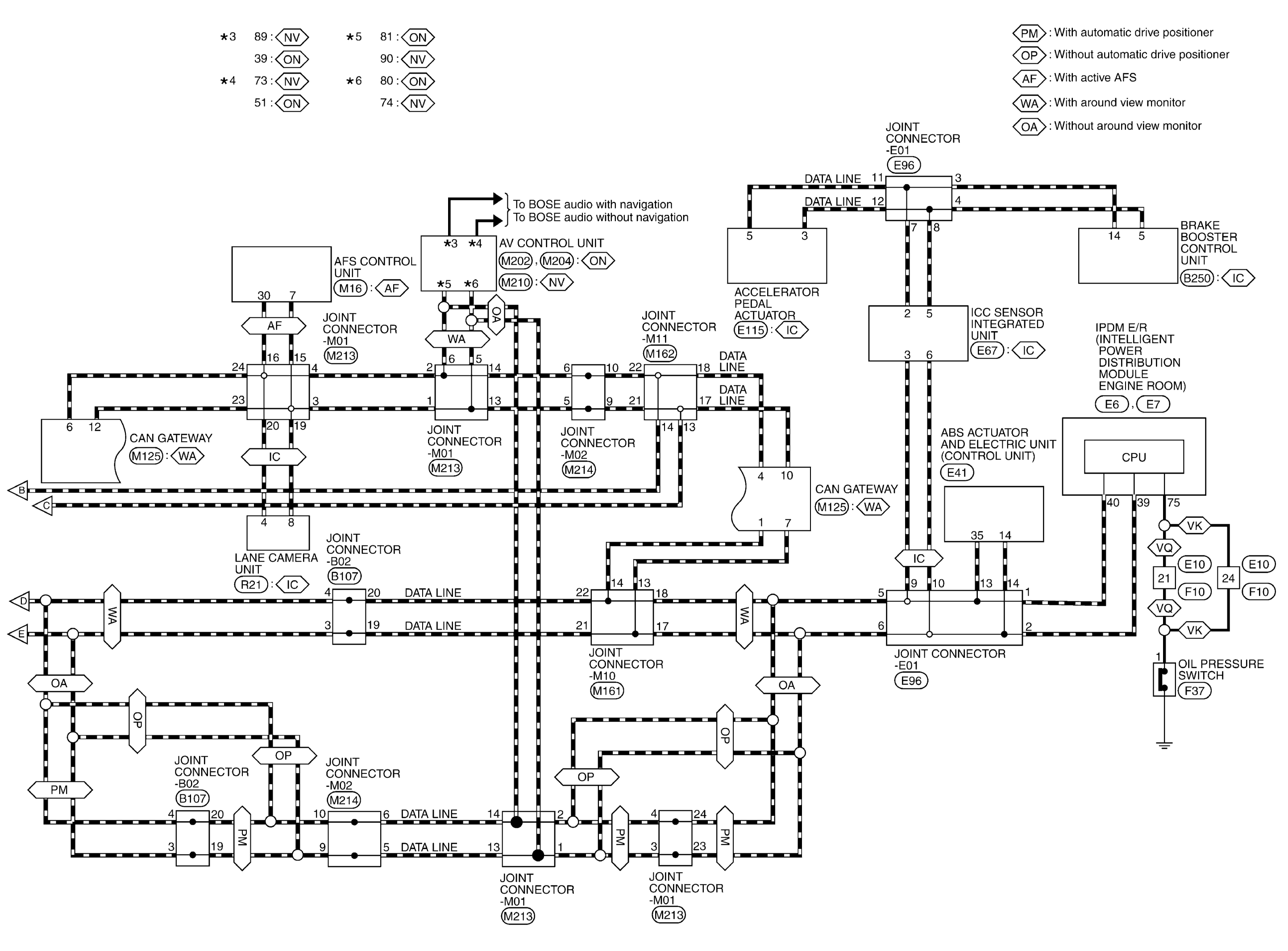

GNSJRNWF8755GB-755

Courtesy of NISSAN NORTH AMERICA, INC.

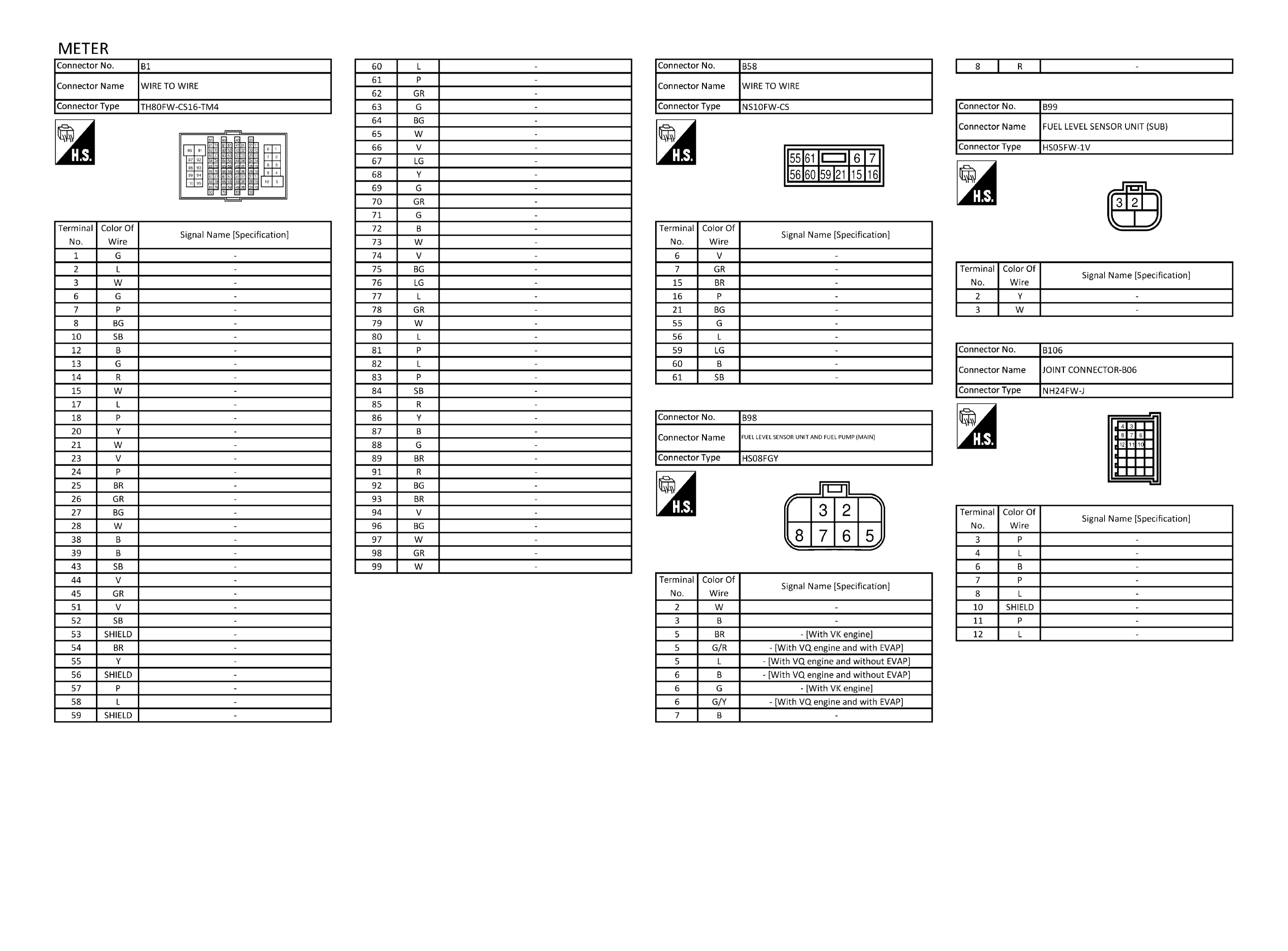

GNSJRNWF8756GB-756

Courtesy of NISSAN NORTH AMERICA, INC.

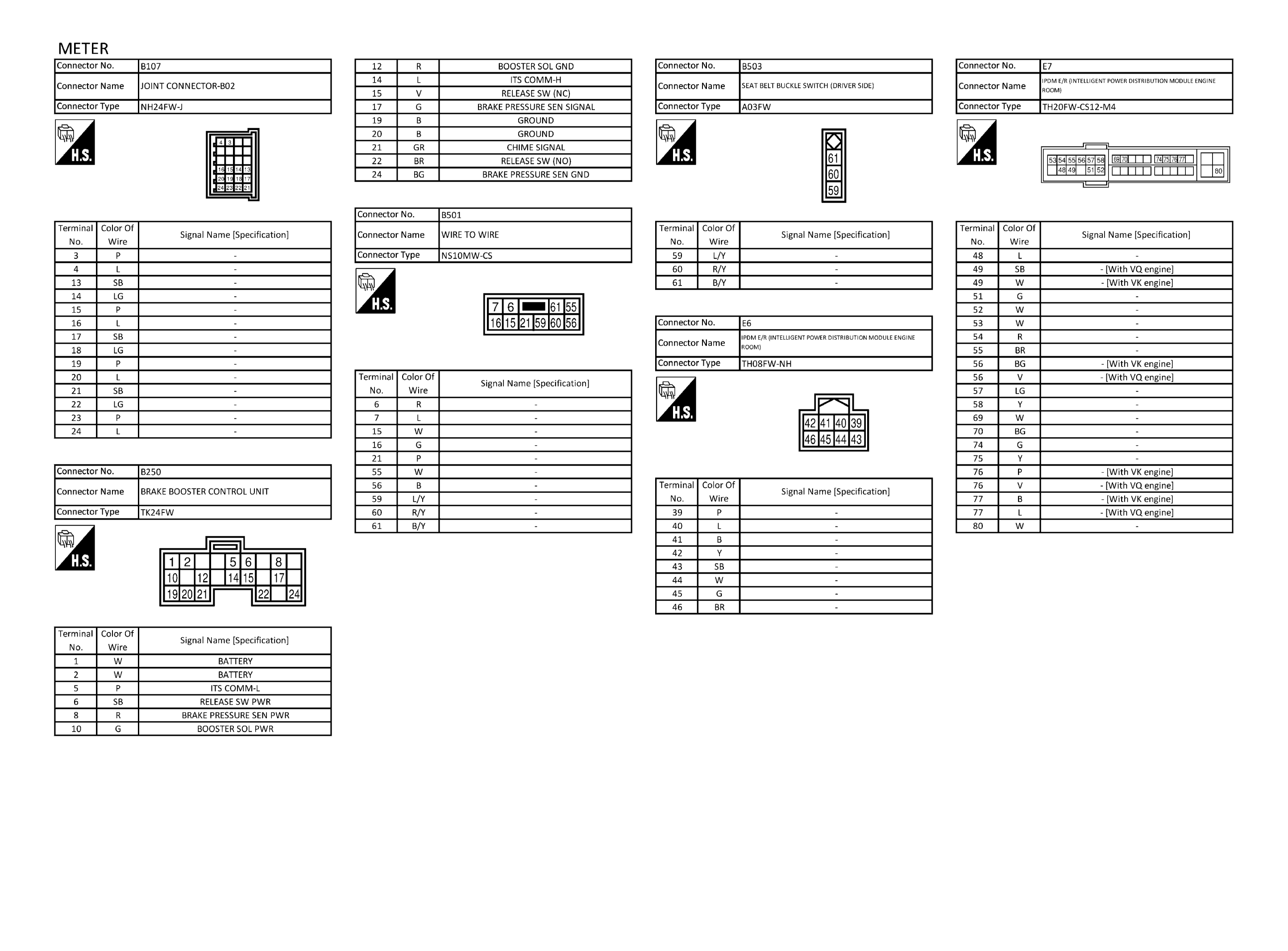

GNSJRNWF8757GB-757

Courtesy of NISSAN NORTH AMERICA, INC.

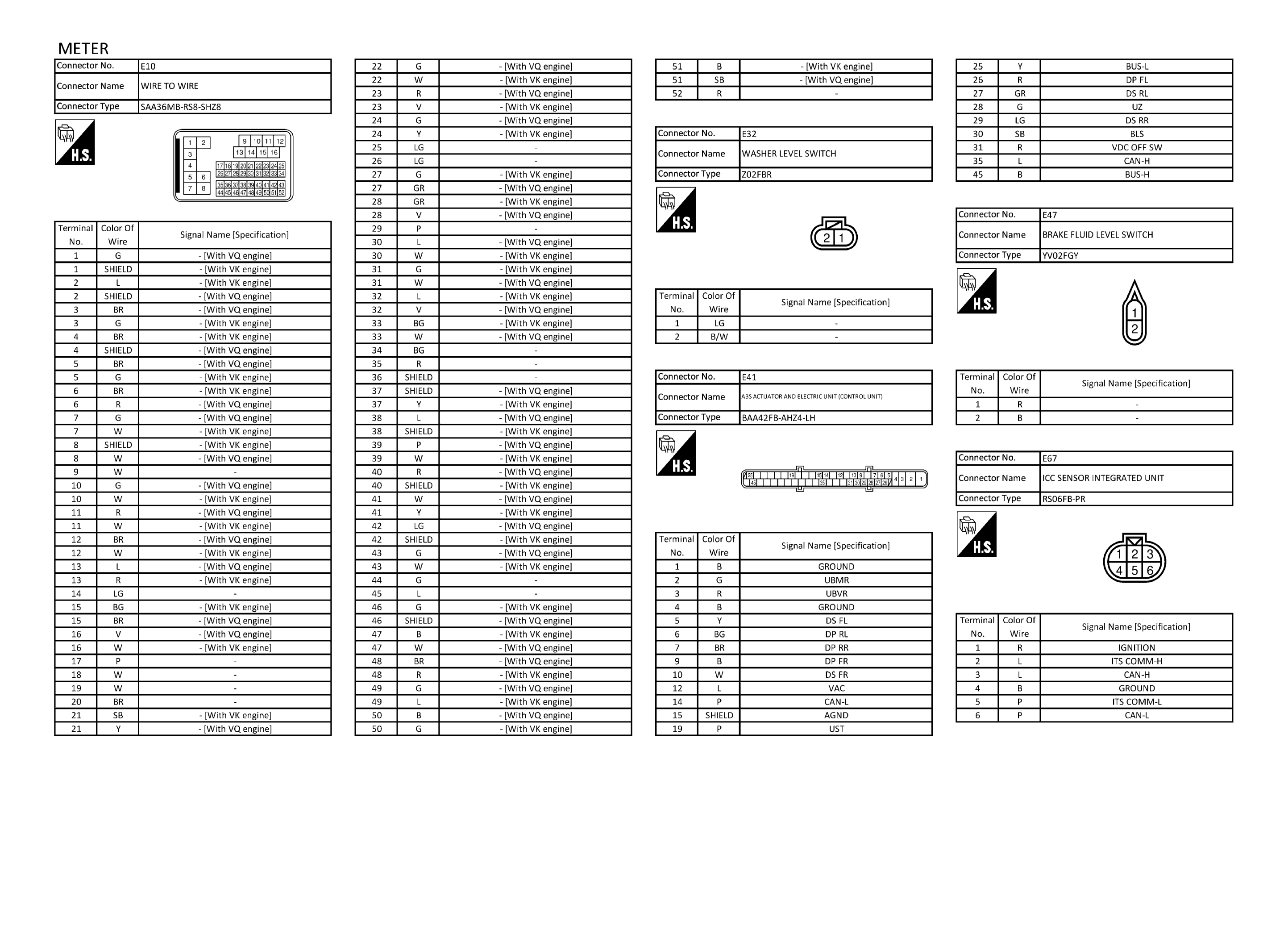

GNSJRNWF8758GB-758

Courtesy of NISSAN NORTH AMERICA, INC.

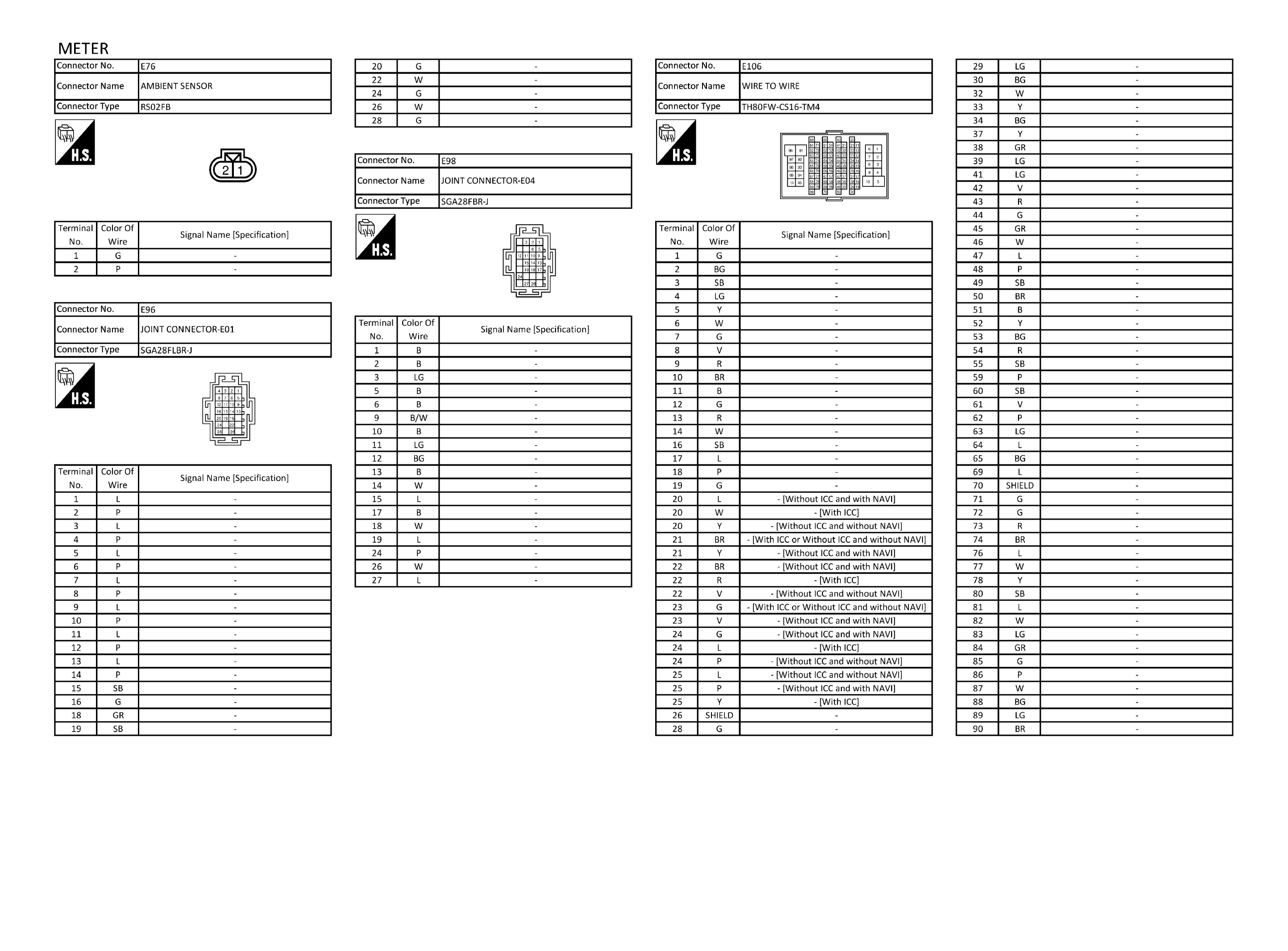

GNSJRNWF8759GB-759

Courtesy of NISSAN NORTH AMERICA, INC.

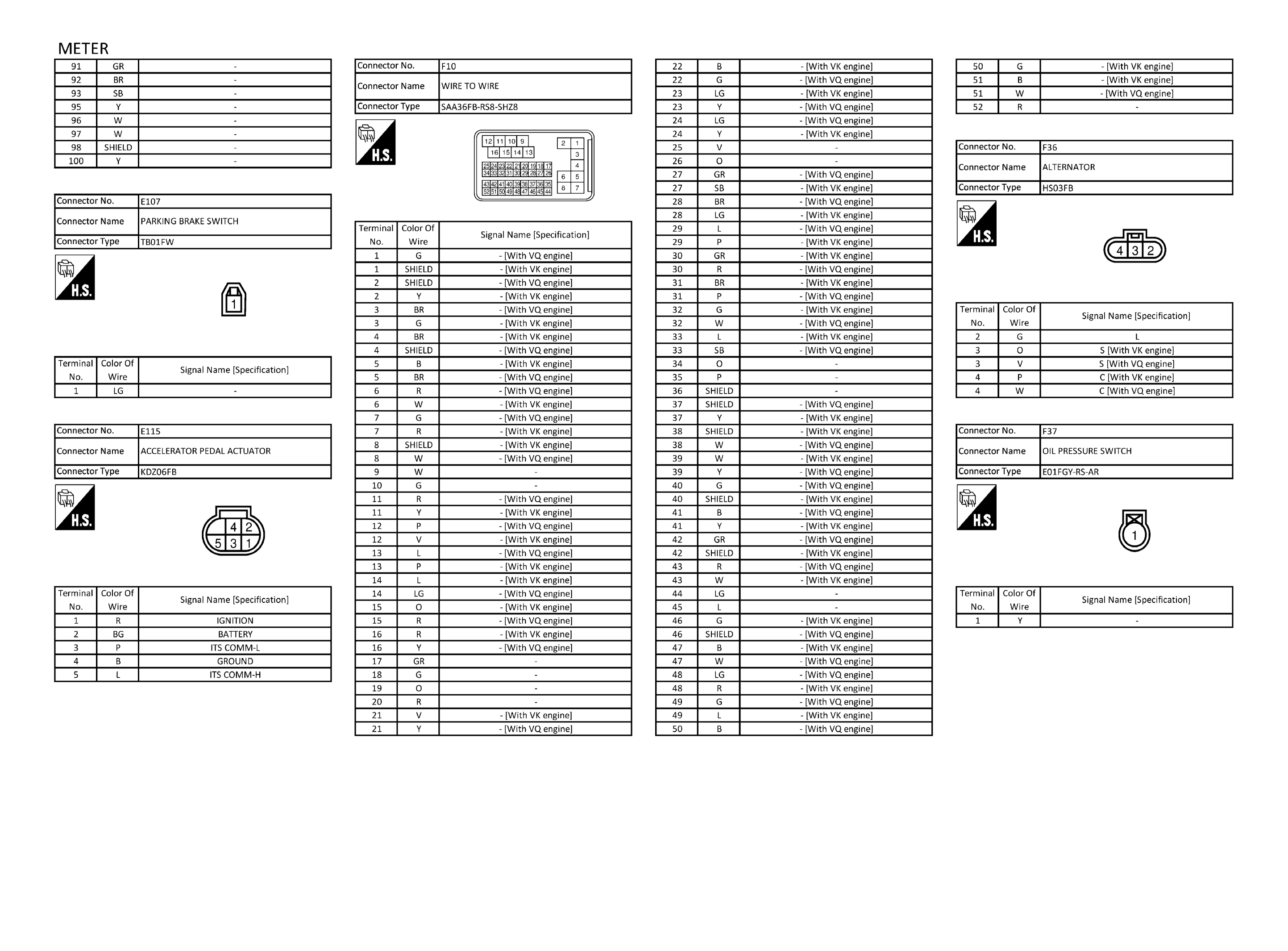

GNSJRNWF8760GB-760

Courtesy of NISSAN NORTH AMERICA, INC.

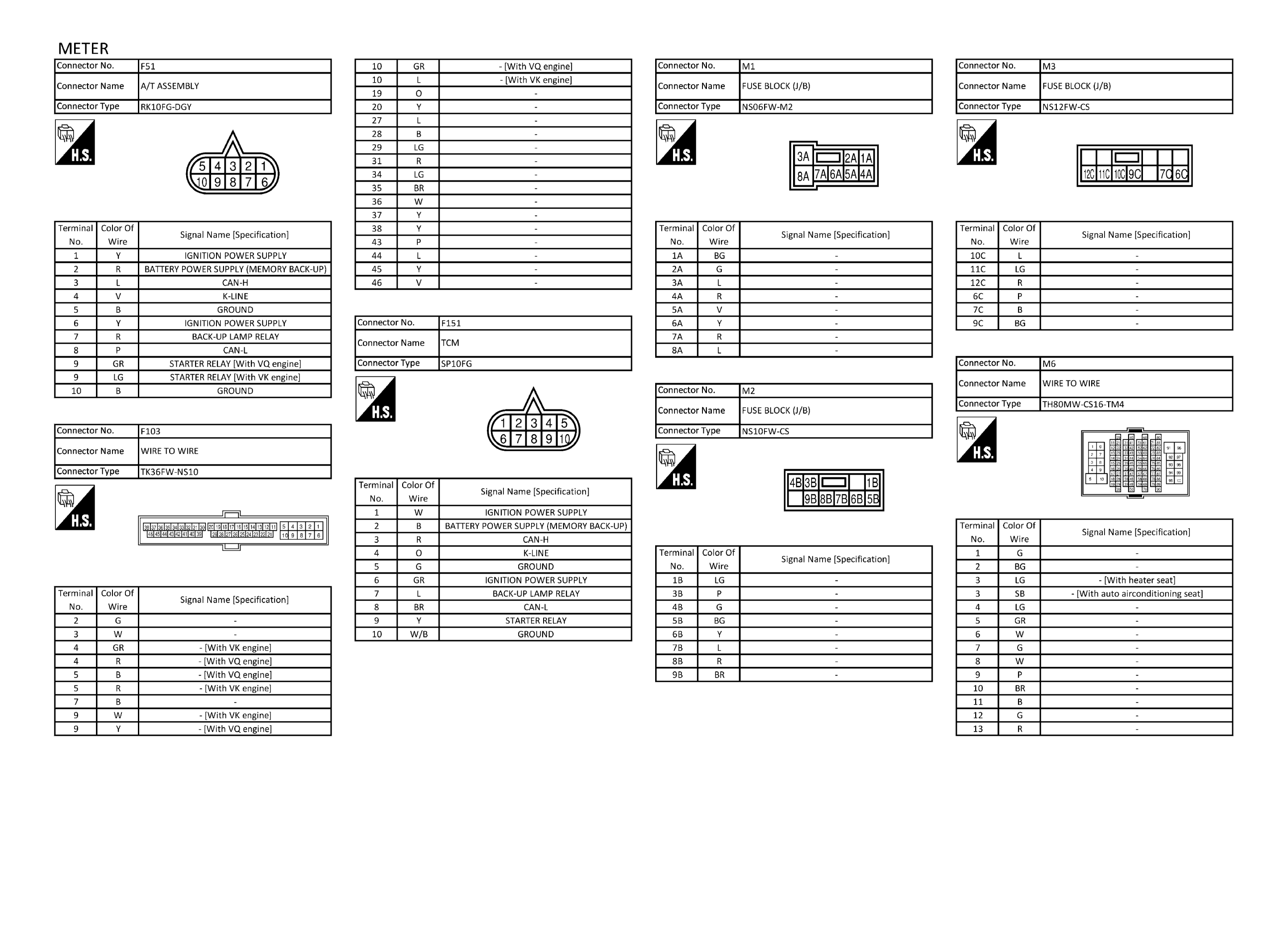

GNSJRNWF8761GB-761

Courtesy of NISSAN NORTH AMERICA, INC.

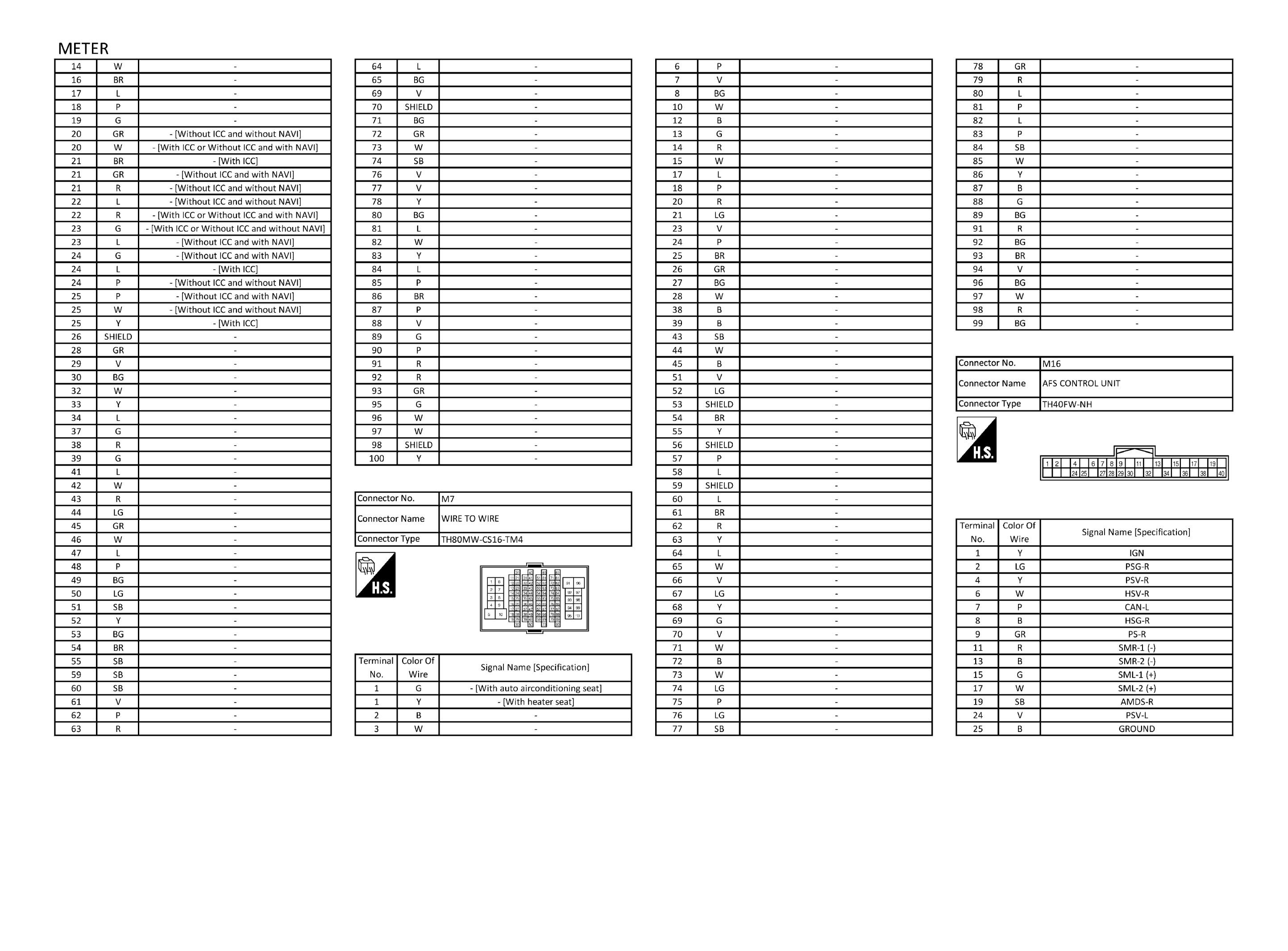

GNSJRNWF8762GB-762

Courtesy of NISSAN NORTH AMERICA, INC.

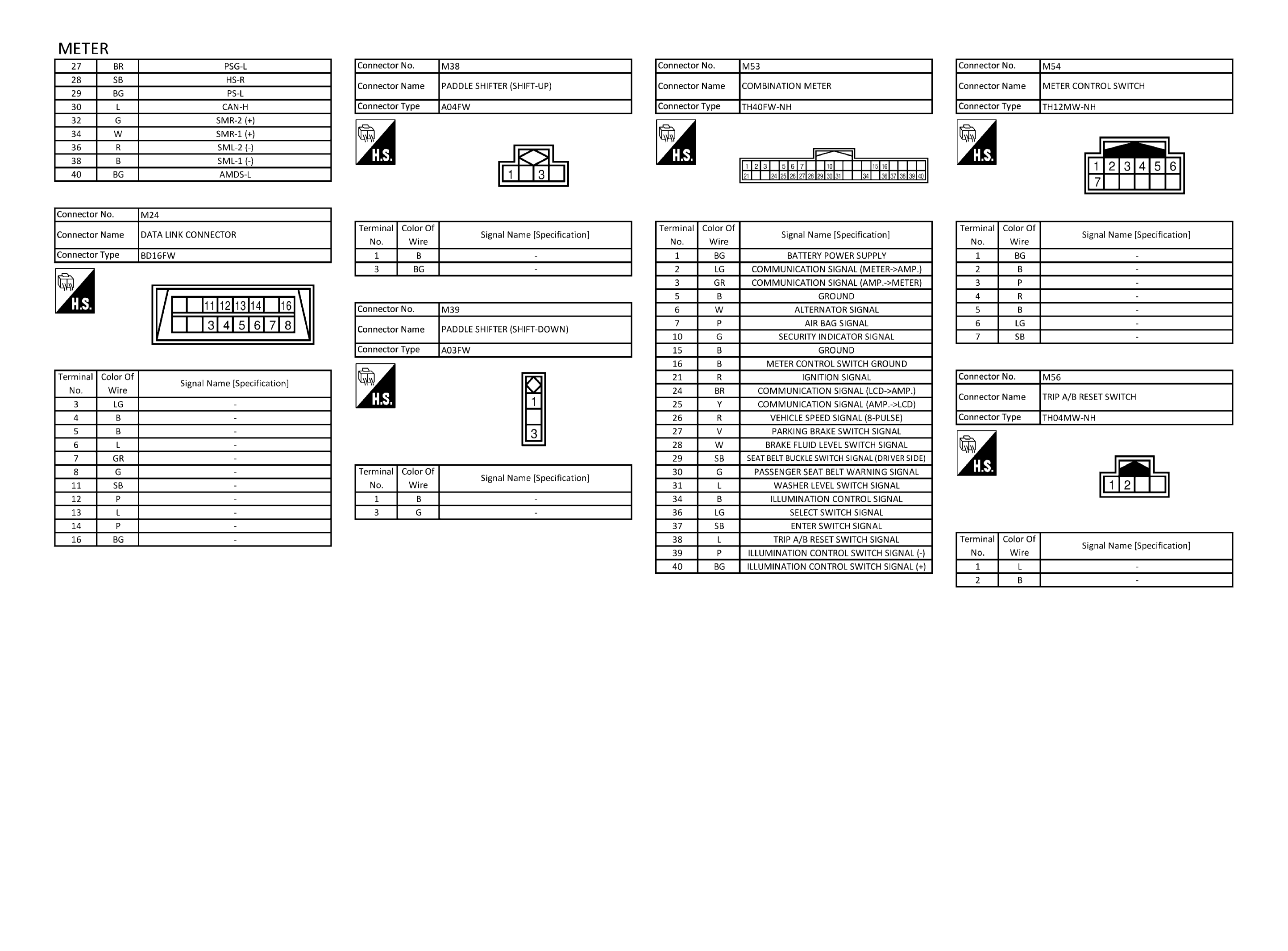

GNSJRNWF8763GB-763

Courtesy of NISSAN NORTH AMERICA, INC.

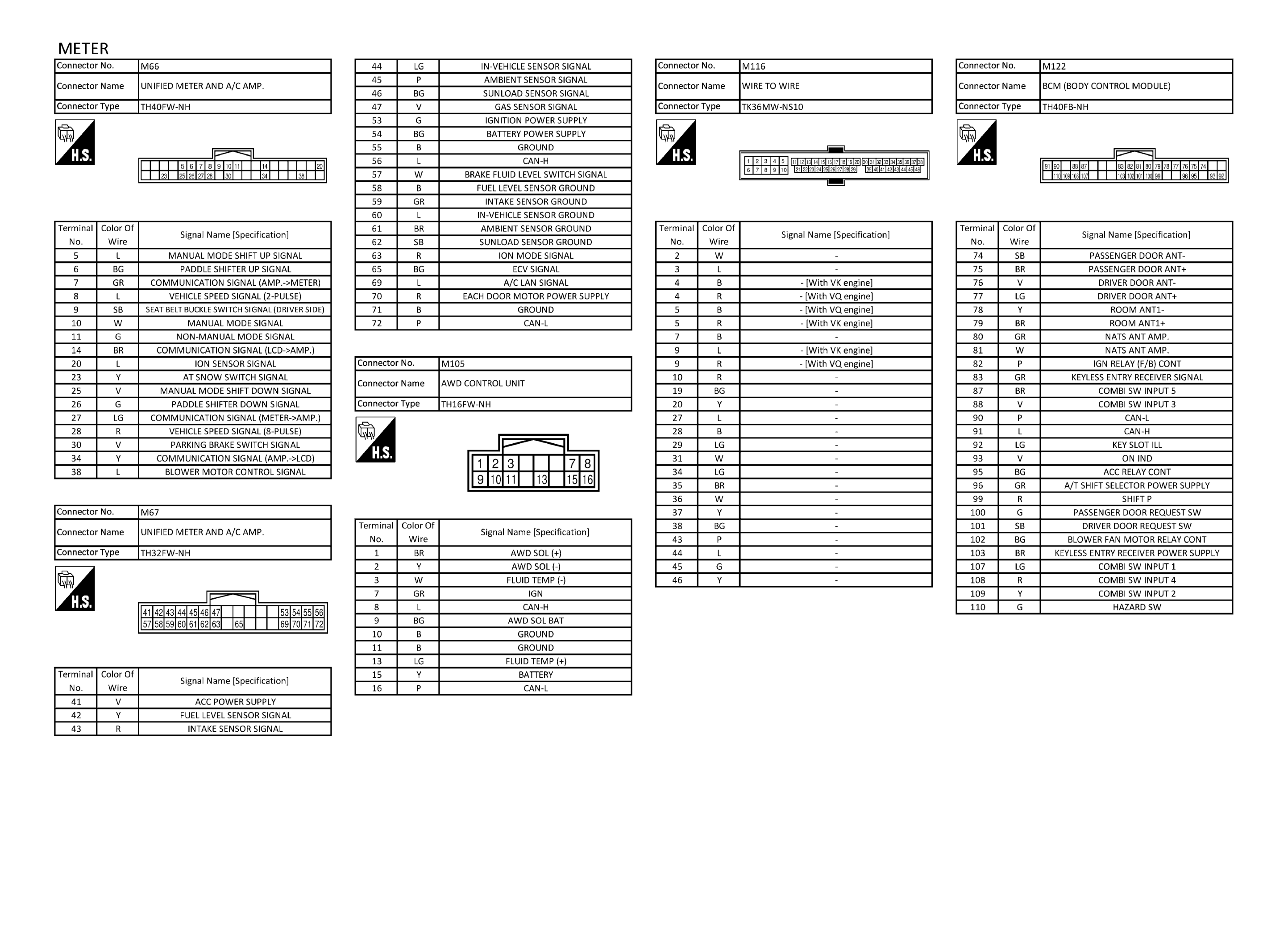

GNSJRNWF8764GB-764

Courtesy of NISSAN NORTH AMERICA, INC.

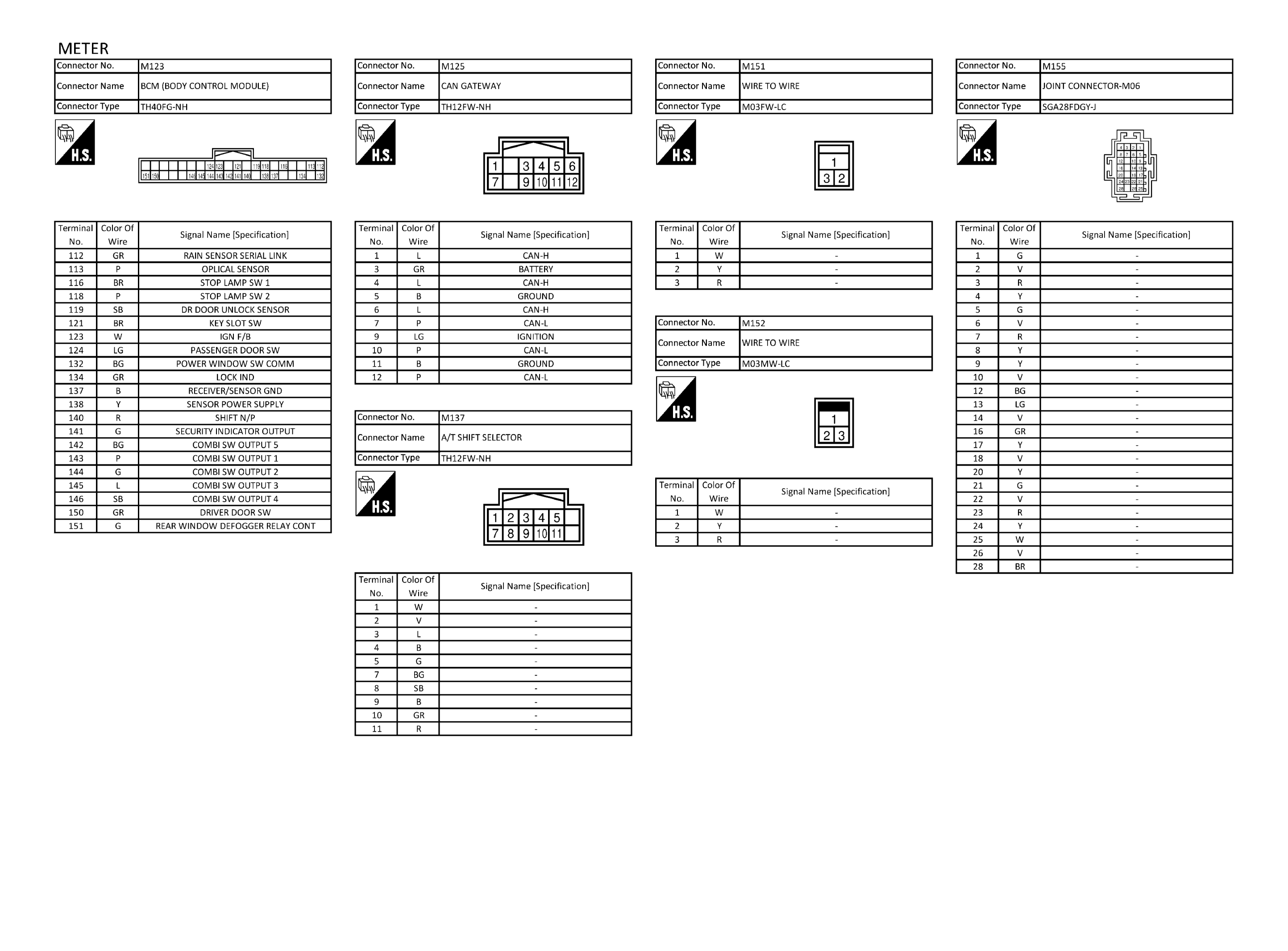

GNSJRNWF8765GB-765

Courtesy of NISSAN NORTH AMERICA, INC.

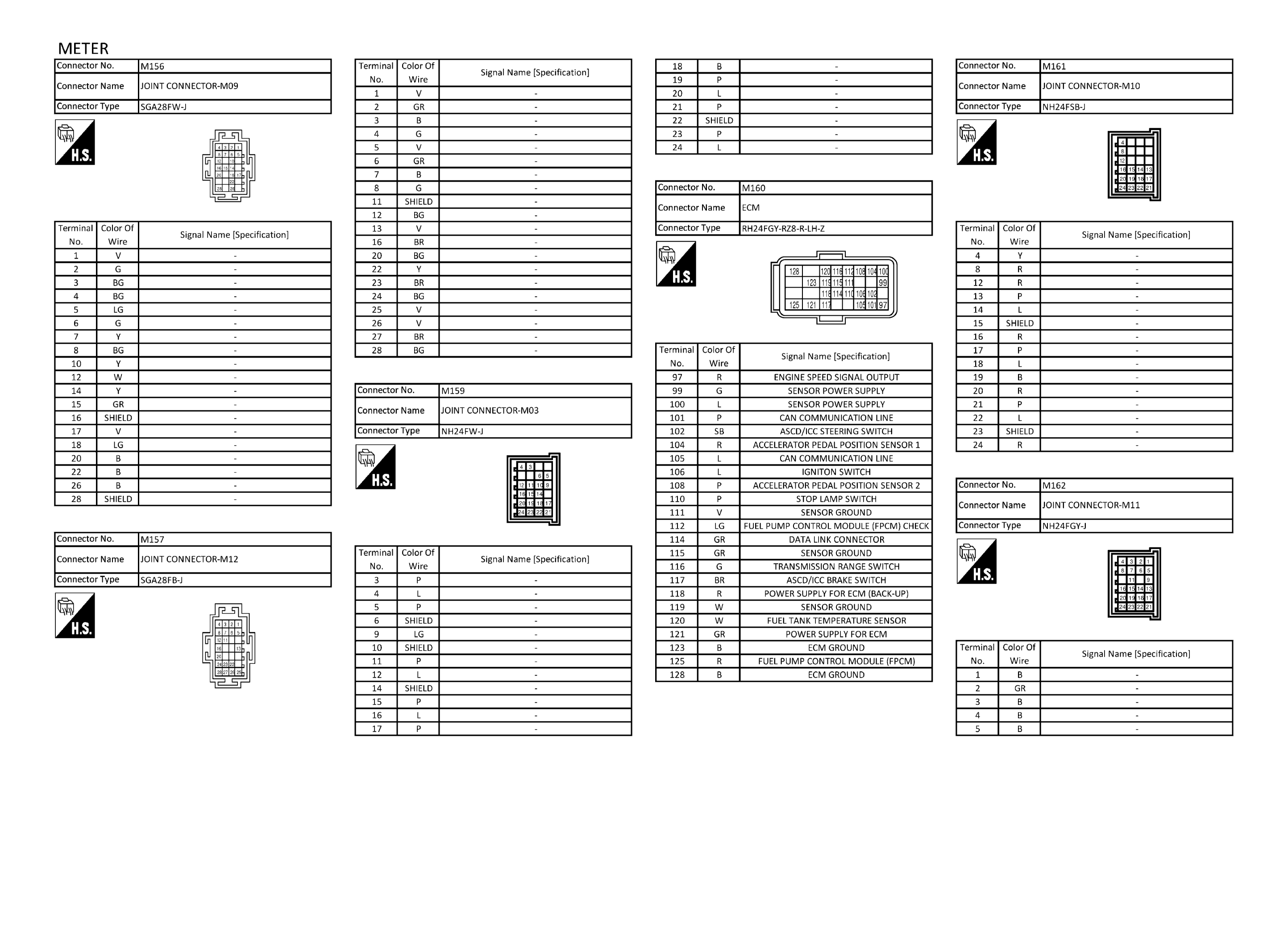

GNSJRNWF8766GB-766

Courtesy of NISSAN NORTH AMERICA, INC.

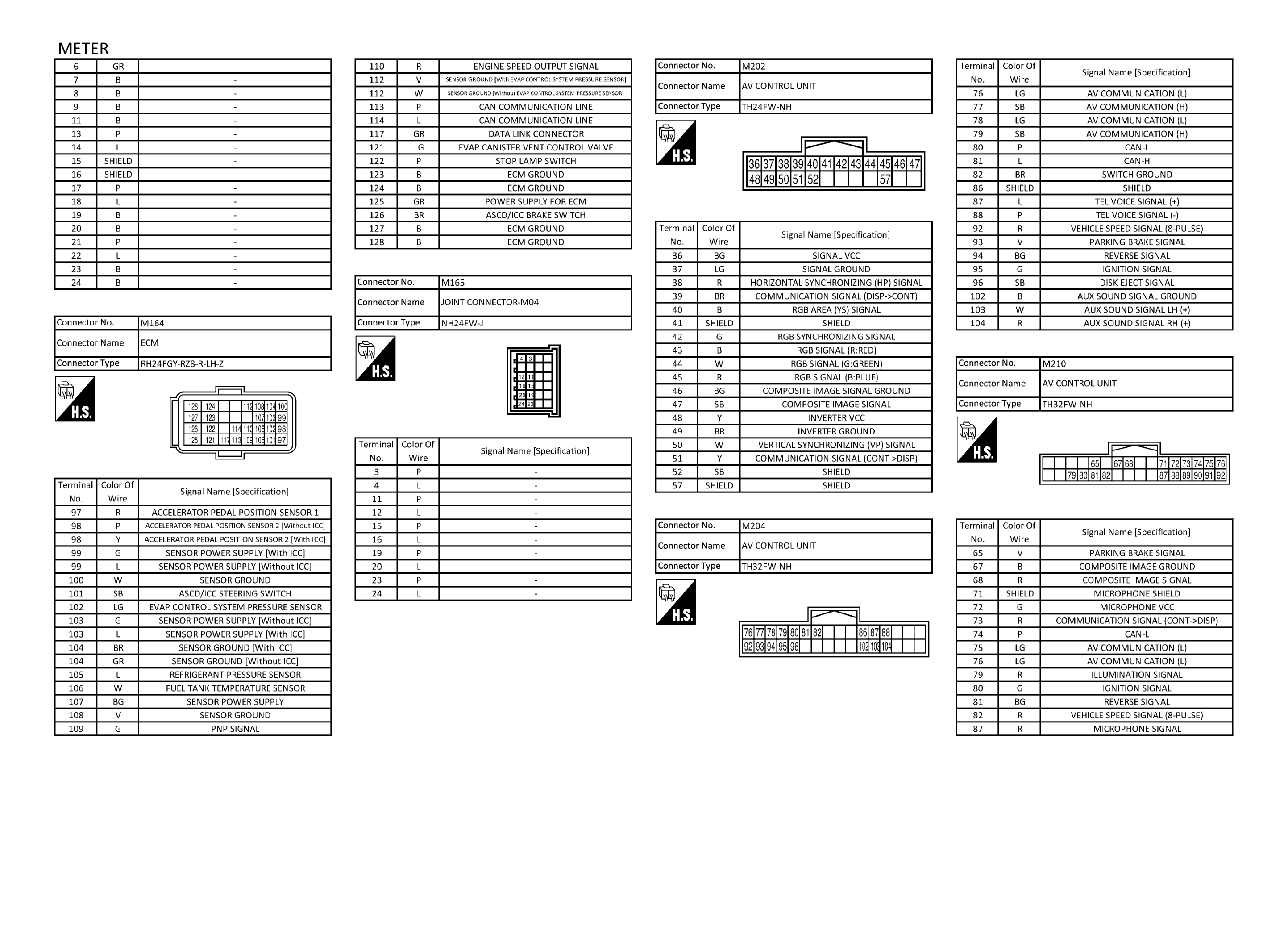

GNSJRNWF8767GB-767

Courtesy of NISSAN NORTH AMERICA, INC.

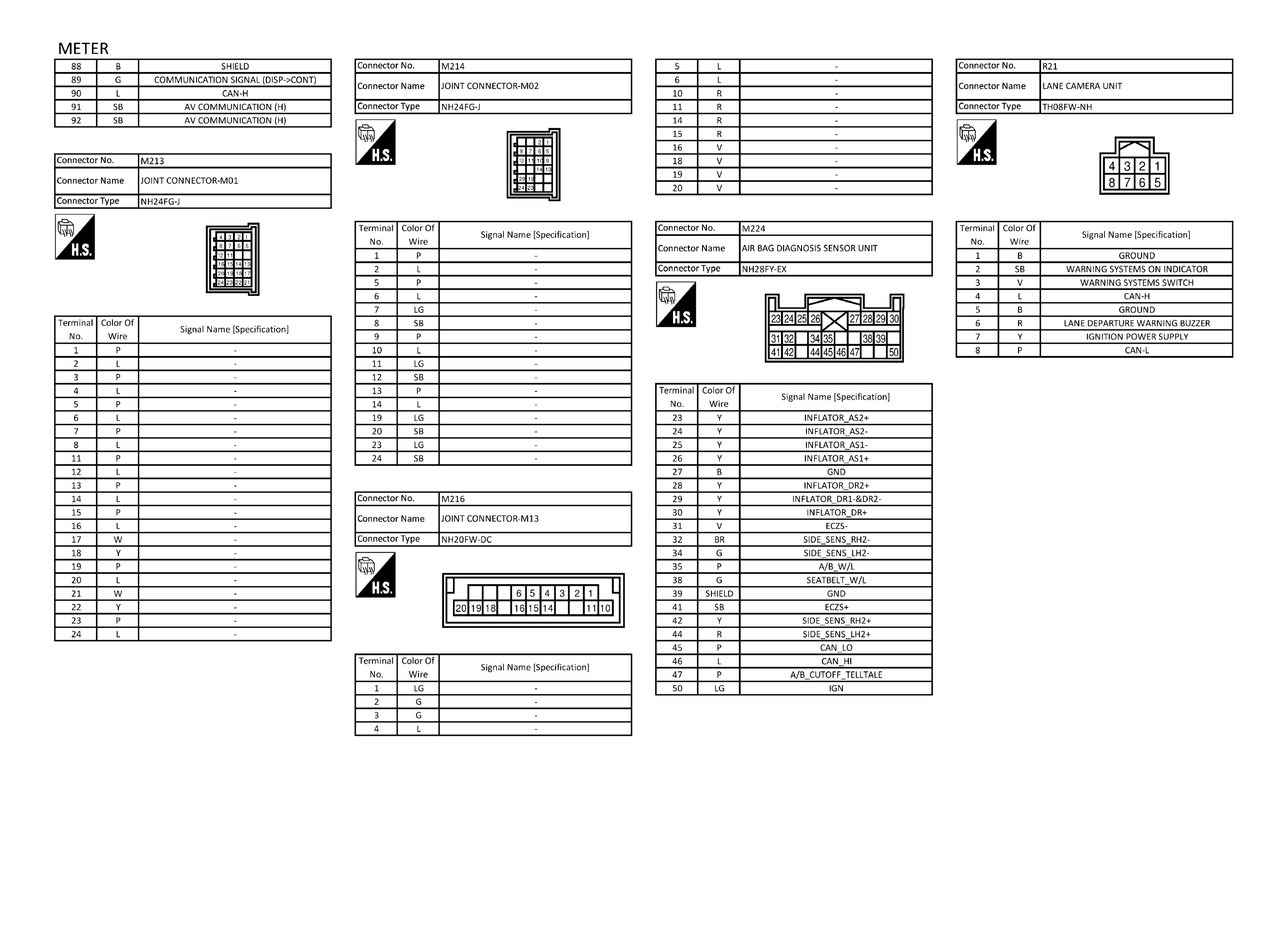

GNSJRNWF8768GB-768

Courtesy of NISSAN NORTH AMERICA, INC.
