Wiring Diagram - Clock

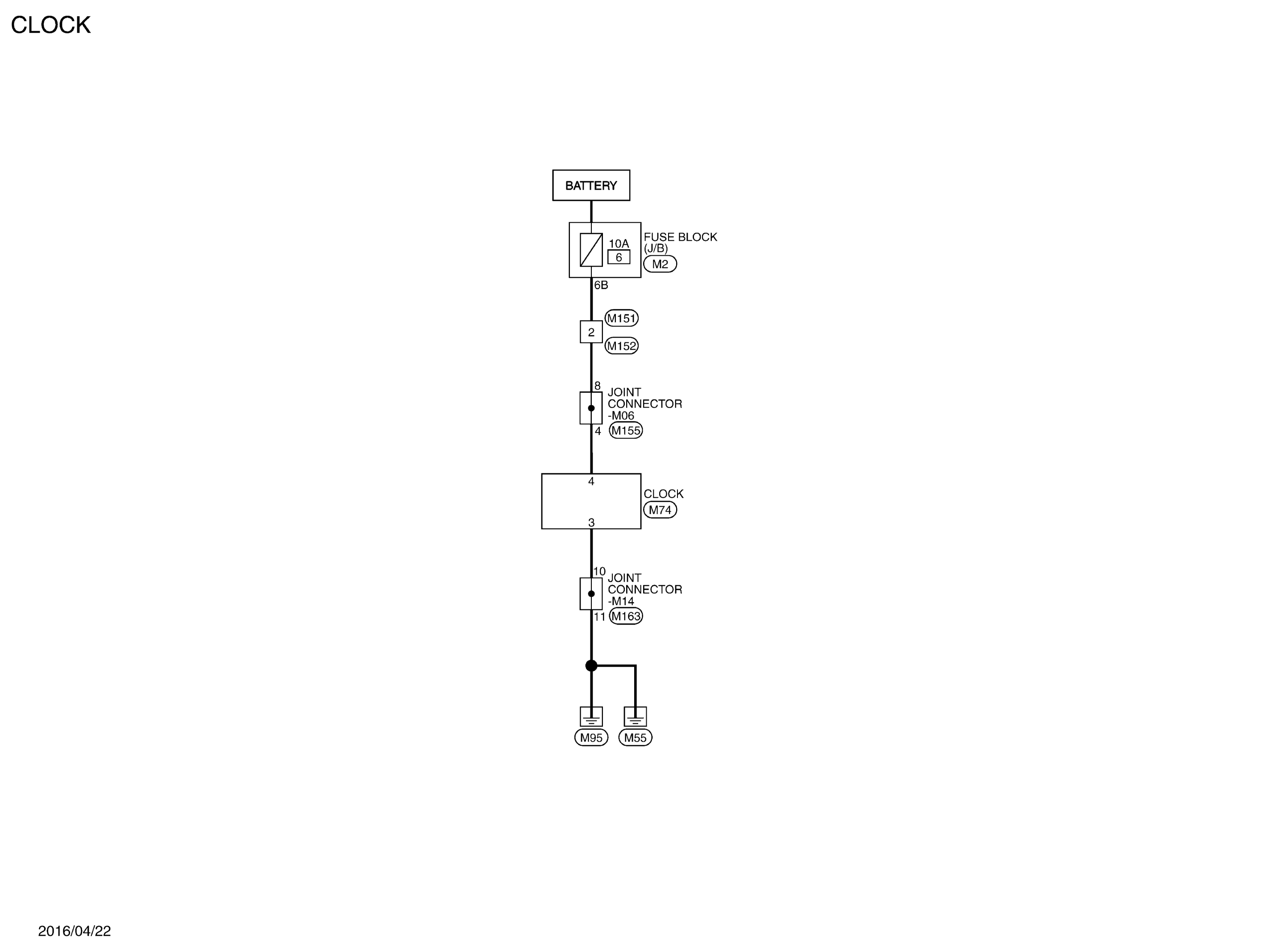

GNSJRNWF8772GB-772

Courtesy of NISSAN NORTH AMERICA, INC.

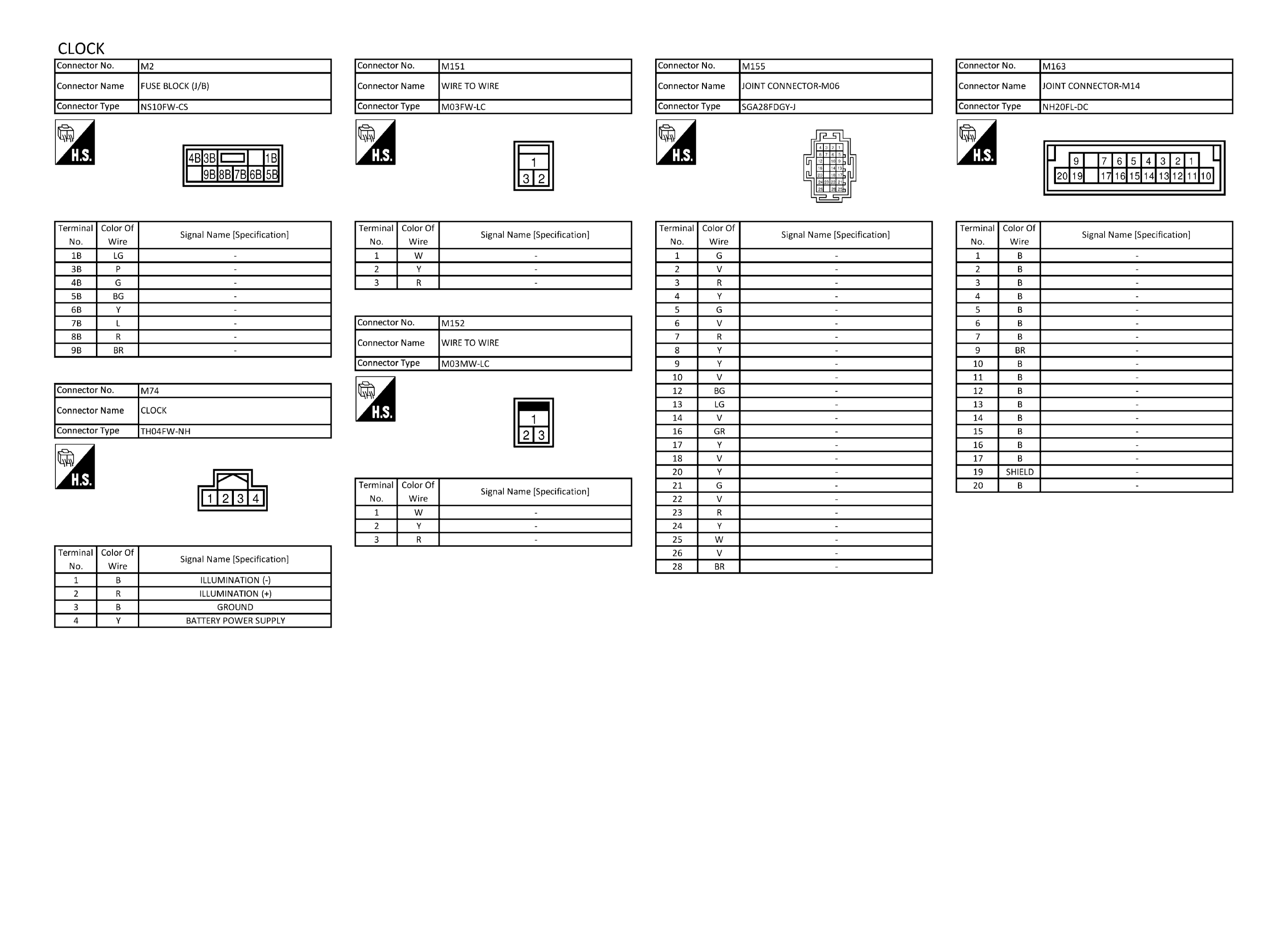

GNSJRNWF8773GB-773

Courtesy of NISSAN NORTH AMERICA, INC.
