Component Location

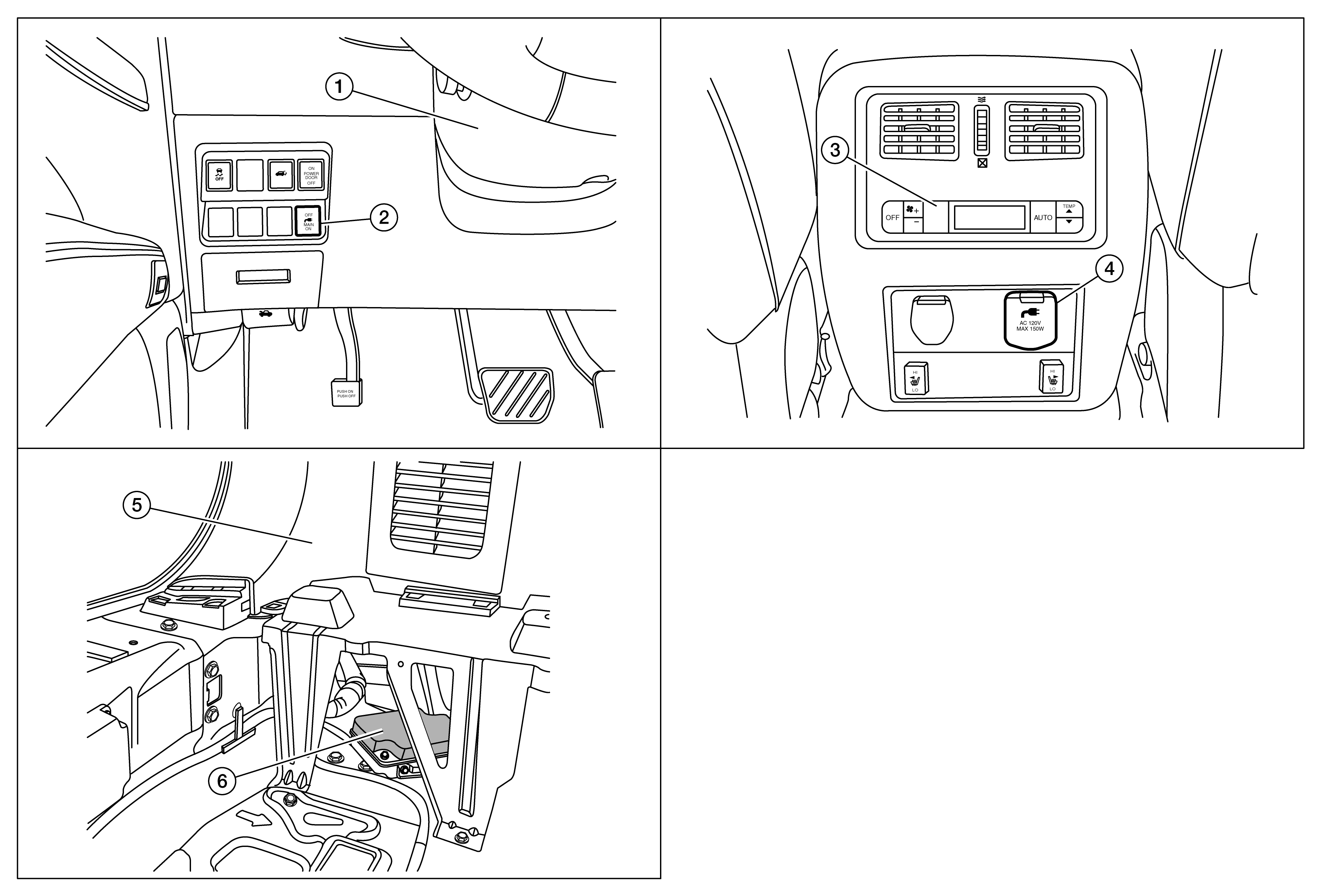

GNSDB121682Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. AC 120V outlet main switch 3. Rear air control
4. AC 120V outlet 5. Luggage side finisher lower LH 6. Inverter unit (view with storage box removed)
