Wiring Diagram - Automatic Drive Positioner Control System -

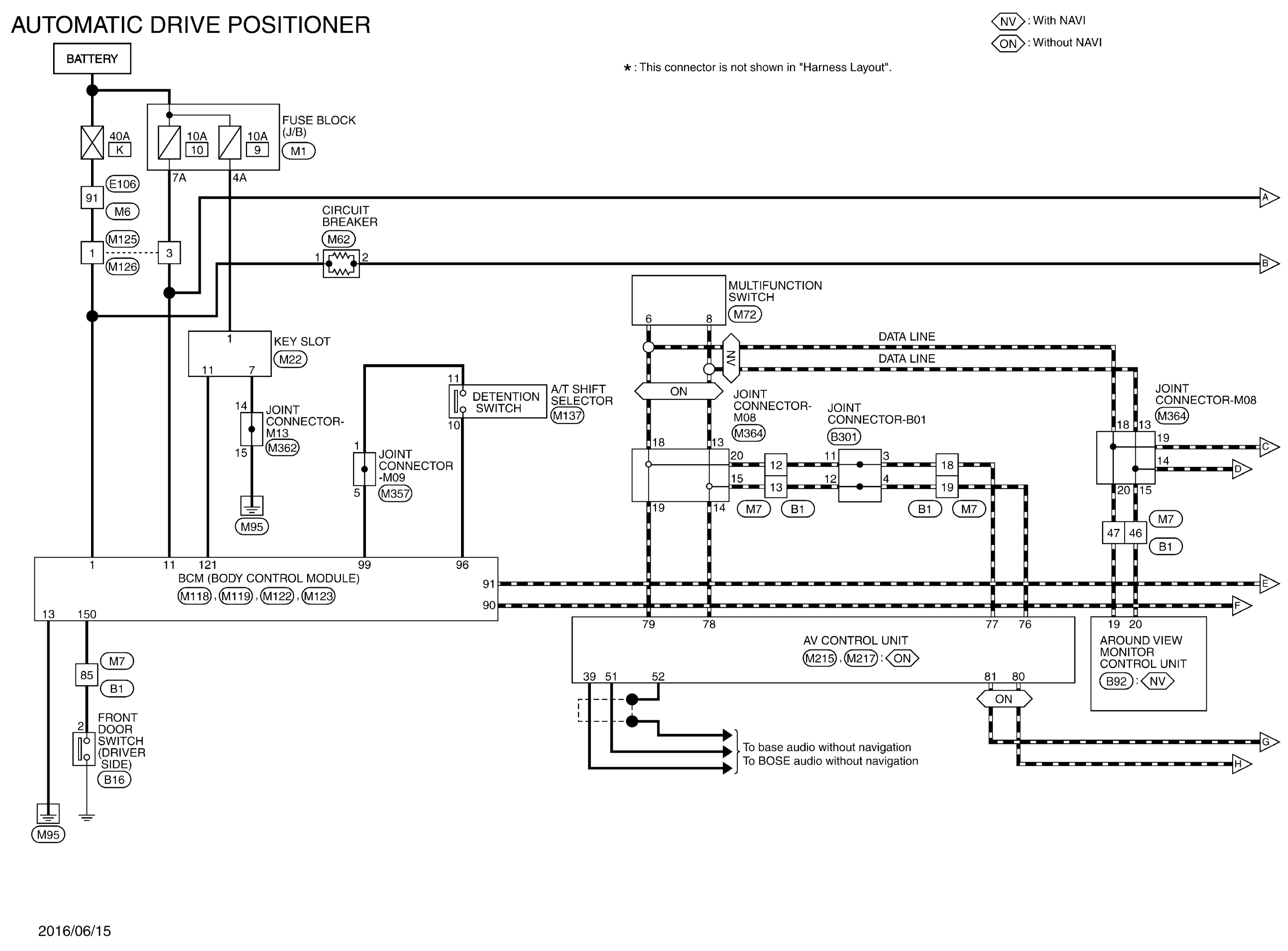

GNSJRJWD6441GB-441

Courtesy of NISSAN NORTH AMERICA, INC.

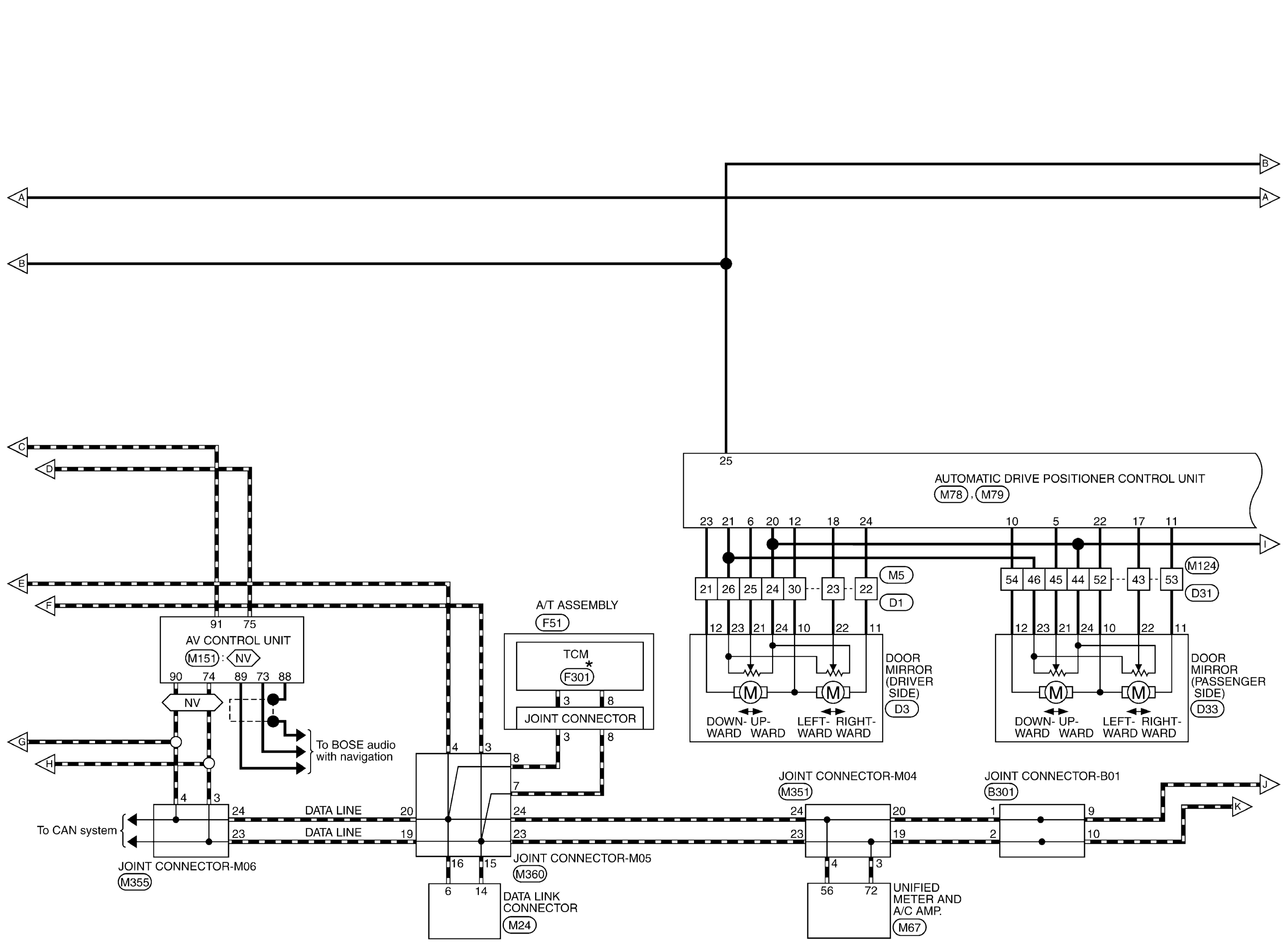

GNSJRJWD6442GB-442

Courtesy of NISSAN NORTH AMERICA, INC.

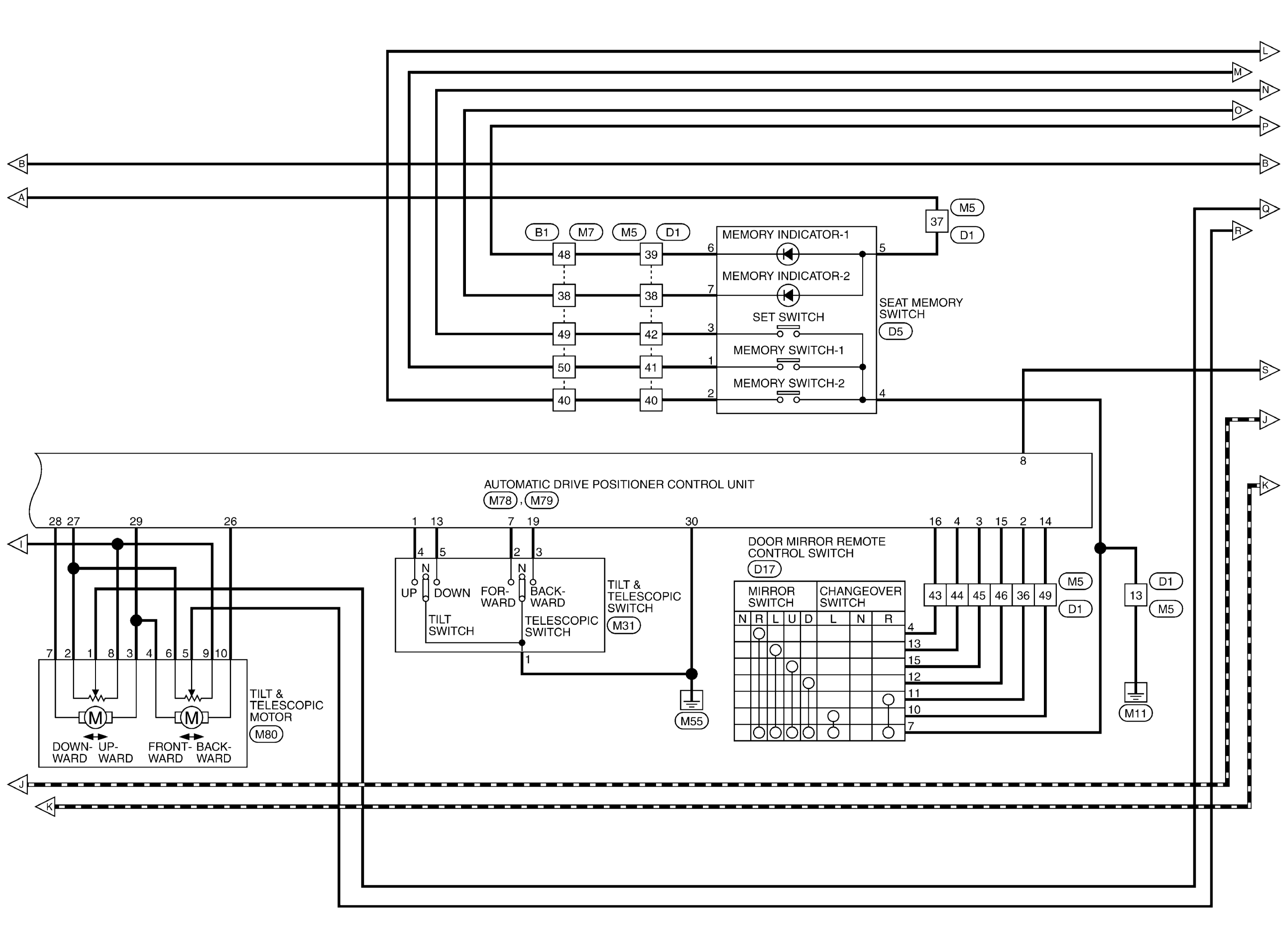

GNSJRJWD6443GB-443

Courtesy of NISSAN NORTH AMERICA, INC.

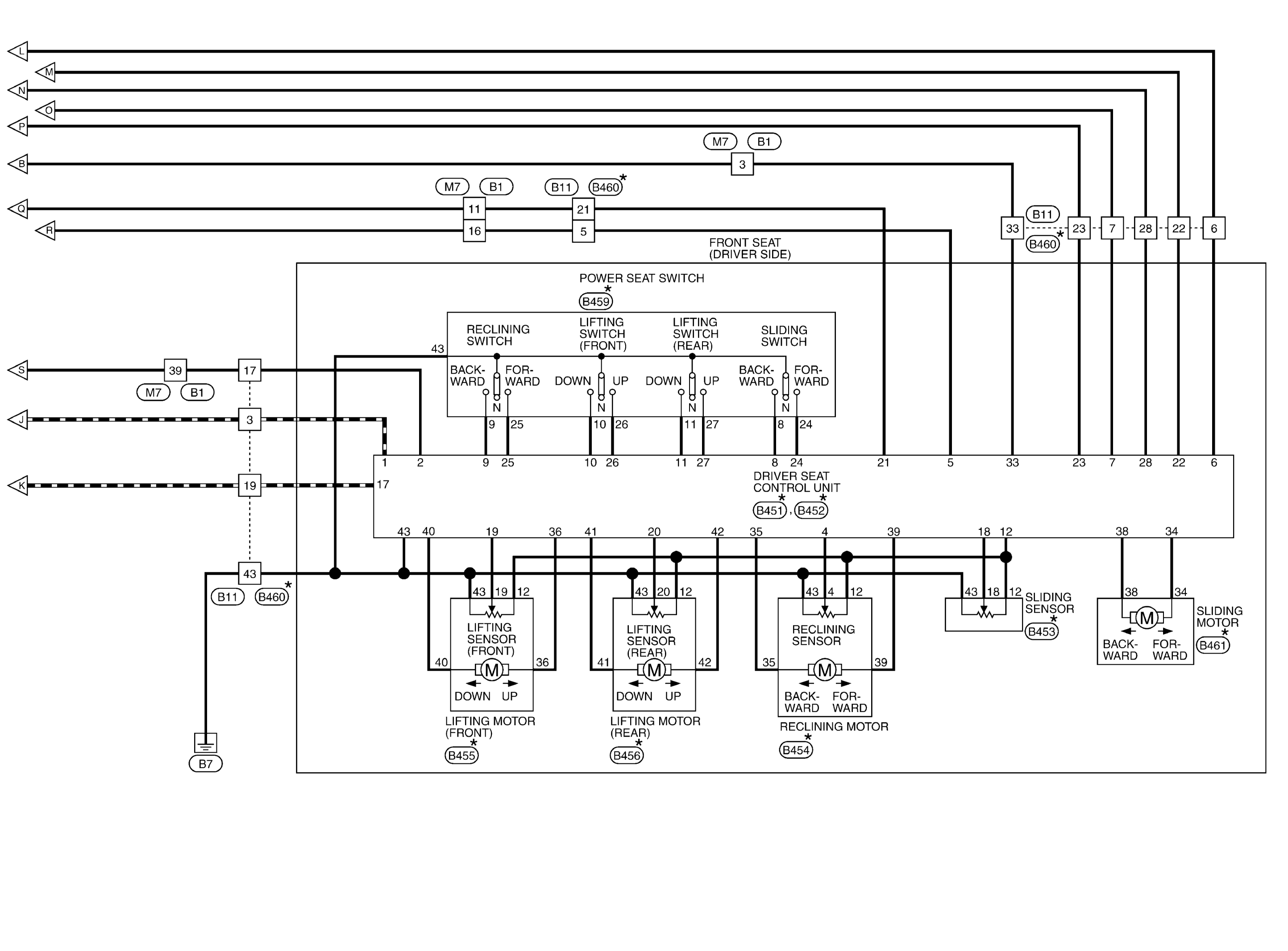

GNSJRJWD6444GB-444

Courtesy of NISSAN NORTH AMERICA, INC.

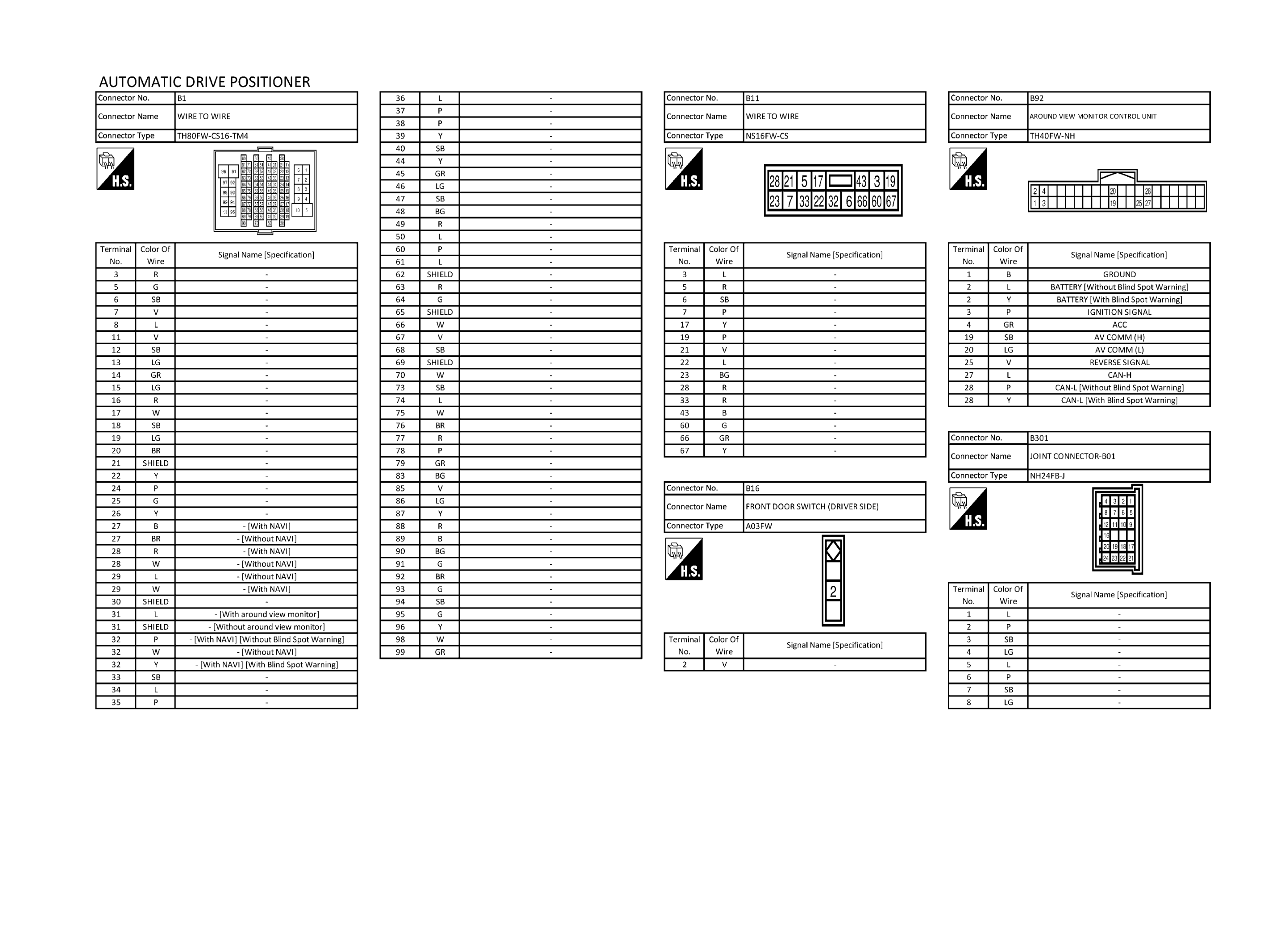

GNSJRJWD6445GB-445

Courtesy of NISSAN NORTH AMERICA, INC.

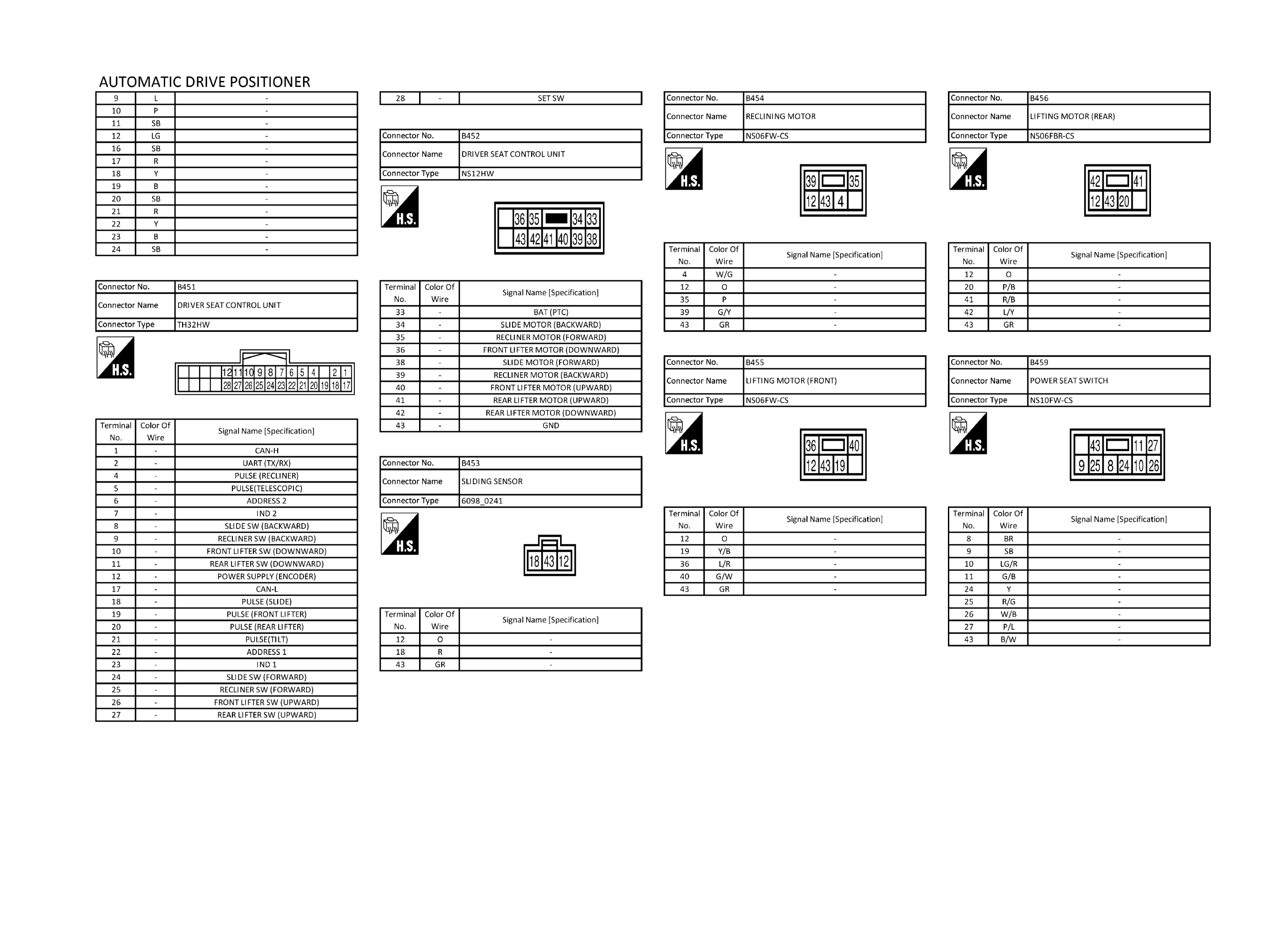

GNSJRJWD6446GB-446

Courtesy of NISSAN NORTH AMERICA, INC.

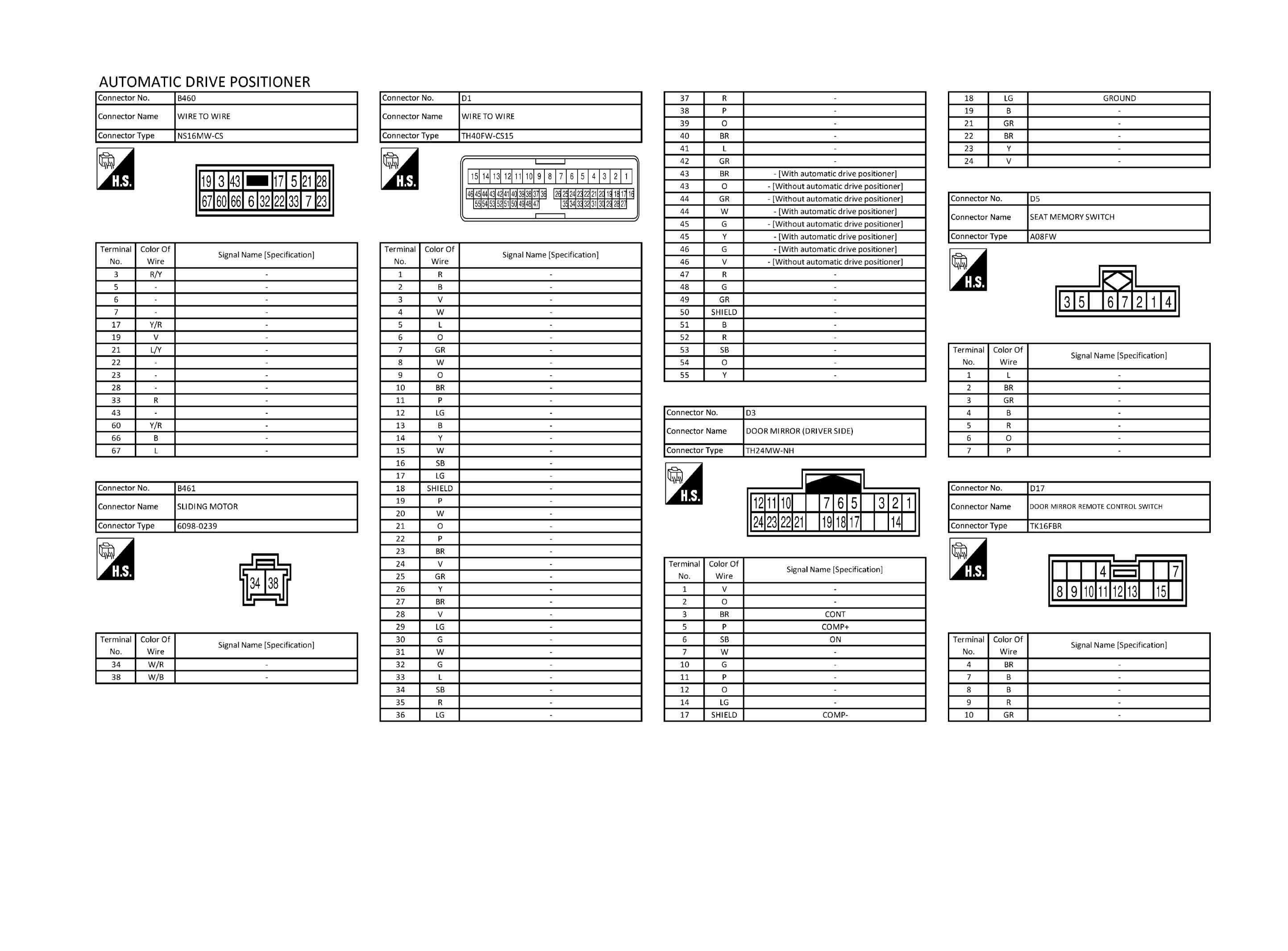

GNSJRJWD6447GB-447

Courtesy of NISSAN NORTH AMERICA, INC.

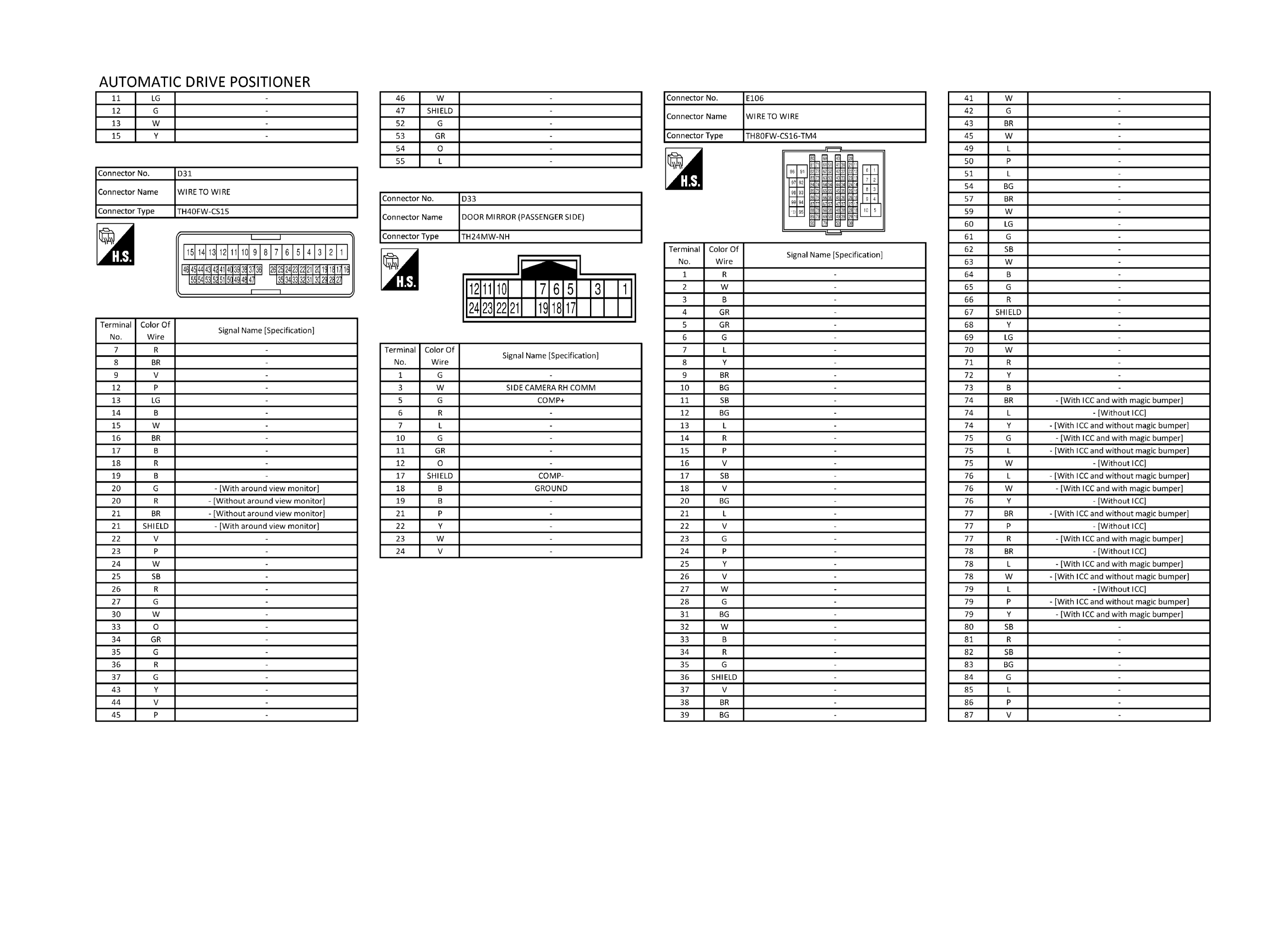

GNSJRJWD6448GB-448

Courtesy of NISSAN NORTH AMERICA, INC.

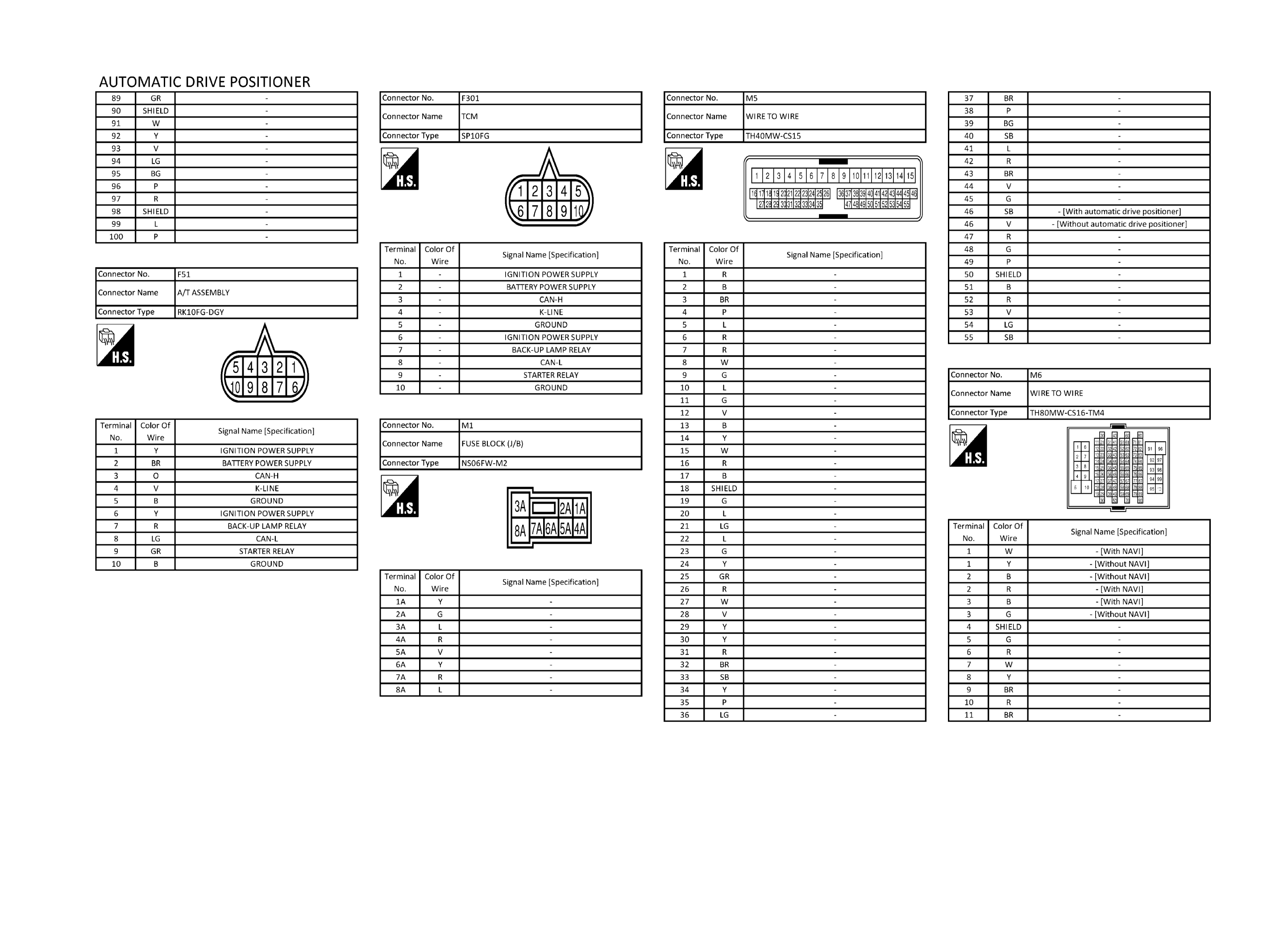

GNSJRJWD6449GB-449

Courtesy of NISSAN NORTH AMERICA, INC.

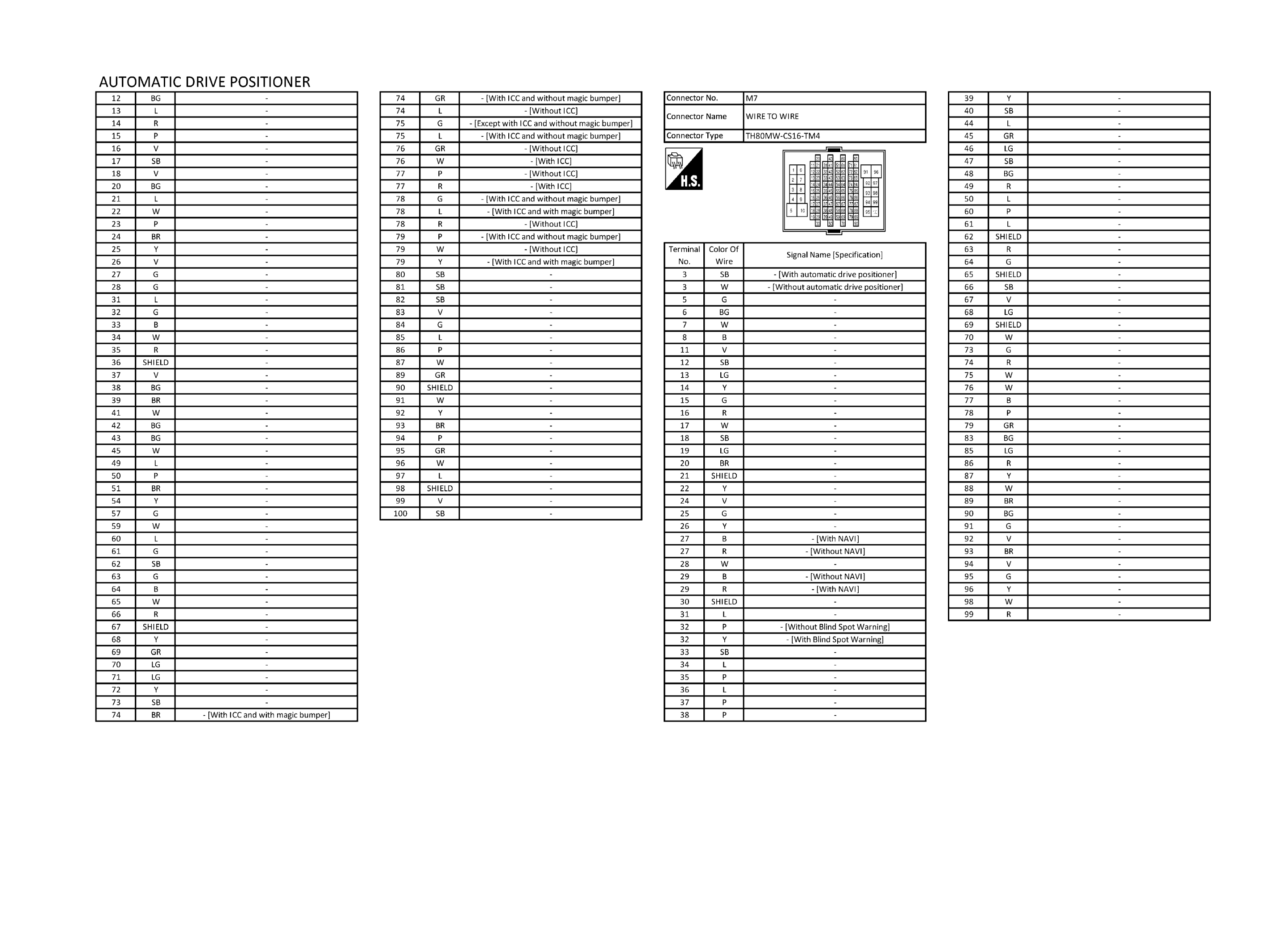

GNSJRJWD6450GB-450

Courtesy of NISSAN NORTH AMERICA, INC.

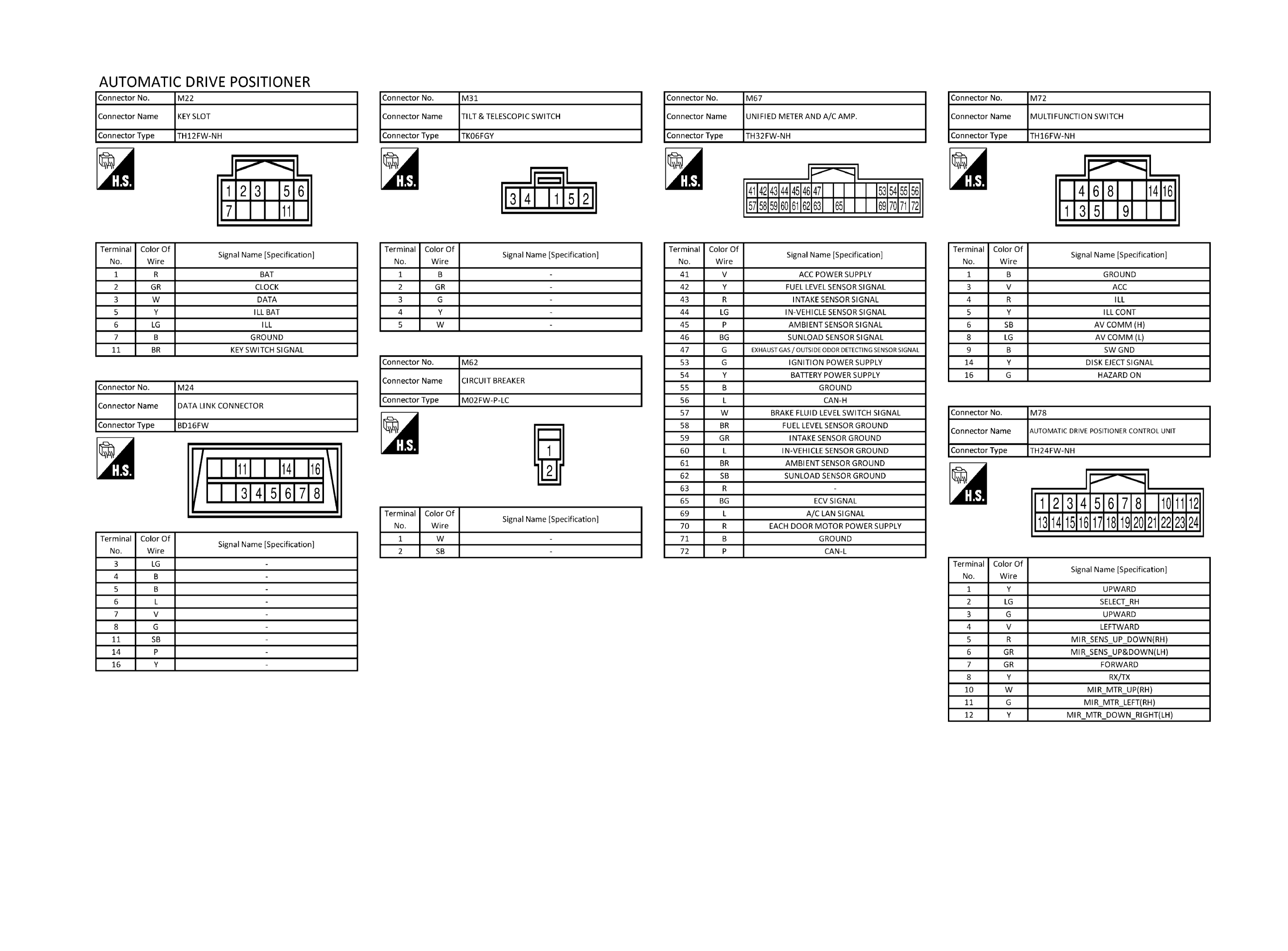

GNSJRJWD6451GB-451

Courtesy of NISSAN NORTH AMERICA, INC.

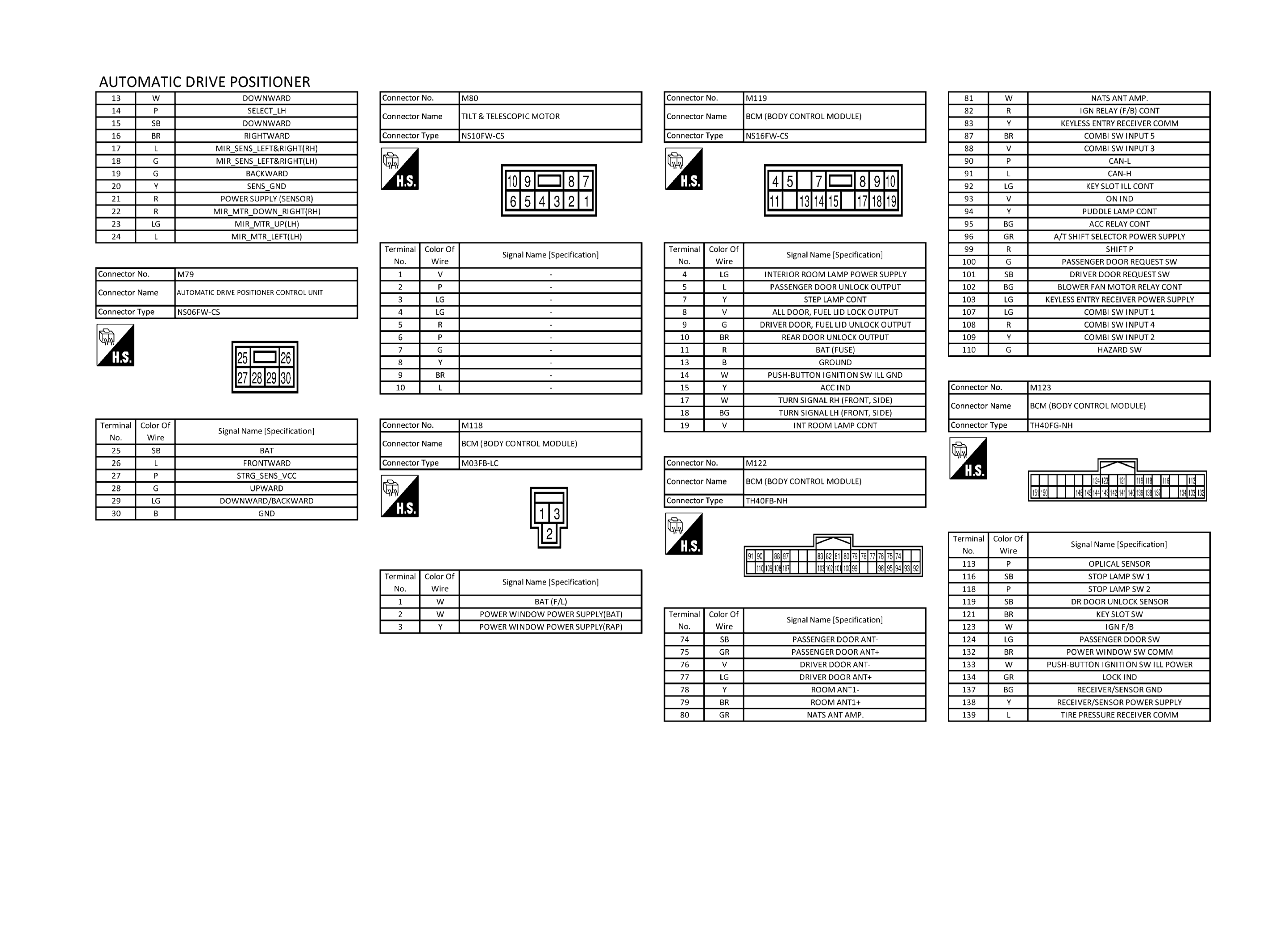

GNSJRJWD6452GB-452

Courtesy of NISSAN NORTH AMERICA, INC.

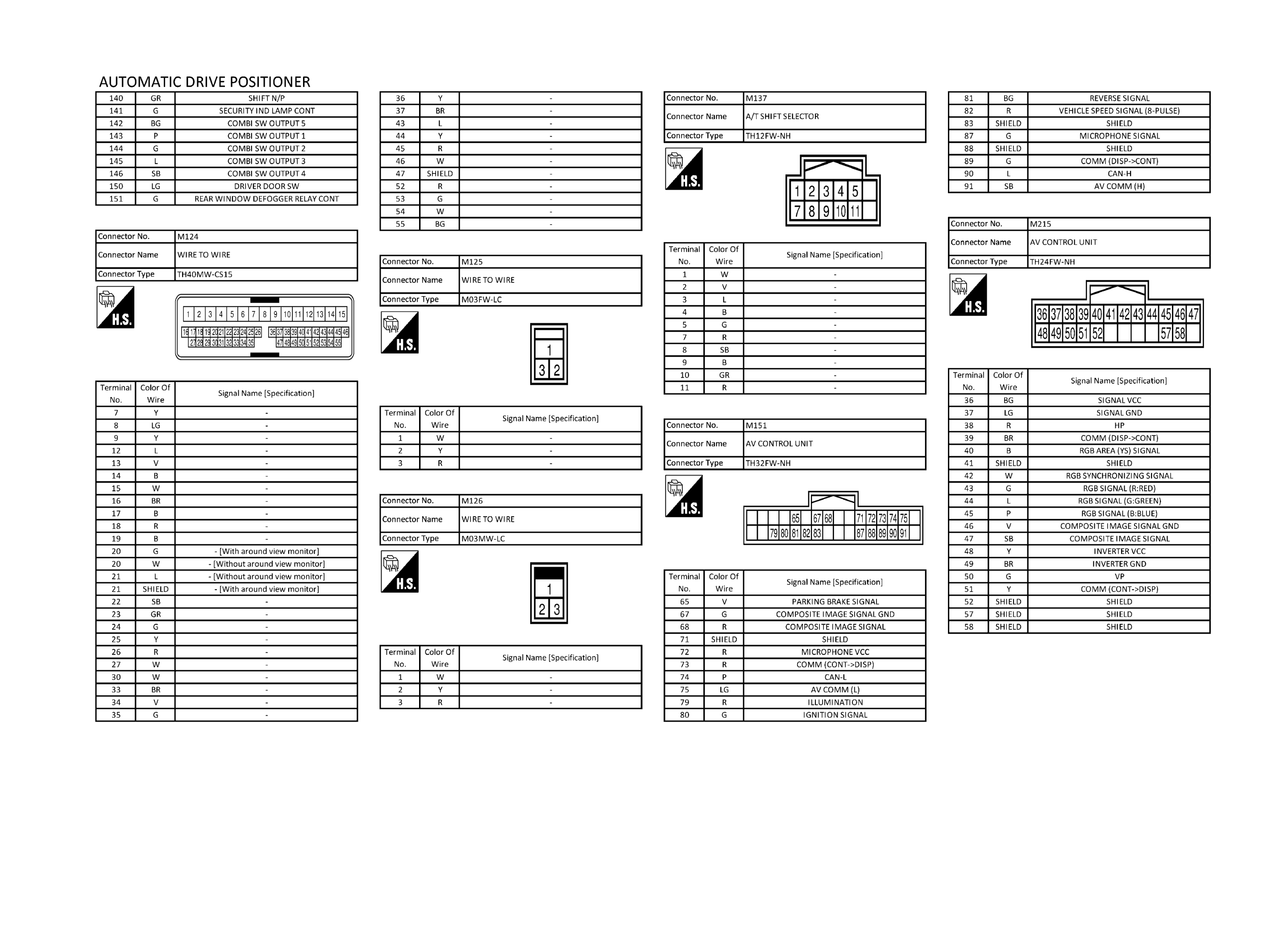

GNSJRJWD6453GB-453

Courtesy of NISSAN NORTH AMERICA, INC.

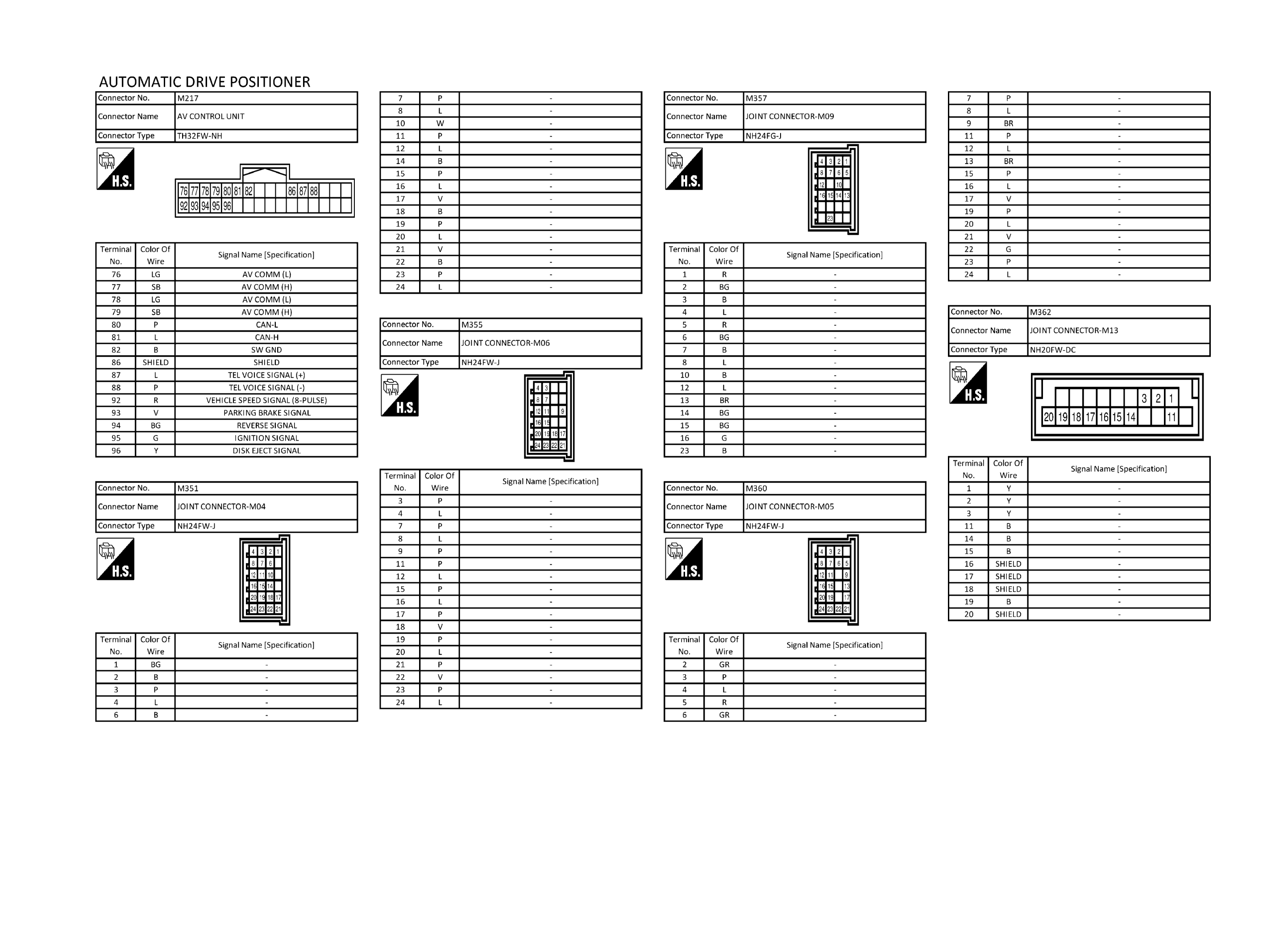

GNSJRJWD6454GB-454

Courtesy of NISSAN NORTH AMERICA, INC.

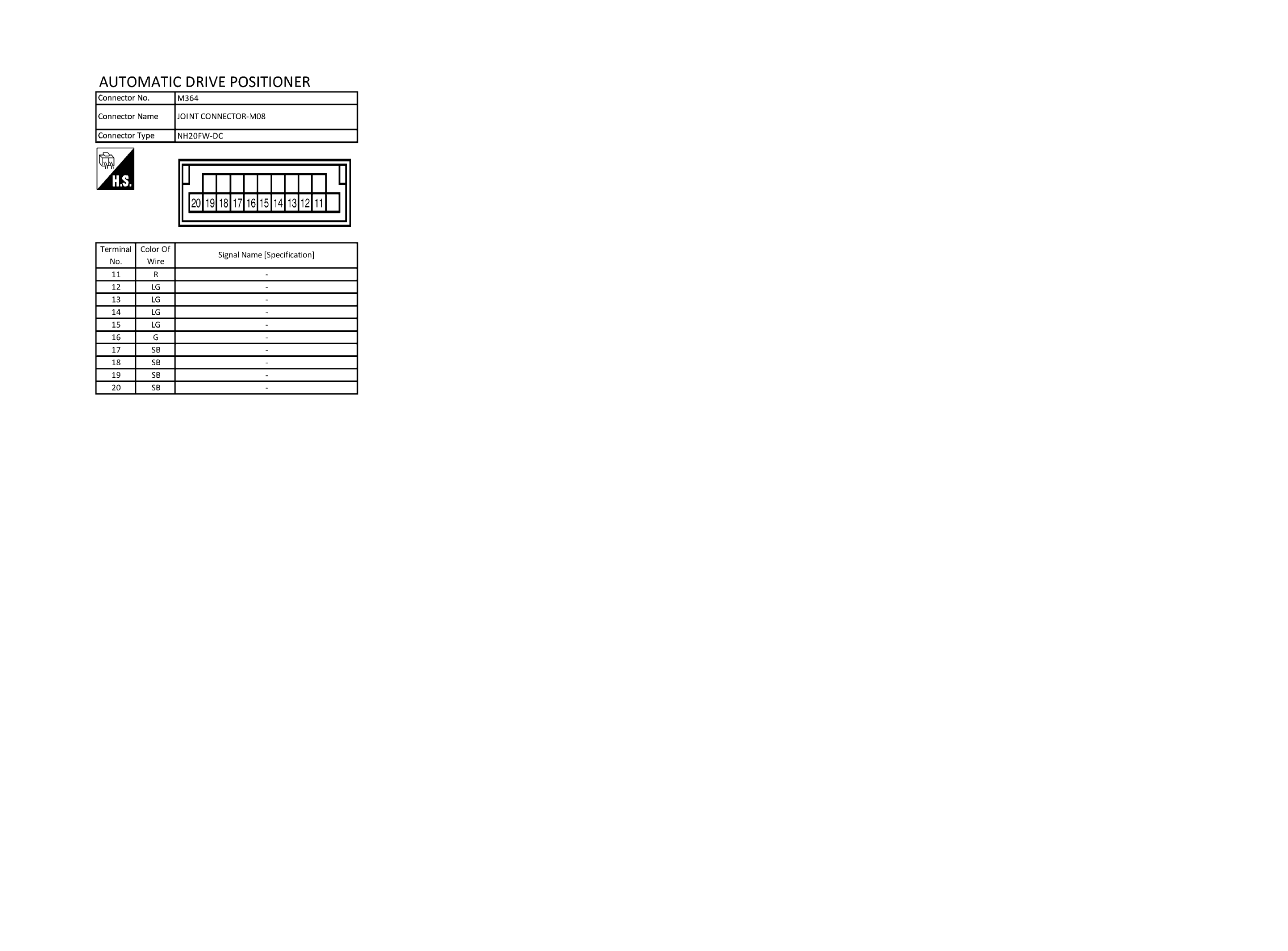

GNSJRJWD6455GB-455

Courtesy of NISSAN NORTH AMERICA, INC.
