Wiring Diagram - IPDM E/R -

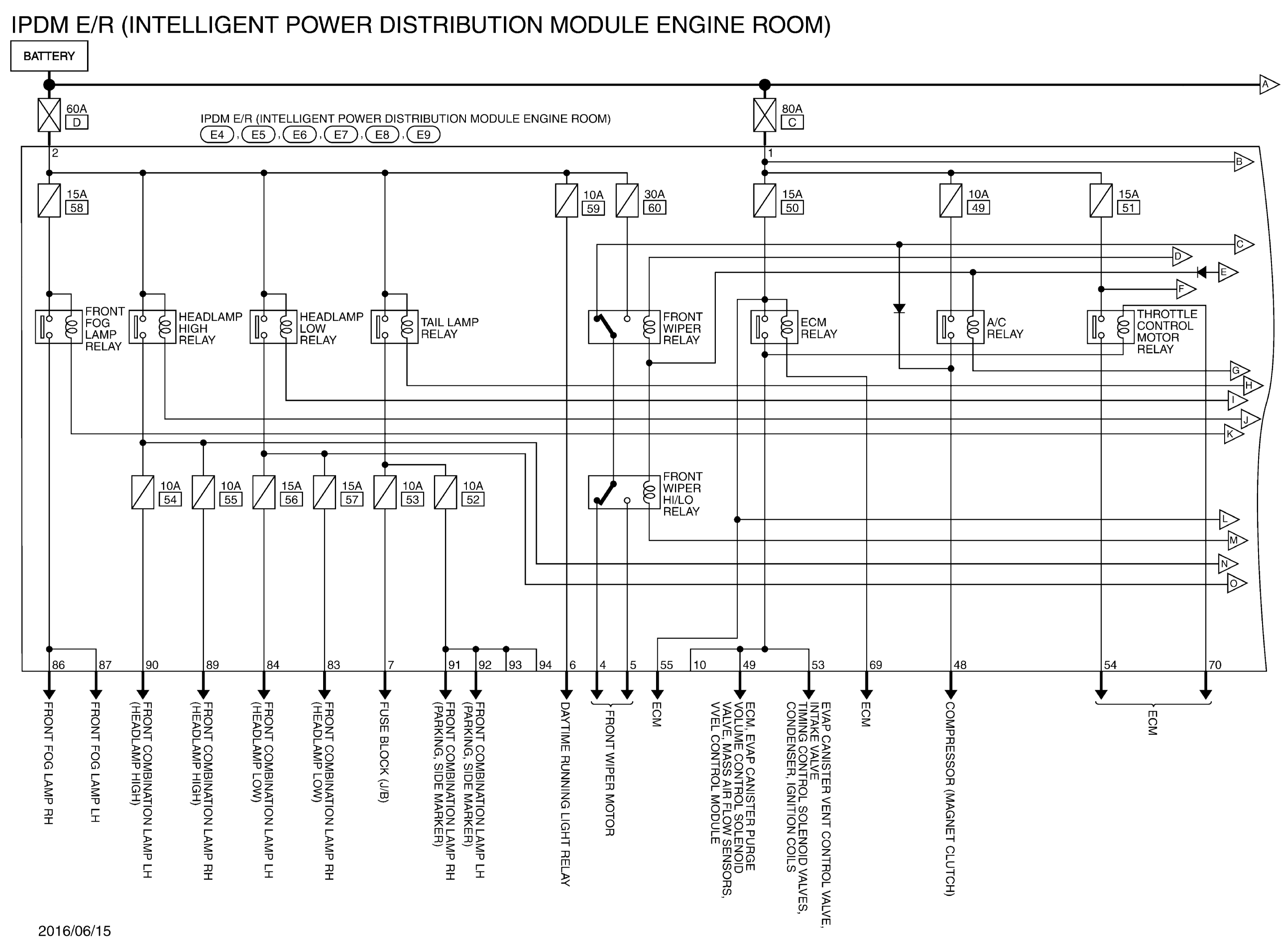

GNSJRMWK0326GB-326

Courtesy of NISSAN NORTH AMERICA, INC.

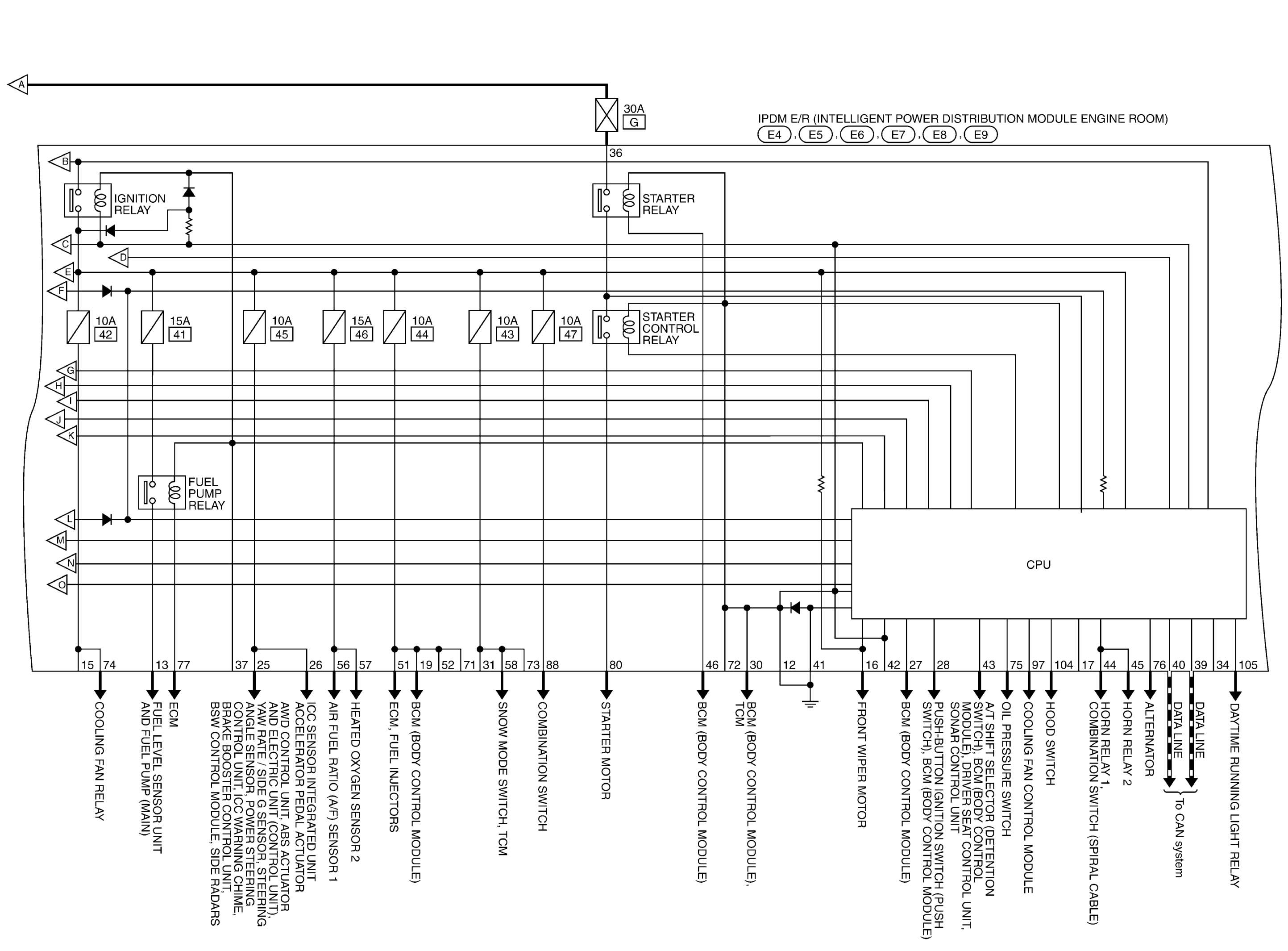

GNSJRMWK0327GB-327

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRMWK0328GB-328

Courtesy of NISSAN NORTH AMERICA, INC.

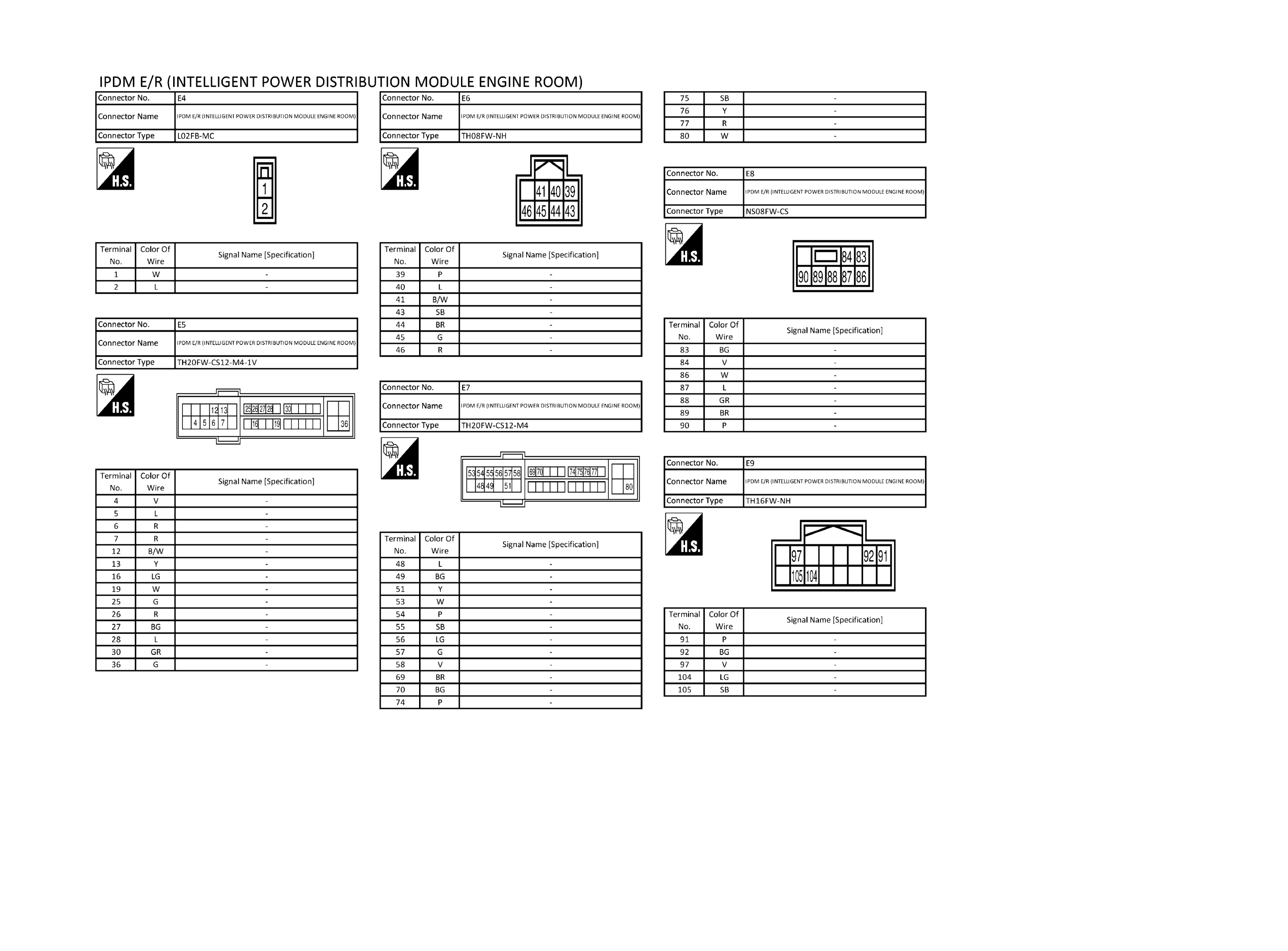

GNSJRMWK0329GB-329

Courtesy of NISSAN NORTH AMERICA, INC.
