Wiring Diagram - Meter -

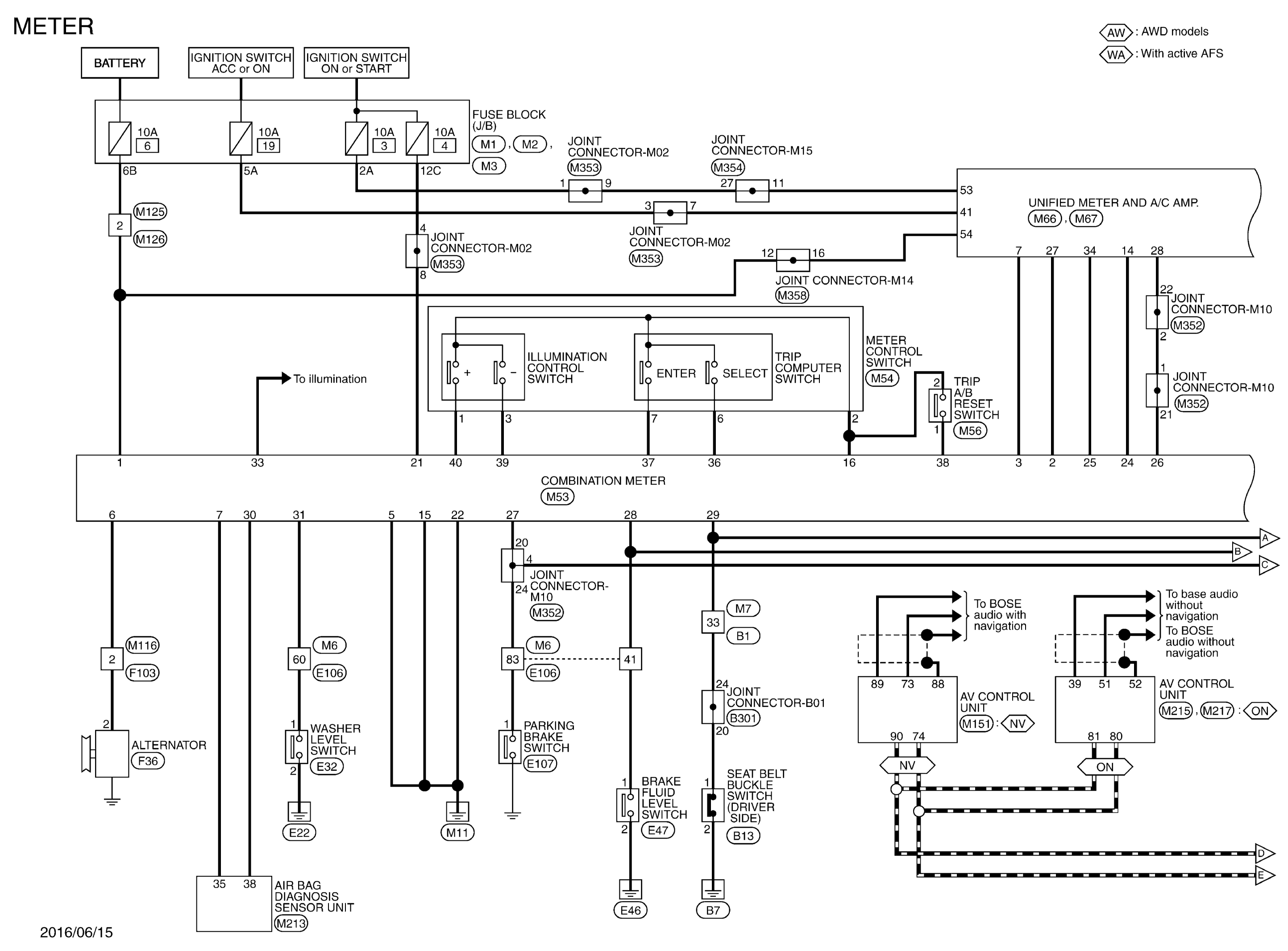

GNSJRNWG0548GB-548

Courtesy of NISSAN NORTH AMERICA, INC.

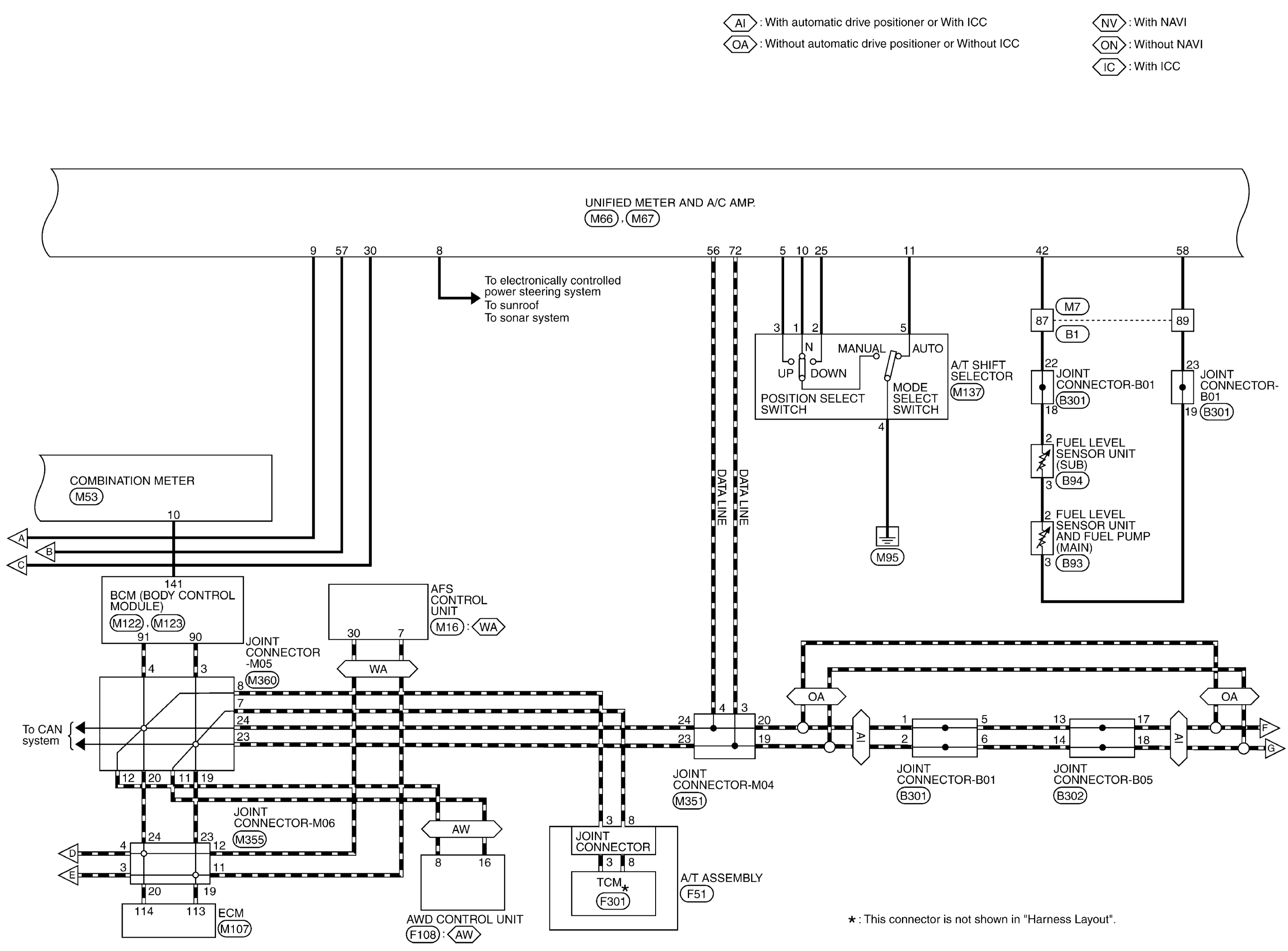

GNSJRNWG0549GB-549

Courtesy of NISSAN NORTH AMERICA, INC.

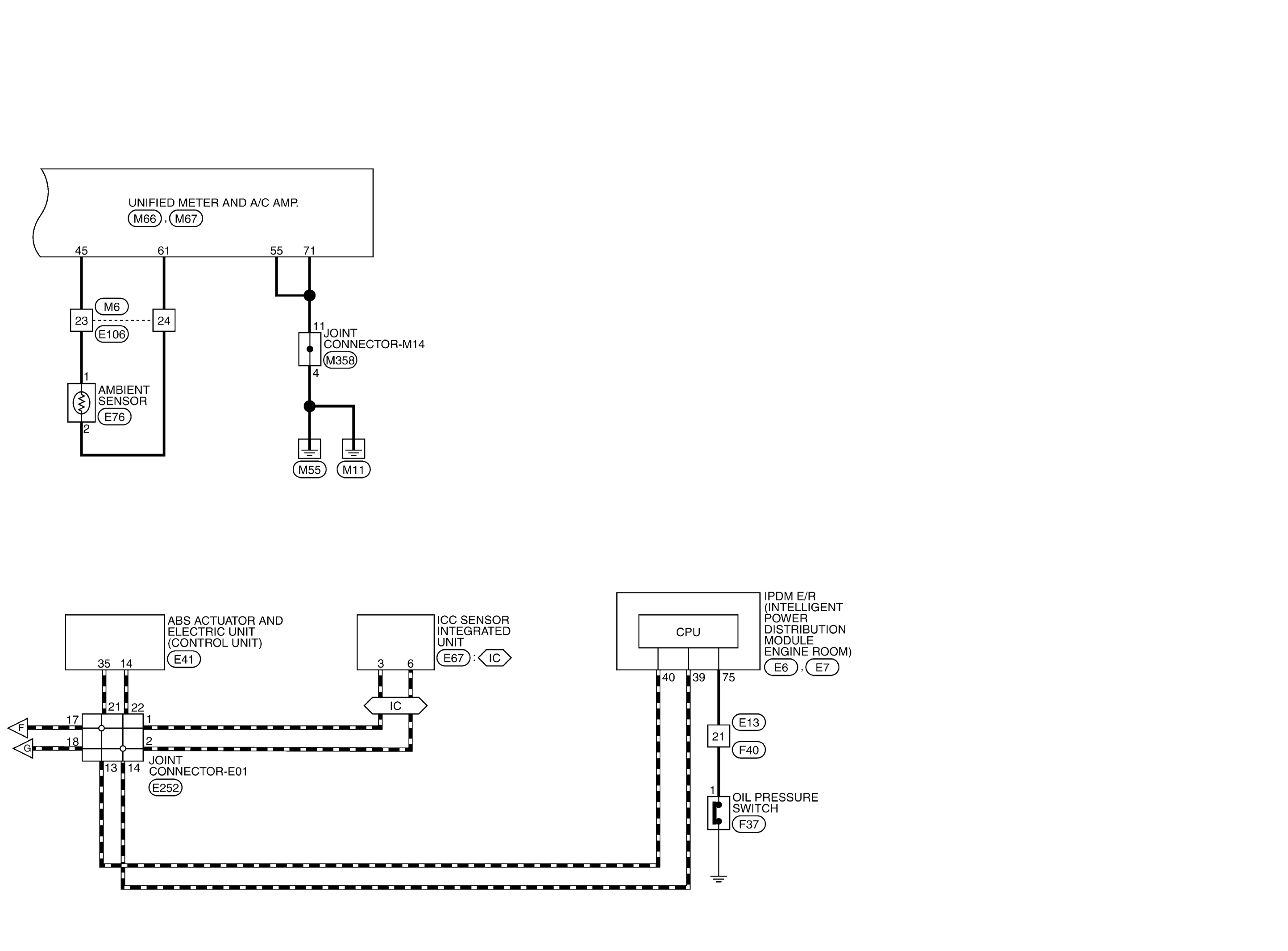

GNSJRNWG0550GB-550

Courtesy of NISSAN NORTH AMERICA, INC.

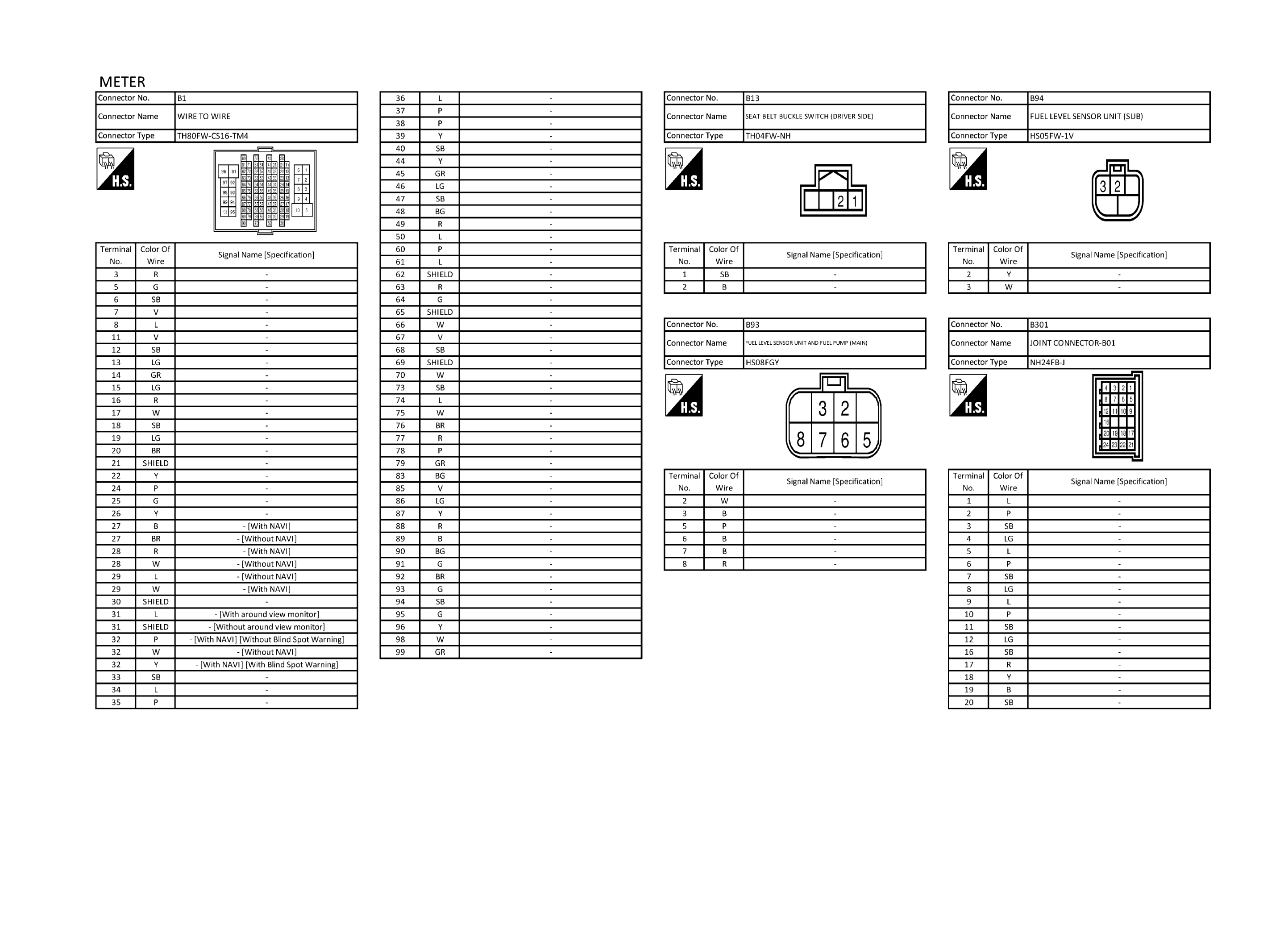

GNSJRNWG0551GB-551

Courtesy of NISSAN NORTH AMERICA, INC.

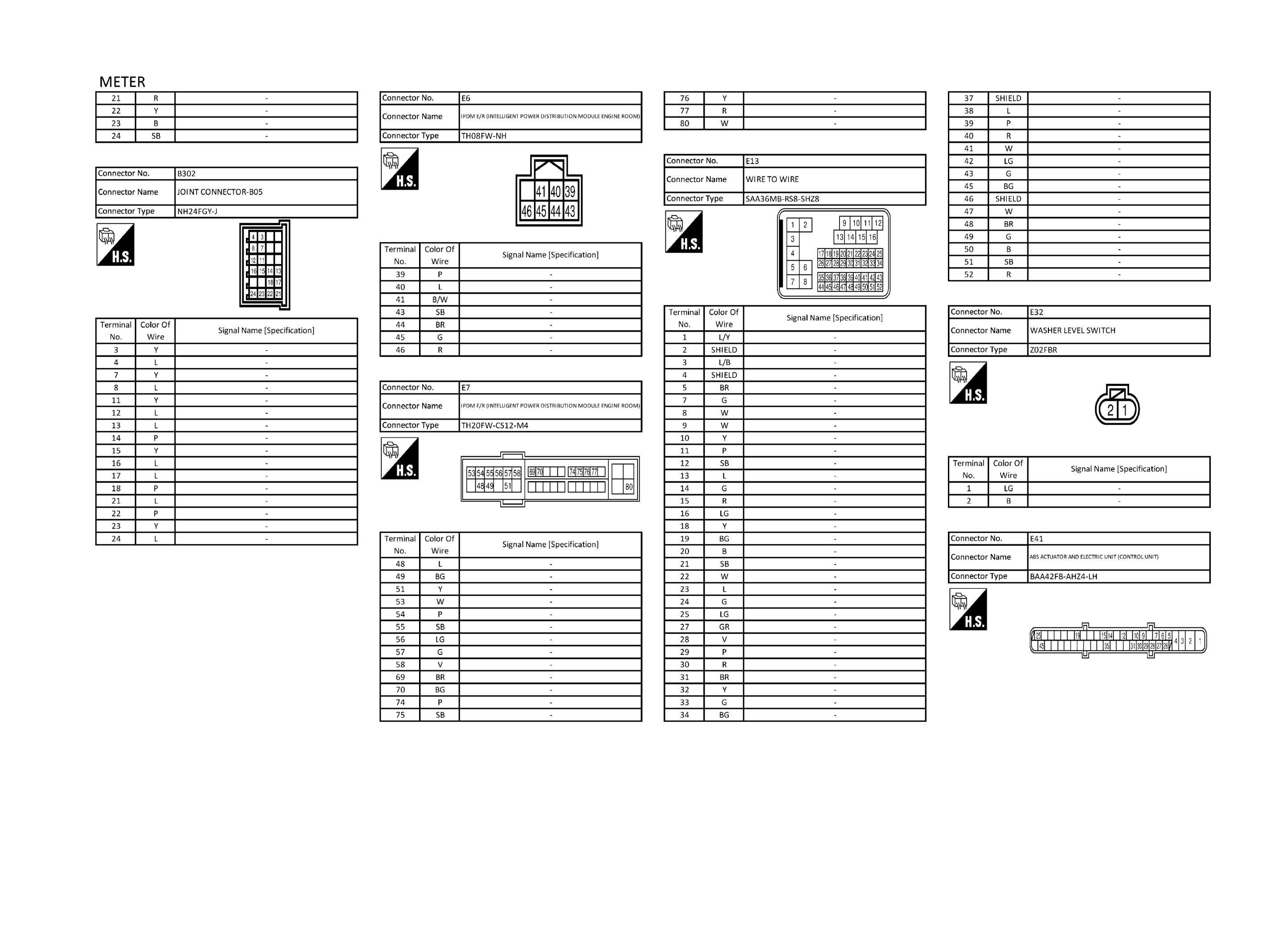

GNSJRNWG0552GB-552

Courtesy of NISSAN NORTH AMERICA, INC.

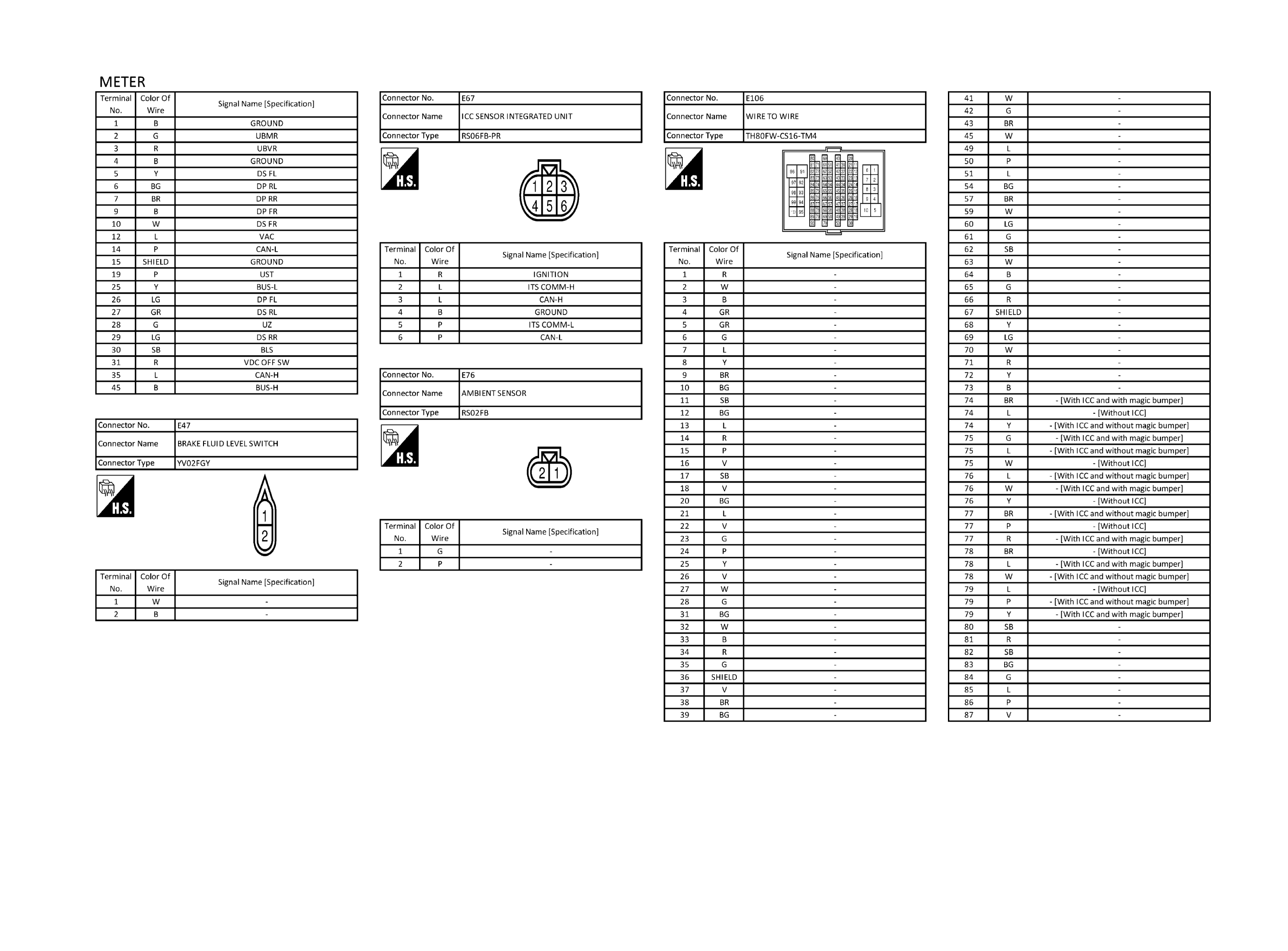

GNSJRNWG0553GB-553

Courtesy of NISSAN NORTH AMERICA, INC.

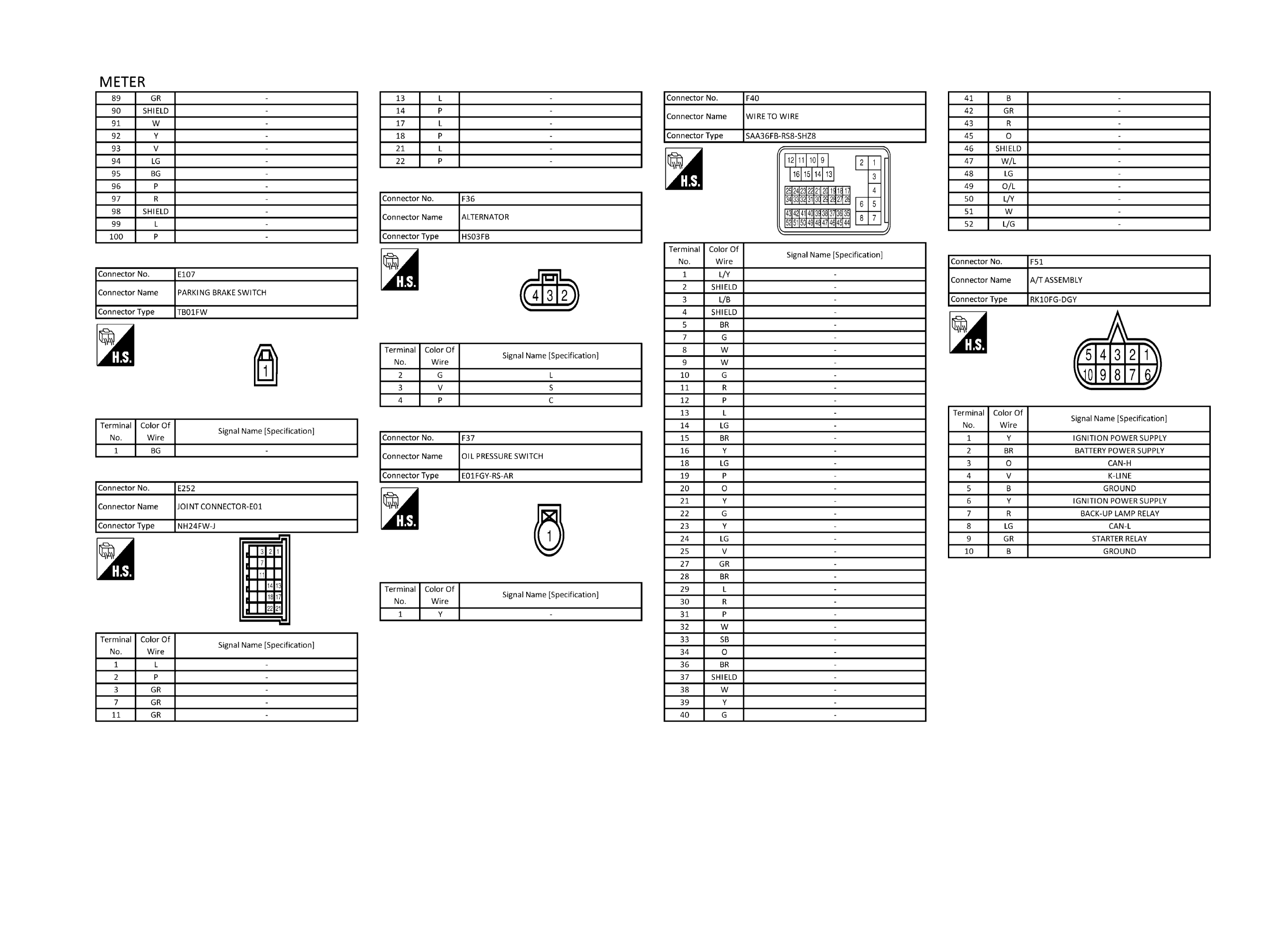

GNSJRNWG0554GB-554

Courtesy of NISSAN NORTH AMERICA, INC.

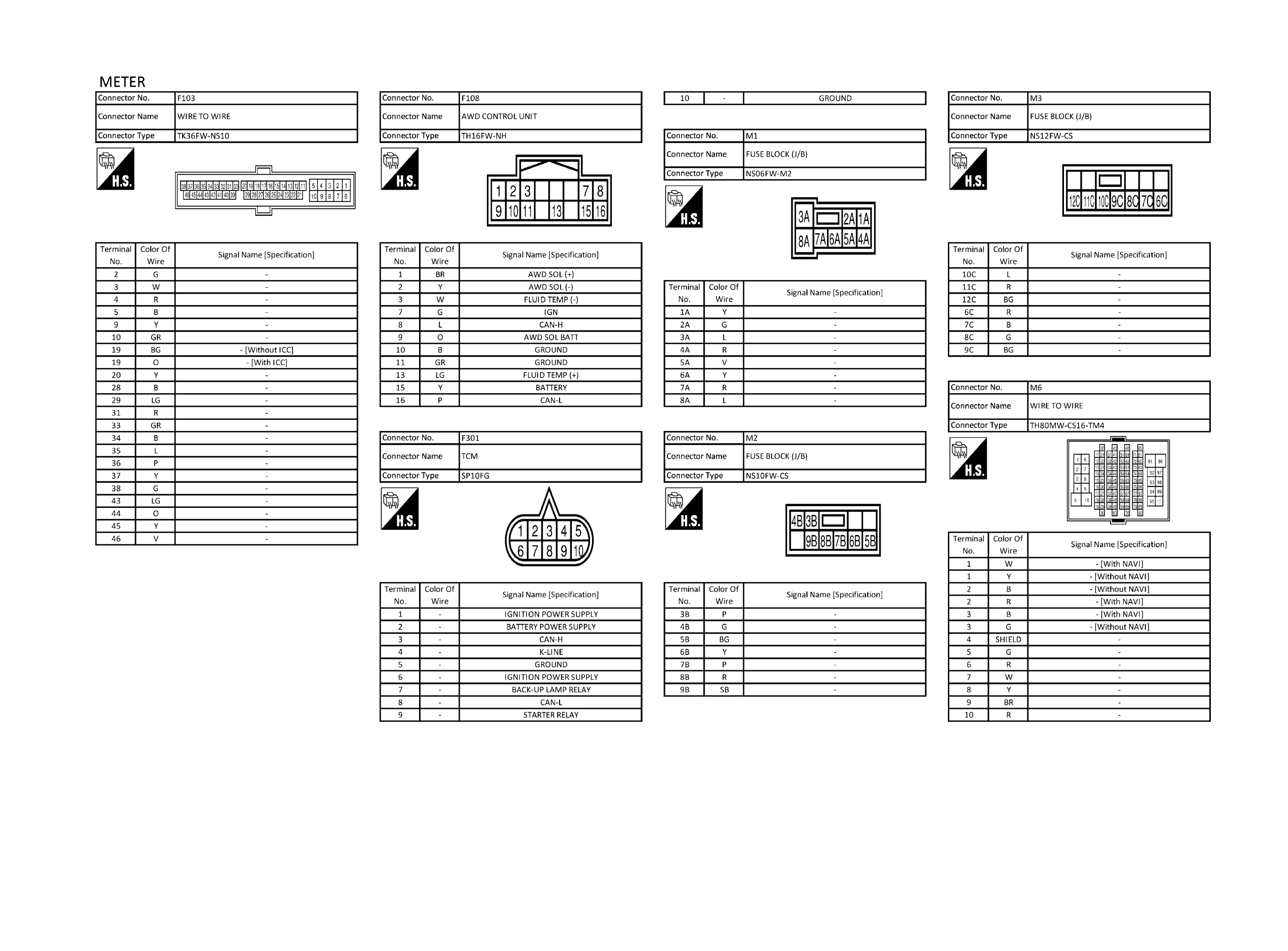

GNSJRNWG0555GB-555

Courtesy of NISSAN NORTH AMERICA, INC.

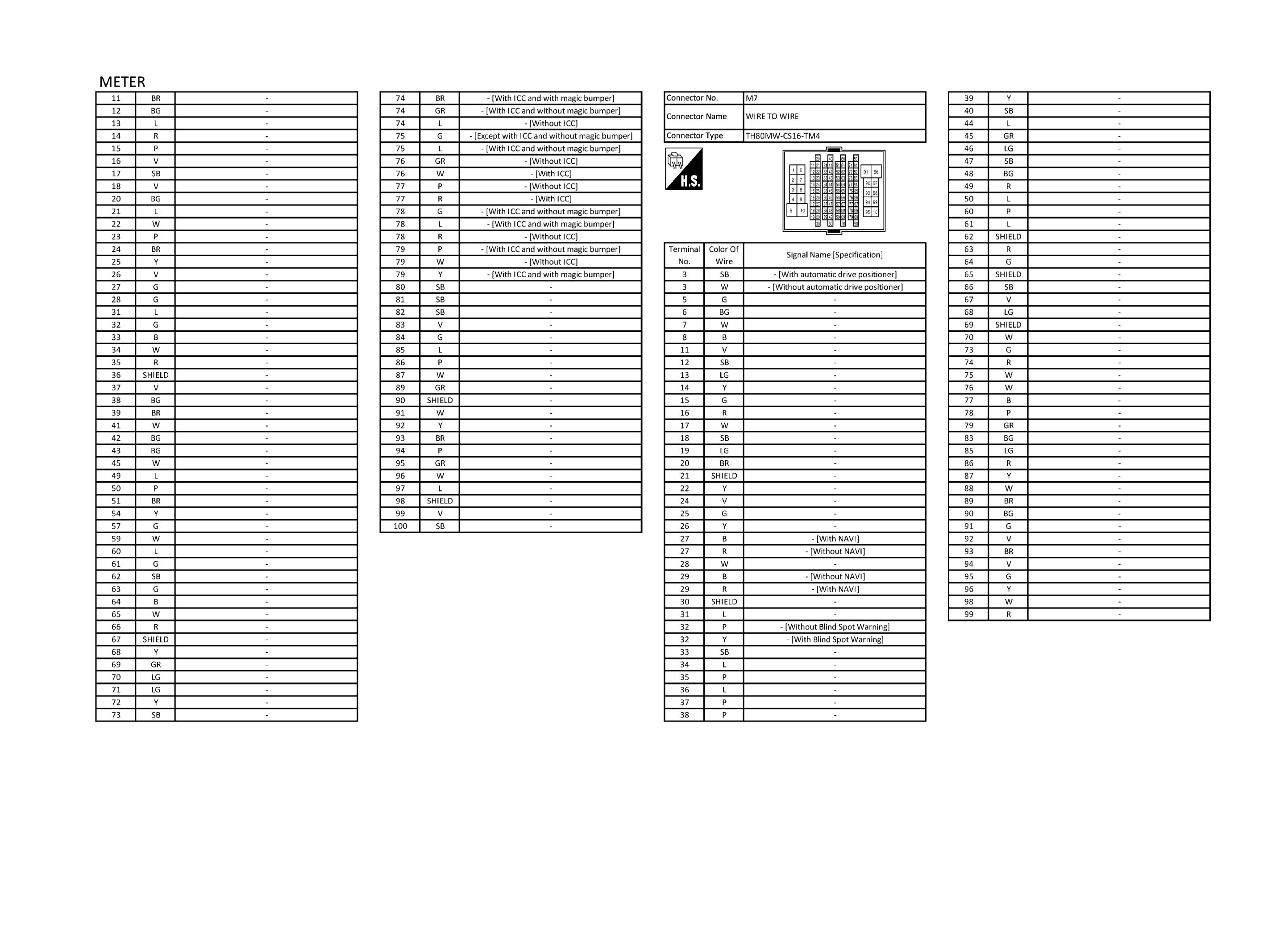

GNSJRNWG0556GB-556

Courtesy of NISSAN NORTH AMERICA, INC.

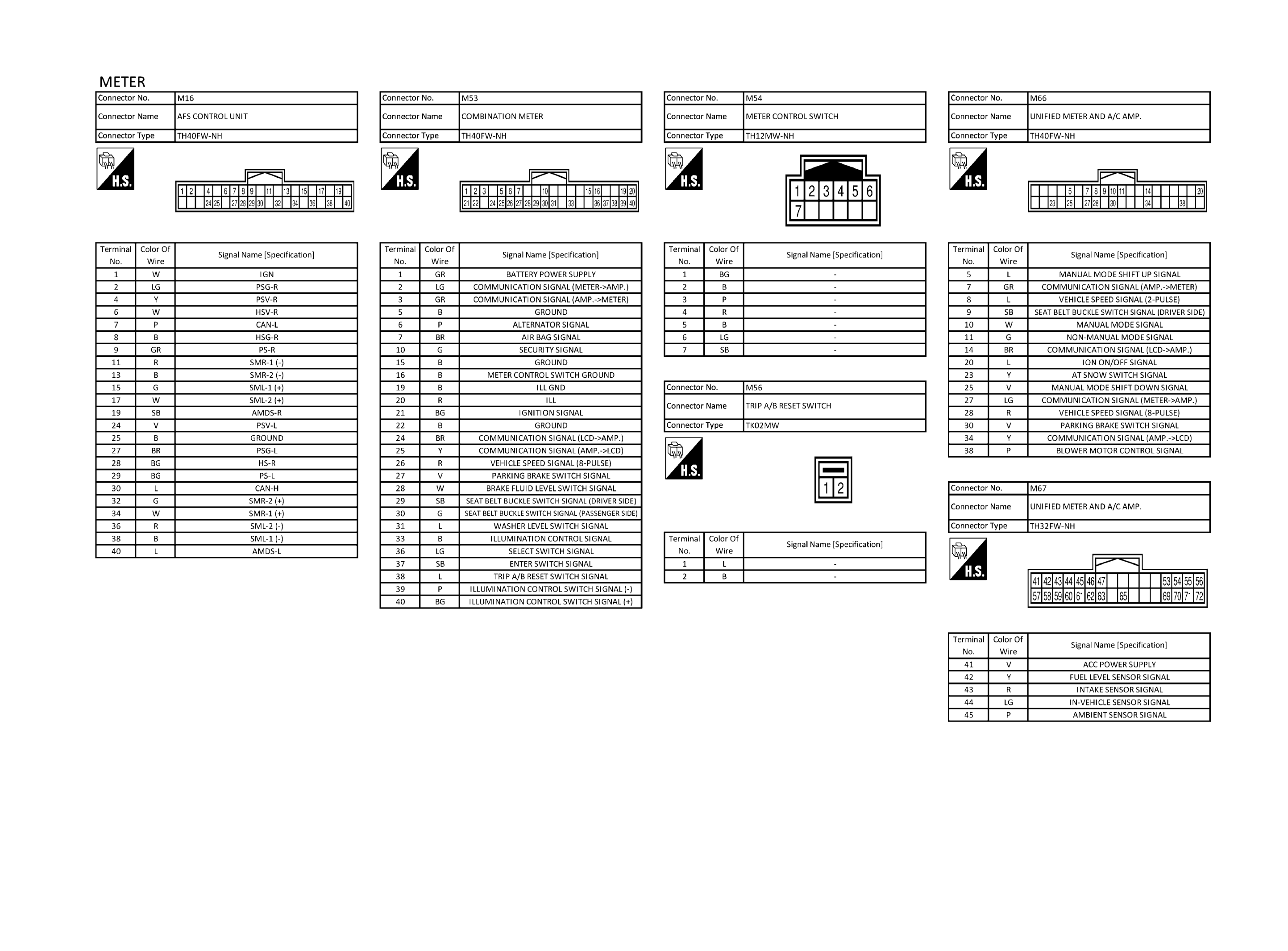

GNSJRNWG0557GB-557

Courtesy of NISSAN NORTH AMERICA, INC.

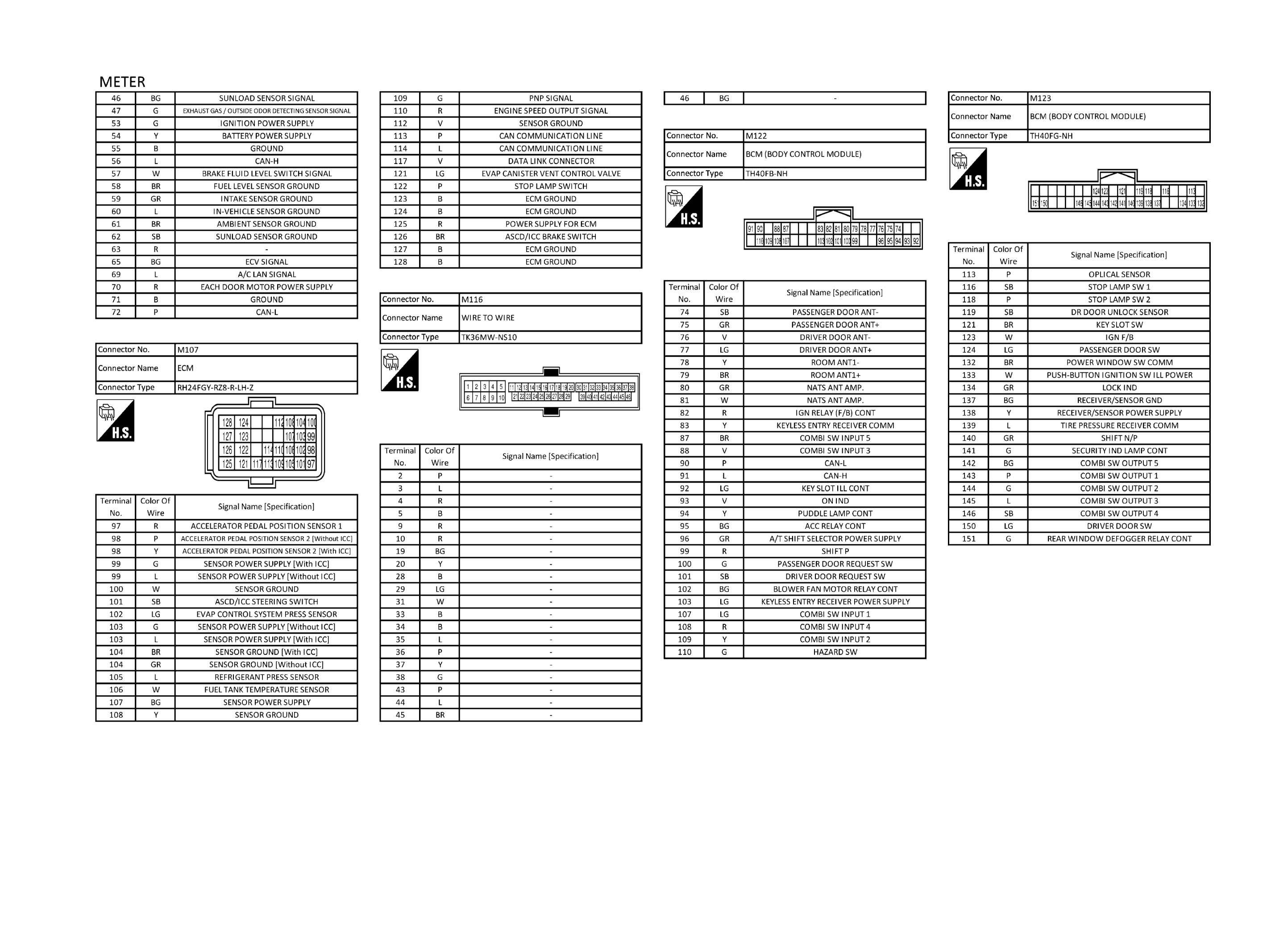

GNSJRNWG0558GB-558

Courtesy of NISSAN NORTH AMERICA, INC.

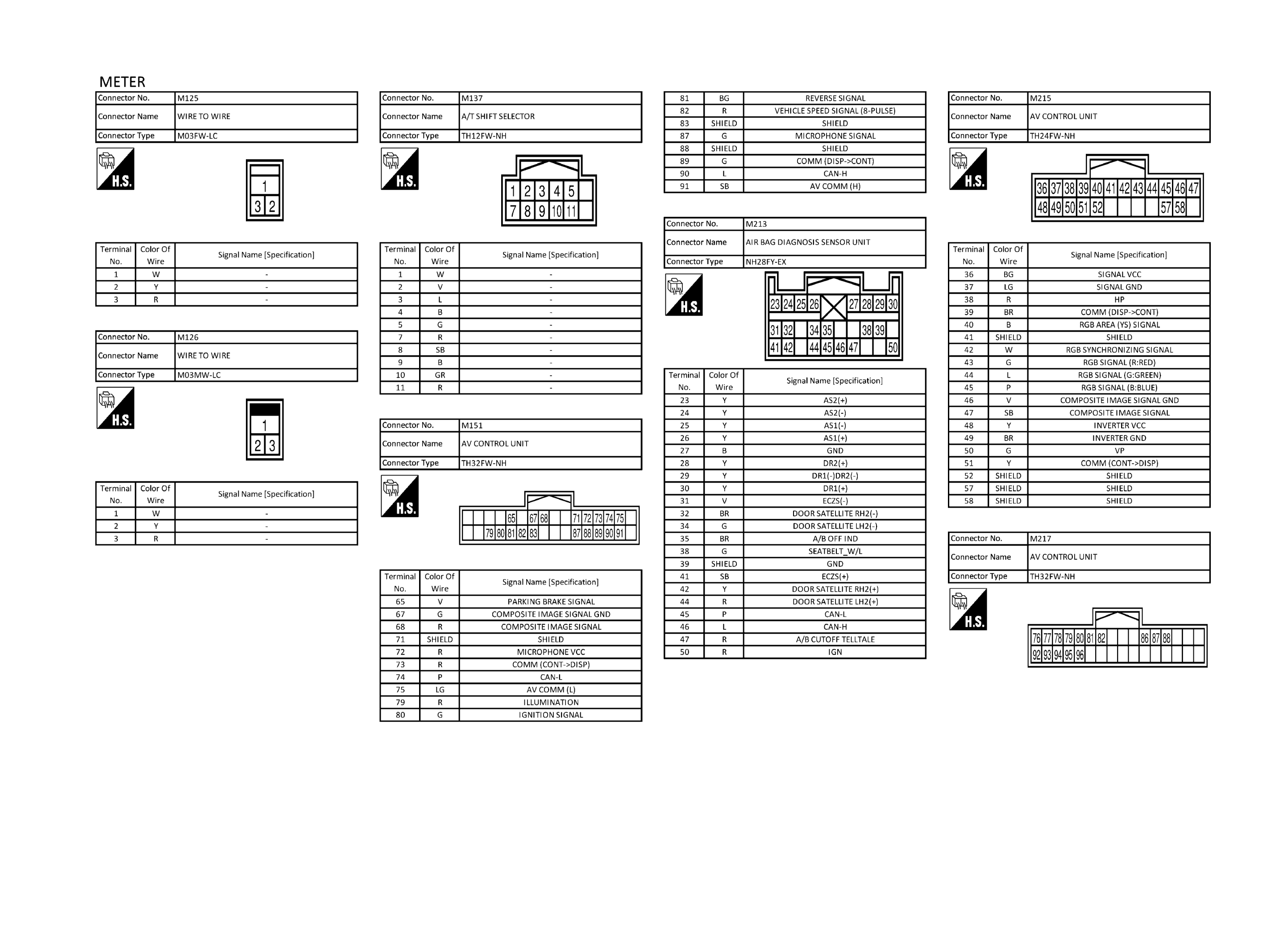

GNSJRNWG0559GB-559

Courtesy of NISSAN NORTH AMERICA, INC.

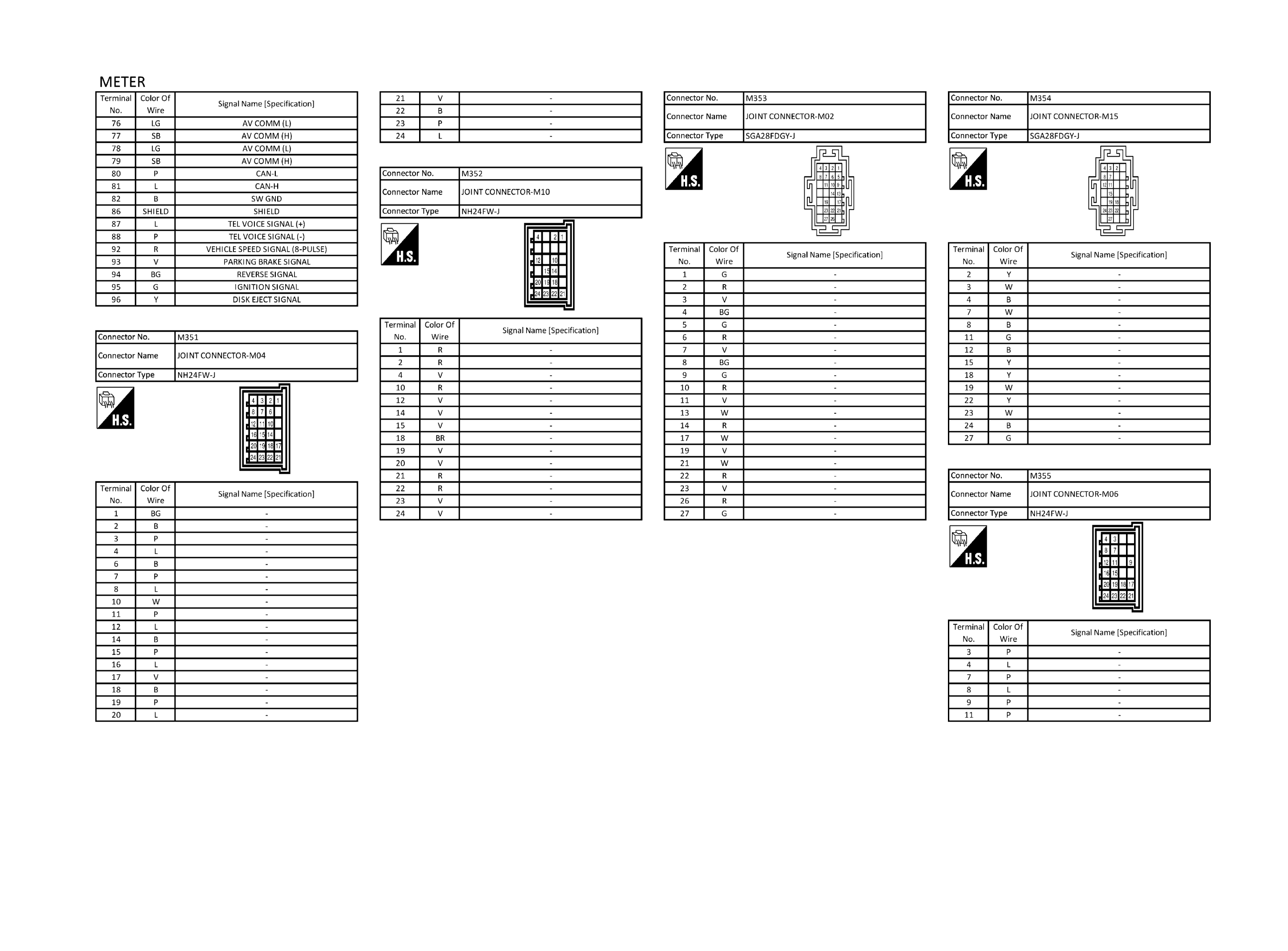

GNSJRNWG0560GB-560

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJRNWG0561GB-561

Courtesy of NISSAN NORTH AMERICA, INC.
