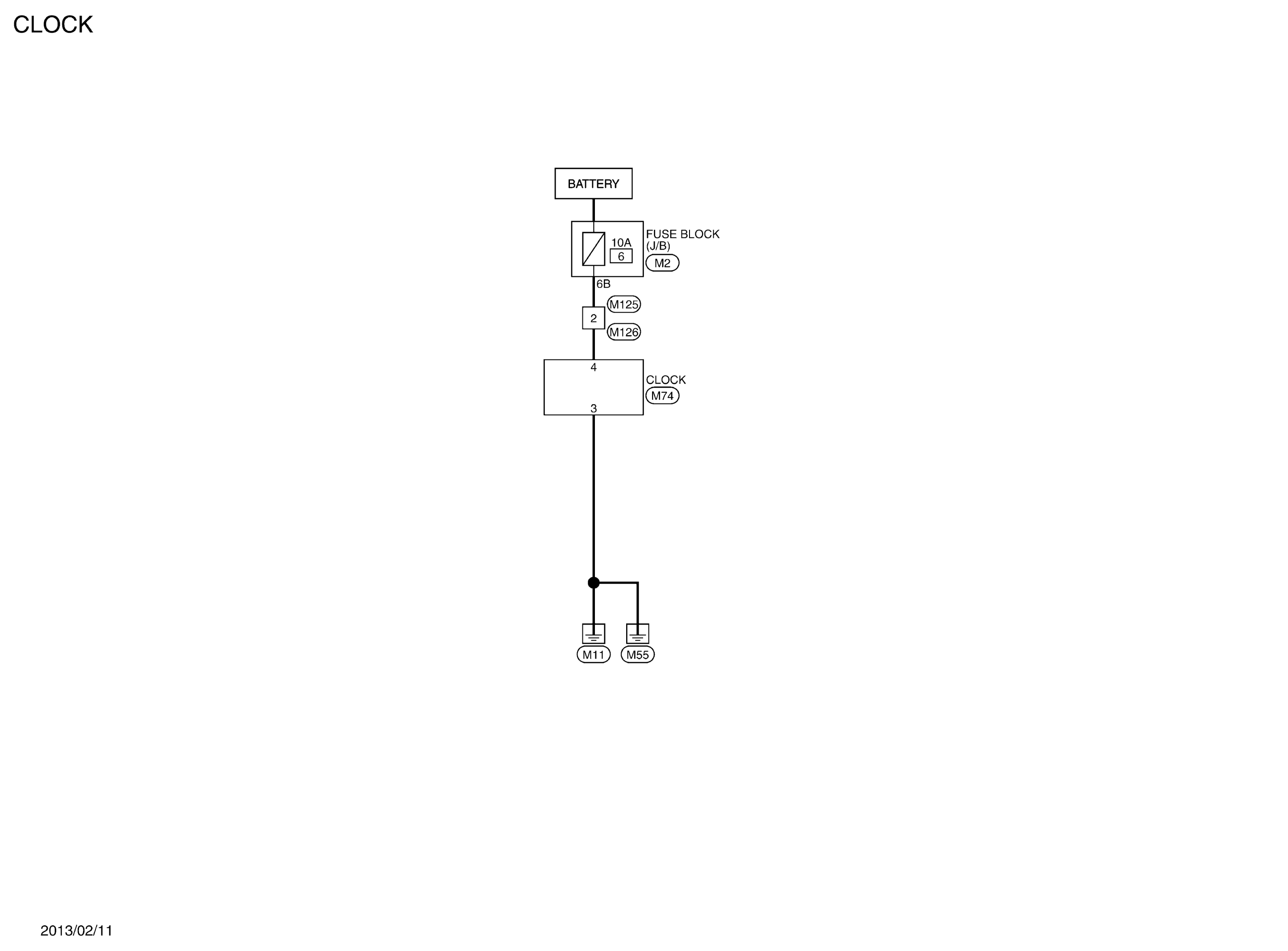

Wiring Diagram - Clock -

G09175356

Courtesy of NISSAN NORTH AMERICA, INC.

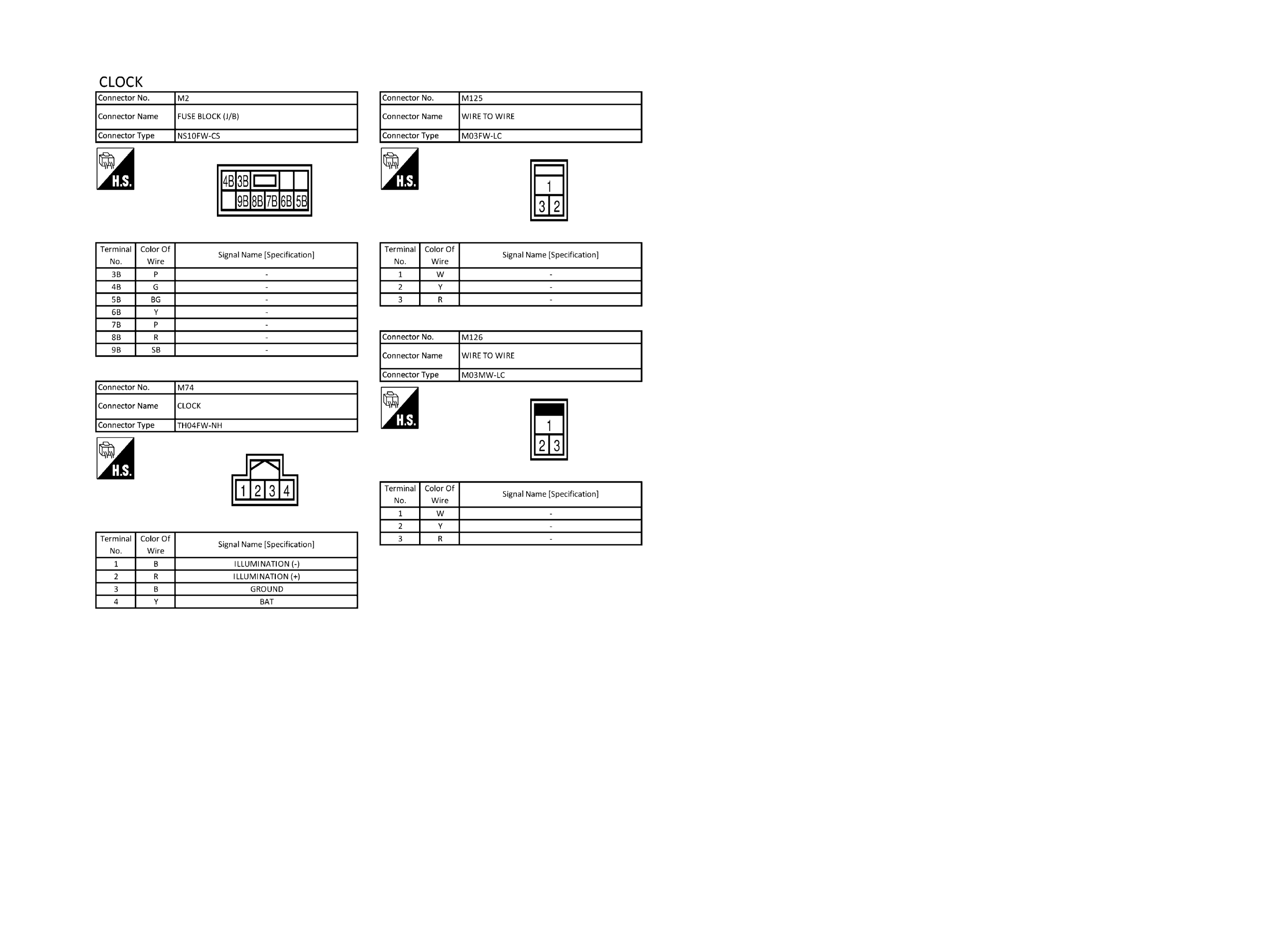

GNSJRNWG0562GB-562

Courtesy of NISSAN NORTH AMERICA, INC.
