AWD System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

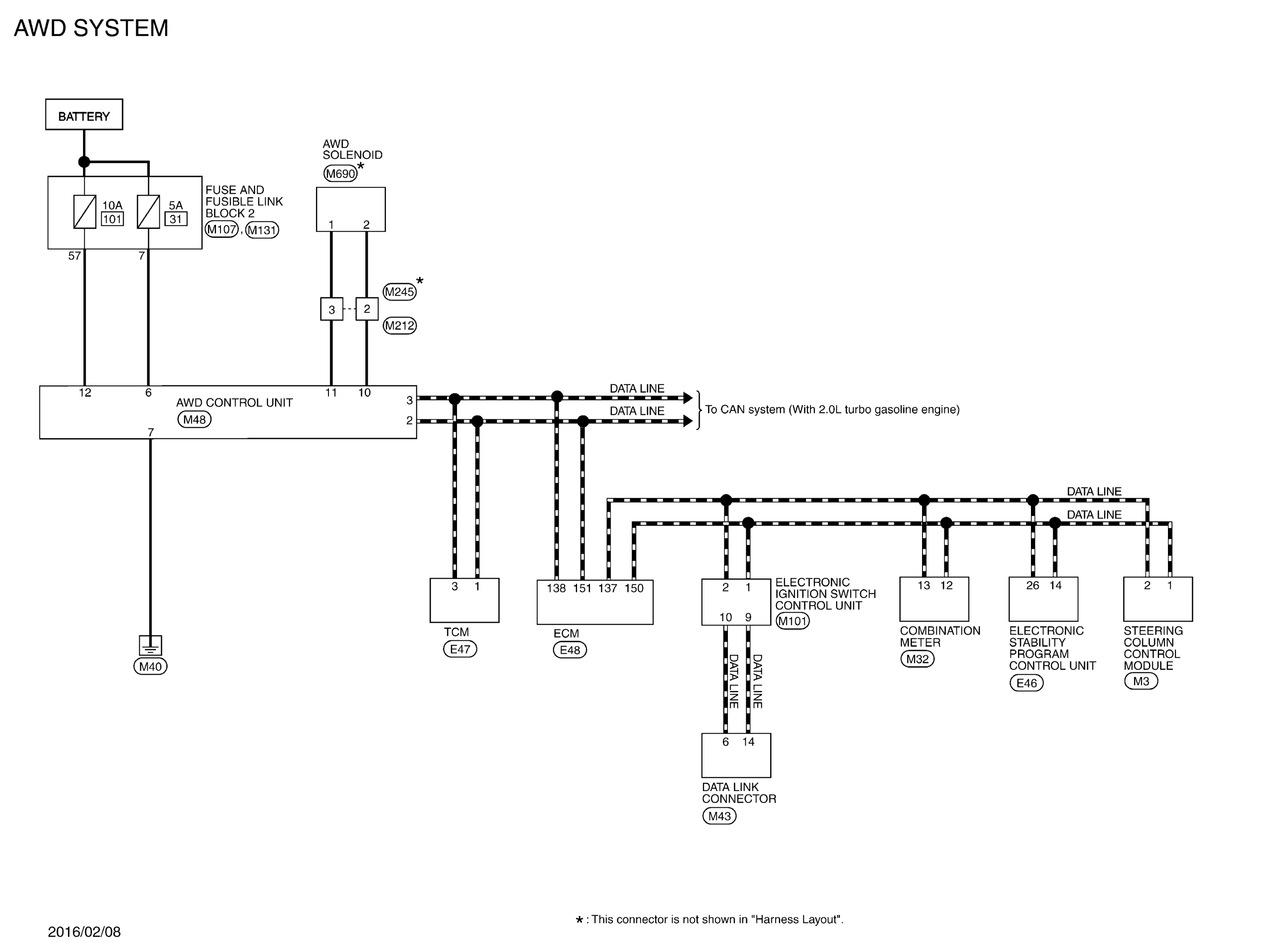

GNSJRDWC7855GB-855Courtesy of NISSAN NORTH AMERICA, INC.

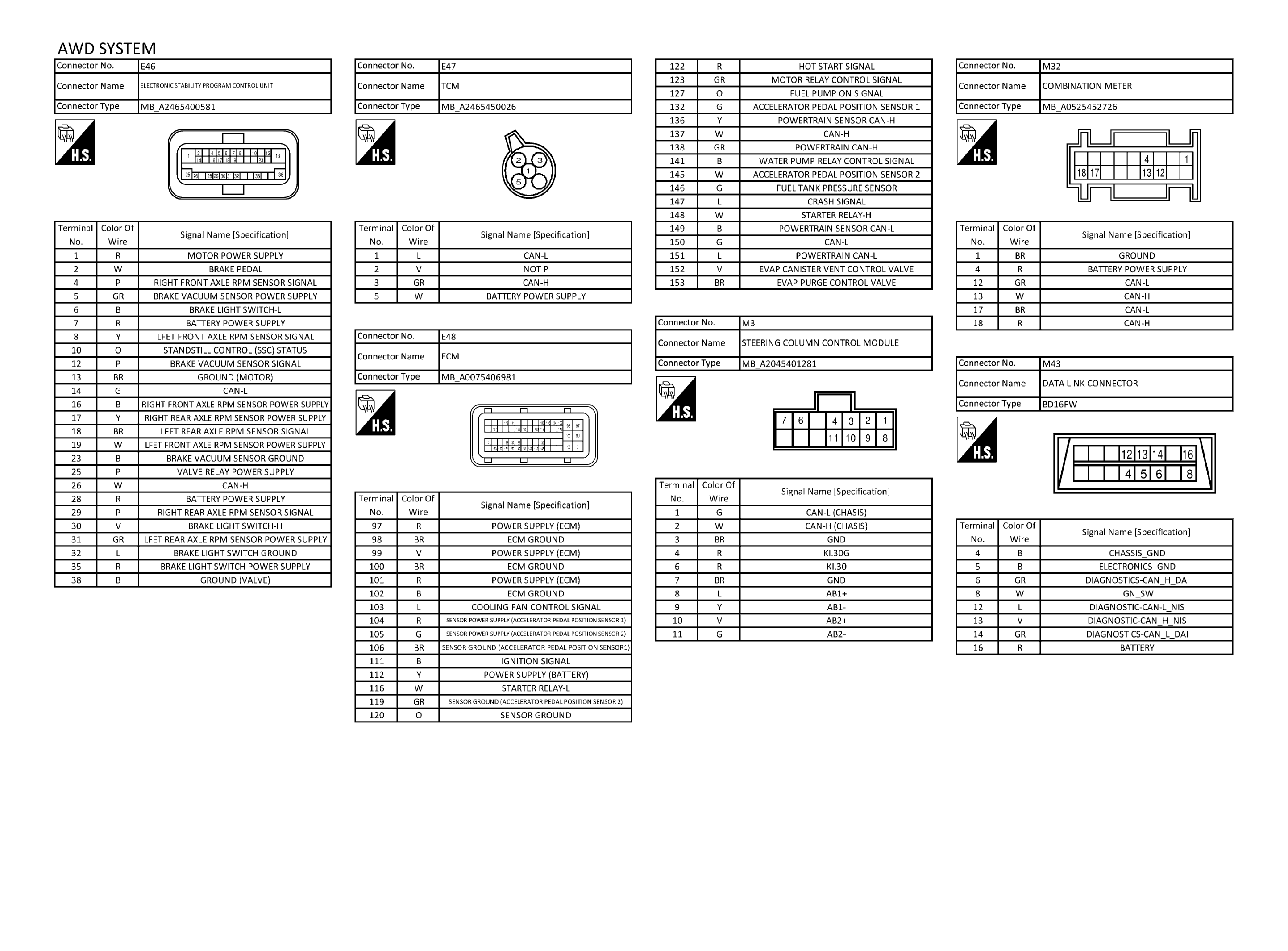

GNSJRDWC7856GB-856Courtesy of NISSAN NORTH AMERICA, INC.

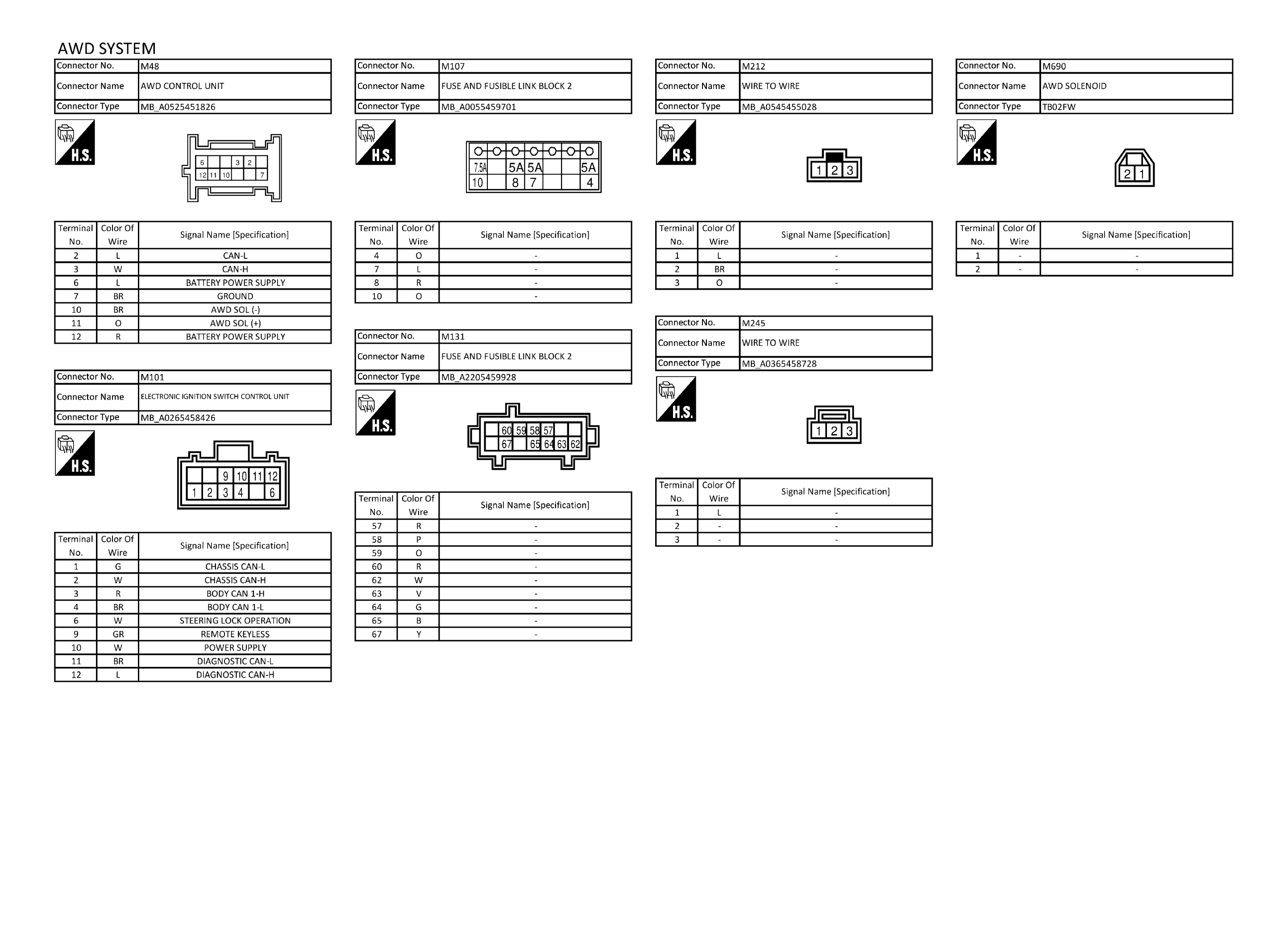

GNSJRDWC7857GB-857Courtesy of NISSAN NORTH AMERICA, INC.
