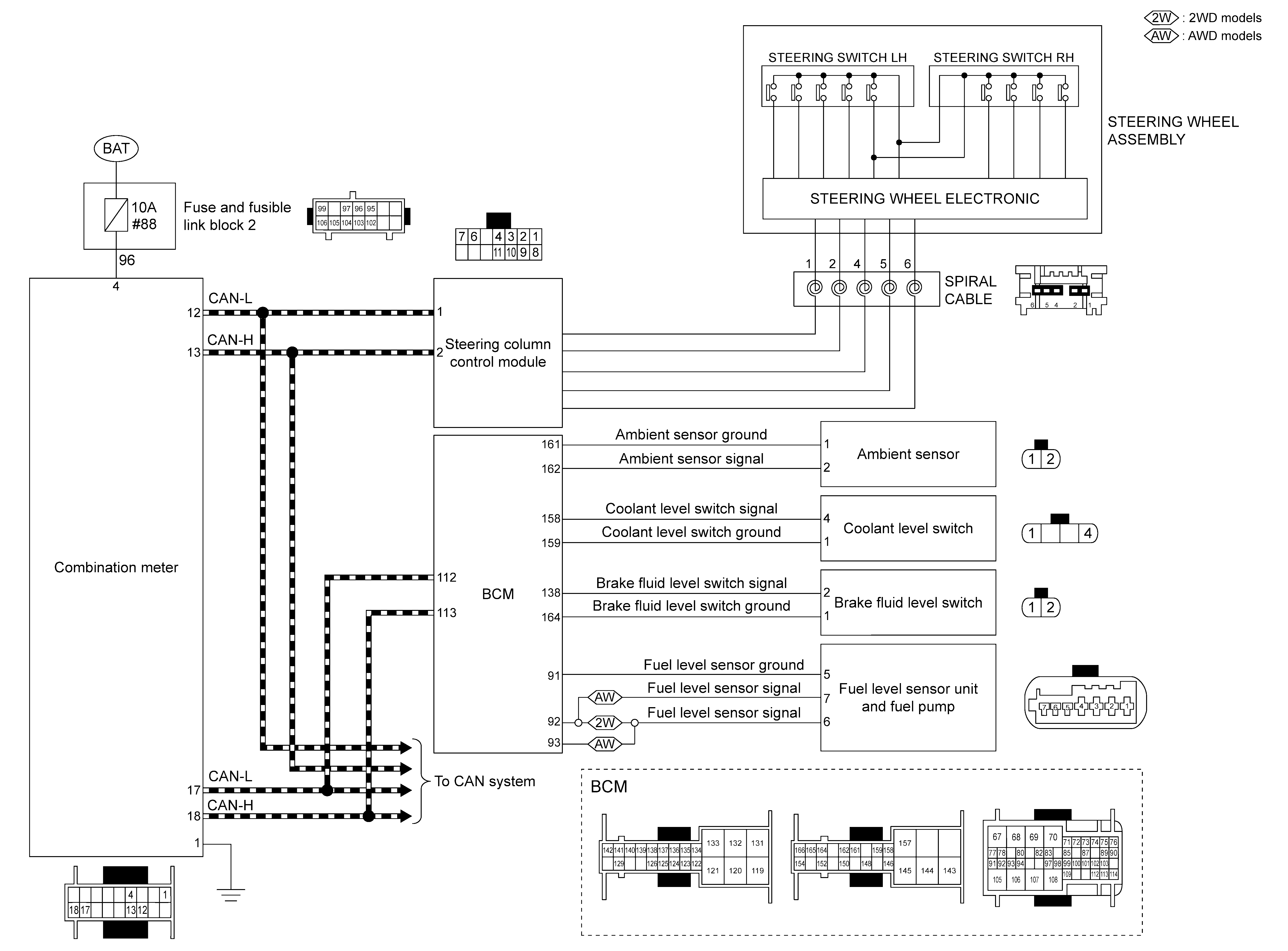

Home >> Infiniti >> 2017 >> QX30 Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter, Warning Lamp & Indicator >> System Description >> System >> Meter System >> Circuit Diagram
