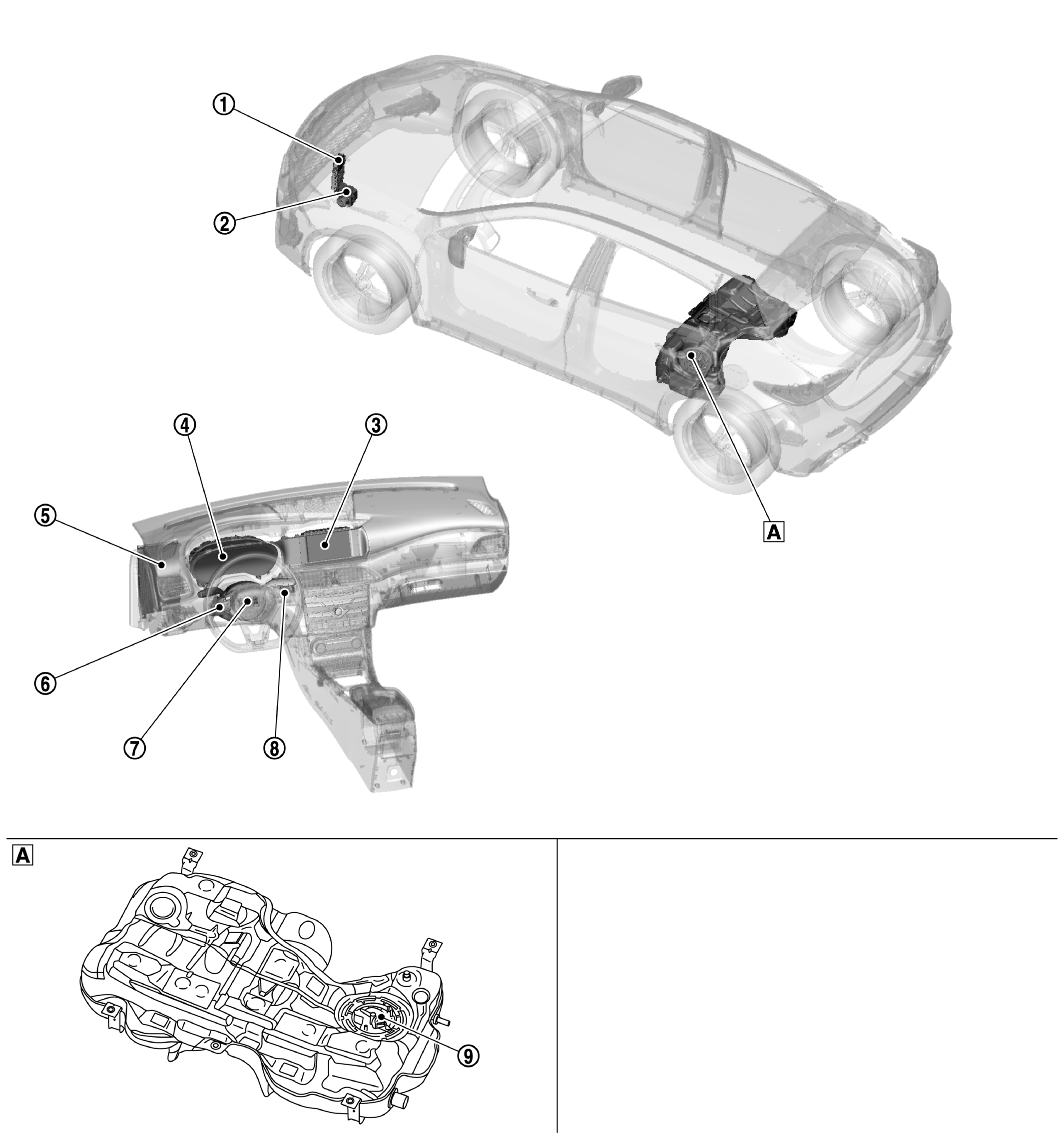

ECM |
Transmits the following signals to the electronic ignition switch control unit via CAN communication.
- Engine speed signal
- Engine coolant temperature signal
- Fuel consumption monitor signal
|
 |
Electronic stability program control unit |
Transmits the wheel speed signal to the electronic ignition switch control unit via CAN communication. |
 |
Display control unit |
Transmits the clock signal to the combination meter via CAN communication. |
 |
Combination meter |
Refer to COMBINATION METER . |
 |
BCM |
Transmits the following signals to the combination meter via CAN communication.
- Ambient sensor signal
- Fuel level sensor signal
|
 |
Steering switch |
Refer to STEERING SWITCH . |
 |
Steering column control module |
Transmits the steering switch signal to the combination meter. |
 |
Electronic ignition switch control unit |
Transmits the following signals to the combination meter via CAN communication.
- Wheel speed signal
- Engine speed signal
- Engine coolant temperature signal
- Fuel consumption monitor signal
|
 |
Fuel level sensor unit and fuel pump |
Transmits the fuel level sensor signal to the BCM. |
