Vehicle Equipment Identification Information

CAN diagnosis display	Unit name	Section	Equipment	Note (How to identify)
4WD	AWD control unit	DLN	AWD models	-
A-BAG	Air bag diagnosis sensor unit	SRS	ALL models	-
ABS	Electronic stability program control unit	BRC	ALL models	-

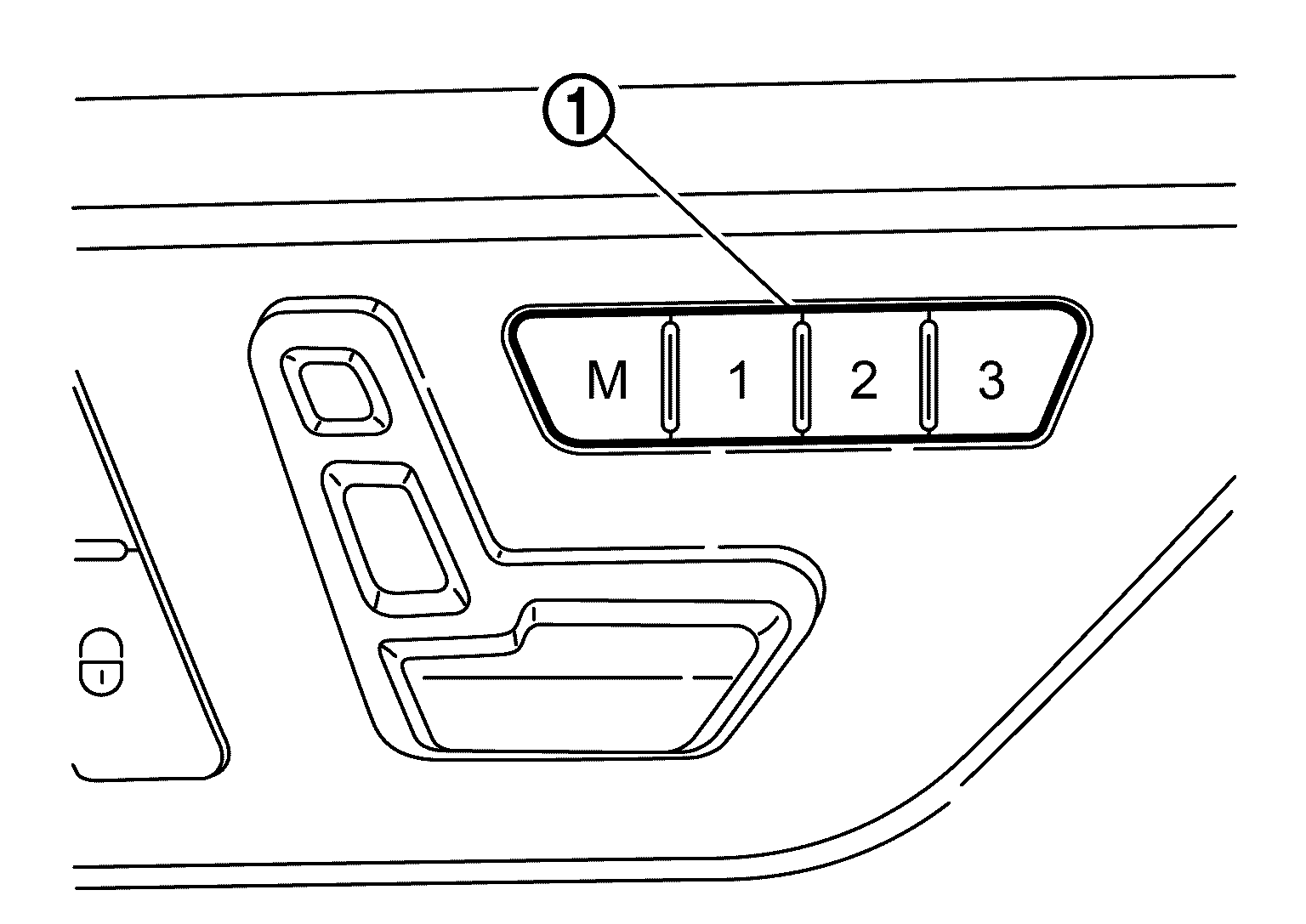

ADP	Driver seat control unit	ADP	With automatic drive positioner system	Find seat memory switch on the front door finisher. Courtesy of NISSAN NORTH AMERICA, INC.

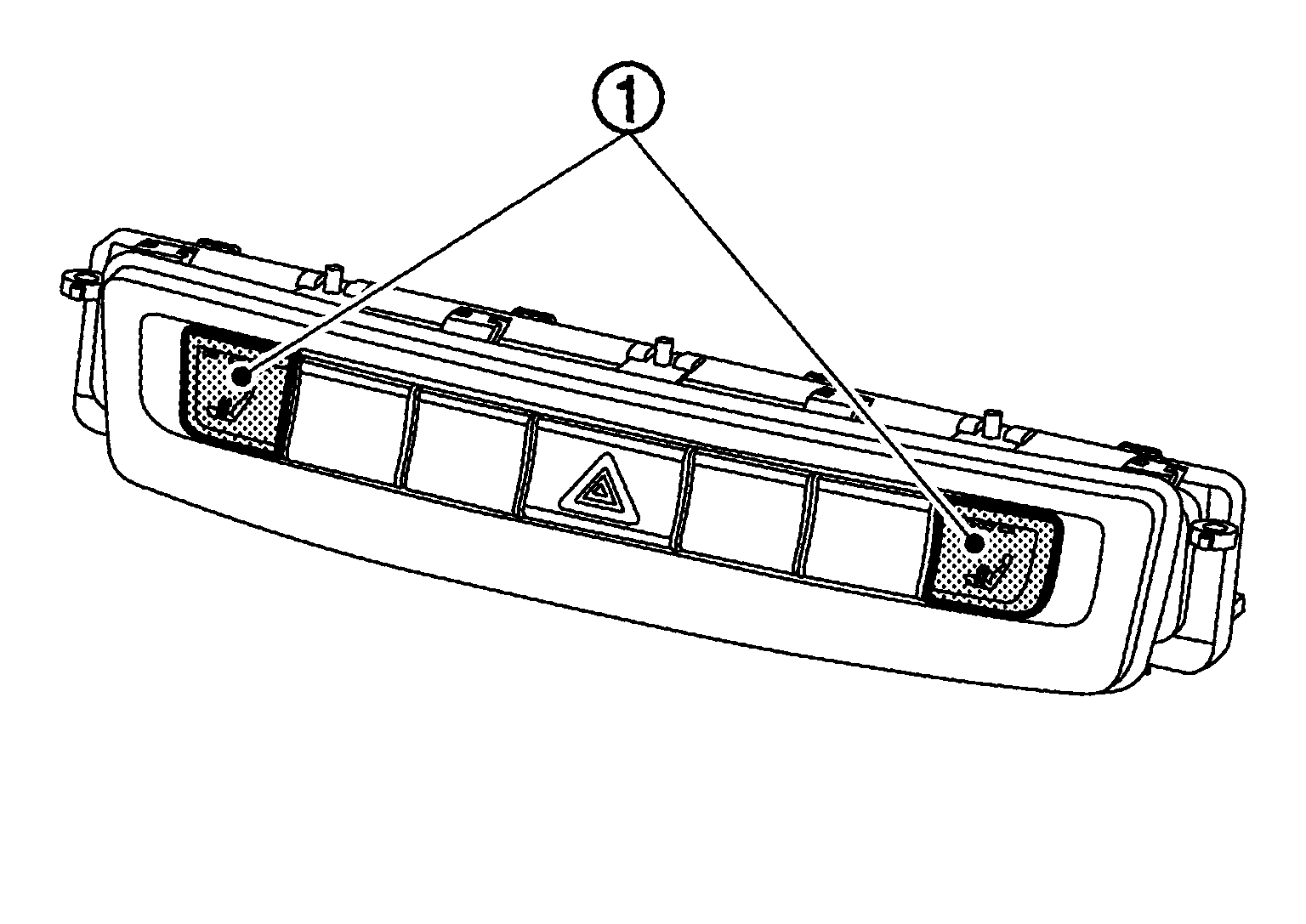

		SE	Without automatic drive positioner system With heated seat system	Find heated seat switch on the upper control panel control unit. Courtesy of NISSAN NORTH AMERICA, INC.
AV	Display control unit	AV	With audio system (With display)	-

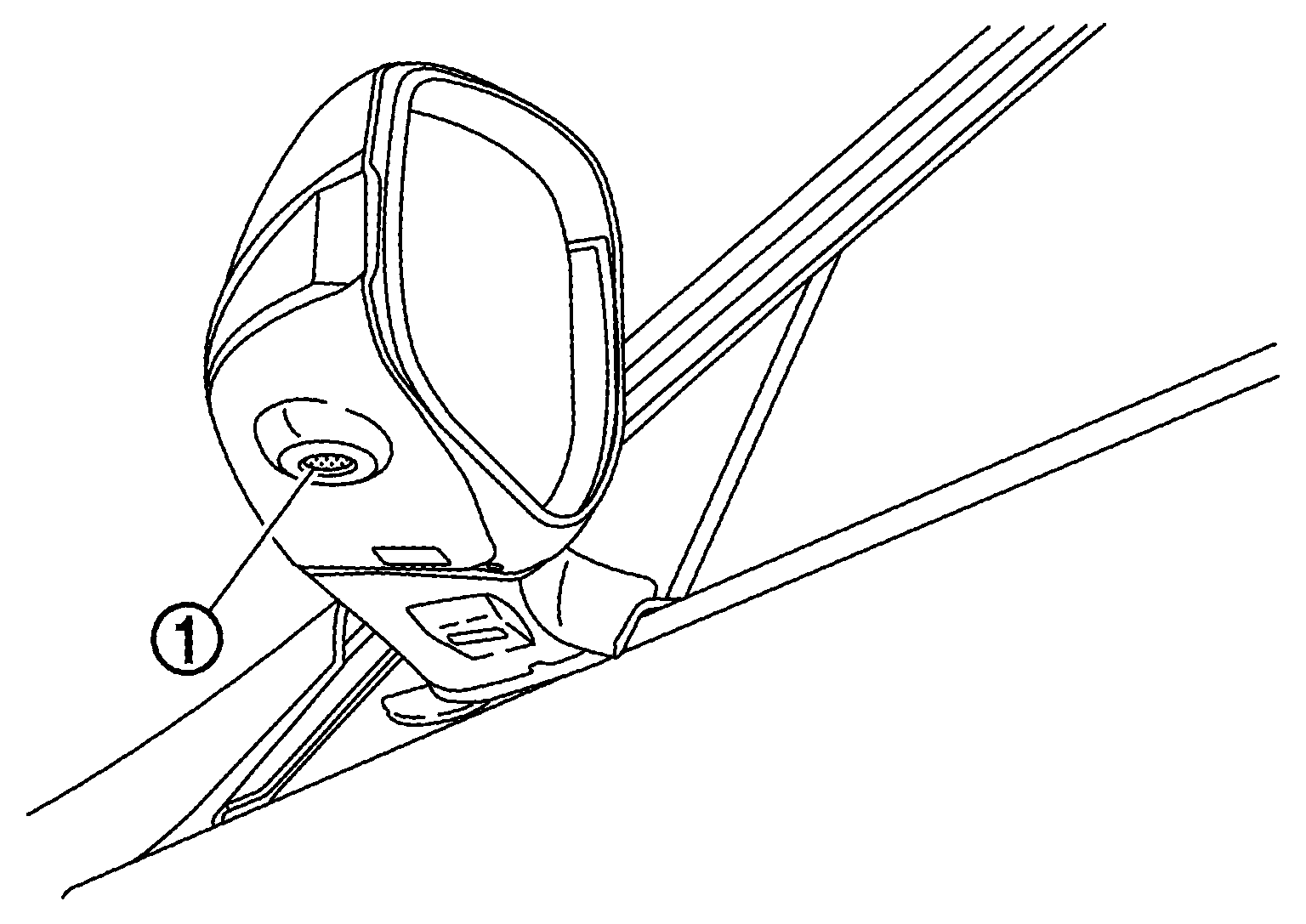

AVM	Around view monitor control unit	AV	With around view monitor system	Find side camera the door mirror. Courtesy of NISSAN NORTH AMERICA, INC.
BCM	BCM	BCS	ALL models	-
CGW	CAN gateway	LAN	With audio system (With display)	-
DCUFL	Left front door control unit	DLK	ALL models	-
DCUFR	Right front door control unit
ECM	ECM	EC	ALL models	-
EHS/PKB	Electric parking brake control module	PB	ALL models	-
E-IG SW	Electronic ignition switch control unit	PCS	ALL models	-
EPS/DAST 3	EPS control unit	STC	ALL models	-
E-SHIFT	Electric shift control unit	TM	7DCT models	-
FPCM	Fuel pump control module	EC	ALL models	-

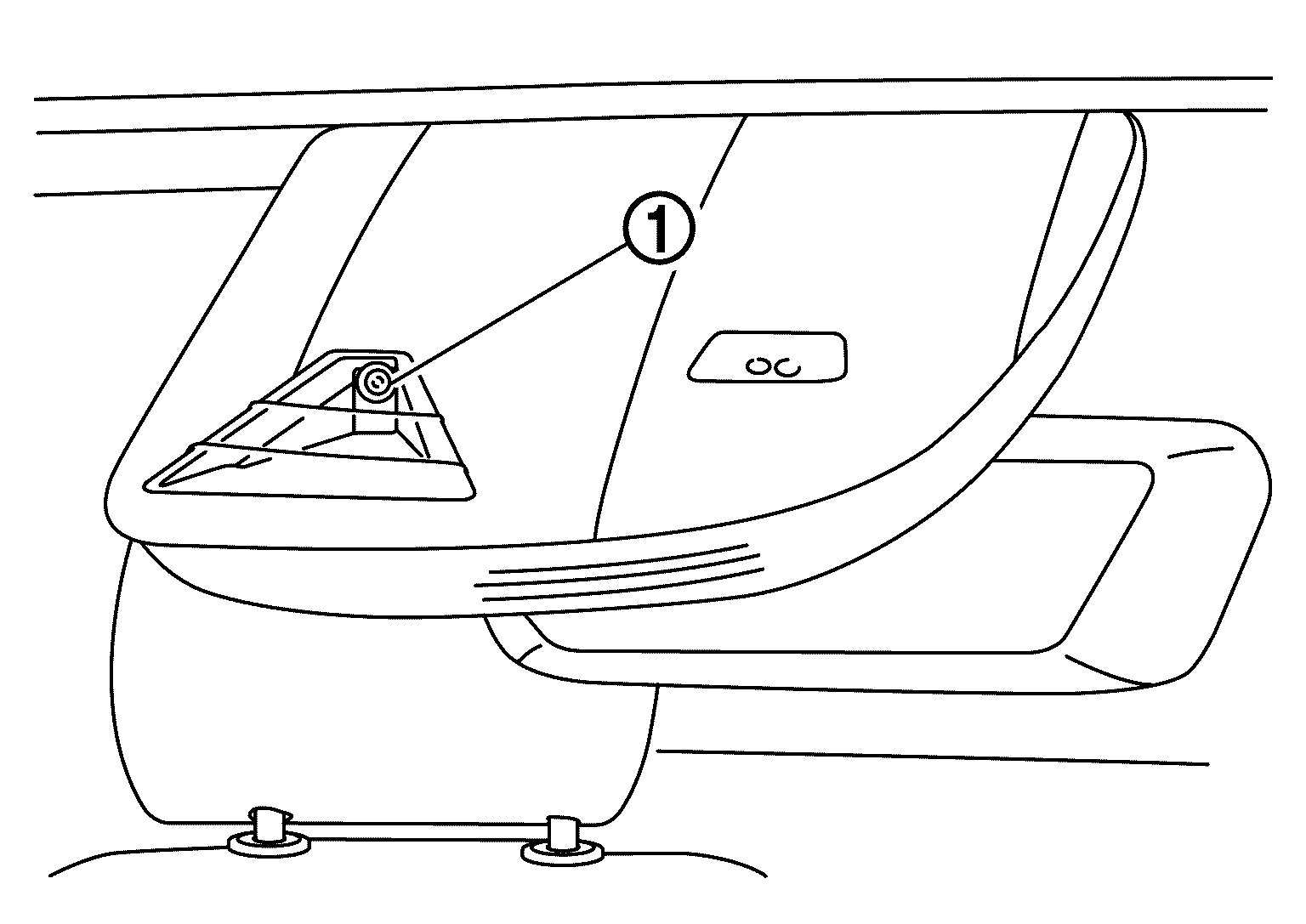

Fr CAM	Front camera unit	DAS	With Lane Departure Warning (LDW) system	Find front camera unit on the windshield. Courtesy of NISSAN NORTH AMERICA, INC.
H/L L	Headlamp control unit LH	EXL	ALL models	-
H/L R	Headlamp control unit RH
HVAC	A/C auto amp.	HAC	Automatic air conditioning models	-
ICC	ICC sensor	CCS	With Intelligent Cruise Control (ICC) system	Find distance control switch on the cruise control lever. Courtesy of NISSAN NORTH AMERICA, INC.
I-KEY	Intelligent Key unit	DLK	Intelligent Key models	-
M&A	Combination meter	MWI	ALL models	-
PARK	Sonar control unit	SN	With sonar system	Find sonar system switch on the upper control panel control unit. Courtesy of NISSAN NORTH AMERICA, INC.
PS CU	Passenger seat control unit	ADP	With automatic drive positioner system	Find seat memory switch on the front door finisher. Courtesy of NISSAN NORTH AMERICA, INC.

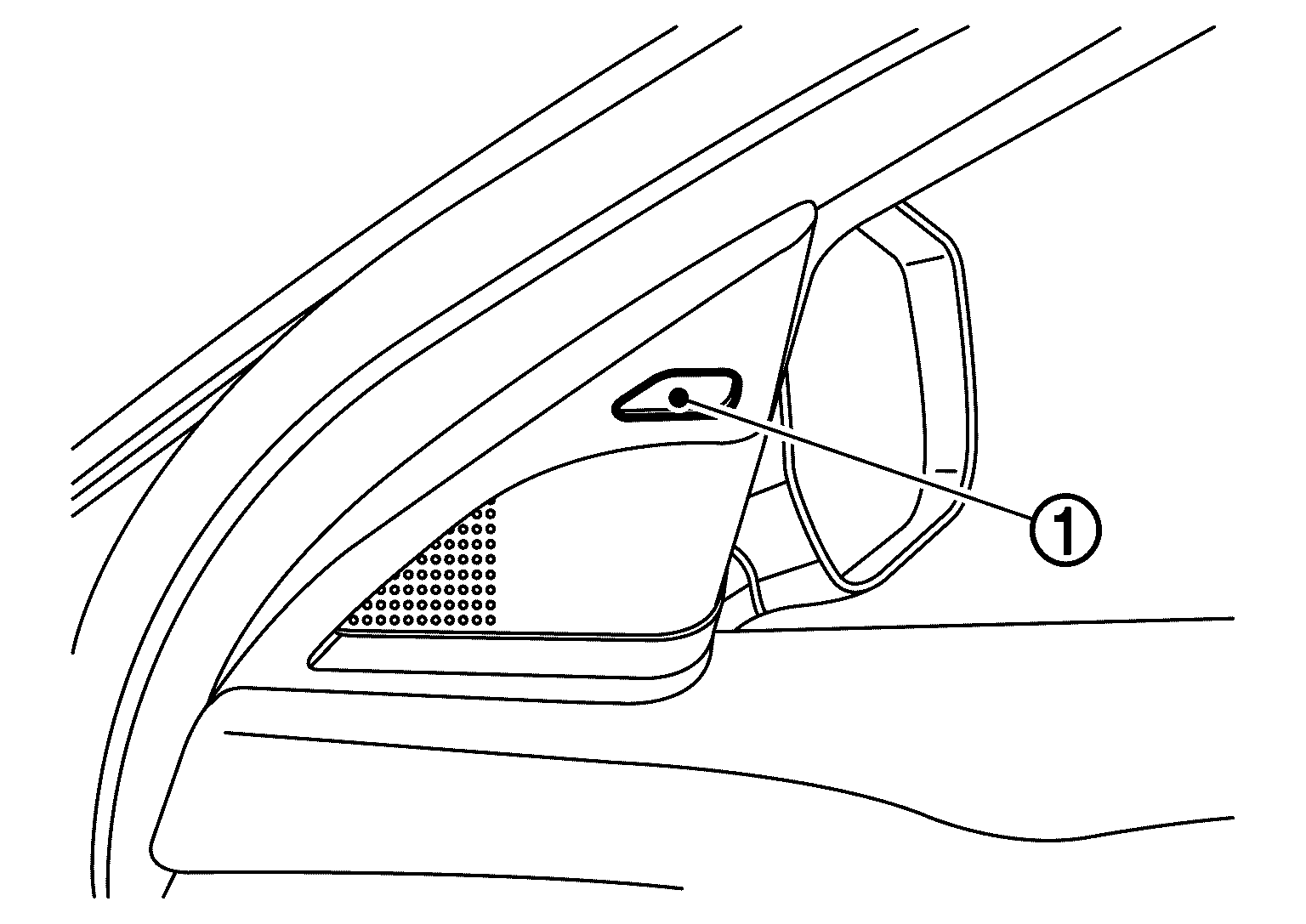

RDR-L	Side radar LH	DAS	With Blind Spot Warning (BSW) system	Find BSW indicator .on the front door corner cover. Courtesy of NISSAN NORTH AMERICA, INC.
RDR-R	Side radar RH
SCCM	Steering column control module	BCS	ALL models	-
TCM	TCM	TM	7DCT models	-

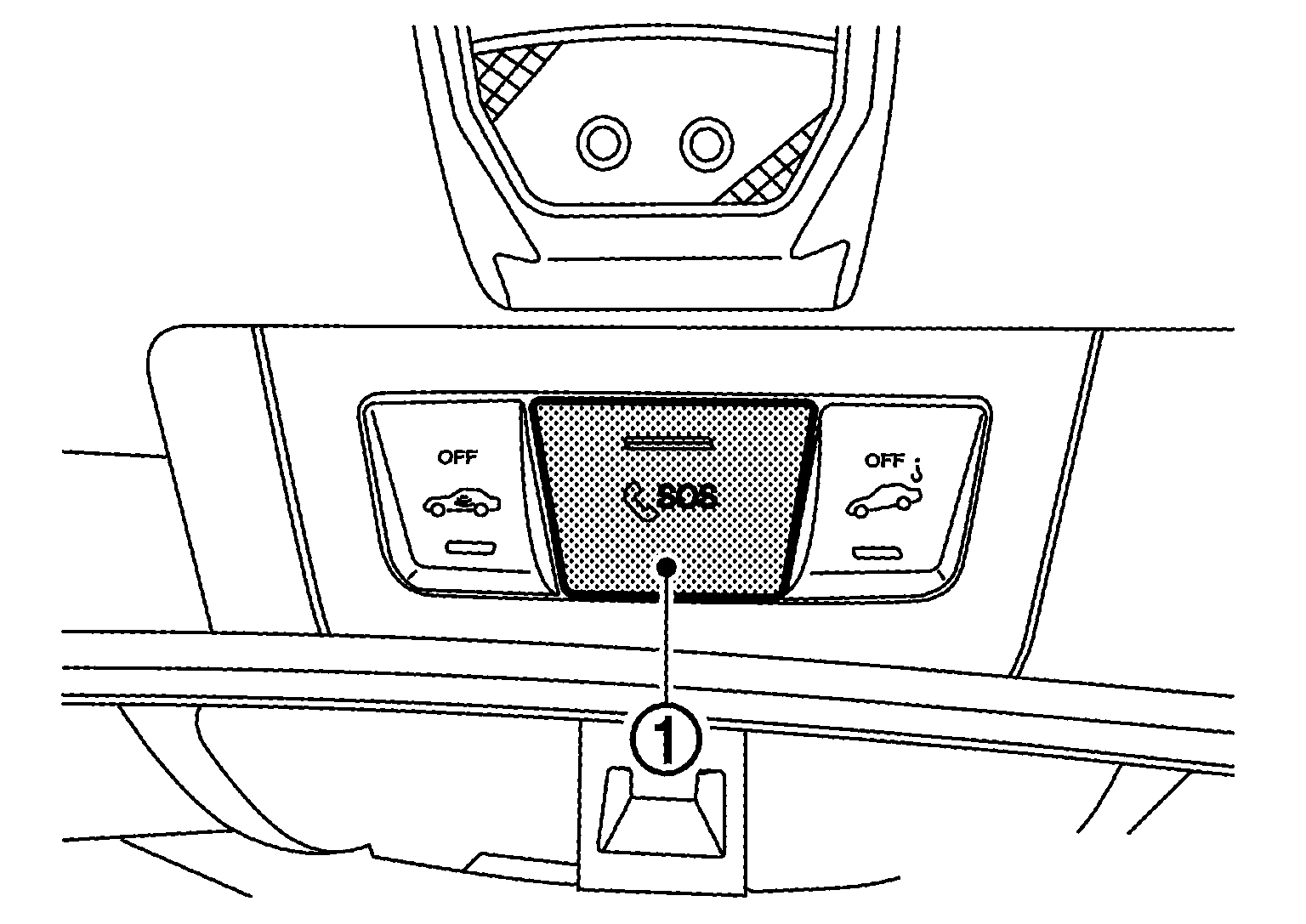

TCU	TCU (Telematics Communication Unit)	AV	With Telematics System	Find SOS switch on the headlining. Courtesy of NISSAN NORTH AMERICA, INC.
TPMS	Low tire pressure warning control unit	WT	ALL models	-
