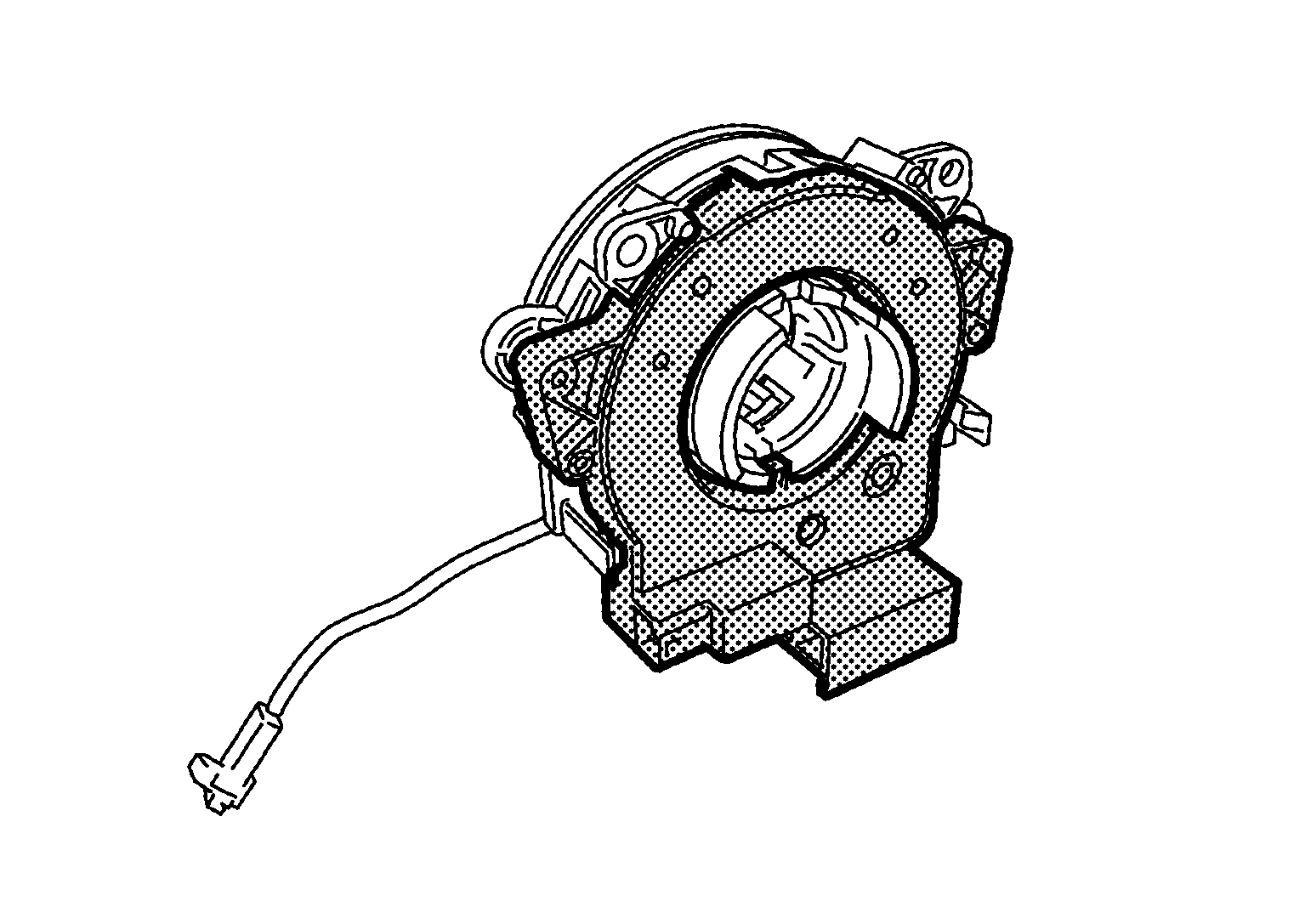

Steering angle sensor is installed to the spiral cable.
Courtesy of NISSAN NORTH AMERICA, INC.
Steering angle sends the steering signal necessary for predictive course line of the front or rear view monitor to the Around View Monitor Control Unit via CAN communication.
