How To Initiate Self-Diagnosis Mode

Turn Ignition Switch OFF.

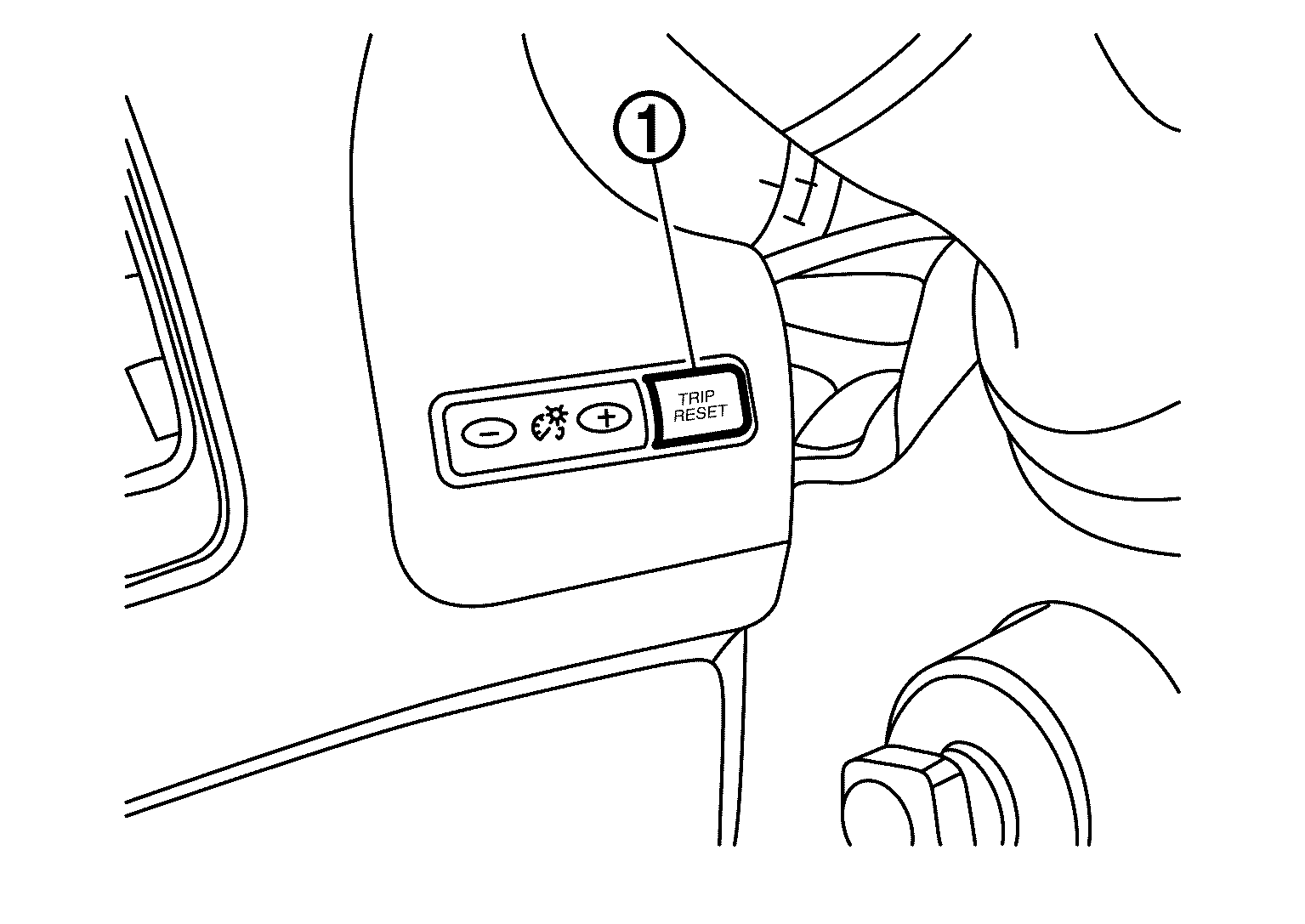

While pressing the trip reset Switch , turn Ignition Switch ON.

Courtesy of NISSAN NORTH AMERICA, INC.
Keep the trip reset Switch for 1 seconds or more.
Press the trip reset Switch at least 3 times. (Within 7 seconds after the Ignition Switch is turned ON.)
"Work instruction code" is indicated in the top portion of information display and self - diagnosis is started.
The mode Switches in the order shown below each time the trip reset Switch is pressed.

NOTE:

If the trip reset Switch is not operated for 20 seconds or more, the self - diagnosis mode is automatically cancelled.

Test Order	Test Item	Description
1	Work Instruction Code	This item is displayed, but not used.
2	Part Number
3	Software Code
4	EEPROM Code
5	Hardware Code
6	P.C.B Code
7	Circuit Check	The pointer of the following items moves from 0 to MAX twice. Speedometer Tachometer Engine Coolant Temperature Gauge Fuel Gauge NOTE: If any one of the pointers does not sweep, replace Combination Meter.
8	Color check^{* 1}	Performs the color check of the information display.
9	error code^{* 2}	Displays the error code of the following items. Speedometer Tachometer Engine coolant temperature gauge Fuel gauge Meter Control Switch
10	Warning/Indicator Lamp check	All Warning/Indicator Lamp illuminate. NOTE: When either one of them does not turn ON, replace Combination Meter. SRS air bag Warning Lamp and security Indicator Lamp are not illuminate.

NOTE:

When the trip reset Switch is pressed during the indication of Test order "10," test item returns to Test order "2."

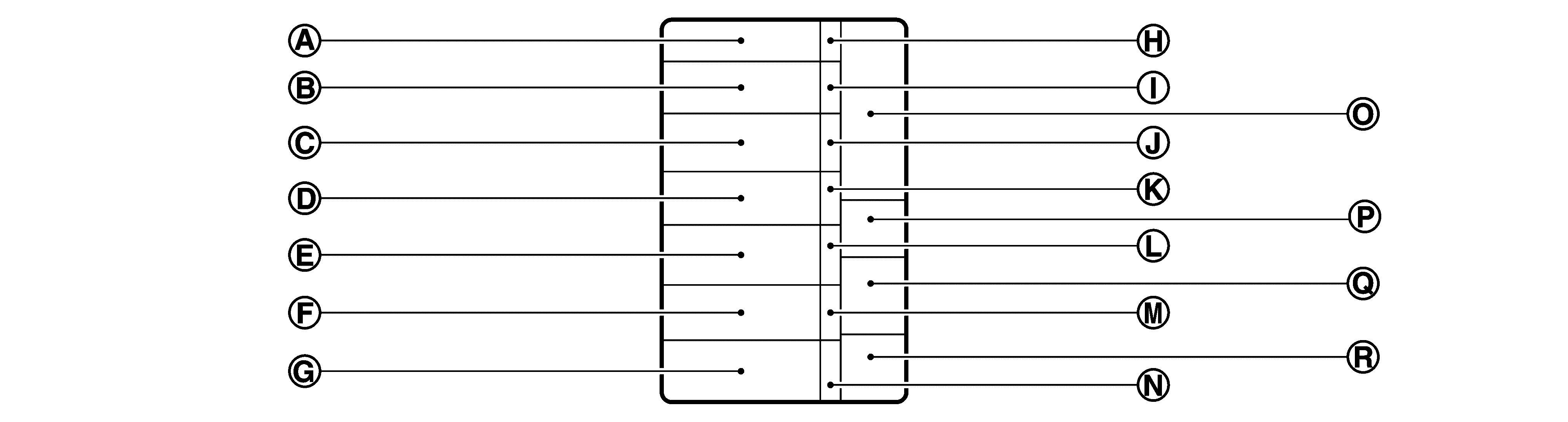

* 1: Color Check

Courtesy of NISSAN NORTH AMERICA, INC.

Blue	Red	Pink
Green	Light blue	Yellow
White	White	Black
Light blue	Black	Pink
Black	Blue	Black
Dark blue	White	Blue

* 2: Error Code

Courtesy of NISSAN NORTH AMERICA, INC.

	Code	Description	Action to take/Reference
Speedometer	0	Normal	-
	1	A vehicle speed signal cannot be received from ABS Actuator And Electric Unit (Control Unit).	Perform "Self Diagnostic Result" of "ABS." Refer to DTC INDEX .
	2	A vehicle speed signal received from the ABS Actuator And Electric Unit (Control Unit) is abnormal.
Tachometer	0	Normal	-
	1	An Engine speed signal cannot be received from TCM. (VR30DDTT Engine Models)	Perform "Self Diagnostic Result" of "TCM". Refer to DTC INDEX .
	1	An Engine speed signal cannot be received from ECM. (Except for VR30DDTT Engine Models)	Perform "Self Diagnostic Result" of "ECM". Refer to DTC INDEX .
Fuel Gauge	0	Normal	-
	1	Fuel gauge circuit is short.	Refer to COMPONENT FUNCTION CHECK .
	2	Fuel gauge circuit is open.	Refer to COMPONENT FUNCTION CHECK .
Engine Coolant Temperature Gauge	0	Normal	-
Engine Coolant Temperature Gauge	1	An Engine coolant temperature signal cannot be received from ECM.	Perform "Self Diagnostic Result" of "ECM." Refer to DTC INDEX [VR30DDTT (turbo high pressure model)], DTC INDEX [VR30DDTT (turbo low pressure model)] or DTC INDEX (2.0L Turbo Gasoline Engine)
Meter Control Switch	0	Normal	-
	1	When judging that the illumination control Switch signal circuit is short - circuited for 5 minutes or more.	Refer to COMPONENT FUNCTION CHECK .
	2	When judging that the trip reset Switch signal circuit is short - circuited for 5 minutes or more.
	3	When judging that the both Switch signal circuit is short - circuited for 5 minutes or more.
-	0	Displays "0" constantly.	-
-	0	Displays "0" constantly.	-
-	0	Displays "0" constantly.	-
