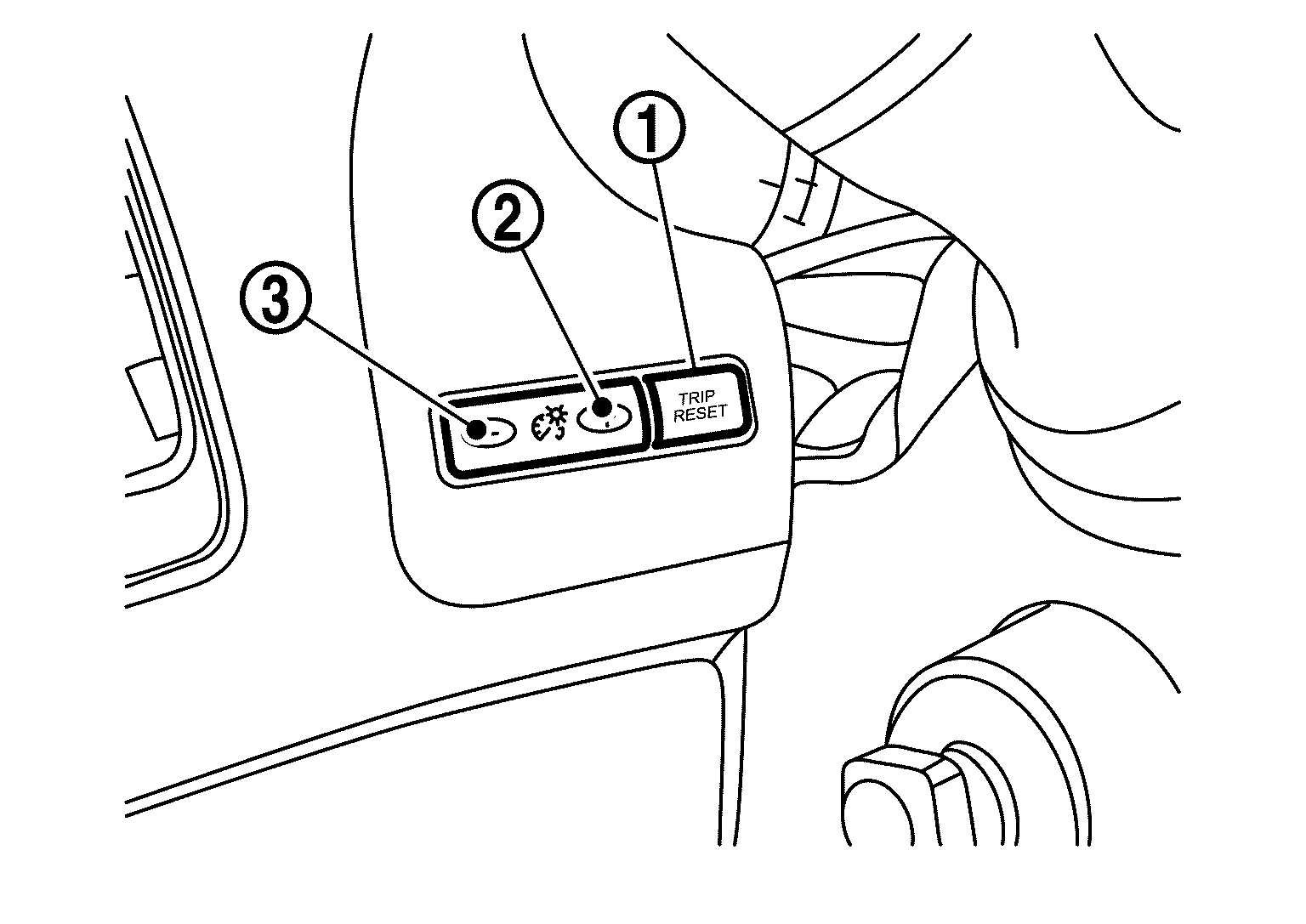

Trip Reset Switch |
Press |
- The Trip Meter can be Switched between A and B.
- Trip Meter A/B can be reset by pressing and holding the Trip Reset Switch.
- A Trip Computer value displayed on the Information Display can be reset by pressing and holding the Trip Reset Switch for 1 second or more.
- All Trip Computer values can be reset by pressing and holding the Trip Reset Switch for 3 seconds or more.
|
 |
Illumination Control Switch (+) |
Press |
An illuminance level of the back light of the Combination Meter can be adjusted. |
 |
Illumination Control Switch (-) |
