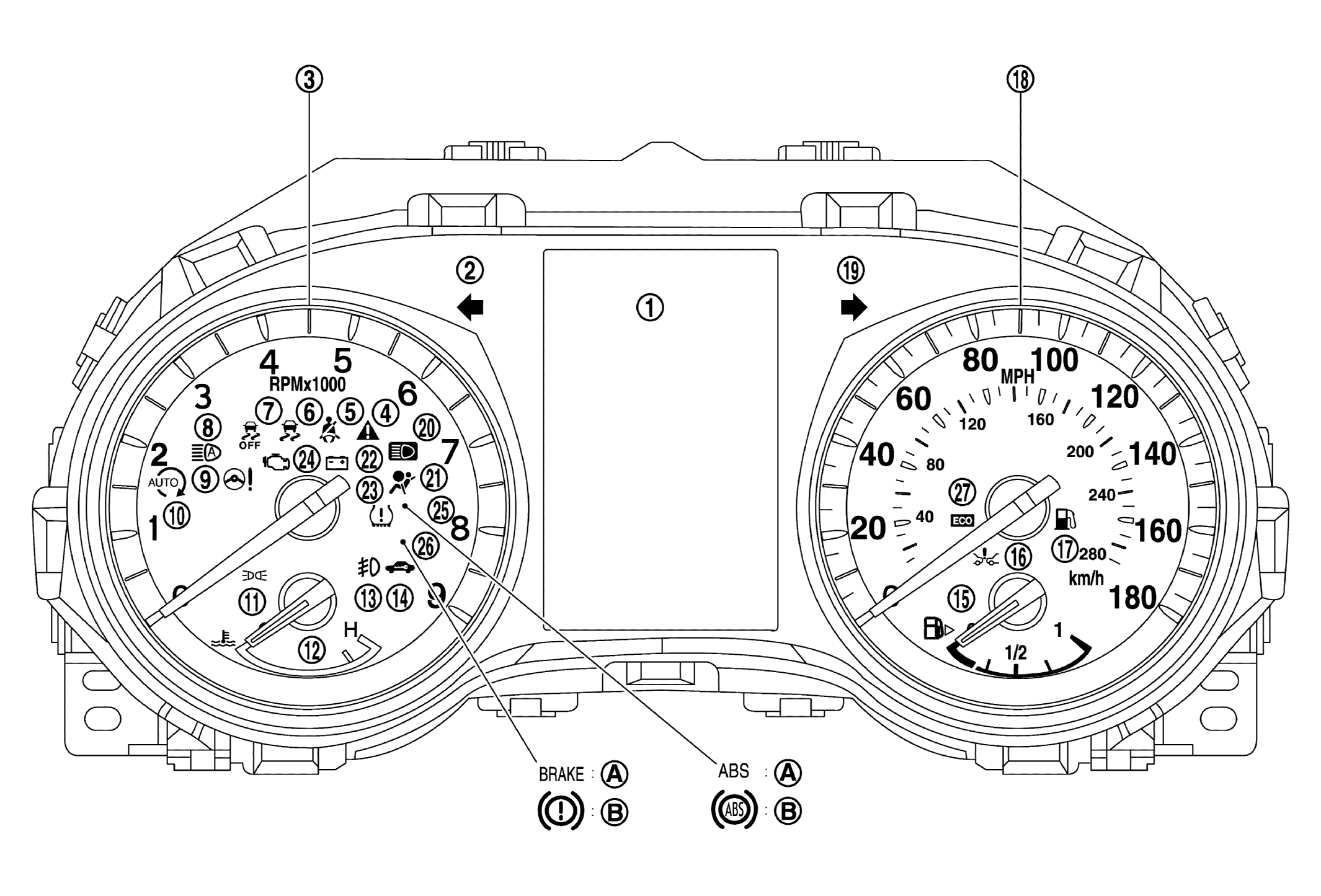

Arrangement Of Combination Meter

Courtesy of NISSAN NORTH AMERICA, INC.

For U. S. A.

Except for U. S. A.

NOTE:

The scale on a tachometer depends on vehicle specifications as shown below.

VR30DDTT Engine Models: 9000 RPM
2.0L Turbo Gasoline Engine Models: 8000 RPM

Indicator Lamp/Warning Lamp	Color	Function
Information Display	-	Refer to SYSTEM DESCRIPTION .
Turn Signal Indicator Lamp (LH)	Green	Refer to TURN SIGNAL INDICATOR LAMP .
Tachometer	-	Refer to SYSTEM DESCRIPTION .
Master Warning Lamp	Yellow/Red	Refer to MASTER WARNING LAMP .
Seat Belt Warning Lamp	Red	Refer to SEAT BELT WARNING LAMP .
VDC Warning Lamp	Yellow	Refer to VDC WARNING LAMP .
VDC OFF Indicator Lamp	Yellow	Refer to VDC OFF INDICATOR LAMP .
High Beam Assist Indicator Lamp	Green	Refer to HIGH BEAM ASSIST INDICATOR LAMP .
Power Steering Warning Lamp	Yellow	Refer to POWER STEERING WARNING LAMP (EXCEPT DIRECT ADAPTIVE STEERING) (Except Direct Adaptive Steering). Refer to POWER STEERING WARNING LAMP (DIRECT ADAPTIVE STEERING) (Direct Adaptive Steering).
Stop/Start Indicator Lamp	Green	Refer to STOP/START INDICATOR LAMP .
Position Lamp Indicator Lamp	Green	Refer to POSITION LAMP INDICATOR LAMP .
Engine Coolant Temperature Gauge	-	Refer to SYSTEM DESCRIPTION .
Front Fog Lamp Indicator Lamp	Green	Refer to FRONT FOG LAMP INDICATOR LAMP .
Security Indicator Lamp	Red	Refer to SECURITY INDICATOR LAMP (TURN ON) . Refer to SECURITY INDICATOR LAMP (BLINKS) .
Fuel Gauge	-	Refer to SYSTEM DESCRIPTION .
FEB Warning Lamp	Yellow	Refer to FEB WARNING LAMP .
Low Fuel Warning Lamp	Yellow	Refer to LOW FUEL WARNING LAMP .
Speedometer	-	Refer to SYSTEM DESCRIPTION .
Turn Signal Lamp (RH)	Green	Refer to TURN SIGNAL INDICATOR LAMP .
High Beam Indicator Lamp	Blue	Refer to HIGH BEAM INDICATOR LAMP .
SRS Air Bag Warning Lamp	Red	Refer to SRS AIR BAG WARNING LAMP .
Charge Warning Lamp	Red	Refer to CHARGE WARNING LAMP (VR30DDTT MODELS) (VR30DDTT models). Refer to CHARGE WARNING LAMP (2.0L TURBO GASOLINE ENGINE MODELS) (2.0L Turbo Gasoline Engine Models).
Low Tire Pressure Warning Lamp	Yellow	Refer to LOW TIRE PRESSURE WARNING LAMP .
Malfunction Indicator Lamp (MIL)	Yellow	Refer to MALFUNCTION INDICATOR LAMP (MIL) (VR30DDTT ENGINE MODELS) (VR30DDTT models). Refer to MALFUNCTION INDICATOR LAMP (MIL) (2.0L TURBO GASOLINE ENGINE MODELS) (2.0L Turbo Gasoline Engine Models).
ABS Warning Lamp	Yellow	Refer to ABS WARNING LAMP .
Brake Warning Lamp	Red	Refer to BRAKE WARNING LAMP .
ECO Drive Indicator Lamp	Green	Refer to ECO DRIVE INDICATOR LAMP .
