With ICC

1. Remove Steering Switch. Refer to REMOVAL AND INSTALLATION .

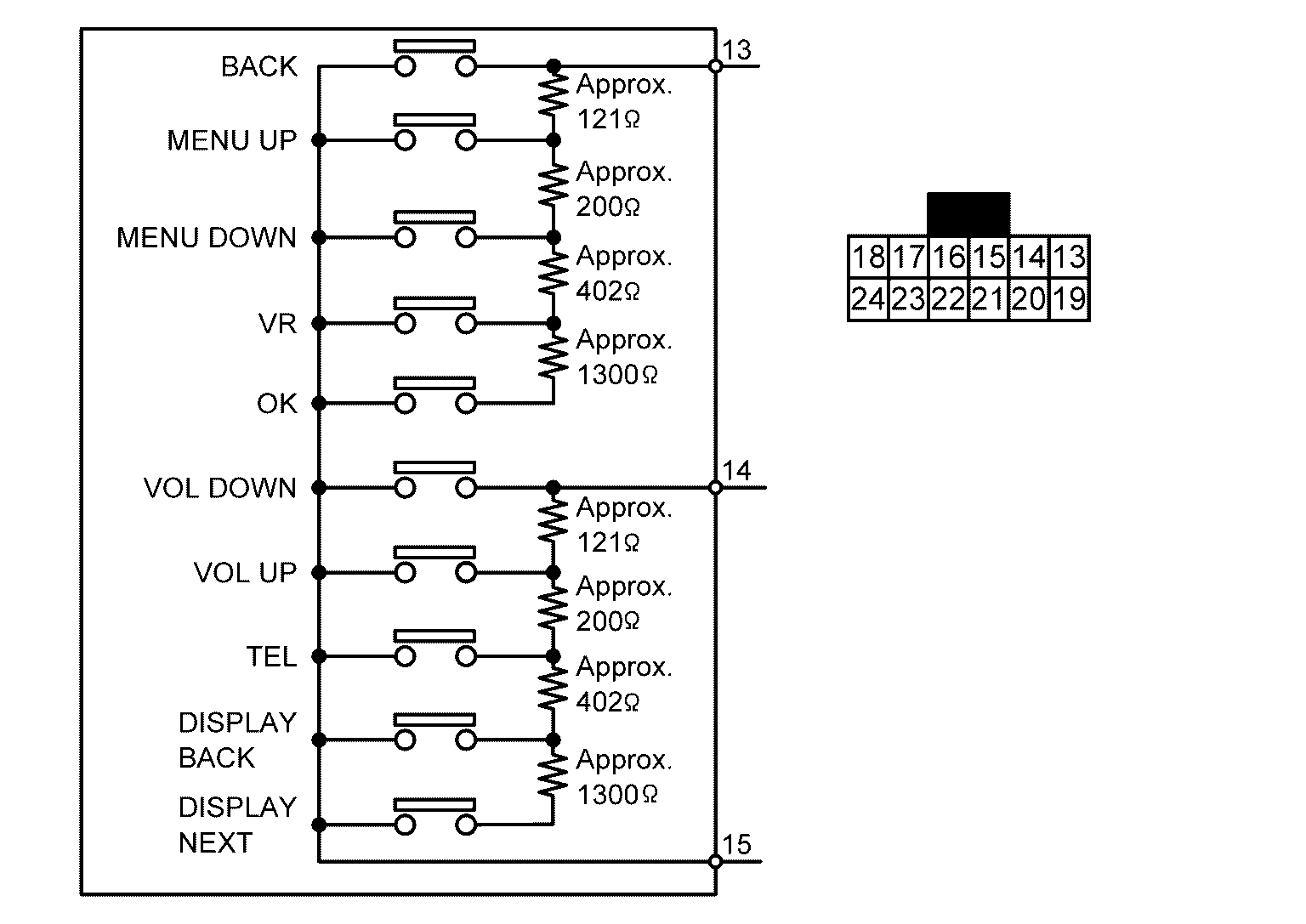

2. Measure the resistance between the Steering Switch connector.

   Steering Switch		Condition	Resistance (Approx.) Ω
   Terminal	Terminal
   13	15	OK Switch is pressed	1982 - 2064
   		VR Switch is pressed	708 - 738
   		MENU DOWN Switch is pressed	314 - 328
   		MENU UP Switch is pressed	118 - 124
   		BACK Switch is pressed	0
   14		DISPLAY NEXT Switch is pressed	1982 - 2064
   		DISPLAY BACK Switch is pressed	708 - 738
   		TEL Switch is pressed	314 - 328
   		VOL UP Switch is pressed	118 - 124
   		VOL DOWN Switch is pressed	0

   Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES

INSPECTION END

NO

Replace Steering Switch. Refer to REMOVAL AND INSTALLATION .
