2.0L Turbo Gasoline Engine

  1. CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (MAIN)

    1. Remove the Fuel Level Sensor Unit And Fuel Pump (Main). Refer to REMOVAL AND INSTALLATION .
    2. Check the resistance between Fuel Level Sensor Unit And Fuel Pump (Main).

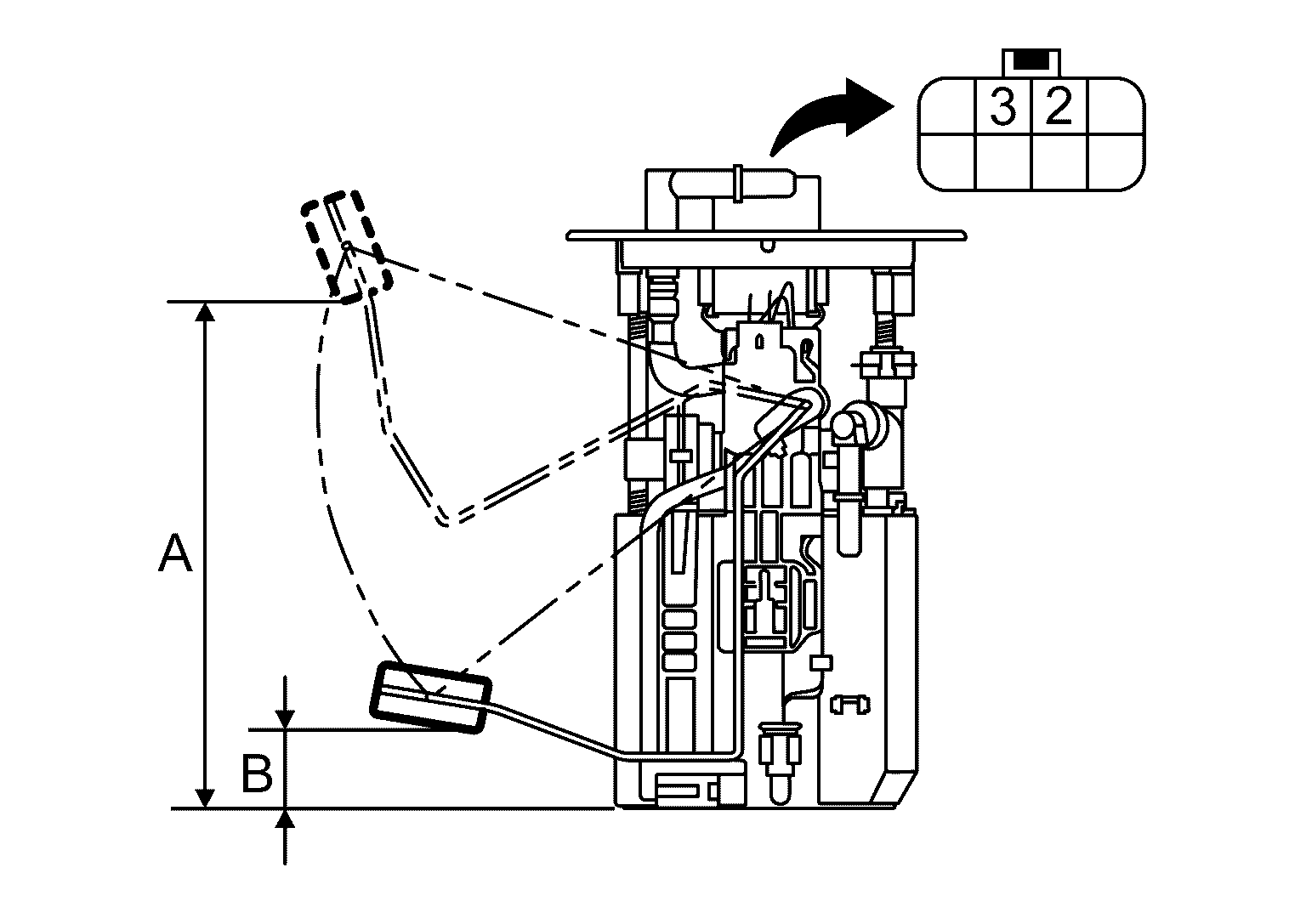

      GNSJSNIA9725ZZ-725Courtesy of NISSAN NORTH AMERICA, INC.
      Terminals Condition Resistance (Ω)
      (Approx.)      		 Height [mm (in)]
      Fuel Level Sensor Unit And Fuel Pump (Main)
      2 3 Full* (A) 44 183.0 (7.205)
      Empty* (B) 142 26.0 (1.024)

      * : When float rod is contact with stopper.

    Is inspection result normal?

    YES

    GO TO STEP 2.

    NO

    Replace Fuel Level Sensor Unit And Fuel Pump (Main). Refer to REMOVAL AND INSTALLATION .

  2. CHECK FUEL LEVEL SENSOR UNIT (SUB)

    1. Remove the Fuel Level Sensor Unit (Sub). Refer to REMOVAL AND INSTALLATION .
    2. Check the resistance between Fuel Level Sensor Unit (Sub).
      GNSJSNIA9727ZZ-727Courtesy of NISSAN NORTH AMERICA, INC.
      Terminals Condition Resistance (Ω)
      (Approx.)      		 Height [mm (in)]
      Fuel Level Sensor Unit (Sub)
      2 3 Full* (A) 7 14.7 (0.579)
      Empty* (B) 142 183.7 (7.232)

      * : When float rod is contact with stopper.

    Is inspection result normal?

    YES

    INSPECTION END

    NO

    Replace Fuel Level Sensor Unit (Sub). Refer to REMOVAL AND INSTALLATION .
